Controls enable you to prompt users for a parameter value. When you create a parameter as part of a report or graph, HTML Composer automatically adds a control, Submit button, and Reset button for the parameter to your layout. The parameter appears on the Parameters tab. You can also add an input control and bind it to a parameter.
When you delete a parameter in Report Painter that was assigned a control in HTML Composer, you must delete the associated controls individually in the layout.
Controls, with the exception of a text box which does not supply a list of possible values, can supply values with a dynamic or static list of values:
The active report controls cannot be associated to any parameters in the layout. This type of control can only be associated with an active report in the layout.
The properties of a control, as well as the parameters associated with each control, can be controlled with the Properties tab of the Properties window, and with the Parameters tab. For details, see Working With the Properties Window and Working With the Parameters Tab, respectively.
Note: Pertaining to the Default selection property, at run time, when using a combo box, there must be a value selected. In order to have nothing selected, you must add the Make selection value.
For details about static and dynamic controls, see Creating a Static List of Values and Creating a Dynamic List of Values.
For details about active controls, see Creating Active Technologies Dashboards With HTML Composer.
When a report contains one or more new amper variable parameters created in Report Painter, the New Parameters dialog box appears when you save the report. You can set the Control Type for each parameter prior to returning to HTML Composer. This eliminates the need to select each parameter individually to set the associated Control Type.
If you reference or import an existing report that uses a Master File containing a parameter, the New Parameters dialog box opens with that parameter in the list, as well as any parameters from the report procedure
Note: When referencing or importing an existing report that uses a Master File containing a parameter, the Add “ALL” option and the Add “No Selection” option are unavailable.
If linking hyperlink properties to another page or procedure, HTML Composer parses the other file for unresolved parameters and opens the New Parameters dialog box.

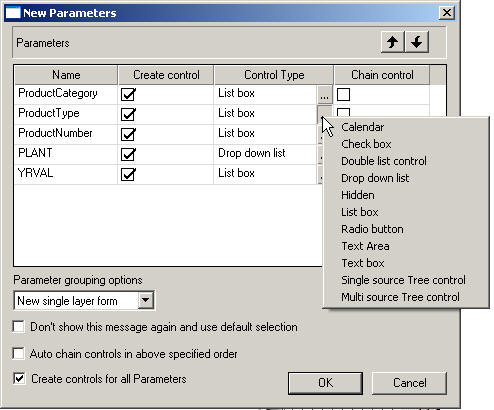

The following image shows the New Parameters dialog box. For each parameter, you will find Name and Control Type fields, a Create control check box, and a Chain control check box. The Control Type ellipsis button enables you to select a new or existing control type for the parameter.
The Parameter grouping options menu in the New Parameters dialog box provides options for the placement of the controls associated with new amper variable parameters created in Report Painter. The option selected is set from the HTML Page tab, which is located in the Developer Studio Options dialog box. You may create a single or multiple layer form, or select an existing form from the layout.
Single layer is the default form type selected in the HTML Page tab. To change the default form type, select Options from the Window menu. The Developer Studio Options dialog box will open. From the Developer Studio Options dialog box, select the HTML Page tab.
Tip: You may view the New Parameters dialog box again by selecting Show New Parameters dialog from the HTML Page tab. To access the HTML Page tab, select Options from the Window menu. The Developer Studio Options dialog box will open. From the Developer Studio Options dialog box, select the HTML Page tab.
To edit the Control Type that you selected from the New Parameters dialog box, select the parameter object on the Parameters tab or the Design tab, right-click, and select the control type option from the Set Control Type menu.
When you create a parameter as part of a report or graph, HTML Composer automatically adds a control, Submit button, and Reset button for the parameter to your layout. Manually adding a control to the layout enables you to create the individual objects on the control.
Inserting a control in the Design view creates the control object in the layout with the Submit button and Reset button. You must manually add the input controls to be used in the control. For more information, see Using Controls to Supply Incoming Parameter Values.
You may select Multiple Layer Form or Single Layer Form as the form type. If no form type is selected, single layer form is the default.
The cursor changes into a crosshair.
To change the default form type, select Options from the Window menu. The Developer Studio Options dialog box opens. From the Developer Studio Options dialog box, select the HTML Page tab.
The multiple layer form contains group boxes around each element in the form. You may move and resize each element of the control. The single layer form contains all of the elements within a single group box.
A control is created in the layout and assigned the form(n), where n is a number.
The Properties and settings dialog box opens. Creating an input control from the Design view prompts you to create a bound parameter on the Parameters tab.
For details about creating parameter values, see Creating Parameter Values.
Binding a control to a parameter will populate the parameter. Drag a control object to a parameter object on the Parameters tab. For details about creating input controls, see Using Input Controls to Supply Parameter Values.
Options are Calendar, Check box, Drop down list, Hidden, List box, Radio button, Text area, Text box, Single source Tree control, and Multi source Tree control.
The following image shows the input control options when right-clicking a control object on the Design tab.
When a control is automatically added to the layout with the New Parameters dialog box, it is associated (bound) to a parameter. Click the Parameters tab and notice the direction of the arrow. The control object is bound to the parameter object, which means that the control will populate the parameter.
If you deselect the Create control option from the New Parameters dialog box, the deselected parameter name is added to the Unbound Parameters box on the Parameters tab. The Unbound Parameters box is a container for the unbound parameters, only for parameters not selected from the New Parameters dialog box. Any parameters created or unbound from the Parameters tab are not automatically moved here. Optionally, you may click and drag parameters to and from the Unbound Parameters box for your own organization.
Controls can be single-select or multiselect. Single-select controls enable you to select a single value from a list of supplied values. Multiselect forms enable you to select multiple values from a list of supplied values.
Examples of single-select controls are:
Examples of multi-select controls are:
A drop-down list is the default control type for all single-select parameters on the New Parameters dialog box. A list box is the default control type for all multi-select parameters on the New Parameters dialog box.
You can change the type of input control using the Parameters tab. For details, see How to Change the Type of Control Associated With a Parameter.
Note: Individual multiselect parameters must be designated as multiselect in Report Painter in order to process multiple values.
When creating parameters, the Grouping option selected in the New Parameters dialog box generates a container for controls. After the container is created, you may choose to delete the container by using the Delete Container Only option. This option allows you to delete the container without deleting the objects inside. You can Delete Container Only using the Edit menu, by using the Ctrl + Delete keys, or by right-clicking the container and selecting Delete Container Only from the context menu.
The following image shows the Delete Container Only option on the Edit menu.
The following image shows the Delete Container Only option on the context menu when right-clicking a container.
Note: If you delete a form container, the Reset button is deleted with the form. The Reset button is deleted because it is attached to the form.
