Controlling Space Between Risers in 3D Charts

How to:

In 3D charts and charts where 2.5D depth is applied with the depth property, the riserDepthGap property adds space between risers that draw behind other risers.

Top of page
x
Syntax: How to Control Space Between Risers in 3D Charts
riserDepthGap: number

where:

number

Is a number between 0 and 1 that defines the margin between the risers as a factor of the depth. The default value is 0.2.
Example: Controlling the Space Between Risers in 3D Charts

The following request generates a 3D area chart with the default space between the risers:

DEFINE FILE WF_RETAIL_LITE
DIFFA = GROSS_PROFIT_US - REVENUE_US;
DIFFB = REVENUE_US - GROSS_PROFIT_US;
DIFFC = COGS_US - (COGS_US * DISCOUNT_US)/100;
DIFFD = COGS_US - MSRP_US;
END
GRAPH FILE WF_RETAIL_LITE
SUM DIFFA DIFFB DIFFC DIFFD
BY PRODUCT_CATEGORY
ON GRAPH PCHOLD FORMAT JSCHART
ON GRAPH SET LOOKGRAPH 3DAREAS
ON GRAPH SET STYLE *
*GRAPH_JS
  riserDepthGap: 0.2,
chartFrame: {border: {width: 1, color: 'grey'}, fill: {color:
'ghostwhite'}},
colorMode: {
   mode: 'byInterpolation',
   colorList: ['red', 'blue']
}
*END
ENDSTYLE
END

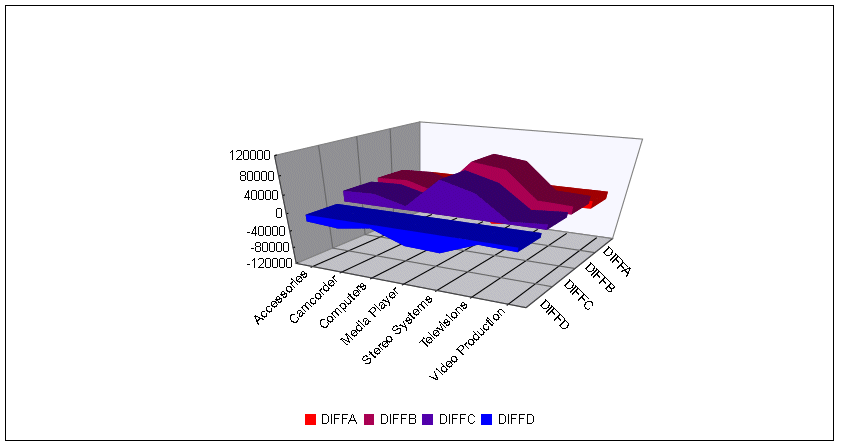

The output is:

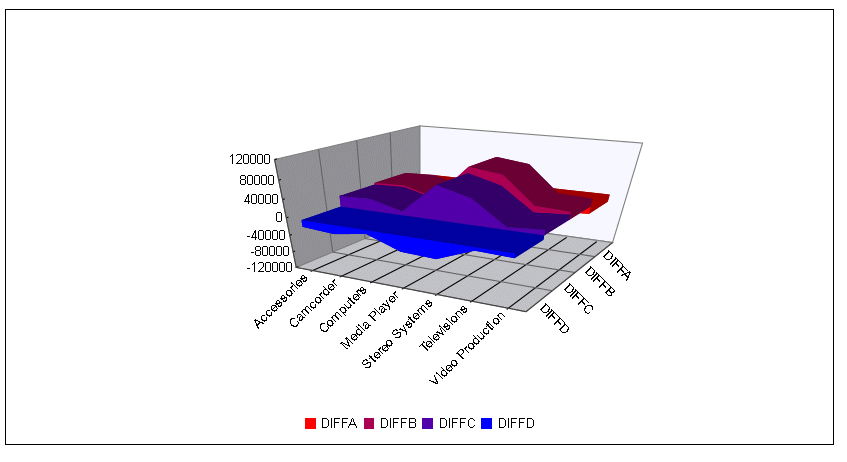

Changing the riserDepthGap to zero (0) generates the following chart:

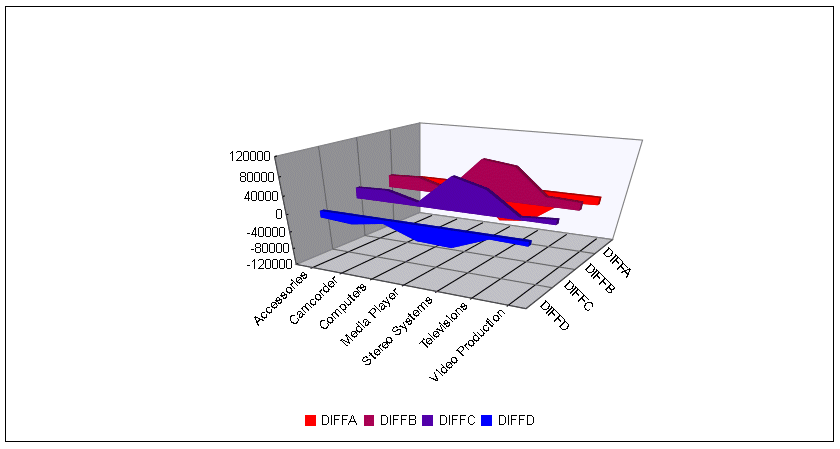

The value 0.9 for riserDepthGap generates the following chart:
