Defining an FML Hierarchy in the Synonym Editor

Reference:

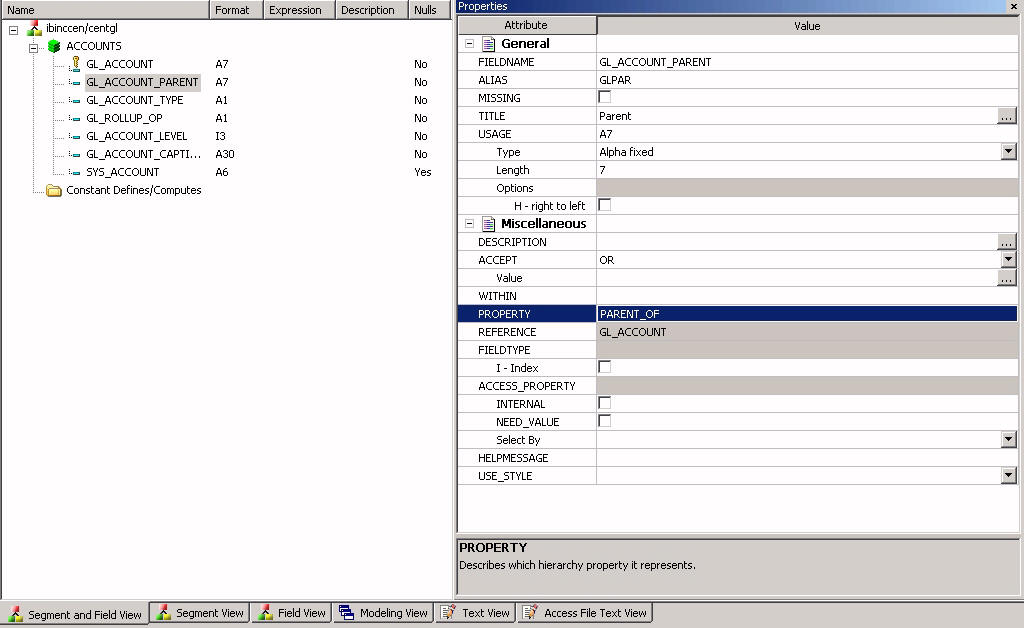

As an alternative to manually coding the hierarchy attributes in a text editor, you can define them using the Synonym Editor. The controlling attributes are PROPERTY and REFERENCE in the Synonym Editor.


Top of page

x
Reference: Synonym Editor: Column and Field Attributes

The Synonym Editor opens to the Tree View tab, which shows a hierarchy of segments and columns on the left, with the attributes and values of the selected field on the right.

Columns in a synonym can have the following attributes:

General
FIELDNAME

Is the name of the column.

ALIAS

Assigns an alternative name for a column, or the real column name for a DBMS synonym.

MISSING

Controls how null data is handled, that is, if no transaction value is supplied.

TITLE

Supplies a title to replace the column name that is normally used in reports and enables you to specify multiple language titles for the column or field.

USAGE

Describes the data type and format for the column for usage or display.

Note: Additional attributes, DEFCENT and YRTHRESH, are available if the Usage field is set to Date, Time, or DateTime (Timestamp) format. Use these attributes to enter the century and year threshold values for the column or field.

Miscellaneous
DESCRIPTION

Contains a description or comments about the column or field.

ACCEPT

Specifies criteria for validating data.

OR

Enables you to specify an acceptable value.

FROM-TO

Enables you to specify a range of acceptable value fields.

FIND

Enables you to supply file and field names to instruct WebFOCUS where to search for a data source and for a list of acceptable values. You supply the field name of the data field for which the validation criteria are being assigned, the file name of the target FOCUS data source where the field can be found, and the field name of the target data field that contains the validation criteria.

Note: Find is only available for FOCUS data sources and does not apply to OLAP-enabled Master Files. Note also that, in the Maintain environment, Find is not supported when developing a Master File.

WITHIN

Contains the name of a field to be included in a dimension.

PROPERTY

Sets the property for the field.

REFERENCE

Enables you to reference another data source.

FIELDTYPE

Identifies an indexed column.

Note: FIELDTYPE=R indicates a read-only column, which will not be updated by DataMigrator flows. This setting is useful for columns are that automatically assigned a value by the RDBMS, such as a Sybase or Microsoft SQL Server Identity or Timestamp column.

ACCESS_PROPERTY

Specifies access options for data in the column.

INTERNAL

Defines a column that does not appear in sample data or in the list of available columns. Restricts the field from showing in any of the Field Lists in the reporting tools.

NEED_VALUE

Defines a column that requires a value to access the data.

Select By

Defines a column by value, range, or multivalues.

AUTHRESP

Defines a column that describes the result of an authentication operation. Correct response values must be provided in the ACCEPT attribute (using the OR predicate if more than one value is acceptable).

AUTHTOKEN

Defines a column that contains a response token to be passed as an input value to the operation to be executed.

HELPMESSAGE

Appends a help message to a column.

Note: The attributes available depend on the type of synonym.
