The border properties define a border for all risers, for all risers in an individual series, or for an individual riser identified by a series and group number. It can be used for area risers, bar risers, funnel segments, gauge needles, and pie slices.
series: [ { series: snumber, group: gnumber, // optional border: { width: wnumber, color: 'cstring', dash: 'dstring' }, } ]
where:
Is a zero-based series number. If the series does not exist in the chart, the property is ignored.
Is an optional zero-based group number. If the group does not exist in the chart, the property is ignored. If a group number is not specified, the border is applied to all risers in the series.
Is a number that defines the width of the border in pixels.
Is a color defined by a color name or numeric specification string.
For information about defining colors, see Colors and Gradients.
Is a string that defines the border dash style. Use a string of numbers that defines the width of a dash in pixels followed by the width of the gap between dashes in pixels.
The following request generates a bar chart with three series. The risers for series 0 have a green dashed border, and the risers for series 2 have a red solid border:
GRAPH FILE WF_RETAIL_LITE SUM COGS_US GROSS_PROFIT_US REVENUE_US ACROSS PRODUCT_CATEGORY ON GRAPH PCHOLD FORMAT JSCHART ON GRAPH SET LOOKGRAPH VBAR ON GRAPH SET STYLE * *GRAPH_JS series: [ {series: 0, color: 'aquamarine', border: {width: 2, color: 'green', dash: '2 2'}}, {series: 1, color: 'burlywood'}, {series: 2, color: 'coral', border: {width: 2, color: 'red'}}, ] *END ENDSTYLE END

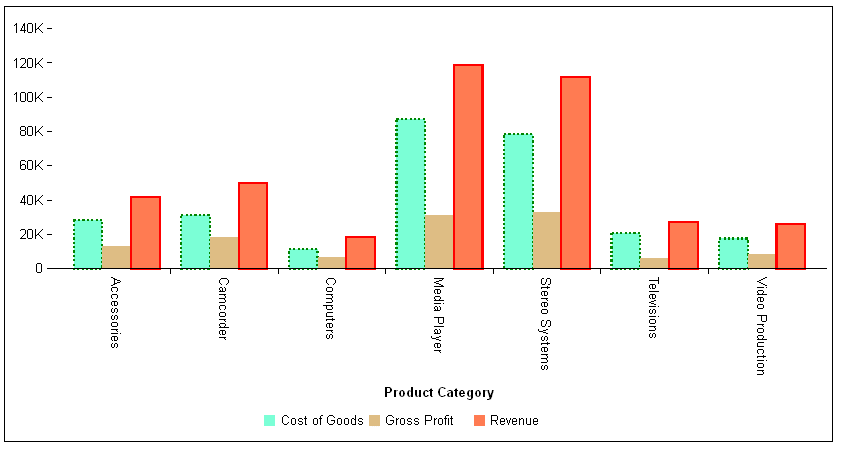

The output is:
The following request generates a stacked area chart. The riser for series 0 has a blue solid border, the riser for series 1 has a brown dashed border, and the riser for series 2 has a red solid border:
GRAPH FILE WF_RETAIL_LITE SUM COGS_US GROSS_PROFIT_US REVENUE_US ACROSS PRODUCT_CATEGORY ON GRAPH PCHOLD FORMAT JSCHART ON GRAPH SET LOOKGRAPH VAREASTK ON GRAPH SET STYLE * *GRAPH_JS series: [ {series: 0, color: 'aquamarine', border: {width: 3, color: 'blue'}}, {series: 1, color: 'burlywood', border: {width: 4, color: 'brown', dash: '2 2'} }, {series: 2, color: 'coral', border: {width: 2, color: 'red'} }, ] *END ENDSTYLE END

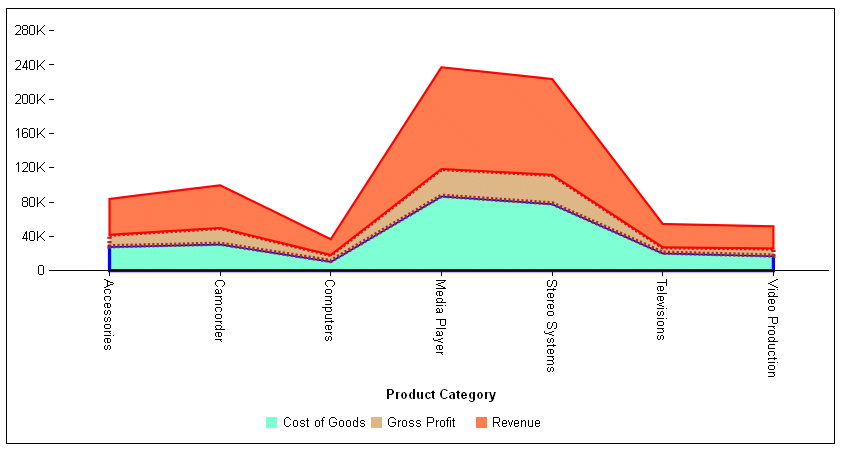

The output is:
The following request generates a pie chart and defines borders for some of the slices:
GRAPH FILE WF_RETAIL_LITE SUM COGS_US ACROSS PRODUCT_CATEGORY ON GRAPH PCHOLD FORMAT JSCHART ON GRAPH SET LOOKGRAPH PIE ON GRAPH SET STYLE * *GRAPH_JS series: [ {series: 0, color: 'cyan', border: {width: 4, color: 'blue'}}, {series: 1, color: 'slateblue', border: {width: 4, color: 'navy', dash: '2 4'}}, {series: 2, color: 'red'}, {series: 3, color: 'green', border: {width: 4, color: 'limegreen'}}, {series: 4, color: 'orange'}, {series: 5, color: 'blue', border: {width: 4, color: 'lightblue', dash: '4 2'}}, {series: 6, color: 'bisque', border: {width: 4, color: 'green'}} ] *END ENDSTYLE END

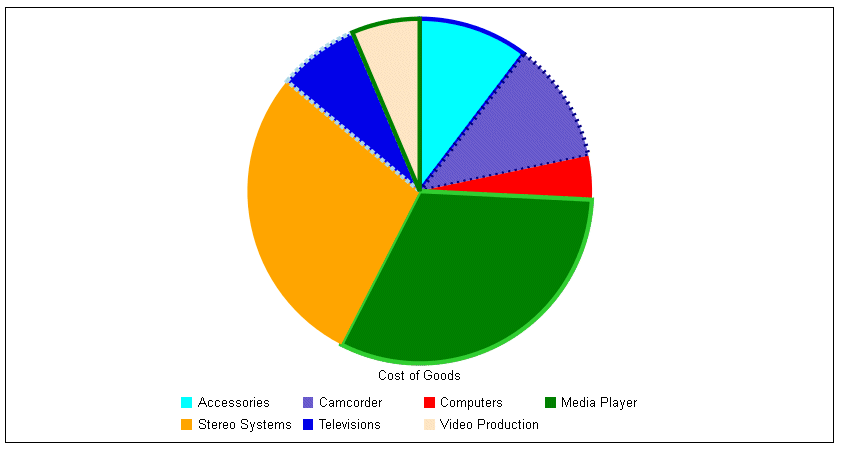

The output is:
