How to: |
The swapData property can be used to swap series and group orientation. When false (the default), values in a row in a data set are represented as series. When true, values in a column are represented as series.
swapData: boolean
where:
Can be:
The following request generates a vertical bar chart:
GRAPH FILE WF_RETAIL_LITE
SUM COGS_US GROSS_PROFIT_US REVENUE_US DISCOUNT_US
ACROSS TIME_DAYNAME
WHERE TIME_DAYNAME EQ 'FRI' OR 'SAT' OR 'SUN' OR 'MON'
ON GRAPH PCHOLD FORMAT JSCHART
ON GRAPH SET LOOKGRAPH VBAR
ON GRAPH SET STYLE *
*GRAPH_JS
swapData:false,
series: [
{series: 0, color: 'lightgreen'},
{series: 1, color: 'coral'},
{series: 2, color: 'lightblue'},
{series: 3, color: 'burlywood'}
]
*END
INCLUDE=ENIADefault_combine.sty,$
ENDSTYLE
END

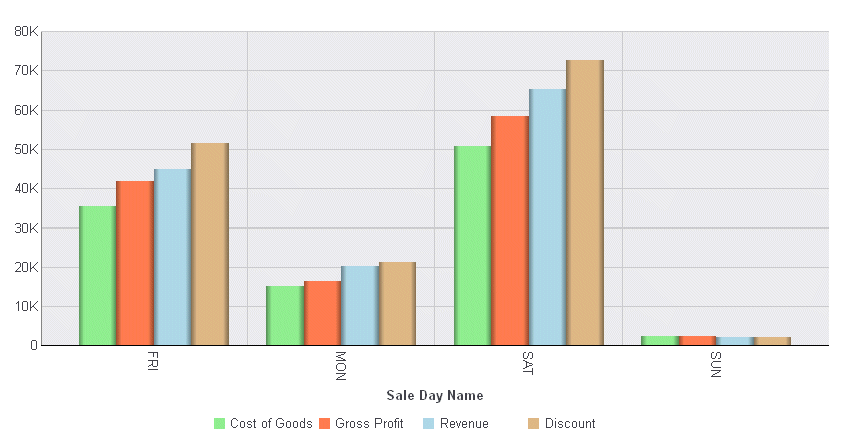

On the output:
Changing the swapData property to true generates the following chart, in which:
Although the labels did not change, the series and groups have been swapped:
To swap the labels as well as the series and group orientation, see Swapping Series, Group, and Label Orientation.
