WebFOCUS reporting procedures (FOCEXECs) are used to integrate between WebFOCUS and ArcGIS Server. There are three types of FOCEXECs that may be defined to the WebFOCUS GIS Adapter using the ESRI Configuration Utility:
Many of the properties are common across all three types of FOCEXECs.
The bindings between FOCEXECs and ArcGIS Server are defined by inbound layers and/or outbound layers.
The following list describes the inbound layers and outbound layers that define the bindings between FOCEXECs and ArcGIS Server.
For more information, see Configuring Inbound Layers.
For more information, see Configuring Outbound Layers.
To configure a Report FOCEXEC:

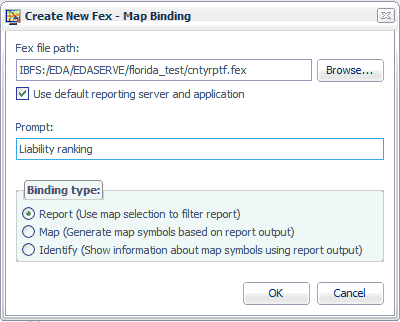

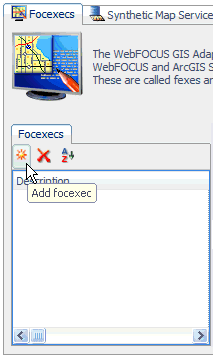

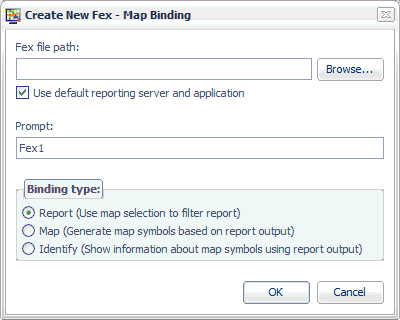

The Create New Fex dialog opens, as shown in the following image.

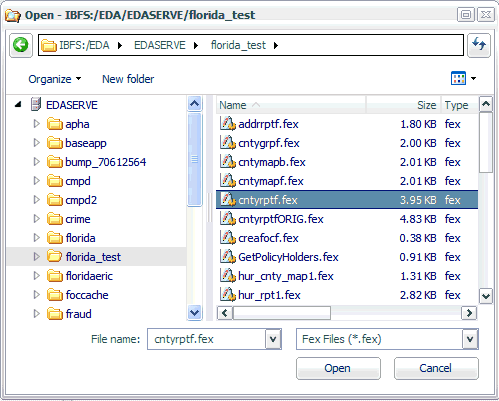

The Open dialog is displayed.
The default path that is provided is the application folder on the WebFOCUS Reporting Server that you selected from the Browse Path dialog when you opened the ESRI Configuration Utility to create a new XML definition file.
You are returned to the Create New Fex dialog box opens, as shown in the following image.
Notice that the path to the Report FOCEXEC (for example, cntyrptf.fex) is now added to the Fex file path field.
The Prompt value that you provide is used to identify the Report FOCEXEC in the WebFOCUS Report component of the WebFOCUS GIS Viewer for Flex.
The Report FOCEXEC (for example, Liability ranking) is added to the FOCEXECs pane in the ESRI Configuration Utility, as shown in the following image.

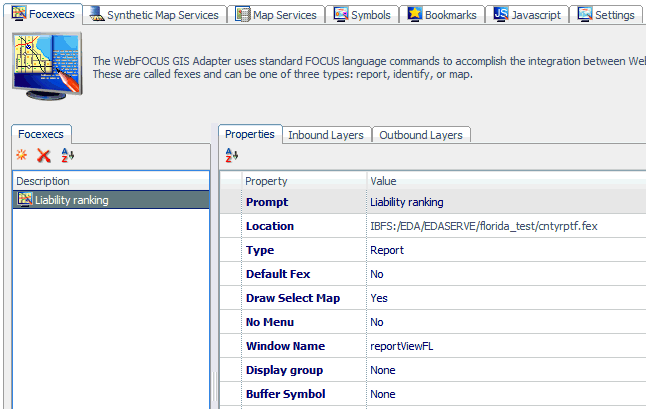

The Properties tab lists the available configuration properties for the Report FOCEXEC. The following table lists and describes these properties.
Property |
Description |
---|---|
Prompt |
The Prompt value that you specified in the Create New Fex dialog. |
Location |
The path to the selected Report FOCEXEC on the server. |
Type |
The type of FOCEXEC (Report, Map, or Identify), as indicated by the selection made from the Binding type list in the Create New Fex dialog. |
Default Fex |
Designates this Report FOCEXEC to be the report that is launched when no other is specified. The default value is No. |
Draw Select Map |
Changes the map view after the user makes a selection. The WebFOCUS GIS Viewer for Flex displays a map image with the selections of the user changed according to the symbol chosen for the inbound layer. |
No Menu |
Removes this procedure from the menu of the WebFOCUS GIS Viewer for Flex. |
Window Name |
Displays the report output in a new window. This option can be used for all report output formats that are not HTML, such as PDF and Excel. |
Display Group |
Assigns the Report FOCEXEC to a display group. This is reflected in the menu for reports. The menu hierarchy displays as Layer-Display Group-Prompt. |
Buffer Fixed |
Determines whether the buffer distances are preset or can be changed from the user interface. |
Buffer Type |
The type of buffer to perform around the graphic or around selected features. Available values from the drop-down list include feature, sketch, disabled, and normal. |
Buffer Symbol |
Allows you to select a Buffer symbol style from the drop-down list to be used by your Report FOCEXEC. |
Buffer Units |
The unit of measure used for buffering. |
Buffer Distance |
The distance values used for buffering. This can be a list of comma-separated values. |
To configure a Map FOCEXEC:

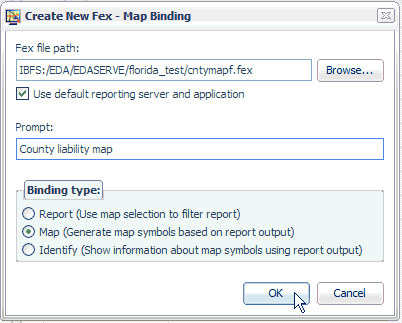

The Create New Fex dialog opens, as shown in the following image.

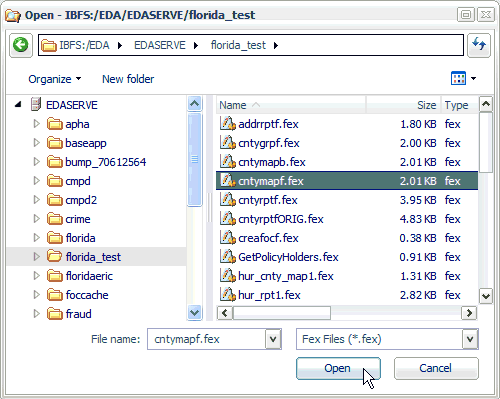

The Open dialog is displayed.
The default path that is provided is the application folder on the WebFOCUS Reporting Server that you selected from the Browse Path dialog when you opened the ESRI Configuration Utility to create a new XML definition file.
You are returned to the Create New Fex dialog opens, as shown in the following image.
Notice that the path to the Map FOCEXEC (for example, cntymapf.fex) is now added to the Fex file path field.
The Prompt value that you provide is used to identify the Map FOCEXEC in the WebFOCUS Map component of the WebFOCUS GIS Viewer for Flex.
The Map FOCEXEC (for example, County liability map) is added to the FOCEXECs pane in the ESRI Configuration Utility, as shown in the following image.

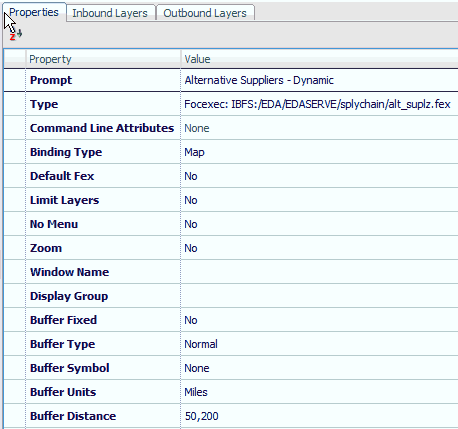

The Properties tab lists the available configuration properties for the Map FOCEXEC. The following table lists and describes these properties.
Property |
Description |
---|---|
Prompt |
The Prompt value that you specified in the Create New Fex dialog. |
Location |
The path to the selected Map FOCEXEC on the server. |
Type |
The type of FOCEXEC (Report, Map, or Identify), as indicated by the selection made from the Binding type list in the Create New Fex dialog. |
Default Fex |
Designates this Map FOCEXEC to be the report that is launched when no other is specified. The default value is No. |
Limit Layers |
Displays layers that are only listed within the Outbound area. |
No Menu |
Removes this procedure from the menu of the WebFOCUS GIS Viewer for Flex. |
Zoom |
Zooms into the area that was selected in the WebFOCUS GIS Viewer for Flex. |
Window Name |
Displays the map output in a new window. |
Display Group |
Assigns the Map FOCEXEC to a display group. |
Buffer Fixed |
Determines whether the buffer distances are preset or can be changed from the user interface. |
Buffer Type |
The type of buffer to perform around the graphic or around selected features. Available values from the drop-down list include feature, sketch, disabled, and normal. |
Buffer Symbol |
Allows you to select a Buffer symbol style from the drop-down list to be used by your Report FOCEXEC. |
Buffer Units |
The unit of measure used for buffering. |
Buffer Distance |
The distance values used for buffering. This can be a list of comma-separated values. |
To configure an Identify FOCEXEC:
The Create New Fex dialog opens, as shown in the following image.
The Open dialog is displayed.
The default path that is provided is the application folder on the WebFOCUS Reporting Server that you selected from the Browse Path dialog when you opened the ESRI Configuration Utility to create a new XML definition file.
You are returned to the Create New Fex dialog opens, as shown in the following image.
Notice that the path to the Identify FOCEXEC (for example, itest1f.fex) is now added to the Fex file path field.
The Prompt value that you provide is used to identify this FOCEXEC in the WebFOCUS Identify component of the WebFOCUS GIS Viewer for Flex.
The Identify FOCEXEC (for example, Identify County) is added to the FOCEXECs pane in the ESRI Configuration Utility, as shown in the following image.

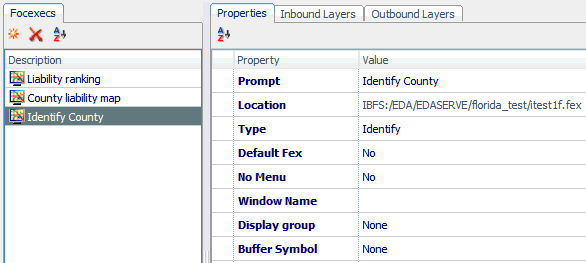

The Properties tab lists the available configuration properties for the Identify FOCEXEC. The following table lists and describes these properties.
Property |
Description |
---|---|
Prompt |
The Prompt value that you specified in the Create New Fex dialog. |
Location |
The path to the selected Identify FOCEXEC on the server. |
Type |
The type of FOCEXEC (Report, Map, or Identify), as indicated by the selection made from the Binding type list in the Create New Fex dialog. |
Default Fex |
Designates this Identify FOCEXEC to be the report that is launched when no other is specified. The default value is No. |
No Menu |
Removes this procedure from the menu of the WebFOCUS GIS Viewer for Flex. |
Window Name |
Displays the report output in a new window. |
Display Group |
Assigns the Identify FOCEXEC to a display group. |
Buffer Symbol |
Allows you to select a Buffer symbol style from the drop-down list to be used by your Identify FOCEXEC. |
How to: |
Inbound layer definitions are used to identify which attribute is extracted from a map layer when a user draws a selected area on the map.

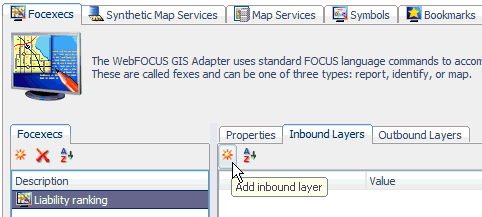

To configure an inbound layer:

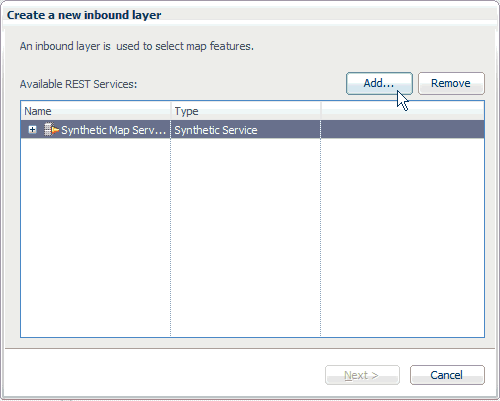

The Create a new inbound layer dialog opens, as shown in the following image.
You must first configure a connection to an available ArcGIS Server.
The REST Service Connection Information dialog opens, as shown in the following image.
The Use proxy to access REST service check box provides you with the option to enable or disable usage of the proxy.jsp file to navigate to a REST endpoint when adding a new map service. This option is enabled by default.
If the Use proxy to access REST service check box is selected, then the proxy.jsp file on the application server must be changed to add the URL to the map server. If the Use proxy to access REST service check box is not selected, and the application server and the map server are not on the same machine, then requests to the map server will fail and an error message indicating a network error is generated. This is the result of a default setting in web browsers, which prevents cross-domain Ajax calls. This setting can be changed in the security settings section of your web browser configuration.
Note: If you are using Microsoft Internet Explorer Version 10 and the Use proxy to access REST service check box is not selected, the following dialog box is displayed.
If you click Yes, then Microsoft Internet Explorer allows you to access the map service without the proxy.jsp. If you click No, an error message indicating Access is denied is displayed.
If you are using Google Chrome and the Use proxy to access REST service check box is not selected, an error message indicating A network error is displayed. If you are using Mozilla Firefox 24 and the Use proxy to access REST service check box is not selected, an error message indicating Failure is displayed. As a workaround, you must select the Use proxy to access REST service check box and edit the proxy.jsp to add a REST endpoint to your proxy list.
To edit the proxy.jsp file, navigate to the following directory:
<WF_HOME>\webapps\webfocus\tools\esri_config\proxy.jsp
Add your REST endpoint, as indicated by the following example:
String[] serverUrls = {
//"<url>[,<token>]"
//For ex. (secured server): "http://myserver.mycompany.com/arcgis/rest/services,ayn2C2iPvqjeqWoXwV
6rjmr43kyo23mhIPnXz2CEiMA6rVu0xR0St8gKsd0olv8a"
//For ex. (non-secured server): "http://sampleserver1.arcgisonline.com/arcgis/rest/services"
"http://informat-65f86f:8399/arcgis/rest/services",
"http://ibigisdev.ibi.com:8399/arcgis/rest/services",
"http://ibigis10.ibi.com:8399/arcgis/rest/services",
"http://tsssvz01:8399/arcgis/rest/services",
"http://sampleserver1.arcgisonline.com/arcgis/rest/services",
"http://sampleserver2.arcgisonline.com/arcgis/rest/services" //NOTE - no comma after the last item
};
Note: As a best practice, do not include an ending forward slash (/) character when specifying an ArcGIS Server URL in the proxy.jsp file. If a forward slash character is specified, then you must ensure that the value entered in the Instance field of the REST Service Connection Information dialog also contains a forward slash at the end.
You are returned to the Create a new inbound layer dialog.

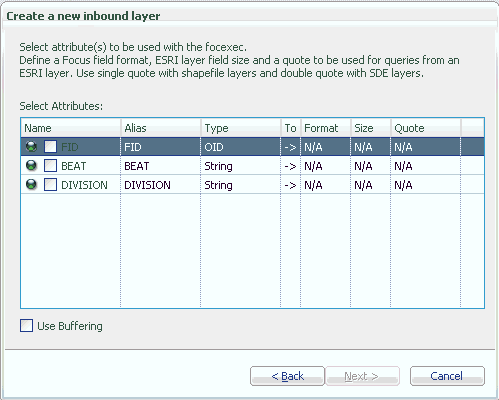

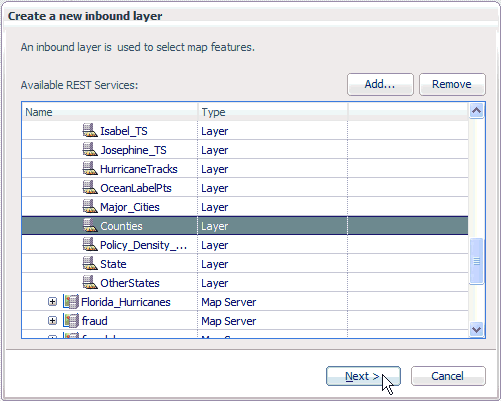

The Select Attributes dialog opens, which is populated with all of the attribute names from the layer that was selected.
You can modify the Format, Size, and Quote value columns according to your requirements.
The Format column reflects the FOCEXEC format to be used for conversion. Valid FOCUS formats are used with a length (for example, A30, D10.2).
The Size column reflects the length of the map service layer field.
The Quote column reflects the type of quote to use for querying the map service layer field. Use single quotes for shape file layers and double quotes for SDE layers.

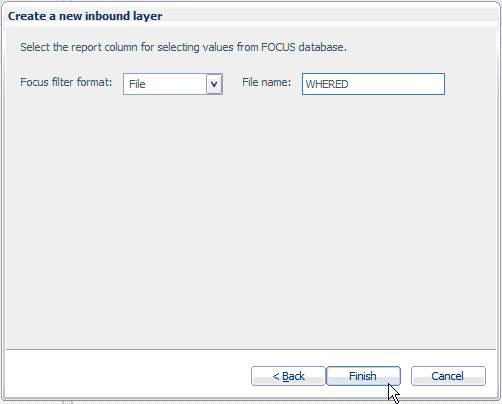

The following dialog opens, which allows you to select the report column for selecting values from a FOCUS database.
The available choices allow you to pass a sequential file of values, a string of alphanumeric values enclosed in single quotes and separated by "OR", or a string of numeric values separated by "OR".
The value that you provide in the File name field is used to name the filter variable or file that the adapter passes to WebFOCUS.

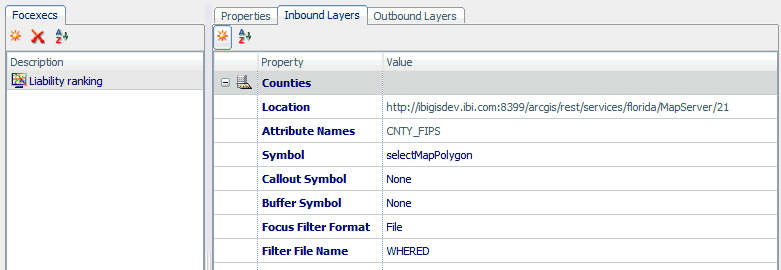

The inbound layer definition is listed in the Inbound Layers tab of the FOCEXECs configuration area, as shown in the following image.
The Properties table lists the available configuration properties for the inbound layer definition. The following table lists and describes these properties.
Property |
Description |
---|---|
Location |
The location of the map layer. |
Attribute Names |
The selected attribute(s) for the inbound layer definition. |
Symbol |
Allows you to select an available symbol definition from the drop-down list that will be used to render the map illustrating which features have been selected. |
Callout Symbol |
Allows you to select a callout symbol style from the drop-down list to be used by your FOCEXEC. |
Buffer Symbol |
Allows you to select a buffer symbol style from the drop-down list to be used by your FOCEXEC. |
Focus Filter Format |
The current filter type that is being used by the inbound layer definition (File, String Amper, or Numeric Amper). |
Filter File Name |
The filter variable or file for the inbound layer definition. |
How to: |
Outbound layer definitions are used to identify which layer of the map will be rendered by the WebFOCUS GIS Adapter. The information is used to associate the data source column that WebFOCUS accesses with the map layer attribute that ArcGIS Server uses to uniquely identify features.
To configure an outbound layer:

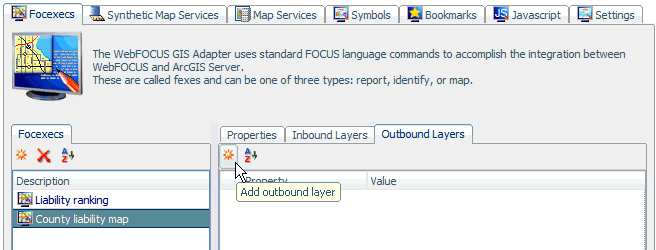

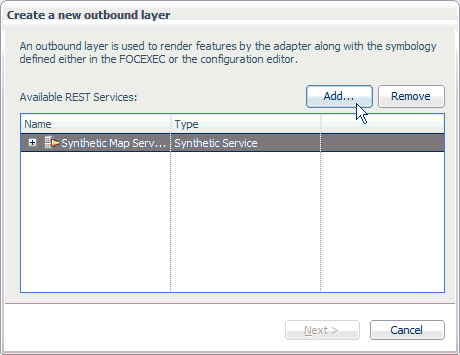

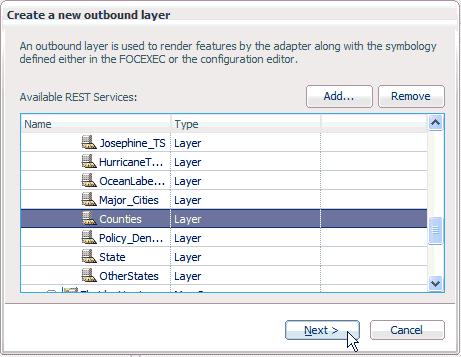

The Create a new outbound layer dialog opens, as shown in the following image.
You must first configure a connection to an available ArcGIS Server.
The REST Service Connection Information dialog opens, as shown in the following image.
The Use proxy to access REST service check box provides you with the option to enable or disable usage of the proxy.jsp file to navigate to a REST endpoint when adding a new map service. This option is enabled by default.
If the Use proxy to access REST service check box is selected, then the proxy.jsp file on the application server must be changed to add the URL to the map server. If the Use proxy to access REST service check box is not selected, and the application server and the map server are not on the same machine, then requests to the map server will fail and an error message indicating a network error is generated. This is the result of a default setting in web browsers, which prevents cross-domain Ajax calls. This setting can be changed in the security settings section of your web browser configuration.
Note: If you are using Microsoft Internet Explorer Version 10 and the Use proxy to access REST service check box is not selected, the following dialog box is displayed.
If you click Yes, then Microsoft Internet Explorer allows you to access the map service without the proxy.jsp. If you click No, an error message indicating Access is denied is displayed.
If you are using Google Chrome and the Use proxy to access REST service check box is not selected, an error message indicating A network error is displayed. If you are using Mozilla Firefox 24 and the Use proxy to access REST service check box is not selected, an error message indicating Failure is displayed. As a workaround, you must select the Use proxy to access REST service check box and edit the proxy.jsp to add a REST endpoint to your proxy list.
To edit the proxy.jsp file, navigate to the following directory:
<WF_HOME>\webapps\webfocus\tools\esri_config\proxy.jsp
Add your REST endpoint, as indicated by the following example:
String[] serverUrls = {
//"<url>[,<token>]"
//For ex. (secured server): "http://myserver.mycompany.com/arcgis/rest/services,ayn2C2iPvqjeqWoXwV
6rjmr43kyo23mhIPnXz2CEiMA6rVu0xR0St8gKsd0olv8a"
//For ex. (non-secured server): "http://sampleserver1.arcgisonline.com/arcgis/rest/services"
"http://informat-65f86f:8399/arcgis/rest/services",
"http://ibigisdev.ibi.com:8399/arcgis/rest/services",
"http://ibigis10.ibi.com:8399/arcgis/rest/services",
"http://tsssvz01:8399/arcgis/rest/services",
"http://sampleserver1.arcgisonline.com/arcgis/rest/services",
"http://sampleserver2.arcgisonline.com/arcgis/rest/services" //NOTE - no comma after the last item
};
Note: As a best practice, do not include an ending forward slash (/) character when specifying an ArcGIS Server URL in the proxy.jsp file. If a forward slash character is specified, then you must ensure that the value entered in the Instance field of the REST Service Connection Information dialog also contains a forward slash at the end.
You are returned to the Create a new outbound layer dialog.

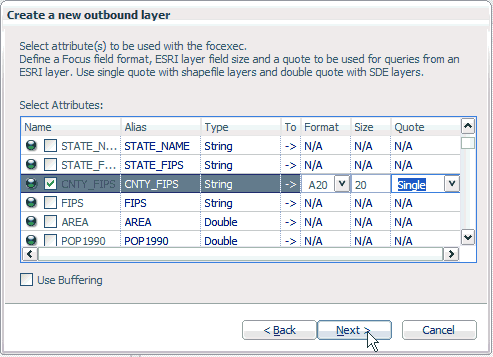

The Select Attributes dialog opens, which is populated with all of the attribute names from the layer that was selected.
You can modify the Format, Size, and Quote value columns according to your requirements.
The Format column reflects the FOCEXEC format to be used for conversion. Valid FOCUS formats are used with a length (for example, A30, D10.2).
The Size column reflects the length of the map service layer field.
The Quote column reflects the type of quote to use for querying the map service layer field. Use single quotes for shape file layers and double quotes for SDE layers.

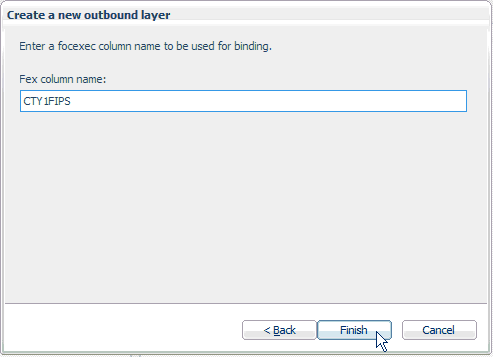

The following dialog opens, which allows you to specify a FOCEXEC column name to be used for binding.
The new outbound layer definition is listed in the Outbound Layers tab of the FOCEXECs configuration area, as shown in the following image.
The Properties table lists the available configuration properties for the outbound layer definition. The following table lists and describes these properties.
Property |
Description |
---|---|
Location |
The location of the map layer. |
Attribute Names |
The selected attribute(s) for the outbound layer definition. |
Symbol |
Allows you to select an available symbol definition from the drop-down list that will be used to render the map illustrating which features have been selected. |
Callout Symbol |
Allows you to select a callout symbol style from the drop-down list to be used by your FOCEXEC. |
Fex Column Name |
The specified FOCEXEC column name to be used for binding. |
Image |
Refers to a FOCUS Report Column to use for the IMAGE field. This image field can be used to symbolize point features. |
Label Field |
Refers to a FOCUS Report Column to use for labeling features on an outbound layer. |
Rollover |
Enables or disables rollover (mouse over) support for the outbound layer. The default value is No. |
Color |
These fields contain the default field names that may be present in the XML output the WebFOCUS GIS Adapter will process. The actual field names are present in the FOCEXEC. Refer to the DEFINE or COMPUTE lines for the specific names. |
Shape | |
Size | |
Text | |
Title | |
Other Symbol |
Allows you to select an additional symbol from the drop-down list. |
Text Symbol |
Allows you to select an available text symbol from the drop-down list. |
Polygon Text Symbol |
Allows you to select an available polygon text symbol from the drop-down list. |
Grid Display Info Field |
Refers to a list of FOCUS Report Column(s) to be displayed in the Data View widget. |
Color Table |
Allows you to specify a color table to be used by the outbound layer. |
