Controlling the Position of the Legend

How to:

The position property controls the location of the legend.


Top of page

x
Syntax: How to Control the Legend Position
legend: {position: 'string'}

where:

position: 'string'

Is a string that defines the location of the legend. Valid values are:

  • 'bottom'. This is the default value.
  • 'free' (floating).

    Note: When legend position is set to "free", the legend may draw on top of other chart objects. Use the legend:xy property to define the location of the legend.

  • 'left'.
  • 'right'.
  • 'top'.
  • 'auto'. The chart engine positions the legend.


Example: Controlling the Legend Position

The following request moves the legend to the left of the chart and draws a border around it:

GRAPH FILE WF_RETAIL_LITE
SUM DISCOUNT_US GROSS_PROFIT_US REVENUE_US MSRP_US
BY PRODUCT_CATEGORY
ON GRAPH PCHOLD FORMAT JSCHART
ON GRAPH SET LOOKGRAPH VBAR
ON GRAPH SET STYLE *
INCLUDE=IBFS:/FILE/IBI_HTML_DIR/javaassist/intl/EN/ENIADefault_combine.sty,$
*GRAPH_JS
   legend: {
     position: 'left',
   lineStyle: {width: 2, color: 'indianred', dash: '4 4'}
   },
series: [
    {series: 0, color: 'lightgreen'},
    {series: 1, color: 'coral'},
    {series: 2, color: 'lightblue'},
    {series: 3, color: 'burlywood'}
]
*END
ENDSTYLE
END

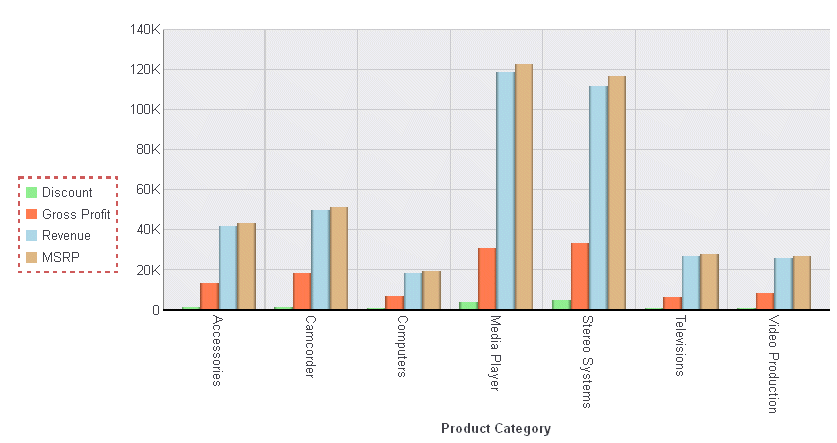

The output is:

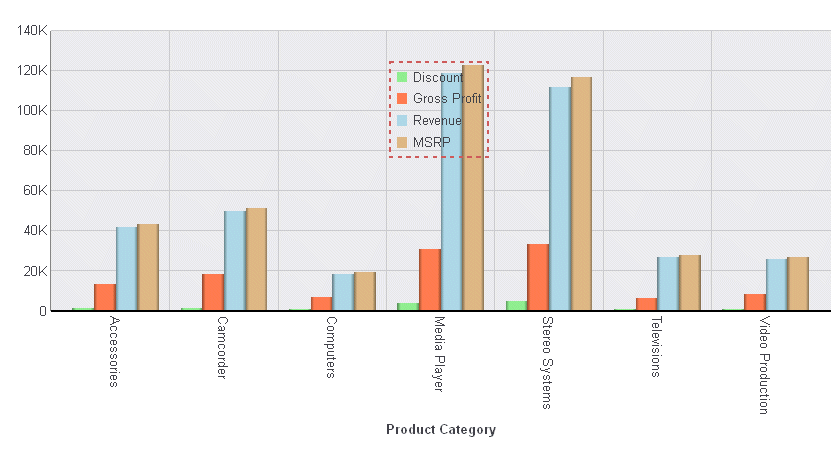

Changing the legend position to 'free' generates the following chart on which the legend is on top of some of the risers:

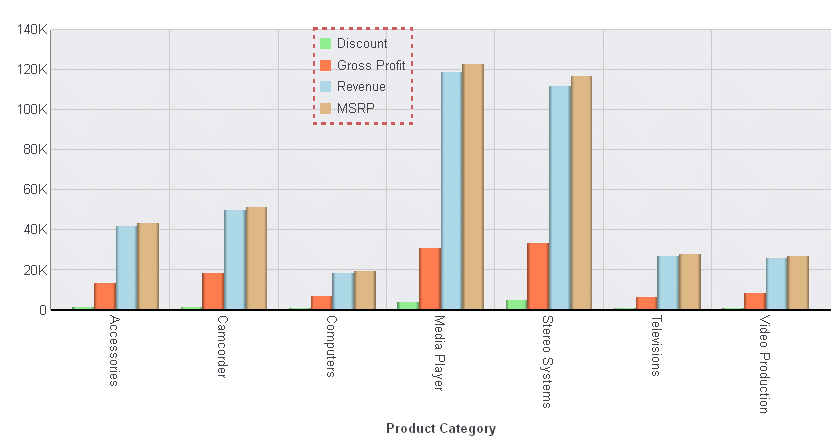

The position can be moved by specifying x and y locations for the legend:

legend: {
     position: 'free',
    xy: {x:280, y:20},
    lineStyle: {width: 2, color: 'indianred', dash: '4 4'}
   }

The output is:
