Chart Type Notes and Sample Charts

In this section:



This section shows simple WebFOCUS requests that create different chart types. Subsequent chapters describe the JSON methods and properties available for each type of chart.


Top of page

x
Line Charts

Line charts are useful for emphasizing the movement or trend of numeric data over time, since they allow a viewer to trace the evolution of a particular point by working backwards or interpolating. Highs and lows, rapid or slow movement, or a tendency toward stability are all types of trends that are well suited to a line chart.

Line charts can also be plotted with two or more scales to suggest a comparison of the same value, or set of values, in different time periods. The number of scales your chart has depends on the type of chart you select.



Example: Sample Line Chart

The following request creates a line chart (ON GRAPH SET LOOKGRAPH LINE). The y-axis represents cost of goods sold (COGS_US), and the x-axis represents the product category. The JSON block of the style section sets the series color to green:

GRAPH FILE WF_RETAIL_LITE
SUM COGS_US
ACROSS PRODUCT_CATEGORY
ON GRAPH PCHOLD FORMAT JSCHART
ON GRAPH SET LOOKGRAPH LINE
ON GRAPH SET STYLE *
INCLUDE=IBFS:/FILE/IBI_HTML_DIR/javaassist/intl/EN/ENIADefault_combine.sty,$
*GRAPH_JS
series: [{series:0, color: 'green'}]
*END
ENDSTYLE
END

Since there is only one display field in the request, it represents series 0 and it is displayed in green:

For more information about setting color properties, see Introduction to JSON Properties for HTML5 Charts.


Top of page

x
Bar Charts

A bar chart plots numeric data by displaying rectangular blocks against a scale. The length of a bar corresponds to a value or amount. Viewers can develop a clear mental image of comparisons among data series by distinguishing the relative heights of the bars. Use a bar chart to display numeric data when you want to present comparisons of data.

WebFOCUS supports a variety of bar chart styles. For a list of bar chart styles available, see Bar Chart Styles and Three-Dimensional Chart Styles.



Example: Sample Bar Chart

The following request creates a vertical bar chart (ON GRAPH SET LOOKGRAPH VBAR). The JSON block in the style section of the request sets the series colors:

GRAPH FILE WF_RETAIL_LITE
SUM COGS_US GROSS_PROFIT_US REVENUE_US DISCOUNT_US
ACROSS PRODUCT_CATEGORY
ON GRAPH PCHOLD FORMAT JSCHART
ON GRAPH SET LOOKGRAPH VBAR
ON GRAPH SET STYLE *
INCLUDE=IBFS:/FILE/IBI_HTML_DIR/javaassist/intl/EN/ENIADefault_combine.sty,$
*GRAPH_JS
series: [
    {series: 0, color: 'lightgreen'},
    {series: 1, color: 'coral'},
    {series: 2, color: 'lightblue'},
    {series: 3, color: 'burlywood'},
]
*END
ENDSTYLE
END

The output is:



Example: Sample 3D Bar Chart

The following request creates a 3D bar chart (ON GRAPH SET LOOKGRAPH 3D_BAR). The JSON block in the style section of the request sets the series colors:

GRAPH FILE WF_RETAIL_LITE
SUM COGS_US GROSS_PROFIT_US REVENUE_US DISCOUNT_US
ACROSS PRODUCT_CATEGORY
ON GRAPH PCHOLD FORMAT JSCHART
ON GRAPH SET LOOKGRAPH 3D_BAR
ON GRAPH SET STYLE *
INCLUDE=IBFS:/FILE/IBI_HTML_DIR/javaassist/intl/EN/ENIADefault_combine.sty,$
*GRAPH_JS
legend: {visible: true},
series: [
    {series: 0, color: 'lightgreen'},
    {series: 1, color: 'coral'},
    {series: 2, color: 'lightblue'},
    {series: 3, color: 'burlywood'},
]
*END
ENDSTYLE
END
TYLE
END

The output is:


Top of page

x
Pie Charts

A pie chart emphasizes where your data fits in relation to a larger whole. Each slice represents a percentage of the whole. Keep in mind that pie charts work best when your data falls into a limited number of groups. Too many groups divide the pie into small segments that are difficult to see. Use color or texture on individual segments to create visual contrast.

Note: Adding multiple sort fields to a pie chart is not supported.



Example: Sample Pie Chart

The following request creates a pie chart (ON GRAPH SET LOOKGRAPH PIE). Each slice of the pie shows the percentage of cost of goods sold contributed by each product category. The JSON block in the style section of the request sets the slice colors:

GRAPH FILE WF_RETAIL_LITE
SUM COGS_US
ACROSS PRODUCT_CATEGORY
ON GRAPH PCHOLD FORMAT JSCHART
ON GRAPH SET LOOKGRAPH PIE
ON GRAPH SET STYLE *
INCLUDE=IBFS:/FILE/IBI_HTML_DIR/javaassist/intl/EN/ENIADefault_combine.sty,$
*GRAPH_JS
legend:{visible:false},
mouseOverIndicator: {enabled: true,color: 'yellow'},
series: [
   {series: 0, color: 'cyan'},
   {series: 1, color: 'pink'},
   {series: 2, color: 'slateblue'},
   {series: 3, color: 'burlywood'},
   {series: 4, color: 'lightgreen'},
   {series: 5, color: 'blue'},
   {series: 6, color: 'red'},
]
*END
ENDSTYLE
END

The output shows the default labels displayed when the mouse hovers over a pie slice:


Top of page

x
Scatter Charts

Scatter charts show the relationship between two different numeric measures. Use a scatter plot to visualize the density of individual data values around particular points or to demonstrate patterns in your data.

A scatter chart has a numeric x-axis, or sort field. Scatter charts and line charts are distinguishable from one another only by virtue of their x-axis data type. Line charts can appear without connecting lines (making them look like scatter charts) and scatter charts can appear with connecting lines (making them look like line charts).



Example: Sample Scatter Chart

The following request creates a scatter chart (ON GRAPH SET LOOKGRAPH SCATTER). The HEADING phrase in the request creates a heading for the chart. The JSON block in the style section of the request sets the chart border color and the marker shape, border, and color:

GRAPH FILE WF_RETAIL_LITE
HEADING CENTER
"Sample Scatter Chart"
SUM DAYSDELAYED
ACROSS TIME_DAY
ON GRAPH PCHOLD FORMAT JSCHART
ON GRAPH SET LOOKGRAPH SCATTER
ON GRAPH SET STYLE *
INCLUDE=IBFS:/FILE/IBI_HTML_DIR/javaassist/intl/EN/ENIADefault_combine.sty,$
*GRAPH_JS
border: {color: 'navy'},
series: [
   {series: 0, color: 'cyan', marker: {shape: 'triangle', size: 12,
border: {width: 1, color:'blue'}}}
]
*END
ENDSTYLE
END

The output is:

Note that the heading is positioned on the HTML page outside of the chart frame. It is also centered on the HTML page. If you want to place the heading inside of the chart and have it centered on the chart, add the ON GRAPH SET EMBEDHEADING ON command to your request:

GRAPH FILE WF_RETAIL_LITE
HEADING CENTER
"Sample Scatter Chart"
SUM DAYSDELAYED
ACROSS TIME_DAY
ON GRAPH SET EMBEDHEADING ON
ON GRAPH PCHOLD FORMAT JSCHART
ON GRAPH SET LOOKGRAPH SCATTER
ON GRAPH SET STYLE *
INCLUDE=IBFS:/FILE/IBI_HTML_DIR/javaassist/intl/EN/ENIADefault_combine.sty,$
*GRAPH_JS
border: {color: 'navy'},
series: [
   {series: 0, color: 'cyan', marker: {shape: 'triangle', size: 12,
border: {width: 1, color:'blue'}}}
]
*END
ENDSTYLE
END

The output is:


Top of page

x
Area Charts

Area charts are similar to line charts, except that the area between the data line and the zero line (or axis) is usually colored or textured. Area charts allow you to stack data on top of each other. Stacking allows you to highlight the relationship between data series, showing how some data series approach or shadow a second series.



Example: Sample Area Chart

The following request creates four virtual fields and then uses them to produce a vertical area chart (ON GRAPH SET LOOKGRAPH VAREA). The JSON block in the style section of the request sets the series colors:

DEFINE FILE WF_RETAIL_LITE
DIFFA = GROSS_PROFIT_US - REVENUE_US;
DIFFB = REVENUE_US - GROSS_PROFIT_US;
DIFFC = COGS_US - MSRP_US;
DIFFD = MSRP_US - COGS_US;
END
GRAPH FILE WF_RETAIL_LITE
SUM DIFFA DIFFB DIFFC DIFFD
BY PRODUCT_CATEGORY
ON GRAPH PCHOLD FORMAT JSCHART
ON GRAPH SET LOOKGRAPH VAREA
ON GRAPH SET STYLE *
INCLUDE=IBFS:/FILE/IBI_HTML_DIR/javaassist/intl/EN/ENIADefault_combine.sty,$
*GRAPH_JS
series: [
    {series: 0, color: 'lightgreen'},
   {series: 1, color: 'coral'},
    {series: 2, color: 'lightblue'},
    {series: 3, color: 'burlywood'},
],
*END
ENDSTYLE
END

The output is:



Example: Sample 3D Area Chart

The following request creates four virtual fields and uses them to produce a 3D area chart (ON GRAPH SET LOOKGRAPH 3DAREAS). The JSON block in the style section of the request sets the legend position and the series colors:

DEFINE FILE WF_RETAIL_LITE
DIFFA = GROSS_PROFIT_US - REVENUE_US;
DIFFB = REVENUE_US - GROSS_PROFIT_US;
DIFFC = COGS_US - (COGS_US * DISCOUNT_US)/100;
DIFFD = COGS_US - MSRP_US;
END
GRAPH FILE WF_RETAIL_LITE
SUM DIFFA DIFFB DIFFC DIFFD
BY PRODUCT_CATEGORY
ON GRAPH PCHOLD FORMAT JSCHART
ON GRAPH SET LOOKGRAPH 3DAREAS
ON GRAPH SET STYLE *
INCLUDE=IBFS:/FILE/IBI_HTML_DIR/javaassist/intl/EN/ENIADefault_combine.sty,$
*GRAPH_JS
legend: {visible: true, position: 'bottom'},
series: [
    {series: 0, color: 'cyan'},
    {series: 1, color: 'bisque'},
    {series: 2, color: 'lightblue'},
    {series: 3, color: 'pink'},
]
*END
ENDSTYLE
END

The output is:


Top of page

x
Boxplots

In a boxplot, each series and group requires five values. For a given series and group box, the first value is the minimum (lower hat), the second defines the box bottom, the third value is median line, the fourth value defines the box top, and the fifth value defines the location of the top hat. Values must be in ascending order. Box plot fill color and border are defined by the series color and border.



Example: Sample Boxplot

The following request calculates the five values needed for a boxplot and then generates a boxplot (ON GRAPH SET LOOKGRAPH BOXPLOT). The JSON block in the style section of the request sets the series colors and border width.

DEFINE FILE WF_RETAIL_LITE
DIFF1 = COGS_US  -100000;
DIFF2 = COGS_US  -200000;
DIFF3 = COGS_US +100000;
DIFF4 = COGS_US +200000;
END
GRAPH FILE WF_RETAIL_LITE
SUM DIFF1 DIFF2 MDN.COGS_US  DIFF3 DIFF4
BY PRODUCT_CATEGORY
ON GRAPH PCHOLD FORMAT JSCHART
ON GRAPH SET LOOKGRAPH BOXPLOT
ON GRAPH SET STYLE *
INCLUDE=IBFS:/FILE/IBI_HTML_DIR/javaassist/intl/EN/ENIADefault_combine.sty,$
*GRAPH_JS
Series: [ {series: 0, color: 'lightblue', border: {width: 1}} ]
*END
ENDSTYLE
END

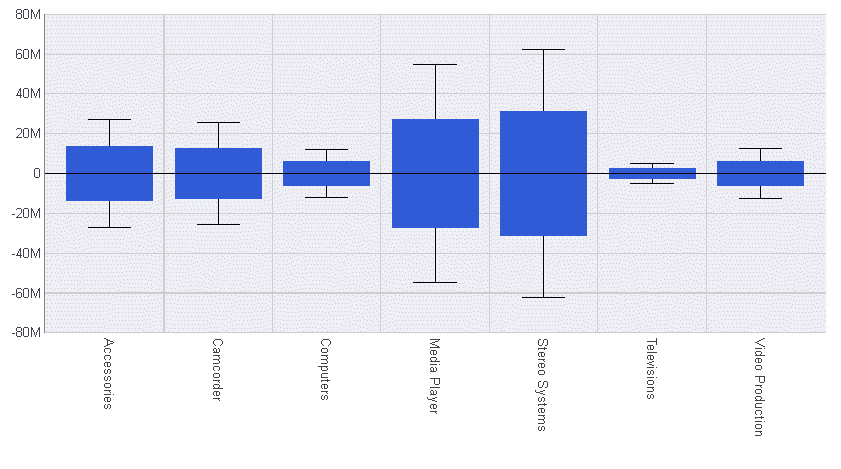

The output is:


Top of page

x
Bubble Charts

A bubble chart is an enhanced scatter plot in which the size of each marker is proportional to the value of a third measure. Therefore, a bubble chart requires three values, (x-position, y-position, and size) to draw each bubble marker.

A negative size value is treated as positive (that is, it uses the absolute value of the data). A null, undefined, or zero size will eliminate the marker. Sizes are proportional according to the range of size values in the data set. Disparate marker size values will draw a large marker that exceeds the draw area.



Example: Sample Bubble Chart

The following request generates a bubble chart (ON GRAPH SET LOOKGRAPH BUBBLE). The chart uses the included StyleSheet and default settings, so the style section of the request does not include a JSON block.

GRAPH FILE WF_RETAIL_LITE
SUM REVENUE_US MSRP_US DISCOUNT_US
BY PRODUCT_CATEGORY
ON GRAPH PCHOLD FORMAT JSCHART
ON GRAPH SET LOOKGRAPH BUBBLE
ON GRAPH SET STYLE *
INCLUDE=IBFS:/FILE/IBI_HTML_DIR/javaassist/intl/EN/ENIADefault_combine.sty,$
ENDSTYLE
END

On the output, the bubble size depends on the discount, while the axes show the manufacturer suggested retail price and revenue:


Top of page

x
Funnel Charts

A funnel chart is basically a pie chart that shows only one group of data at a time. The series in the group are stacked in the funnel with the first series at the top and the last series at the bottom. In the funnel chart, the display field functions as the group, and the sort fields function as the series.

Series-specific properties control the color of funnel segments.



Example: Sample Funnel Chart

The following request generates a funnel chart (ON GRAPH SET LOOKGRAPH FUNNEL). The output uses the included StyleSheet file and accepts all other defaults, so there is no JSON block in the style section:

GRAPH FILE WF_RETAIL_LITE
SUM  REVENUE_US
BY PRODUCT_CATEGORY
ON GRAPH PCHOLD FORMAT JSCHART
ON GRAPH SET LOOKGRAPH FUNNEL
ON GRAPH SET STYLE *
INCLUDE=IBFS:/FILE/IBI_HTML_DIR/javaassist/intl/EN/ENIADefault_combine.sty,$
ENDSTYLE
END

The output is:


Top of page

x
Gauge Charts

Gauges identify a single value along an axis that is usually displayed in a circle. They are often used in dashboards to display progress or quantity.

The numeric y-axis properties control scaling, tick marks, and colors assigned to segments of the gauge axis.



Example: Sample Gauge Chart

The following request generates a gauge chart (ON GRAPH SET LOOKGRAPH GAUGE1). The JSON block in the style section of the request sets the color bands and major grid line style using y-axis properties:

GRAPH FILE WF_RETAIL_LITE
SUM  REVENUE_US
BY PRODUCT_CATEGORY
WHERE PRODUCT_CATEGORY EQ 'Computers'
ON GRAPH PCHOLD FORMAT JSCHART
ON GRAPH SET LOOKGRAPH GAUGE1
ON GRAPH SET STYLE *
*GRAPH_JS
yaxis: {
    min: 0,
    max: 50,
    colorBands: [
       {start: 1,stop: 10,color: 'red'},
       {start: 10,stop: 30,color: 'yellow'},
       {start: 30,stop: 40,color: 'lightgreen'},
       {start: 40,stop: 50,color: 'green'},
    ],
    majorGrid: {
       visible:true,lineStyle: {width: 2,color: 'rgb(196,48,178)'},
    }
}
*END
ENDSTYLE
END

The output is:


Top of page

x
Heatmaps

Heatmaps (or spectral charts) contain a row or column matrix of rectangles that are displayed in different colors depending on the data values. They use the same kind of data as bar, line, and area charts (an array of arrays). Each internal array forms a row in the heatmap table.

Series labels are plotted on the left edge according to settings in z-axis properties. Group labels are plotted on the bottom edge according to x-axis properties. The colorScale:colors property controls the color of the cells in the heatmap table.



Example: Sample Heatmap

The following request generates a heatmap (ON GRAPH SET LOOKGRAPH SPECTRAL). The JSON block in the style section of the request sets the color scale using the y-axis properties.

GRAPH FILE WF_RETAIL_LITE
SUM  REVENUE_US AS 'Revenue'
        GROSS_PROFIT_US AS 'Profit'
BY PRODUCT_SUBCATEG
ON GRAPH PCHOLD FORMAT JSCHART
ON GRAPH SET LOOKGRAPH SPECTRAL
ON GRAPH SET STYLE *
INCLUDE=IBFS:/FILE/IBI_HTML_DIR/javaassist/intl/EN/ENIADefault_combine.sty,$
*GRAPH_JS
colorScale: {colors: ['tan', 'antiquewhite'] }
*END
ENDSTYLE
END

The output is:


Top of page

x
Histograms

A histogram is a graphical representation that visually depicts the distribution of data. The sort field for a histogram is numeric, while for bar chart, it is usually categorical.

In a vertical histogram, the y-axis is on the left side of the chart and the x-axis is drawn on the bottom of the chart. In a horizontal histogram, the x-axis is on the left side of the chart and the y-axis axis is drawn on the bottom of the chart.



Example: Sample Histogram

The following request generates a vertical histogram (ON GRAPH SET LOOKGRAPH VHISTOGR). The JSON block in the style section of the request sets the number of x-axis groups to use and makes the legend not visible.

GRAPH FILE WF_RETAIL_LITE
SUM  REVENUE_US
BY COGS_US
ON GRAPH PCHOLD FORMAT JSCHART
ON GRAPH SET LOOKGRAPH VHISTOGR
ON GRAPH SET STYLE *
INCLUDE=IBFS:/FILE/IBI_HTML_DIR/javaassist/intl/EN/ENIADefault_combine.sty,$
*GRAPH_JS
histogramProperties: {
   binCount: 5,
},
legend: {visible: false},
*END
ENDSTYLE
END

The output is:


Top of page

x
Mekko Charts

A mekko (also called marimekko) chart is a percent bar chart, except that the width of each bar riser is based on the overall value of the stack. You can use any data set that works for a regular or stacked bar chart.



Example: Sample Mekko Chart

The following request creates a mekko chart (ON GRAPH SET LOOKGRAPH MEKKO). The virtual field REGION groups the data into a reasonable number of categories. The JSON block in the style section of the request sets the series colors and borders:

DEFINE FILE WF_RETAIL_LITE
REGION/A12 = IF STATE_PROV_CODE_ISO_3166_2 EQ 'CT' OR 'MA' OR 'ME' OR 'NH' OR 'RI' OR 'VT'
                                 OR 'NJ' OR 'NY' OR 'PA' THEN 'North'
              ELSE IF STATE_PROV_CODE_ISO_3166_2 EQ 'IA' OR 'ID' OR  'IN' OR 'IL' OR 'OK' OR  'KS'
                                 OR 'OH' OR 'MI' OR 'MN'
                                  OR 'OK' OR 'MO' OR  'MS' OR  'ND' OR 'NE'
                                 OR  'SD' OR  'WI' THEN 'Central'

              ELSE IF STATE_PROV_CODE_ISO_3166_2 EQ 'AL' OR 'DC' OR 'DE' OR 'FL' OR 'GA' OR 'KY'
                                 OR 'LA' OR 'MD' OR 'NC' OR 'SC' OR 'TN'
                                 OR 'TX' OR 'VA' OR 'WV' THEN 'South'
              ELSE IF STATE_PROV_CODE_ISO_3166_2 EQ 'CA' OR 'OR' OR 'WA' OR 'AR' OR 'AZ' OR 'CO' OR 'MN' OR  'MT' OR 'ID'
                                 OR 'NM' OR 'WY'
                                 OR 'NV' OR 'UT' OR 'WY' THEN 'West';
END
GRAPH FILE WF_RETAIL_LITE
SUM COGS_US GROSS_PROFIT_US REVENUE_US DISCOUNT_US MSRP_US
BY REGION
WHERE COUNTRY_NAME EQ 'United States'
ON TABLE PCHOLD FORMAT JSCHART
ON GRAPH SET LOOKGRAPH MEKKO
ON GRAPH SET STYLE *
INCLUDE=IBFS:/FILE/IBI_HTML_DIR/javaassist/intl/EN/ENIADefault_combine.sty,$
*GRAPH_JS
series: [{series: 0, color: 'grey',border: {width: 1, color: 'black'}},
{series: 1, color: 'lightgrey',border: {width: 1, color: 'black'}},
{series: 2, color: 'beige',border: {width: 1, color: 'black'}},
{series: 3, color: 'burlywood',border: {width: 1, color: 'black'}}, ]
*END
ENDSTYLE
END

The output is:


Top of page

x
Parabox Charts

Parallel coordinates is a popular method of visualizing high-dimensional data using dynamic queries. The parabox chart type is similar to a regular line chart, except that each group in the line chart has a unique and interactive numeric axis.

Each colored line represents one series of data. Each vertical bar represents a numeric axis. You can click first, then you can drag along each of the axes to select (filter) the lines that pass through that part of the axis.



Example: Sample Parabox Chart

The following request creates a parabox chart (ON GRAPH PCHOLD FORMAT PARABOX). The JSON block of the style section makes the legend visible:

GRAPH FILE WF_RETAIL_LITE
SUM COGS_US AS 'Cost'
GROSS_PROFIT_US AS 'Profit'
REVENUE_US DISCOUNT_US MSRP_US
AVE.COGS_US AS 'Ave. Cost'
AVE.GROSS_PROFIT_US AS 'Ave. Profit'
MAX.REVENUE_US
MIN.DISCOUNT_US
MDN.MSRP_US AS 'MDN MSRP'
BY PRODUCT_CATEGORY
ON TABLE PCHOLD FORMAT JSCHART
ON GRAPH SET LOOKGRAPH PARABOX
ON GRAPH SET STYLE *
INCLUDE=IBFS:/FILE/IBI_HTML_DIR/javaassist/intl/EN/ENIADefault_combine.sty,$
*GRAPH_JS
legend: {visible: true}
*END
ENDSTYLE
END

The output is:


Top of page

x
Pareto Charts

A pareto chart is similar to a combo chart. The first series (series zero) draws as an absolute bar chart on the y-axis. The second series (series one, derived using the same field as series 0) draws as a cumulative percent line on the y2-axis. This enables you to see not only the amount contributed by each group, but also which groups contribute the highest percentage to the total.

Note: The Y1 axis maximum value in a Pareto chart is set as the total of all of the risers. We recommend that you not customize the maximum y-axis value. It should be left as Automatic (the default setting).



Example: Sample Pareto Chart

The following request creates a pareto chart (ON GRAPH SET LOOKGRAPH PARETO). Both the bars and the line are generated from the single display field, GROSS_PROFIT_US. The JSON block in the style section sets the series colors and marker shapes and labels:

GRAPH FILE WF_RETAIL_LITE
SUM GROSS_PROFIT_US
BY PRODUCT_CATEGORY
ON TABLE PCHOLD FORMAT JSCHART
ON GRAPH SET LOOKGRAPH PARETO
ON GRAPH SET STYLE *
INCLUDE=IBFS:/FILE/IBI_HTML_DIR/javaassist/intl/EN/ENIADefault_combine.sty,$
*GRAPH_JS
mouseOverIndicator: {enabled: true,color: ' '},
legend: {visible: true},
blaProperties: {orientation: 'vertical',lineConnection: 'curved'},
series: [
 {series: 0, color:'rgb(0,142,126)', marker: {visible: true}},
 {series: 1, color:'rgb(152,181,211)', marker: {visible: true},
   label: 'Cum. Percent Profit'},
]
*END
ENDSTYLE
END

The output is:


Top of page

x
Polar Charts

A polar chart is a circular scatter chart. Like scatter charts, a polar chart requires two values to draw each marker.



Example: Sample Polar Chart

The following request creates a polar chart (ON GRAPH SET LOOKGRAPH POLAR). The JSON block in the style section sets the series colors and line styles for the major gridlines of the y-axis:

GRAPH FILE WF_RETAIL_LITE
SUM DAYSDELAYED QUANTITY_SOLD
ACROSS TIME_MTH
ON GRAPH PCHOLD FORMAT JSCHART
ON GRAPH SET EMBEDHEADING ON
ON GRAPH SET LOOKGRAPH POLAR
ON GRAPH SET STYLE *
INCLUDE=IBFS:/FILE/IBI_HTML_DIR/javaassist/intl/EN/ENIADefault_combine.sty,$
*GRAPH_JS
yaxis: {
   majorGrid: {
   lineStyle: {width: 1,color: 'teal',dash: '2 2'},
   }
},
series: [
   {series: 0, color: 'lavender', marker:{size: 15, shape: 'circle',
       border: {width: 1, color: 'purple'}}},
   {series: 1, color: 'cyan', marker:{size: 15, shape: 'triangle',
       border: {width: 1, color: 'green'}}},
]
*END
ENDSTYLE
END

The output is:


Top of page

x
Radar Charts

A radar chart is a circular line chart. Radar charts require one value for each line segment (and marker if shown).



Example: Sample Radar Chart

The following request creates a radar chart (ON GRAPH SET LOOKGRAPH RADARL). The JSON block in the style section sets the color and style for the y-axis major grid lines, and sets the series colors and borders:

GRAPH FILE WF_RETAIL_LITE
SUM AVE.COGS_US MDN.COGS_US
BY PRODUCT_CATEGORY
ON GRAPH PCHOLD FORMAT JSCHART
ON GRAPH SET LOOKGRAPH RADARL
ON GRAPH SET STYLE *
INCLUDE=IBFS:/FILE/IBI_HTML_DIR/javaassist/intl/EN/ENIADefault_combine.sty,$
*GRAPH_JS
legend: {visible: true},
yaxis: {
   majorGrid: {
      lineStyle: {width: 1,color: 'navy',dash: '2 2'},
      }
   },
series: [
   {series: 0, color: 'purple', border: {width: 2}},
   {series: 1, color: 'cyan', border: {width: 2}},
  ]
*END
ENDSTYLE
END

The output is:


Top of page

x
Streamgraph Charts

A streamgraph is a simplified version of a stacked area chart. In a streamgraph, there are no axes, gridlines, or frames. The baseline is free, which makes it easier to perceive the thickness of any given layer across the data. A streamgraph does not use data text labels. The data required to draw a streamgraph is the same format required to draw an area chart. However, streamgraphs are normally given many series (10 or more), each with many data point points (100 or more). A typical streamgraph would include 20 series with 400 data points in each series.



Example: Sample Streamgraph

The following request creates a streamgraph (ON GRAPH SET LOOKGRAPH STREAM). The JSON block in the style section sets the border and series colors and widths:

GRAPH FILE WF_RETAIL_LITE
SUM REVENUE_US COGS_US GROSS_PROFIT_US DISCOUNT_US MSRP_US
BY PRODUCT_CATEGORY
ON GRAPH PCHOLD FORMAT JSCHART
ON GRAPH SET LOOKGRAPH STREAM
ON GRAPH SET STYLE *
*GRAPH_JS
border: {width: 2, color: 'navy'},
series: [
{series: 0, color: 'cadetblue',label: ' '},
{series: 1, color: 'silver',label: ' '},
{series: 2, color: 'grey',label: ' '},
{series: 3, color: 'burlywood',label: ' '},
{series: 4, color: 'red',label: ' '}
]
*END
ENDSTYLE
END

The output is:


Top of page

x
Surface3D Charts

A Surface3D chart shows a three dimensional surface that connects a set of data points. The colors on the chart represent similar values, rather than different series.



Example: Sample Surface3D Chart

The following request creates a Surface3D chart (ON GRAPH SET LOOKGRAPH 3DSURFCE). The JSON block in the style section hides the legend. For all other properties, the defaults are used:

DEFINE FILE WF_RETAIL_LITE
DIFF = GROSS_PROFIT_US - REVENUE_US;
END
GRAPH FILE WF_RETAIL_LITE
SUM DIFF NOPRINT AND COMPUTE
MIN1 = MIN.DIFF;
GOAL1 = MIN1 +200;
MED1 =MDN.DIFF;
GOAL2 =DIFF;
MAX2 = MAX.DIFF;
BY BUSINESS_REGION
ON GRAPH PCHOLD FORMAT JSCHART
ON GRAPH SET LOOKGRAPH 3DSURFCE
ON GRAPH SET STYLE *
INCLUDE=IBFS:/FILE/IBI_HTML_DIR/javaassist/intl/EN/ENIADefault_combine.sty,$
*GRAPH_JS
legend: {visible:false}
*END
ENDSTYLE
END

The output is:


Top of page

x
Tagcloud Charts

A tagcloud chart is a visual representation of group labels. The size of each label is proportional to its data value. Tagclouds are used by social media to measure the frequency of words in order to quantify sentiments.

The tagcloud chart also supports an optional second series of data, which is used to drive the color of each label. Colors are chosen from the colorScale property.



Example: Sample Tagcloud

The following request creates a tagcloud chart (ON GRAPH SET LOOKGRAPH TAGCLOUD). Each product category label is sized based on the value of its gross profit and is colored depending on the value of its cost. The JSON block in the style section sets the y-axis color scale:

GRAPH FILE WF_RETAIL_LITE
SUM GROSS_PROFIT_US COGS_US
BY PRODUCT_CATEGORY
ON GRAPH PCHOLD FORMAT JSCHART
ON GRAPH SET LOOKGRAPH TAGCLOUD
ON GRAPH SET STYLE *
*GRAPH_JS
colorScale: {
colors: ['black', 'red', 'purple', 'green', 'blue']
}
*END
ENDSTYLE
END

The output is:


Top of page

x
Treemap Charts

A treemap chart displays hierarchical data as a set of nested rectangles.

An object can be nested arbitrarily deep. Any properties in the data object with numeric values are drawn as a single rectangle in the treemap.



Example: Sample Treemap

The following request generates a treemap chart (ON GRAPH SET LOOKGRAPH TREEMAP). The JSON block in the style section sets the color scale and colors for the treemap:

GRAPH FILE WF_RETAIL_LITE
SUM GROSS_PROFIT_US COGS_US
BY PRODUCT_CATEGORY
BY BUSINESS_REGION
ON GRAPH PCHOLD FORMAT JSCHART
ON GRAPH SET LOOKGRAPH TREEMAP
ON GRAPH SET STYLE *
*GRAPH_JS
legend: {visible:true},
  colorScale: {colors: ['tan','antiquewhite']}
*END
ENDSTYLE
END

The output is:


Top of page

x
Waterfall Charts

Waterfall charts illustrate the cumulative effect of sequentially introducing positive or negative values to an initial value. The initial and final (or total) values are represented by whole columns drawn from the ordinal (x) axis baseline. Intermediate positive and negative values are drawn as floating columns.

A waterfall chart does not require a sort phrase.



Example: Sample Waterfall Chart

The following request creates a waterfall chart (ON GRAPH SET LOOKGRAPH VWATERFL). The JSON block in the style section sets the riser colors, generates a riser for the total, and sets the connector line properties:

DEFINE FILE WF_RETAIL_LITE
INCR1 = COGS_US + 500;
INCR2 = COGS_US +1000;
DECR1 = (COGS_US - 1000);
DECR2 = (COGS_US -500);
END
GRAPH FILE WF_RETAIL_LITE
SUM COGS_US
INCR1 AS 'Qtr1'
INCR2 AS Qtr2'
DECR1  AS 'Qtr3'
DECR2 AS 'Qtr4'
ON GRAPH PCHOLD FORMAT JSCHART
ON GRAPH SET LOOKGRAPH VWATERFL
ON GRAPH SET STYLE *
INCLUDE=IBFS:/FILE/IBI_HTML_DIR/javaassist/intl/EN/ENIADefault_combine.sty,$
*GRAPH_JS
legend: {visible:false},
waterfallProperties: {
   appendTotalRiser: true,
   positiveRiserColor: '#77b39a',
   negativeRiserColor: '#e2675b',
   zeroRiserColor: '#7593bd',
   connectorLine: {
      width: 1,
      color: 'red',
      dash: ''
   }
}
*END
ENDSTYLE
END

The output is:


Top of page

x
Bullet Charts

A bullet chart is a microchart that is a variation of the bar chart and is sometimes used as a replacement for a gauge chart. It is designed to show a quantitative measure against qualitative ranges. For example, a quantitative measure such as profit or revenue could be visualized against quality (good, better, best) to show progress toward a target.



Example: Sample Bullet Chart

The following request creates a bullet chart. It charts the cost of goods sold for each weekend day. There is no LOOKGRAPH value for a bullet chart, so the LOOKGRAPH value is set to CUSTOM, and the JSON block in the style section of the request contains the chartType: ‘bullet’ property. It also sets the color bands for the y-axis and the colors for each day (group). The VAXIS parameter sets the height for the chart:

GRAPH FILE WF_RETAIL_LITE
SUM COGS_US
BY TIME_DAYNAME
WHERE TIME_DAYNAME EQ 'SAT' OR 'SUN'
ON GRAPH SET VAXIS 80
ON GRAPH PCHOLD FORMAT JSCHART
ON GRAPH SET LOOKGRAPH CUSTOM
ON GRAPH SET STYLE *
*GRAPH_JS
chartType: 'bullet',
yaxis: {
   colorBands: [
       {start: 0,stop: 10000,color: 'silver'},
       {start: 10000,stop: 30000,color: 'lightgrey'},
       {start: 30000,stop: 60000,color: 'whitesmoke'},
       ],
},
series: [
    {series: 0, group: 0, color: 'steelblue'},
     {series: 0, group: 1, color: 'red'},
]
*END
ENDSTYLE
END

On the output, the blue bar represents the quantity for Saturday, and the red triangle represents the quantity for Sunday:


Top of page

x
Sparkline Charts

Sparkline is a microchart that has no titles, labels, or legends. It is a single line chart that is intended to be drawn in a very small area to show the shape of the variation without axes or coordinates. A sparkline can be embedded in text or tables.



Example: Sample Sparkline Chart

The following request creates a sparkline chart. Since there is no LOOKGRAPH value for a sparkline chart, the LOOKGRAPH parameter is set to CUSTOM, and the JSON block in the style section of the request contains the chartType: ‘sparkline’ property. It also sets the border color and width. The GRAPH parameters HAXIS and VAXIS set the height and width of the chart:

GRAPH FILE WF_RETAIL_LITE
SUM COGS_US
ACROSS PRODUCT_CATEGORY
ON GRAPH SET HAXIS 50
ON GRAPH SET VAXIS 20
ON GRAPH PCHOLD FORMAT JSCHART
ON GRAPH SET LOOKGRAPH CUSTOM
ON GRAPH SET STYLE *
INCLUDE=IBFS:/FILE/IBI_HTML_DIR/javaassist/intl/EN/ENIADefault_combine.sty,$
*GRAPH_JS
chartType: 'sparkline',
border: {
   width: 2,
   color: 'green',
},
*END
ENDSTYLE
END

The output is:


WebFOCUS
