Defining the Size, Border, Color, Shape, and Rotation of Series Markers

How to:

The marker properties define the size, border color, shape, and rotation of series markers.


Top of page

x
Syntax: How to Define the Size, Border, Color, Shape and Rotation of Series Markers
series: [
   {
      series: snumber,
      group: gnumber, // optional
      marker: {
         visible: boolean,  // Line Charts Only
         color: 'cstring'
         size: sznumber,
         shape: 'sstring',
         rotation: rnumber,
         position: 'pstring',
         fillMode: 'fstring',
         border: {width: bwnumber,color: 'bcstring',dash: 'bdstring'}
      }
   }
]

where:

snumber

Is a zero-based series number. If the series does not exist in the chart, the property is ignored.

gnumber

Is an optional zero-based group number. If the group does not exist in the chart, the property is ignored. If a group number is not specified, the marker definition is applied to all risers in the series.

boolean

Controls the visibility of markers in line charts only. Valid values are:

  • true, which makes the markers visible. This is the default value.
  • false, which makes the markers not visible.
'cstring'

Is a color for the marker, defined by a color name or numeric specification string, or a gradient defined by a string.

For information about defining colors and gradients, see Colors and Gradients.

sznumber

Is a number that defines the size of the marker in pixels.

'sstring'

Is a string that defines the shape of markers for a series. Valid values are:

  • 'arrow'.
  • 'bar'.
  • 'circle'.
  • 'circleMinus' (a circle with a minus sign inside it).
  • 'circlePlus' (a circle with a plus sign inside it).
  • 'cross'.
  • 'diamond'.
  • 'fiveStar'.
  • 'hexagon'.
  • 'hourglass'.
  • 'house'.
  • 'pie' (for bubble and scatter charts only).
  • 'pin'.
  • 'pirateCross'.
  • 'plus'.
  • 'rectangle'.
  • 'sixStar'.
  • 'square'. This is the default value.
  • 'thinPlus'.
  • 'tick'.
  • 'triangle'.

Note that bar, circlePlus, circleMinus, cross, and tick markers require a border width and color.

rnumber

Is a number between 0 and 360 that defines the angle (in degrees) of the marker.

'pstring'

For bullet charts only, defines the position of the marker relative to data text. Valid values are:

  • 'bottom', which draws the data text label above the marker.
  • 'middle', which draws the data text label according to the general property dataLabels:position.
  • 'top', which draws the data text label below the marker.
'fstring'

Defines the marker fill mode. Valid values are;

  • undefined, which uses the existing marker border color and fill color. This is the default value.
  • 'seriesHollow', for which the marker fill area is hollow (transparent), and the marker border is the color set by the series:color property. You must define a non-zero border width.
  • 'seriesFill', for which the marker draws with no border, and the fill is the same as the series:color property.
  • 'seriesWhite', for which the marker fill area is white, and the marker border is the color set by the series:color property. You must define a non-zero border width.
  • 'seriesAuto', for which the marker draws with the border 20% darker than the series color and the fill draws 20% lighter than the series color.
bwnumber

Is a number that defines the width of the border in pixels.

'bcstring'

Is a color for the marker border defined by a color name or numeric specification string.

'bdstring'

Is a string that defines the border dash style. Use a string of numbers that defines the width of a dash followed by the width of the gap between dashes.

Note:



Example: Defining Series Markers

The following request against the GGORDER data source generates a scatter chart with different marker shapes:

GRAPH FILE GGORDER
PRINT QUANTITY AS 'Quantity'
ACROSS PRODUCT_CODE
WHERE PRODUCT_CODE EQ 'B144'
WHERE QUANTITY LT 51
ON GRAPH PCHOLD FORMAT JSCHART
ON GRAPH SET LOOKGRAPH SCATTER
ON GRAPH SET STYLE *
*GRAPH_JS
border: {color: 'navy'},
legend: {visible: false},
series: [
{series: 0, color: 'red', marker: {shape:'arrow', size: 20}},
{series: 1, color: 'green', marker: {shape:'fiveStar', size: 20}},
{series: 2, color: 'blue', marker: {shape:'hourglass', size: 20}},
{series: 3, color: 'yellow', marker: {shape:'triangle', size: 20}},
{series: 4, color: 'orange', marker: {shape:'diamond', size: 20}},
{series: 5, color: 'cyan', marker: {shape:'house', size: 20, rotation:45}},
{series: 6, color: 'teal', marker: {shape:'circlePlus', size: 20, border:{width:1, color:'navy'}}},
{series: 7, color: 'steelblue', marker: {shape:'sixStar', size: 20}},
{series: 8, color: 'darkblue', marker: {shape:'pirateCross', size: 20}},
{series: 9, color: 'darkgrey', marker: {shape:'pin', size: 20}},
]
*END
ENDSTYLE
END

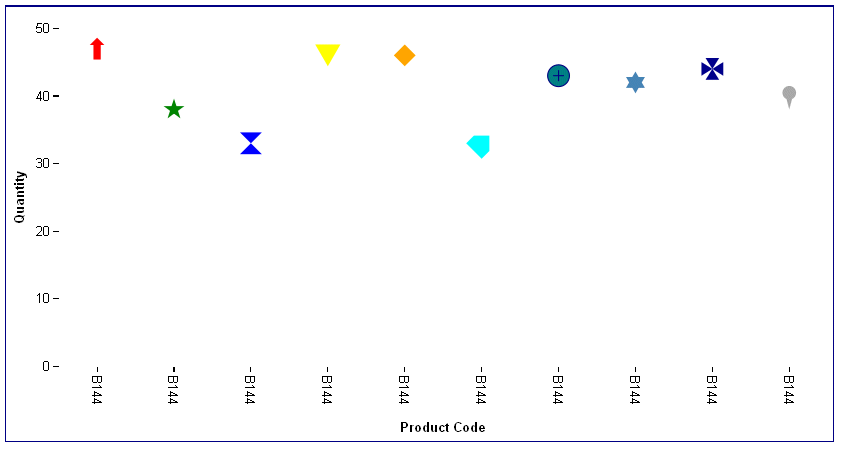

On the output, note that the house marker shape is rotated 45 degrees, and that the circlePlus marker shape has a border width and color, as required:

In the following request, series 0 has the fill mode seriesHollow, and series 1 has the fill mode seriesWhite. In each case a border is required:

GRAPH FILE GGSALES
SUM DOLLARS UNITS
BY PRODUCT
WHERE CATEGORY EQ 'Gifts'
ON GRAPH PCHOLD FORMAT JSCHART
ON GRAPH SET LOOKGRAPH VLINE
ON GRAPH SET STYLE *
*GRAPH_JS
border: {width: 2, color: 'teal'},
chartFrame: {
   fill: {
      color: 'antiquewhite'
   },
   border: {
      width: 2,
      color: 'blue',
      dash: '2 2'
        }
},
blaProperties: {lineConnection: 'curved'},
series: [
{series: 0, color: 'red', marker: {border:{color:'red',width:1},shape:'square', size:20,fillMode: 'seriesHollow'}},
{series: 1, color: 'green', marker:{border:{color:'green',width:1}, shape:'circle', size: 20,fillMode: 'seriesWhite'}},
]
*END
ENDSTYLE
END

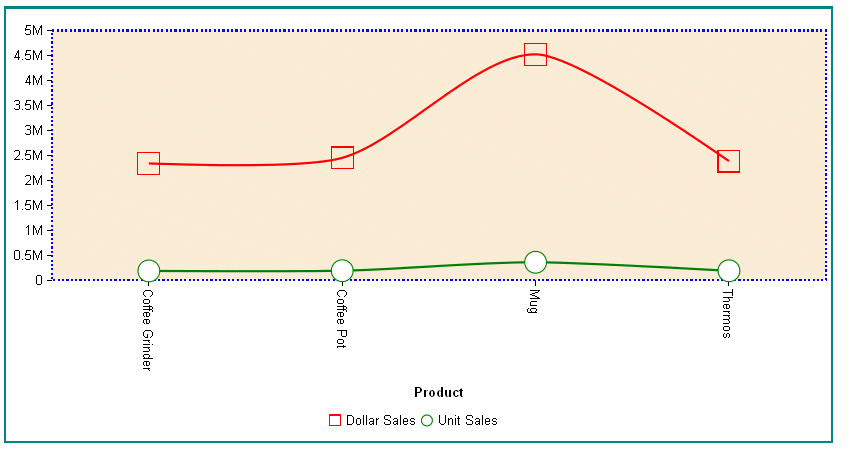

The output is:

The following request generates a bullet chart and sets the positions of the markers:

DEFINE FILE GGORDER
YEARY/YY = ORDER_DATE;
YEAR1/YY = IF YEARY EQ 1990 THEN 1998 ELSE YEARY;
END
GRAPH FILE GGORDER
SUM QUANTITY
BY YEAR1
ON GRAPH SET VAXIS 80
ON GRAPH PCHOLD FORMAT JSCHART
ON GRAPH SET LOOKGRAPH CUSTOM
ON GRAPH SET STYLE *
*GRAPH_JS
chartType: 'bullet',
border: {width:1, color:'navy'},
bulletProperties: {drawFirstValueAsBar: false},
dataLabels: {visible: true, font: '6pt'},
yaxis: {
   colorBands: [
         {start: 0,stop: 200000,color: 'silver'},
         {start: 2100000,stop: 400000,color: 'lightgrey'},
         {start: 400000,stop: 600000,color: 'whitesmoke'},
       ],
},
series: [
{series: 'all', showDataValues: true},
{series: 0, group: 0, color: 'blue', marker: {size: 15, position: 'bottom'}},
{series: 0, group: 1, color: 'red', marker: {size: 15, position: 'top'}},
{series: 0, group: 2, color: 'yellow', marker: {size: 15, position: 'middle'}}
]
*END
INCLUDE=ENIADefault_combine.sty,$
ENDSTYLE
END

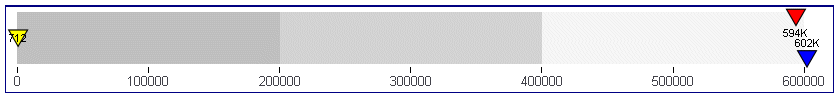

On the output, the yellow marker is positioned in the middle of the data text, the red marker is above the data text, and the blue marker is below the data text:
