The majorGrid properties control the visibility and format of major grid lines and tick marks.
axisname: { majorGrid: { visible: boolean1, aboveRisers: boolean2, lineStyle: { width: wmnumber, color: 'cmstring', dash: 'dstring' }, ticks: { length: lnumber, visible: boolean3, style: 'sstring', lineStyle: { width: wtumber, color: 'ctstring'} } } }
where;
Can be:
Controls the visibility of the major grid lines. The default depends on the type of chart being generated. Valid values are:
Controls whether the grid lines are drawn in front of or in back of the risers Valid values are:
Is a number that defines the width of major grid lines in pixels. The default value is 1.
Is a string that defines the color of major grid lines using a color name or numeric specification string. The default value is 'rgba(255, 255, 255, 0.3)'.
For information about defining colors, see Colors and Gradients.
Is a string that defines the dash style. The default value is '' (which generates a solid line). Use a string of numbers that defines the width of a dash followed by the width of the gap between dashes (for example, dash: '1 1' draws a dotted line).
Is a number that defines the length of tick marks in pixels. The default value is 5.
Controls the visibility of tick marks. Valid values are
Is a string that defines the tick mark style. The default depends on the type of chart being generated. Valid values are:
Is a number that defines the width of the tick marks in pixels. The default value is 1.
Is a string that defines the color of tick marks using a color name or numeric specification string. The default value is 'black'.

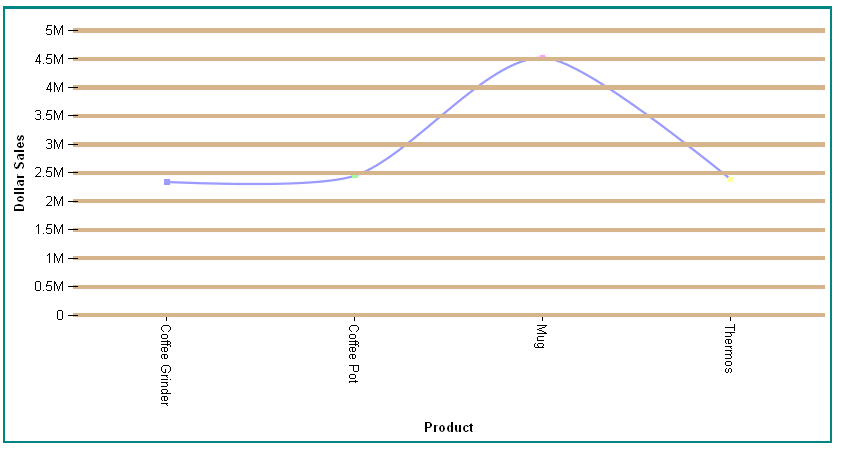

The following request against the GGSALES data source makes the major grid lines visible, 4 pixels wide, in front of the risers, and tan. The tick mark style is 'span', so they are both outside and inside the grid lines:
GRAPH FILE GGSALES
SUM DOLLARS
BY PRODUCT
WHERE CATEGORY EQ 'Gifts'
ON GRAPH PCHOLD FORMAT JSCHART
ON GRAPH SET LOOKGRAPH VLINE
ON GRAPH SET STYLE *
*GRAPH_JS
border: {width: 2, color: 'teal'},
blaProperties: {lineConnection: 'curved'},
yaxis: {title: {visible: true},
majorGrid: {visible:true,aboveRisers: true, lineStyle: {width: 4, color: 'tan'},
ticks: {style: 'span'}}
},
*END
ENDSTYLE
END
The output is:

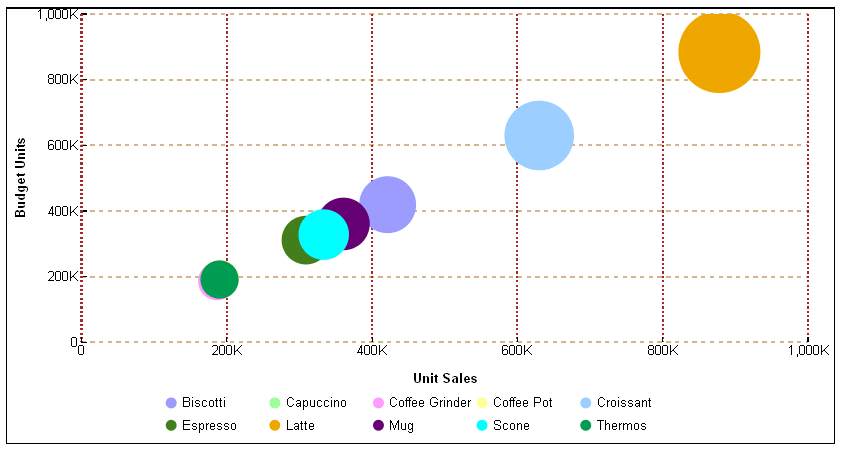

The following request formats the x-axis and y-axis major grid lines in a bubble chart:
GRAPH FILE GGSALES SUM UNITS BUDUNITS AND COMPUTE MUNITS = UNITS; BY PRODUCT ON GRAPH PCHOLD FORMAT JSCHART ON GRAPH SET LOOKGRAPH BUBBLE ON GRAPH SET STYLE * *GRAPH_JS series: [{series: 'all', marker: {shape: 'circle'}}], xaxisNumeric: {title: {visible: true}, majorGrid: {lineStyle: {width: 2, color: 'brown', dash: '2 2'}}}, yaxis: {title: {visible: true}, majorGrid: {lineStyle: {width: 2, color: 'tan', dash: '4 4'}}}, *END ENDSTYLE END
The output is:

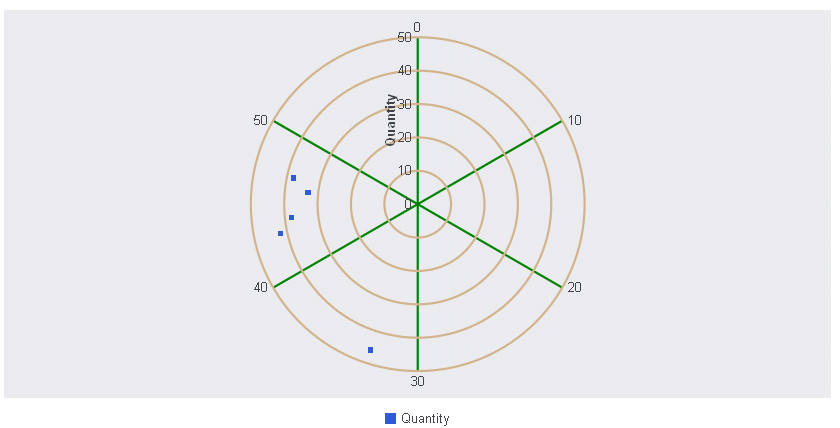

The following request generates a polar chart in which the y-axis major grid lines are tan and the x-axis major grid lines are green:
GRAPH FILE GGORDER PRINT QUANTITY AS 'Quantity' ACROSS PRODUCT_CODE WHERE PRODUCT_CODE EQ 'B144' WHERE QUANTITY LT 51 ON GRAPH PCHOLD FORMAT JSCHART ON GRAPH SET LOOKGRAPH POLAR ON GRAPH SET STYLE * *GRAPH_JS polarProperties: { straightGridLines: false, extrudeAxisLabels: false }, xaxisNumeric: {title: {visible: true}, majorGrid: {aboveRisers: false, lineStyle: {width: 2, color: 'green'}}}, yaxis: {title: {visible: true}, majorGrid: {aboveRisers: false, lineStyle: {width: 2, color: 'tan'}}}, *END INCLUDE=ENIADefault_combine.sty,$ ENDSTYLE END
The output is:
