In this section: |
Sorting enables you to group or organize report information vertically and horizontally, in rows and columns, and specify a display sequence.
The sort field organizes the rows and columns and controls the sequence of data items in the report. Any field in the data source can be the sort field. If you wish, you can select several sort fields, nesting one within another. Sort fields appear when their values change.
You sort a report using By and Across options:
You can sort report information vertically using the By option. As Report Painter displays sort field values vertically, it creates rows.
You can include up to 32 vertical (By) sort phrases in a request (31 if you combine vertical sorting with the Detail display option).
If you are sorting vertically, you can:
For related information, see Additional Sorting Options.
The following report displays all employee IDs (EMP_ID) sorted vertically by DEPARTMENT.
Notice that the sort field DEPARTMENT automatically appears as the left column in the report. The sort field values (MIS and PRODUCTION) appear when the sort field changes.
Ordinarily, vertical sort fields appear in the left hand column of a report. To control the placement of sort fields in a report, choose one of the following options from the Report Options Output tab.
Prevents or restricts the relocation of sort fields.
Enables you to move sort fields.
Click to restore the default placement of fields.
You can choose the number of records to display in your report. For example, you can display the top five salaries in a report that sorts by current salary.
Note: The Sort Limit option only applies to a vertical sort (By) field. If you select HIGHEST from the Sort Order drop-down list, you see the chosen number of highest values. If you select LOWEST from the Sort Order drop-down list, you see the chosen number of lowest values.
You can use formatting options to enhance the readability and usefulness of a report. These options apply only to a vertical sort (By) field. To add underlines, skipped lines, or page-breaks at each sort break:
Include a horizontal line across the width of a report after the value of the selected sort field changes. To apply this action in HTML styled report formats, ensure that the Cascading Style Sheets option is selected on the Report Options Features tab.
Skip a line on a report when the value of the selected sort field changes. To apply this action in HTML styled report formats, ensure that the Cascading Style Sheets option is selected on the Report Options Features tab.
Break sort fields logically and regenerate the field heading on the next page or screen.
Causes columns to be placed on a separate line when the value of the sort field changes. This feature is not supported for HTML styled report formats.
Start a new report page when the value of a selected sort field changes.
Resets the page number to one at the sort break. The Page-break option must be selected.
This option only applies to a numeric By field.
You can group sort field values together and define the range of each group.
For example, in a report that lists employees by salary, instead of showing each individual salary, you can group employees by salary increments of $5000. The list of salaries appears as $5000, $10,000, $15,000, and so on.
Note: Highest Value is an optional number that defines the highest range label to be included in the report. The range is extended to include all data values higher than this value.

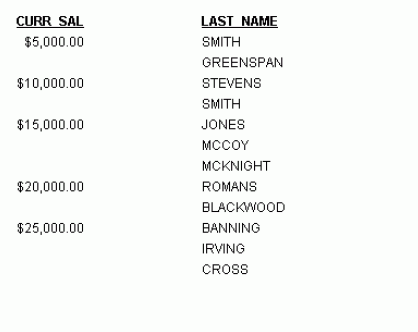

In the image below, the report lists employees by salary in groups of $5,000 intervals.

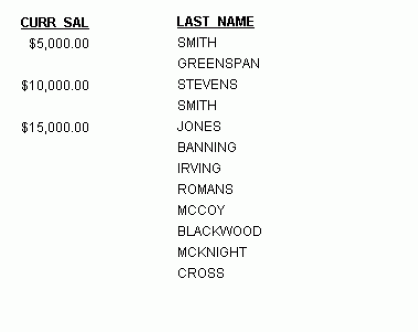

The image below is the same report showing groups in $5,000 intervals and a group limit of $15,000.
This option only applies to a numeric By field.
When you sort a report using a numeric sort field, you can group the sort field values together and define groups of equal range using the In-Ranges-Of option.
For example, in a report that lists employees by salary, instead of showing each individual salary, you can group employees by salary in ranges of $5000. The list of salaries appears as $5000–$9999.99, $10,000–14,999.99, $15,000–$19,999.99, and so on.
Note: Highest Value is an optional number that defines the highest range label to be included in the report. The range is extended to include all data values higher than this value.

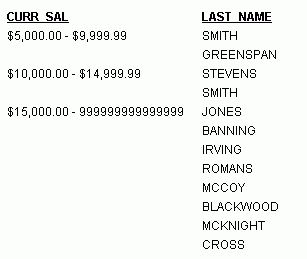

In the image below, the report lists employees by salary in ranges of $5,000 intervals.
The image below is the same report showing ranges in $5,000 intervals and a group limit of $15,000.
This option only applies to a numeric By field.
You can group numeric data into any number of tiles (percentiles, deciles, and so on) in tabular reports. For example, you can group salary into deciles to determine which employees are earning the top salaries in each department.
Grouping is based on the values in the selected vertical (BY) field, and data is apportioned as equally as possible into the number of tile groups you specify.
Note: Range or Number of Tiles is the number of tiles that is used to group the report.
If you do not enter a Title, a new column labeled TILE by default, is added to the report and shows the tile number assigned to each instance of the tile field.

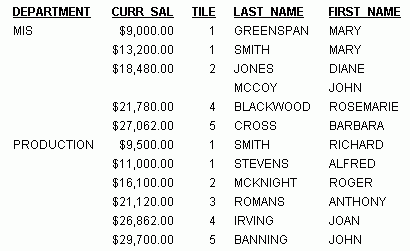

The following image is an example of a report showing salaries grouped into five tiles. Note that the tiles are assigned within the higher-level sort field DEPARTMENT. The MIS category not have any data assigned to tile 3. The PRODUCTION category has all five tiles. For more information about how tiles are grouped, see Grouping Numeric Data Into Tiles in the Sorting Tabular Reports chapter of the Creating Reports With WebFOCUS Language manual.
When you sort reports vertically, you can indicate the numeric rank of each row.
A numerical ranking appears on each line of the report with the default column heading, RANK.
You can apply aggregation and sorting simultaneously to numeric columns in your report in one pass of the data. You can also sort based on calculated values.
You apply column-based sorting to a report one column at a time by adding the BY TOTAL phrase. For BY TOTAL to work correctly, you must have an aggregating display command, such as SUM. The records can be sorted in either ascending or descending sequence. For more information about adding BY TOTAL to report columns, see Sorting and Aggregating Report Columns in the Sorting Tabular Reports chapter of the Creating Reports With WebFOCUS Language manual.
Note: You can click Variable to be prompted for a value at run time.
Note: For BY TOTAL to work correctly, you must have an aggregating display command. A non-aggregating display command, such as PRINT, simply retrieves the data without aggregating it.

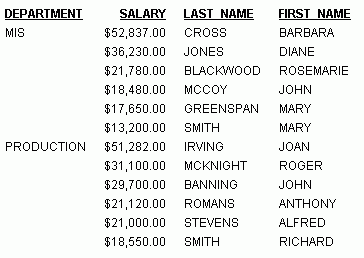

The following image is an example of a report showing the total highest salary by department and names.
Suppose that you want to see total sales for different regions within your enterprise. The following example shows how to create a report that ranks regions, by highest dollar sales, for all Gotham Grinds stores:
The first instance of Dollar Sales and Region become By sort fields.
The second instance of Dollar Sales becomes a Sum field.
Tip: To show dollar signs for the Dollar Sales Sum field:
The Field Properties dialog box opens at the Style tab.
This adds BY TOTAL to the syntax.
The Dollar Sales By field appears by Rank.
How to: |
You can sort report information horizontally using the Across option. As Report Painter displays sort field values horizontally, it creates columns.
You can have up to five horizontal sort fields per report request. Each one can retrieve up to 95 sort field values. Your report can include up to 256 columns. The total number of Across columns in a report is equal to the total number of across sort field values multiplied by the total number of display fields.
This report totals the salary outlay (CURR_SAL) of the department and sorts horizontally by DEPARTMENT.
DEPARTMENT
| |
MIS $108,002.00 |
PRODUCTION $114,282.00 |
Note that the sort field DEPARTMENT appears as a label at the top of the report and the sort field values appear as column titles.
The Sort Sequence Builder allows you to customize the sorting order of data within a field.
To access the Sort Sequence Builder, right-click on a BY or ACROSS field and click the Sort Sequence button. Alternatively, you can click the Sort Sequence button found in Sorting section of the Field Properties Sorting tab.

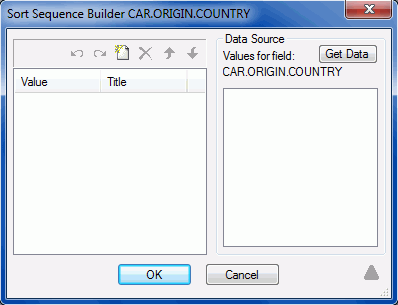

The Sort Sequence Builder is shown in the following image.
You can enter your own values, on the left side, in the Sort Sequence list using the New button. Titles are optional.
You can also get values using the Get Data button. The Get Data button will retrieve data values for the selected field and display them in the right side. These field values can be dragged or double-clicked to add a new value to the Sort Sequence list on the left side.
The toolbar above the Sort Sequence list can be used to manipulate the values. The toolbar buttons are: Undo, Redo, New, Delete, Move Up, and Move Down.
Note: If you have applied a sort sequence and then try to change the type of another field to FOR, you will receive the following message.
Each report request may contain only one FOR or BY ROWS OVER phrase.
If you wish to continue, all sort sequence values will be removed from: <field name>
Continue?
If you continue, the sort sequence values are removed from the field to which they are applied. The field you originally selected is changed to a FOR field.
Alternatively, if you try to apply a sort sequence to a field while there is already a FOR field present, you will receive the following message.
Each report request may contain only one FOR or BY ROWS OVER phrase.
If you wish to continue, the current FOR field <field name> will be converted to a SUM field, and all FML attributes will be lost.
Continue?
If you continue, the FOR field will be changed to a Sum field and the Sort Sequence Builder dialog box will open. You can then create a sort sequence for the selected field.
How to: |
You can organize information in a report using more than one sort field. When several sort fields are used, the sequence of the sort fields determines the sorting order: the first By or Across field sets the major sort break, the second By or Across field sets the second sort break, and so on. Each successive sort is nested within the previous one.
To sort with multiple By fields, you can select several vertical sort fields, nesting one within another, as with DEPARTMENT and LAST_NAME in this example. The output is:
To sort using multiple Across fields, the following report sorts the sum of current salary (CURR_SAL) horizontally, first by department (DEPARTMENT), then by job code (CURR_JOBCODE).
How to: |
You can create a simple matrix report by sorting both rows and columns. When you include both vertical (By) and horizontal (Across) sort fields in a report request, information is sorted down the report and across the report, turning it into a matrix of information that you read like a grid. A matrix report can have several By and Across sort fields.
Tip: You can also create a matrix using the Sort Groups tab in the Object Inspector. See Sorting in Groups to Create a Combined Detail/Summary Report for more information.

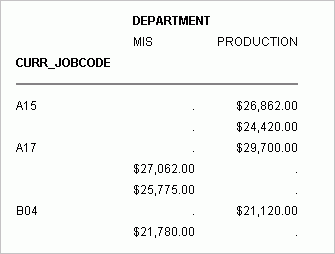

The following report displays total salary outlay sorted across departments and by job codes.
How to: |
The following options give you additional control over the organization of data in your reports. You can:
You can change the sort order from ascending to descending, or vice versa, for alphanumeric (A to Z; Z to A) and numeric (1-10; 10-1) fields.
You can break sort fields logically and regenerate the field heading on the next page or screen.
Note: Only one No Split option is allowed per report.
A Subheading (or Subfooting) object area is added to the Report Painter window.
Tip: To view the boundaries for all object areas, click the Options button on the Output Format toolbar. Select the View tab and click the Boundaries check box.

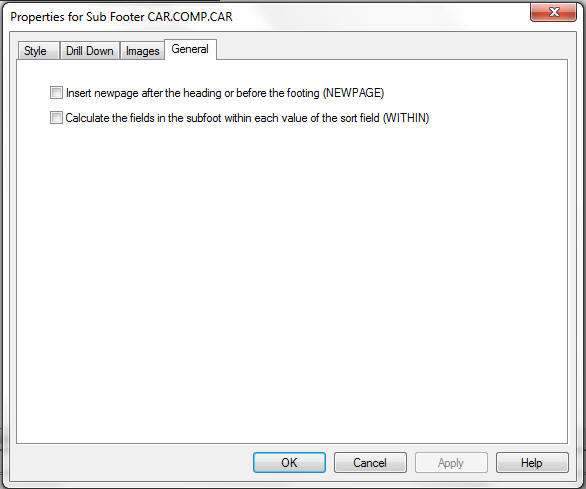

You can click the General tab, as shown in the following image, to create a new page (NEWPAGE) for each subfoot. WITHIN will create a subfoot within a specified sort break. WITHIN is only available for subfoot.
For related information, see How to Display a Conditional Subheading, Subfooting, or Page Break.
You can control when subheadings, subfootings, and page-breaks appear based on conditions you supply. The condition must be satisfied in order for the subheading, subfooting, or page break to be displayed. You accomplish this using the When option.
For details on the Expression Builder, see Using the Basic Expression Builder.
To specify the department name in a subheading field:
DEPARTMENT IS
DEPARTMENT IS <EMPLOYEE.EMPINFO.DEPARTMENT
When the report appears, the department name for each department appears in the subheading as follows:
DEPARTMENT IS MIS DEPARTMENT IS PRODUCTION
If the data you are accessing for your report is already in the correct sort order, you can prevent Report Painter from resorting it by clicking the Options button on the Output Format toolbar. The Report Options dialog box opens. From the Output tab, click Sorted Data in the Data area.
This feature provides a very fast method of retrieving data if it is already stored in the order required for display, and no further sorting is required.
Selecting the wrap option for an Across column automatically wraps the data to fit the width of the value underneath it in the PDF report.
The field is sorted horizontally, creating columns.
The Field Properties dialog box opens at the Style tab.
Note: The Limit to option is grayed out, as the specified measurement units for Across data is not applicable. Selecting Wrap automatically wraps the data to fit the width of the value underneath it.
Wrap is enabled for the horizontal Across column in the PDF report.
How to: |
You can produce complex reports that sort information in groups to display both summary and detailed information in the same report. These reports (sometimes called multi-verb requests) contain more than one display option (Sum, Detail). They also group fields within the request in order to be able to manipulate the fields in each group separately. For example, you can produce one report that lists the total salary for all departments in a company, the total salary for each department, and the last names and individual salaries of the employees within each department.
You can implement group sorting in the Object Inspector Sort Groups tab. All actions you perform in the Sort Groups tab immediately affect the fields in the Report Painter window.
In creating a request that produces a combined detail/summary report, a meaningful relationship must exist among the separate sort condition sets. Report Painter automatically enforces the following rules:
Alternatively, you can right-click each field in the Sort Group panel and click Change to By or Change to Sum. These changes are immediately reflected in the Report Painter window.
Note: The first Sort Group can contain a Sum column alone or a By column followed by a Sum column. All other Sort Groups must have one or more By columns followed by a Sum column.
Drag a Sum column and drop it directly onto the Sort Group 1 folder. The dragged column becomes the first column in the group and in the Report Painter window.
or
Drag a Sum column and drop it onto a By column.
The Sort Groups tab is refreshed to display the first Sort Group as you specified. Other fields are now listed in Sort Group 2.
Once again, the Sort Group pane is refreshed. The Sum column follows the associated By column in the Report Painter window and the remaining fields are collected in the next Sort Group.
Repeat this process for each group you wish to create.

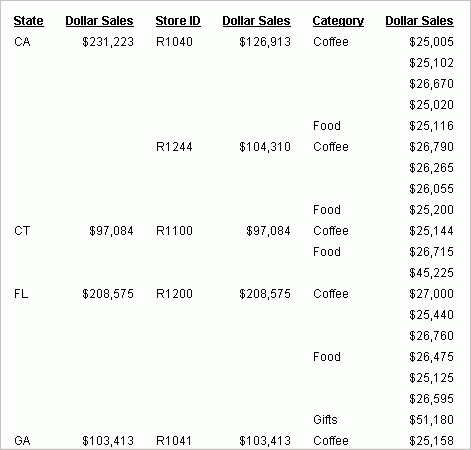

Suppose that you want to see total sales at different levels within your enterprise. The following example shows how to create a report of total sales for all Gotham Grinds stores by state, total sales for each Gotham Grinds store, and sales for each product category.
The Sort Group pane is refreshed. The remaining fields are now listed in Sort Group 2.
The Sort Group pane is refreshed. The remaining fields are now listed in Sort Group 3.
Tip: To show dollar signs for the Dollar Sales fields:
The report appears in the browser.
How to: Reference: |
Accordion Reports provide a way to control the amount of sorted data that appears on an HTML report page. You can produce reports with expandable views of data for each vertical sort field. When an Accordion Report first appears, only data values of the first (highest-level) vertical sort field are shown. All other data is hidden. You can manually expand your view to expose data values of lower-level sort fields.
When you create an Accordion Report, a plus sign (+) appears to the left of each data value in the column under the highest-level sort heading. For data associated with lower-level sort fields, a plus sign (+) is placed to the left of each data value, but the data does not appear unless manually expanded. Data values of the lowest-level sort field are not expandable.
To expand your view of data for any expandable sort field, click a plus sign (+) and all data associated with the next lower-level sort field appears. When you expand a data value under the next to lowest sort heading, all of the remaining associated data values in the report appear.
Two vertical (BY) sort fields are required. If your report does not contain two vertical sort fields, then the Accordion Reports option is ignored and a standard HTML report is created.
The use of horizontal (ACROSS) sort fields is supported with Accordion Reports. The horizontal sort headings that appear above vertical sort headings in a standard HTML report are not displayed in an Accordion Report until at least one sorted data value has been manually expanded in each expandable sort column.
PDF and Excel formats are not supported with Accordion Reports.
The following requirements must be taken into consideration when creating Accordion Reports:
However, for distribution of reports using ReportCaster, see the following Reference topic to ensure that the report is delivered correctly as an email attachment or as an archived report in the Report Library.
Distributing Accordion Reports with ReportCaster requires the use of JavaScript components and images located on the WebFOCUS Client. To access the JavaScript components and images from a report distributed by ReportCaster, the scheduled procedure must contain the SET FOCHTMLURL command, which must be set to an absolute URL instead of the default value. For example,
SET FOCHTMLURL = http://hostname:port/ibi_html
where:
Is the host name and optional port number (specified only if you are not using the default port number) where the WebFOCUS web application is deployed.
Is the site-customized web server alias pointing to the WebFOCUS/ibi_html directory (where ibi_html is the default value).
For more information about coding reports for use with ReportCaster, see the Tips and Techniques for Coding a ReportCaster Report section in your ReportCaster manual.
The following commands are not supported when using Accordion Reports:
BORDER, COLUMN, FOR, IN, OVER, PAGE-NUM, ROW-TOTAL, TOTAL
Data Visualization, OLAP, On Demand Paging, and the ReportCaster burst feature are also not supported with Accordion Reports.
UNITS, ST, DOLLARS, CITY, REGION, CATEGORY
Note: Accordion Reports are available for HTML Web Document (HTML), HTML Table (HTMTABLE), Default, and User styled report formats.

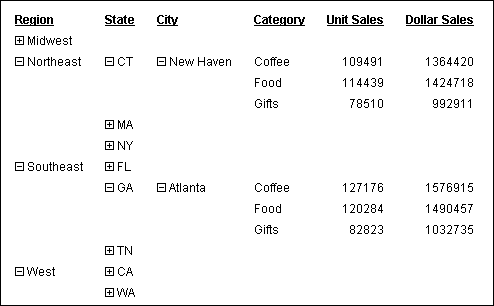

The following image shows an Accordion Report which displays all data associated with the first level sort field, Region, by default. The expanded data values you see are the result of a report user clicking plus signs to the left of specific first, second, and third level sort fields after the report is generated.
A Sort object can be inserted into the Report Painter as a BY column. However the following options are unavailable when a Sort object BY column is selected.
