Defining WebFOCUS Reporting Procedures

How to:

WebFOCUS reporting procedures (FOCEXECs) are used to integrate between WebFOCUS and ArcGIS Server. The following types of FOCEXECs can be created for a Geographic Business Intelligence Solution (GBIS):

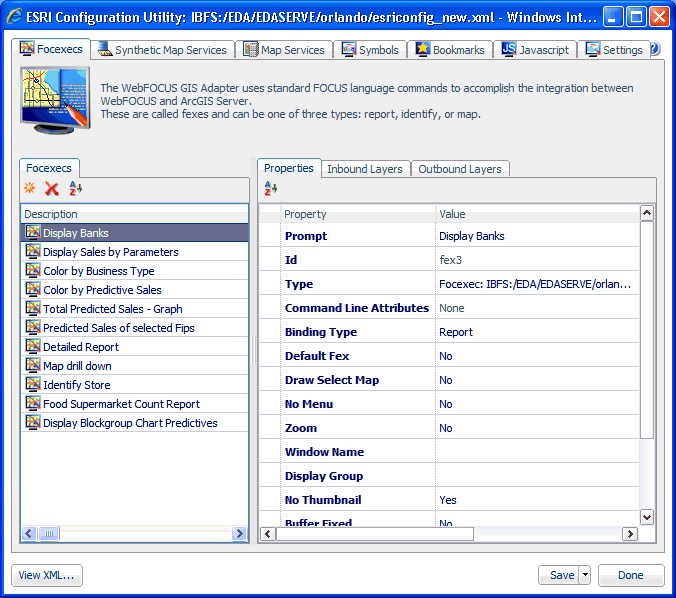

The following image shows the XML definition file (esriconfig_new.xml) being edited in the ESRI Configuration Utility. The esriconfig_new.xml file is used by the Retail Predictives sample application. In this image, the Focexecs tab is selected.

The Retail Predictives sample application uses the following FOCEXECs:

Report

Map

Identify


Top of page

x
Procedure: How to Add a Report FOCEXEC

To add a Report FOCEXEC using the ESRI Configuration Utility:

  1. Open the WebFOCUS Business Intelligence (BI) Portal by typing the following URL in your web browser:
    http://server:port/ibi_apps

    where:

    server

    Is the name of the server on which WebFOCUS is installed.

    port

    Is the number of the port on which the server is listening.

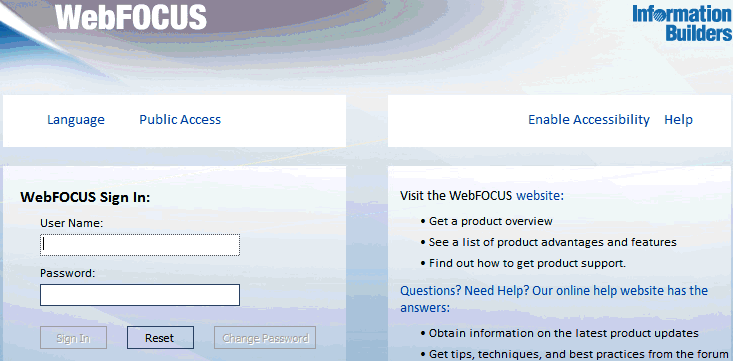

    The WebFOCUS Sign In page opens, as shown in the following image.

  2. Enter the following default credentials:
    • User Name: admin
    • Password: admin
  3. Click Sign In.

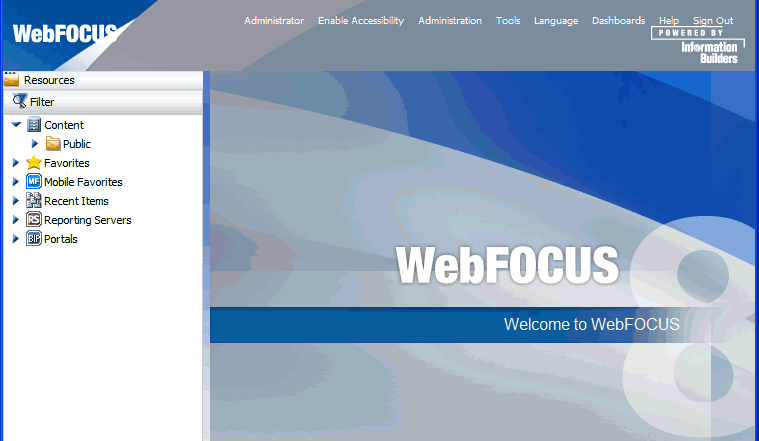

    The WebFOCUS BI Portal page opens, as shown in the following image.

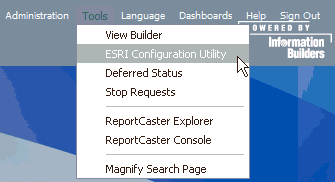

  4. Click Tools from the top menu and select ESRI Configuration Utility.

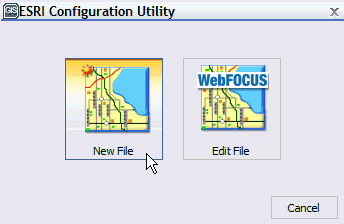

    The ESRI Configuration Utility dialog opens, as shown in the following image.

  5. Click New File.

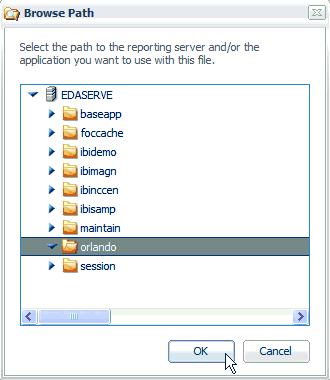

    The Browse Path dialog opens, as shown in the following image.

  6. Select an application folder on the WebFOCUS Reporting Server where the new XML definition file will be located when it is saved (for example, orlando).
  7. Click OK.

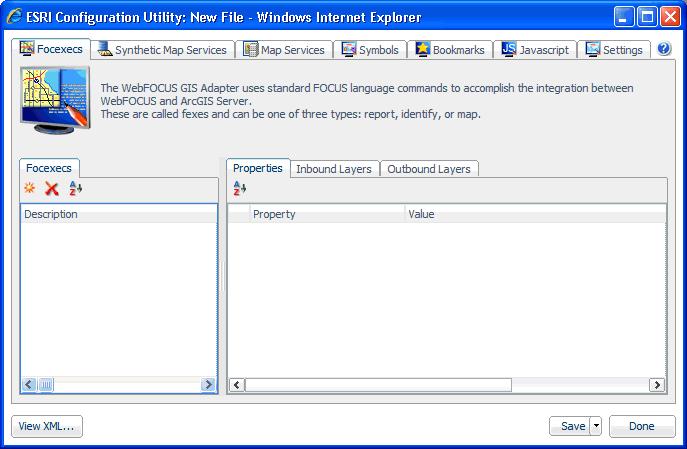

    The ESRI Configuration Utility opens for a new XML definition file, as shown in the following image.

    The Focexecs tab is selected by default.

  8. Click Add focexec in the left pane.

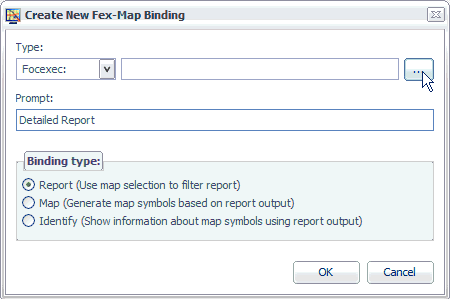

    The Create New Fex-Map Binding dialog opens, as shown in the following image.

  9. Perform the following steps:
    1. Ensure Focexec is selected from the Type drop-down list.
    2. In the Prompt field, enter a name (for example, Detailed Report) that will be used to identify this report in the application (accessed by the WebFOCUS GIS Viewer for Flex).
    3. Select Report from the Binding type area.
  10. Click Browse to the right of the Fex file path field.

    The Open dialog is displayed.

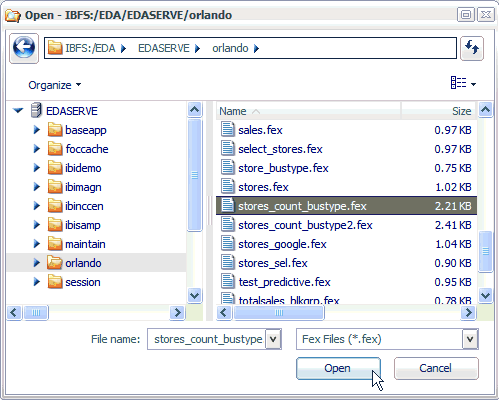

  11. Browse to the orlando application directory under EDASERVE, select the stores_count_bustype.fex Report FOCEXEC, and click Open.

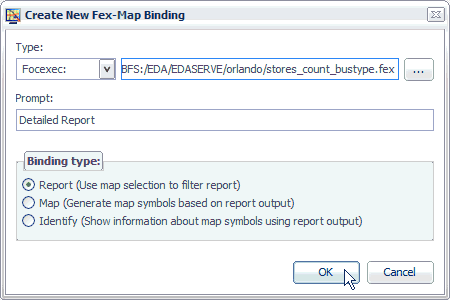

    You are returned to the Create New Fex-Map Binding dialog, as shown in the following image.

    Notice that the path to the selected Report FOCEXEC (for example, stores_count_bustype.fex) is now added to the Fex file path field.

    Note: To explore the syntax and structure used for this Report FOCEXEC (stores_count_bustype.fex), see Sample Report FOCEXEC.

  12. Click OK.

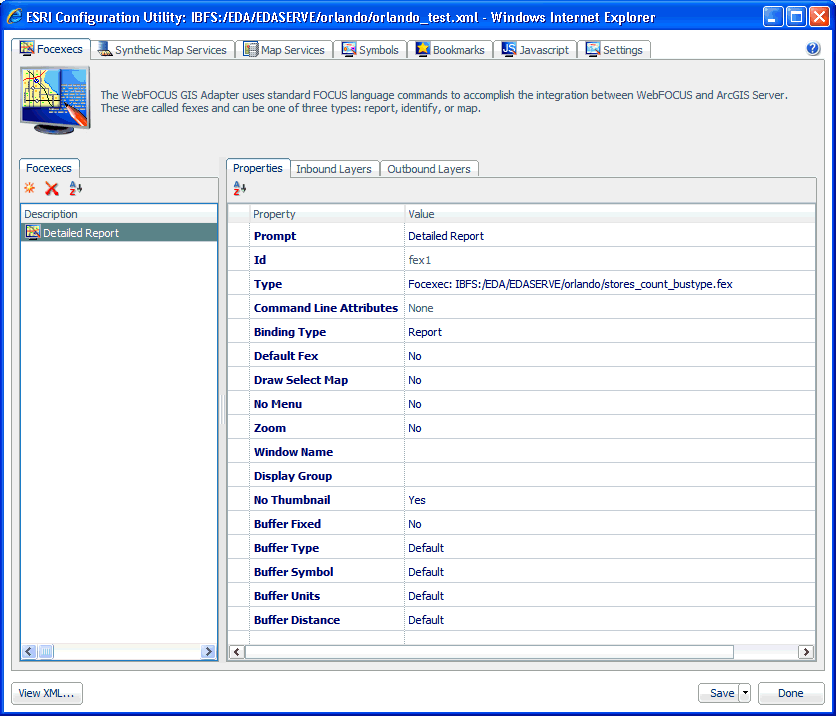

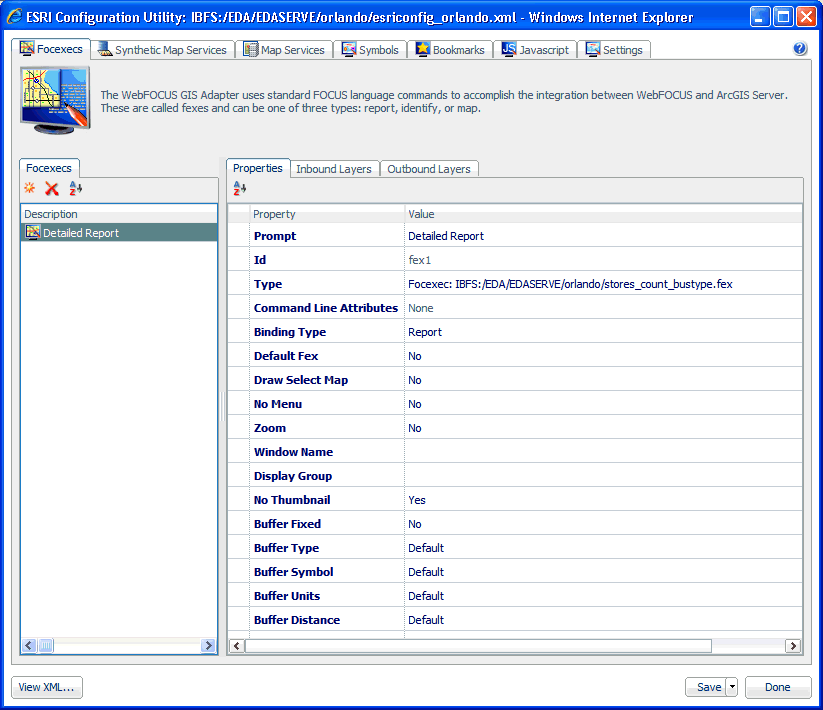

    The new Report FOCEXEC (called Detailed Report) is added to the Focexecs pane in the ESRI Configuration Utility, as shown in the following image.

    The Properties tab lists the available configuration properties for the Report FOCEXEC. Enter the configuration properties for the Detailed Report FOCEXEC, as listed in the following table.

    Property

    Description

    Prompt

    The Prompt value that you specified in the Create New Fex-Map Binding dialog.

    Detailed Report

    Id

    An ID that is automatically assigned to the FOCEXEC based on the order it is added.

    fex1

    Type

    The type (Focexec or Adhoc) and path to the selected Report FOCEXEC on the server.

    Focexec:IBFS:/EDA/EDASERVE/orlando/
    stores_count_bustype.fex

    Command Line Attributes

    None

    Binding Type

    The type of FOCEXEC (Report, Map, or Identify), as indicated by the selection made from the Binding type area in the Create New Fex-Map Binding dialog.

    Report

    Default Fex

    Designates this Report FOCEXEC to be the report that is launched when no other is specified.

    Yes

    Draw Select Map

    Changes the map view after the user makes a selection. The WebFOCUS GIS Viewer for Flex displays a map image with the selections of the user changed according to the symbol chosen for the inbound layer.

    No

    No Menu

    Removes this procedure from the menu of the WebFOCUS GIS Viewer for Flex.

    No

    Zoom

    Zooms into the area that was selected in the WebFOCUS GIS Viewer for Flex.

    No

    Window Name

    Displays the report output in a new window. This option can be used for all report output formats that are not HTML, such as PDF and Excel.

    Display Group

    Assigns the Report FOCEXEC to a display group. This is reflected in the menu for reports. The menu hierarchy displays as Layer-Display Group-Prompt.

    No Thumbnail

    Yes

    Buffer Fixed

    Determines whether the buffer distances are preset or can be changed from the user interface.

    No

    Buffer Type

    The type of buffer to perform around the graphic or around selected features. Available values from the drop-down list include Feature, Sketch, Disabled, and Normal.

    Normal

    Buffer Symbol

    Allows you to select a Buffer symbol style from the drop-down list to be used by your Report FOCEXEC.

    Default

    Buffer Units

    The unit of measure used for buffering.

    Feet

    Buffer Distance

    The distance values used for buffering. This can be a list of comma-separated values.

    50,200

    For example:

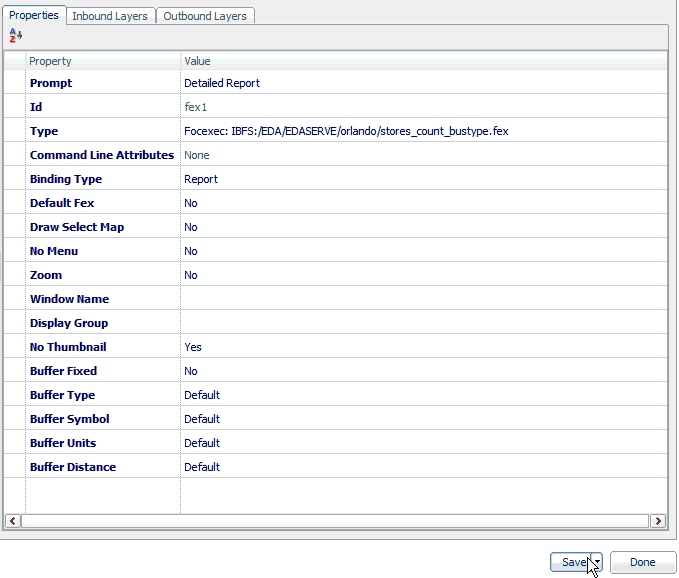

  13. Click Save and specify a path and file name (for example, esriconfig_orlando.xml) that will be used to identify the XML definition file that you are configuring for your application.


x
Procedure: How to Define an Inbound Layer for a Report FOCEXEC

The binding between the Report FOCEXEC and ArcGIS Server is achieved by defining an inbound layer. Inbound layers are used to identify which attribute is extracted from a map layer when a user draws a selected area on the map. Inbound layers provide information from ArcGIS Server to WebFOCUS. One or more inbound layer(s) associates a FOCEXEC to one or more map layer(s). They also define the filtering criteria for a FOCEXEC. This is usually in the format of a file, a numeric amper variable, or a string amper variable.

To define an inbound layer for the Report FOCEXEC using the ESRI Configuration Utility:

  1. Select an available Report FOCEXEC for which you want to configure an inbound layer and then click the Inbound Layers tab located in the FOCEXECs configuration area of the ESRI Configuration Utility.

    Note: In this example, an inbound layer is defined to the Report FOCEXEC called Food Supermarket County Report (food_supermarkets_by_county.fex).

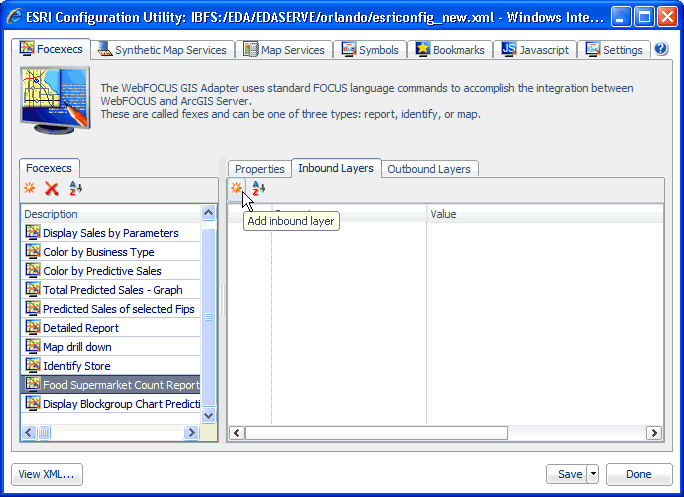

  2. Click Add inbound layer in the right pane.

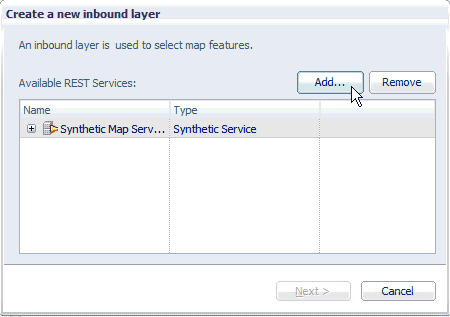

    The Create a new inbound layer dialog opens, as shown in the following image.

    You must first configure a connection to an available ArcGIS Server.

  3. Click Add.

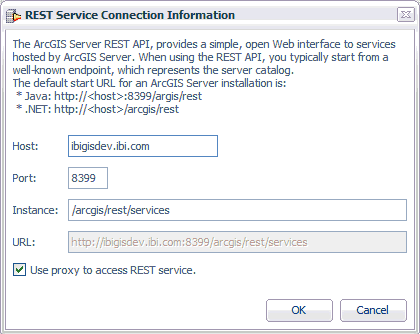

    The REST Service Connection Information dialog opens, as shown in the following image.

    The Use proxy to access REST service check box provides you with the option to enable or disable usage of the proxy.jsp file to navigate to a REST endpoint when adding a new map service. This option is enabled by default.

    If the Use proxy to access REST service check box is selected, then the proxy.jsp file on the application server must be changed to add the URL to the map server. If the Use proxy to access REST service check box is not selected, and the application server and the map server are not on the same machine, then requests to the map server will fail and an error message indicating a network error is generated. This is the result of a default setting in web browsers, which prevents cross-domain Ajax calls. This setting can be changed in the security settings section of your web browser configuration.

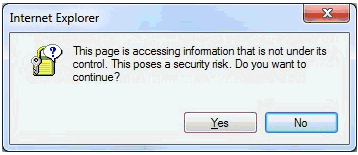

    Note: If you are using Microsoft Internet Explorer Version 10 and the Use proxy to access REST service check box is not selected, the following dialog box is displayed.

    If you click Yes, then Microsoft Internet Explorer allows you to access the map service without the proxy.jsp. If you click No, an error message indicating Access is denied is displayed.

    If you are using Google Chrome and the Use proxy to access REST service check box is not selected, an error message indicating A network error is displayed. If you are using Mozilla Firefox 24 and the Use proxy to access REST service check box is not selected, an error message indicating Failure is displayed. As a workaround, you must select the Use proxy to access REST service check box and edit the proxy.jsp to add a REST endpoint to your proxy list.

    To edit the proxy.jsp file, navigate to the following directory:

    <WF_HOME>\webapps\webfocus\tools\esri_config\proxy.jsp

    Add your REST endpoint, as indicated by the following example:

    String[] serverUrls = {
      //"<url>[,<token>]"
      //For ex. (secured server): "http://myserver.mycompany.com/arcgis/rest/services,ayn2C2iPvqjeqWoXwV
            6rjmr43kyo23mhIPnXz2CEiMA6rVu0xR0St8gKsd0olv8a"
      //For ex. (non-secured server): "http://sampleserver1.arcgisonline.com/arcgis/rest/services"
      "http://informat-65f86f:8399/arcgis/rest/services",
      "http://ibigisdev.ibi.com:8399/arcgis/rest/services",
      "http://ibigis10.ibi.com:8399/arcgis/rest/services",
      "http://tsssvz01:8399/arcgis/rest/services",  "http://sampleserver1.arcgisonline.com/arcgis/rest/services",
      "http://sampleserver2.arcgisonline.com/arcgis/rest/services" //NOTE - no comma after the last item
    };
  4. Specify a host name for ArcGIS Server in the Host field followed by the port, instance, and URL in the corresponding fields. Consult your ArcGIS administrator for the correct values to use.

    Note: As a best practice, do not include an ending forward slash (/) character when specifying an ArcGIS Server URL in the proxy.jsp file. If a forward slash character is specified, then you must ensure that the value entered in the Instance field of the REST Service Connection Information dialog also contains a forward slash at the end.

  5. Click OK.

    You are returned to the Create a new inbound layer dialog.

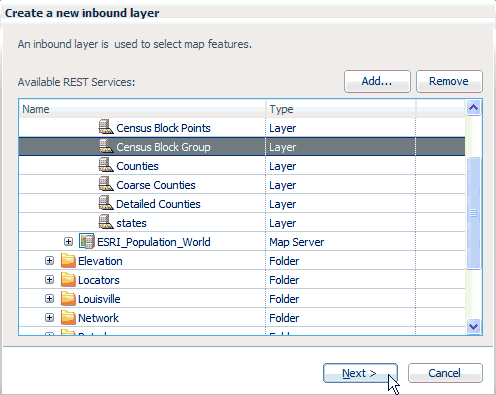

  6. Expand an available Map Server node and then select the layer (for example, Census Block Group) that will be used to select the map features.
  7. Click Next.

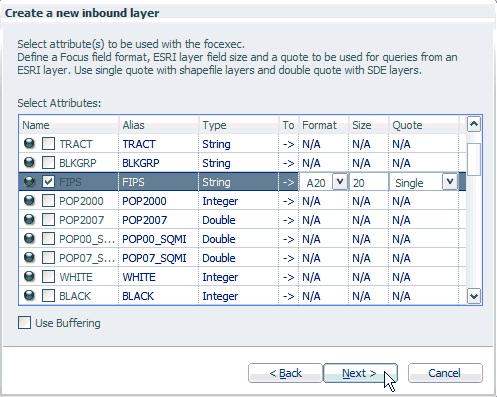

    The Select Attributes dialog opens, which is populated with all of the attribute names from the layer that was selected.

  8. Select the attribute(s) (for example, FIPS) that you want to be used as a unique identifier to link the map service layers with FOCEXEC columns.

    You can modify the Format, Size, and Quote value columns according to your requirements.

    The Format column reflects the FOCEXEC format to be used for conversion. Valid FOCUS formats are used with a length (for example, A20).

    The Size column reflects the length of the map service layer field.

    The Quote column reflects the type of quote to use for querying the map service layer field. Use single quotes for shape file layers and double quotes for SDE layers.

  9. Click Next when you have finished making your attribute selections.

    The following dialog opens, which allows you to select the report column for selecting values from a FOCUS database.

  10. Choose the filter type (for example, File) from the Focus filter format drop-down list.

    The available choices allow you to pass a sequential file of values, a string of alphanumeric values enclosed in single quotes and separated by "OR", or a string of numeric values separated by "OR".

    The value that you provide in the File name field (for example, FIPSLIST) is used to name the filter variable or file that the adapter passes to WebFOCUS.

  11. Click Finish.

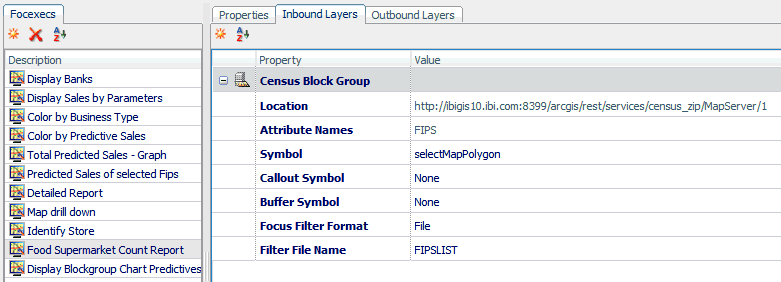

    The inbound layer definition is listed in the Inbound Layers tab of the FOCEXECs configuration area, as shown in the following image.

    The Properties table lists the available configuration properties for the inbound layer definition. The following table lists and describes these properties.

    Property

    Description

    Location

    The location of the map layer.

    http://ibigis10.ibi.com:8399/arcgis/rest/services/
    census_zip/MapServer/1

    Attribute Names

    The selected attribute(s) for the inbound layer definition.

    FIPS

    Symbol

    Allows you to select an available symbol definition from the drop-down list that will be used to render the map illustrating which features have been selected.

    selectMapPolygon

    For more information on defining symbols, see How to Configure a New Symbol Definition.

    Callout Symbol

    Allows you to select a callout symbol style from the drop-down list to be used by your FOCEXEC.

    None

    Buffer Symbol

    Allows you to select a buffer symbol style from the drop-down list to be used by your FOCEXEC.

    None

    Focus Filter Format

    The current filter type that is being used by the inbound layer definition (File, String Amper, or Numeric Amper).

    File

    Filter File Name

    The filter variable or file for the inbound layer definition.

    FIPSLIST



x
Reference: Sample Report FOCEXEC

This section provides the syntax used by the Detailed Report FOCEXEC (stores_count_bustype.fex).

-* File stores_count_bustype.fex
JOIN
RETAIL_BLKGRPS.SEG01.FIPS IN RETAIL_BLKGRPS TO MULTIPLE
PREDICTIVESBLK.SEG01.FIPS IN PREDICTIVESBLK TAG J2 AS J2
END
TABLE FILE RETAIL_BLKGRPS
SUM
     J2.SEG01.PREDICTED_SALES AS 'PREDICTED SALES'
     RETAIL_BLKGRPS.SEG01.POP10_SQMI AS 'POPULATION 2000 PER SQ. MILE'
     RETAIL_BLKGRPS.SEG01.POP00_SQMI AS 'POPULATION 2010 PER SQ. MILE'
     MAX.RETAIL_BLKGRPS.SEG01.MED_AGE AS 'MEDIAN AGE'
     CNT.RETAIL_BLKGRPS.SEG01.STOREID AS 'STORE COUNT'
BY  LOWEST J2.SEG01.FIPS
ON TABLE SET DROPBLNKLINE ON
ON TABLE SET PAGE-NUM NOLEAD
ON TABLE SET EXPANDABLE ON
ON TABLE NOTOTAL
ON TABLE PCHOLD FORMAT HTML
ON TABLE SET HTMLCSS ON
ON TABLE SET STYLE *
     INCLUDE = endeflt,
$
     DEFMACRO=COND0001,
     MACTYPE=RULE,
     WHEN=N6 GE 100,
$
TYPE=REPORT,
$
     GRAPHTYPE=DATA,
     COLUMN=N6,
     GRAPHCOLOR='GREEN',
$
     GRAPHTYPE=DATA,
     COLUMN=N6,
     GRAPHCOLOR='RED',
     MACRO=COND0001,
$
TYPE=REPORT,
     LINES-PER-PAGE=UNLIMITED,
$
TYPE=DATA,
     COLUMN=N1,
     DRILLMENUITEM='Detailed Report',
          FOCEXEC=rp_sales( \
     FIPSLIST=N1 \
     ),
     DRILLMENUITEM='Show in Map',
          JAVASCRIPT=RunMyMapOutput( \
     'FIPS' \
     N1 \
     'fex8' \
     ),
$
TYPE=TITLE,
     COLUMN=N1,
     DRILLMENUITEM='Detailed Report for Predicted Sales',
          FOCEXEC=rp_sales( \
     FIPSLIST=N1 \
     ),
     DRILLMENUITEM='Show in the Map',
          JAVASCRIPT=RunMyMapOutput( \
     'FIPS' \
     N1 \
     'fex8' \
     ),
$
TYPE=REPORT,
     OBJECT=MENU,
     COLOR='WHITE',
     HOVER-COLOR=RGB(66 70 73),
     BACKCOLOR=RGB(102 102 102),
     HOVER-BACKCOLOR=RGB(218 225 232),
     BORDER-COLOR='WHITE',
$
TYPE=REPORT,
     OBJECT=STATUS-AREA,
     COLOR='WHITE',
     BACKCOLOR=RGB(102 102 102),
$
TYPE=REPORT,
     OBJECT=CURRENT-ROW,
     HOVER-BACKCOLOR=RGB(218 225 232),
     BACKCOLOR=RGB(200 200 200),
$
TYPE=REPORT,
     OBJECT=CALC-AREA,
     COLOR='WHITE',
     BACKCOLOR=RGB(102 102 102),
$
TYPE=REPORT,
     COLUMN=N2,
     SQUEEZE=1.138889,
$
TYPE=REPORT,
     COLUMN=N3,
     SQUEEZE=0.680556,
$
TYPE=REPORT,
     COLUMN=N4,
     SQUEEZE=0.680556,
$
ENDSTYLE
END

Top of page

x
Procedure: How to Add a Map FOCEXEC

To add a Map FOCEXEC using the ESRI Configuration Utility:

  1. Access the ESRI Configuration Utility, as described in How to Add a Report FOCEXEC.

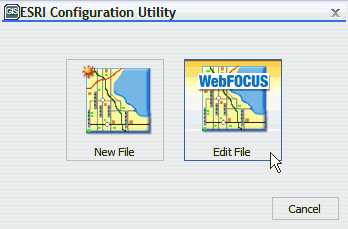

    The ESRI Configuration Utility dialog opens, as shown in the following image.

  2. Click Edit File.

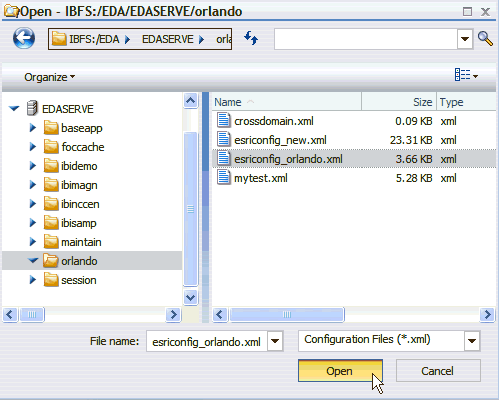

    The Open dialog is displayed, as shown in the following image.

  3. Browse to the orlando application directory under EDASERVE, select the esriconfig_orlando.xml definition file that you configured earlier, and click Open.

    The ESRI Configuration Utility opens the selected esriconfig_orlando.xml definition file, as shown in the following image.

    The Focexecs tab is selected by default.

  4. Click Add focexec in the left pane.

    The Create New Fex-Map Binding dialog opens, as shown in the following image.

  5. Perform the following steps:
    1. Ensure Focexec is selected from the Type drop-down list.
    2. In the Prompt field, enter a name (for example, Map Drill-Down) that will be used to identify this report in the application (accessed by the WebFOCUS GIS Viewer for Flex).
    3. Select Map from the Binding type area.
  6. Click Browse to the right of the Fex file path field.

    The Open dialog is displayed.

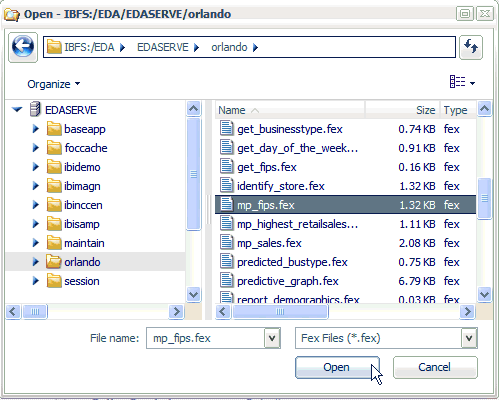

  7. Browse to the orlando application directory under EDASERVE, select the mp_fips.fex Map FOCEXEC, and click Open.

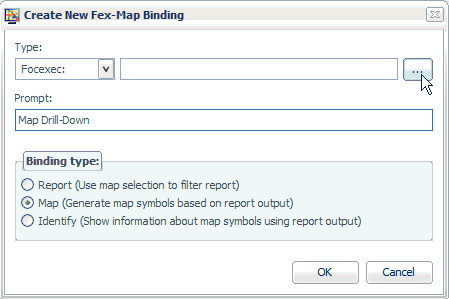

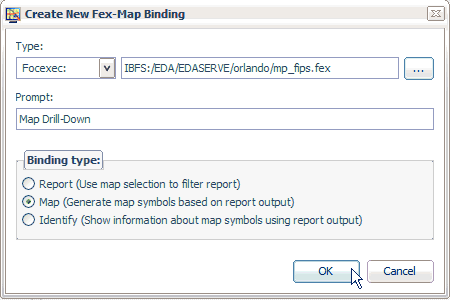

    You are returned to the Create New Fex-Map Binding dialog, as shown in the following image.

    Notice that the path to the selected Map FOCEXEC (for example, mp_fips.fex) is now added to the Fex file path field.

    Note: To explore the syntax and structure used for this Map FOCEXEC (mp_fips.fex), see Sample Map FOCEXEC.

  8. Click OK.

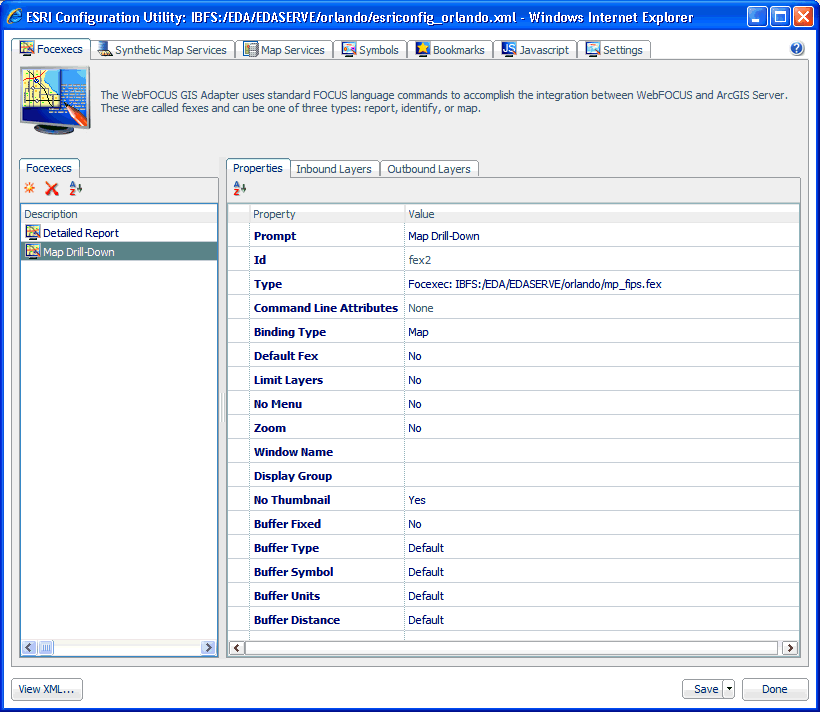

    The new Map FOCEXEC (called Map Drill-Down) is added to the Focexecs pane in the ESRI Configuration Utility, as shown in the following image.

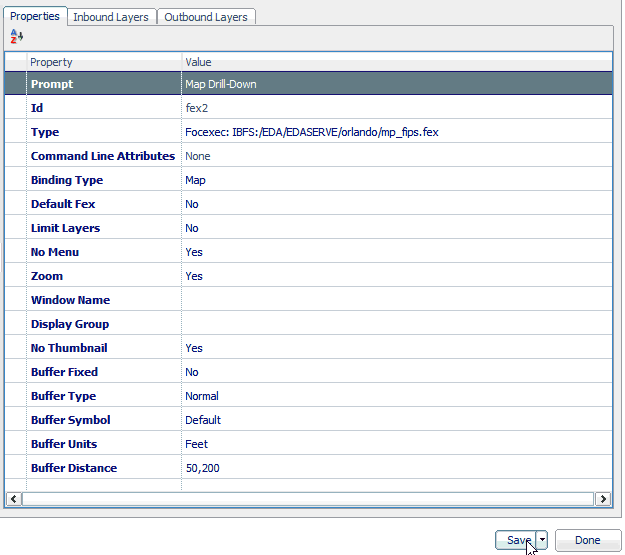

    The Properties tab lists the available configuration properties for the Map FOCEXEC. Enter the configuration properties for the Map Drill-Down FOCEXEC, as listed in the following table.

    Property

    Description

    Prompt

    The Prompt value that you specified in the Create New Fex-Map Binding dialog.

    Map Drill-Down

    Id

    An ID that is automatically assigned to the FOCEXEC based on the order it is added.

    fex2

    Type

    The type (Focexec or Adhoc) and path to the selected Report FOCEXEC on the server.

    Focexec:IBFS:/EDA/EDASERVE/orlando/mp_fips.fex

    Command Line Attributes

    None

    Binding Type

    The type of FOCEXEC (Report, Map, or Identify), as indicated by the selection made from the Binding type area in the Create New Fex-Map Binding dialog.

    Map

    Default Fex

    Designates this Report FOCEXEC to be the report that is launched when no other is specified.

    No

    Limit Layers

    Displays layers that are only listed within the Outbound area.

    No

    No Menu

    Removes this procedure from the menu of the WebFOCUS GIS Viewer for Flex.

    Yes

    Zoom

    Zooms into the area that was selected in the WebFOCUS GIS Viewer for Flex.

    Yes

    Window Name

    Displays the report output in a new window. This option can be used for all report output formats that are not HTML, such as PDF and Excel.

    Display Group

    Assigns the Report FOCEXEC to a display group. This is reflected in the menu for reports. The menu hierarchy displays as Layer-Display Group-Prompt.

    No Thumbnail

    Yes

    Buffer Fixed

    Determines whether the buffer distances are preset or can be changed from the user interface.

    No

    Buffer Type

    The type of buffer to perform around the graphic or around selected features. Available values from the drop-down list include Feature, Sketch, Disabled, and Normal.

    Normal

    Buffer Symbol

    Allows you to select a Buffer symbol style from the drop-down list to be used by your Report FOCEXEC.

    Default

    Buffer Units

    The unit of measure used for buffering.

    Feet

    Buffer Distance

    The distance values used for buffering. This can be a list of comma-separated values.

    50,200

    For example:

  9. Click Save.


x
Procedure: How to Define an Outbound Layer for the Map FOCEXEC

The binding between the Map FOCEXEC and ArcGIS Server is achieved by defining an outbound layer. Outbound layers provide information from WebFOCUS to ArcGIS Server, and determine the linkage between a Map Layer attribute and WebFOCUS XML output. Outbound layers are required for WebFOCUS Map bindings. These layers visually represent results from a WebFOCUS Report using color, image, size, title, and text columns.

To define an outbound layer for the Map FOCEXEC using the ESRI Configuration Utility:

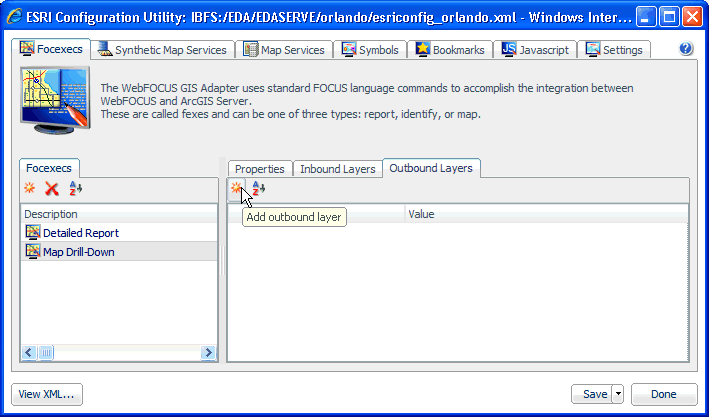

  1. Select an available Map FOCEXEC (for example, Map Drill-Down) for which you want to configure an outbound layer and then click the Outbound Layers tab located in the FOCEXECs configuration area of the ESRI Configuration Utility, as shown in the following image.

    Note: In this example, an outbound layer is defined to the Map FOCEXEC called Map Drill-Down (mp_fips.fex).

  2. Click Add Outbound layer in the right pane.

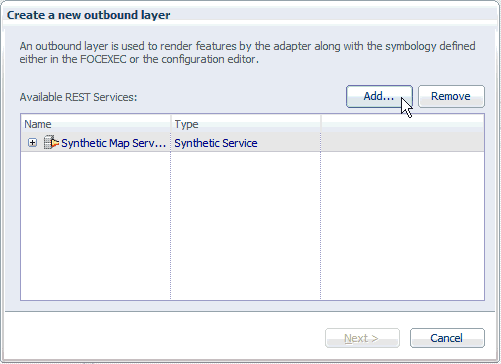

    The Create a new outbound layer dialog opens, as shown in the following image.

    You must first configure a connection to an available ArcGIS Server.

  3. Click Add.

    The REST Service Connection Information dialog opens, as shown in the following image.

    The Use proxy to access REST service check box provides you with the option to enable or disable usage of the proxy.jsp file to navigate to a REST endpoint when adding a new map service. This option is enabled by default.

    If the Use proxy to access REST service check box is selected, then the proxy.jsp file on the application server must be changed to add the URL to the map server. If the Use proxy to access REST service check box is not selected, and the application server and the map server are not on the same machine, then requests to the map server will fail and an error message indicating a network error is generated. This is the result of a default setting in web browsers, which prevents cross-domain Ajax calls. This setting can be changed in the security settings section of your web browser configuration.

    Note: If you are using Microsoft Internet Explorer Version 10 and the Use proxy to access REST service check box is not selected, the following dialog box is displayed.

    If you click Yes, then Microsoft Internet Explorer allows you to access the map service without the proxy.jsp. If you click No, an error message indicating Access is denied is displayed.

    If you are using Google Chrome and the Use proxy to access REST service check box is not selected, an error message indicating A network error is displayed. If you are using Mozilla Firefox 24 and the Use proxy to access REST service check box is not selected, an error message indicating Failure is displayed. As a workaround, you must select the Use proxy to access REST service check box and edit the proxy.jsp to add a REST endpoint to your proxy list.

    To edit the proxy.jsp file, navigate to the following directory:

    <WF_HOME>\webapps\webfocus\tools\esri_config\proxy.jsp

    Add your REST endpoint, as indicated by the following example:

    String[] serverUrls = {
      //"<url>[,<token>]"
      //For ex. (secured server): "http://myserver.mycompany.com/arcgis/rest/services,ayn2C2iPvqjeqWoXwV
            6rjmr43kyo23mhIPnXz2CEiMA6rVu0xR0St8gKsd0olv8a"
      //For ex. (non-secured server): "http://sampleserver1.arcgisonline.com/arcgis/rest/services"
      "http://informat-65f86f:8399/arcgis/rest/services",
      "http://ibigisdev.ibi.com:8399/arcgis/rest/services",
      "http://ibigis10.ibi.com:8399/arcgis/rest/services",
      "http://tsssvz01:8399/arcgis/rest/services",  "http://sampleserver1.arcgisonline.com/arcgis/rest/services",
      "http://sampleserver2.arcgisonline.com/arcgis/rest/services" //NOTE - no comma after the last item
    };
  4. Specify a host name for ArcGIS Server in the Host field followed by the port, instance, and URL in the corresponding fields. Consult your ArcGIS administrator for the correct values to use.

    Note: As a best practice, do not include an ending forward slash (/) character when specifying an ArcGIS Server URL in the proxy.jsp file. If a forward slash character is specified, then you must ensure that the value entered in the Instance field of the REST Service Connection Information dialog also contains a forward slash at the end.

  5. Click OK.

    You are returned to the Create a new outbound layer dialog.

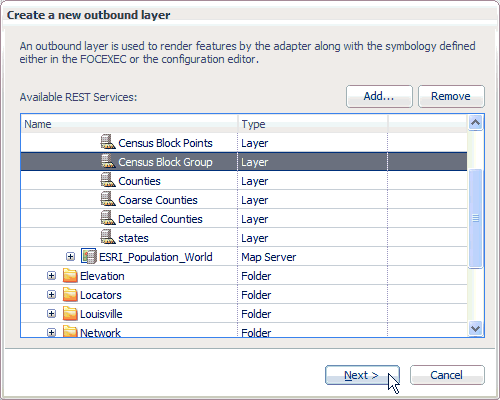

  6. Expand an available Map Server node and then select the layer (for example, Census Block Group) that will be used to select the map features.
  7. Click Next.

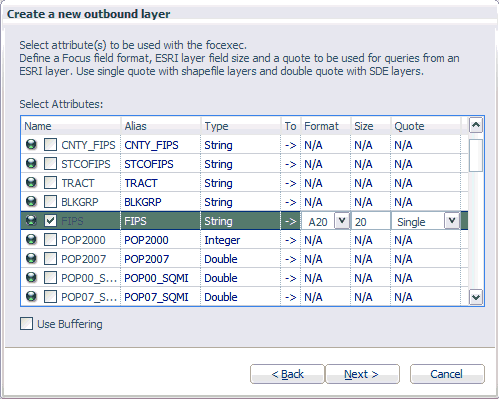

    The Select Attributes dialog opens, which is populated with all of the attribute names from the layer that was selected.

  8. Select the attribute(s) (for example, FIPS) that you want to be used as a unique identifier to link the map service layers with FOCEXEC columns.

    You can modify the Format, Size, and Quote value columns according to your requirements.

    The Format column reflects the FOCEXEC format to be used for conversion. Valid FOCUS formats are used with a length (for example, A20).

    The Size column reflects the length of the map service layer field.

    The Quote column reflects the type of quote to use for querying the map service layer field. Use single quotes for shape file layers and double quotes for SDE layers.

  9. Click Next when you have finished making your attribute selections.

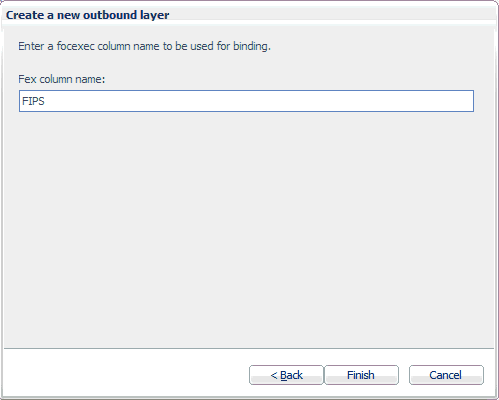

    The following dialog opens, which allows you to specify a FOCEXEC column name to be used for binding.

  10. Specify a FOCEXEC column name (for example, FIPS) and click Finish.

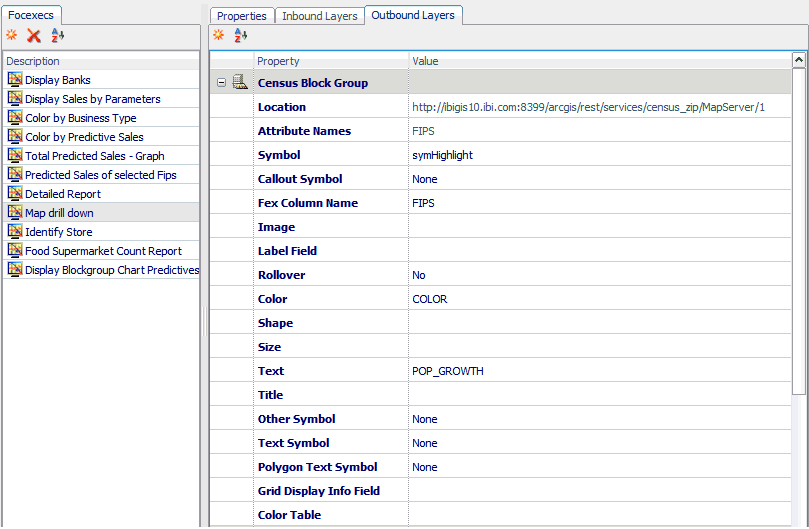

    The new outbound layer definition is listed in the Outbound Layers tab of the FOCEXECs configuration area, as shown in the following image.

    The Properties table lists the available configuration properties for the outbound layer definition. The following table lists and describes these properties.

    Property

    Description

    Location

    The location of the map layer.

    http://ibigis10.ibi.com:8399/arcgis/rest/services/
    census_zip/MapServer/1

    Attribute Names

    The selected attribute(s) for the outbound layer definition.

    FIPS

    Symbol

    Allows you to select an available symbol definition from the drop-down list that will be used to render the map illustrating which features have been selected.

    symHighlight

    For more information on defining symbols, see How to Configure a New Symbol Definition.

    Callout Symbol

    Allows you to select a callout symbol style from the drop-down list to be used by your FOCEXEC.

    None

    Fex Column Name

    The specified FOCEXEC column name to be used for binding.

    FIPS


    Refers to a FOCUS Report Column to use for the IMAGE field. This image field can be used to symbolize point features.

    Label Field

    Refers to a FOCUS Report Column to use for labeling features on an outbound layer.

    Rollover

    Enables or disables rollover (mouse over) support for the outbound layer.

    No

    Color

    COLOR

    Shape

    Size

    Text

    POP_GROWTH

    Title

    Other Symbol

    Allows you to select an additional symbol from the drop-down list.

    None

    Text Symbol

    Allows you to select an available text symbol from the drop-down list.

    None

    Polygon Text Symbol

    Allows you to select an available polygon text symbol from the drop-down list.

    None

    Grid Display Info Field

    Refers to a list of FOCUS Report Column(s) to be displayed in the Data View widget.

    Color Table

    Allows you to specify a color table to be used by the outbound layer.



x
Reference: Sample Map FOCEXEC

This section provides the syntax used by the Map Drill-Down FOCEXEC (mp_fips.fex).

-* File mp_fips.fex
-*-SET &FIPSLIST = 120950119021;
-SET &FIPSPARM = &FIPS;
TABLE FILE BLOCKGRP_DETAILS
SUM
     BLOCKGRP_DETAILS.SEG01.POP_GROWTH
     COMPUTE COLOR/A20 = IF BLOCKGRP_DETAILS.SEG01.POP_GROWTH GE 100 THEN 'RED'
ELSE IF  BLOCKGRP_DETAILS.SEG01.POP_GROWTH GE 80 THEN 'ORANGE'
ELSE IF BLOCKGRP_DETAILS.SEG01.POP_GROWTH GE 60 THEN '255,60,0'
ELSE IF  BLOCKGRP_DETAILS.SEG01.POP_GROWTH GE 40 THEN '240,144,14'
ELSE IF BLOCKGRP_DETAILS.SEG01.POP_GROWTH GE 20 THEN '225,208,26'
 ELSE IF BLOCKGRP_DETAILS.SEG01.POP_GROWTH GE 0 THEN '166,210,37'
 ELSE '128,128,128';
BY  LOWEST BLOCKGRP_DETAILS.SEG01.FIPS
WHERE BLOCKGRP_DETAILS.SEG01.FIPS EQ '&FIPSPARM';
ON TABLE SET PAGE-NUM NOLEAD
ON TABLE NOTOTAL
ON TABLE PCHOLD FORMAT HTML
ON TABLE SET HTMLCSS ON
ON TABLE SET STYLE *
     INCLUDE = endeflt,
$
TYPE=REPORT,
     OBJECT=MENU,
     COLOR='WHITE',
     HOVER-COLOR=RGB(66 70 73),
     BACKCOLOR=RGB(102 102 102),
     HOVER-BACKCOLOR=RGB(218 225 232),
     BORDER-COLOR='WHITE',
$
TYPE=REPORT,
     OBJECT=STATUS-AREA,
     COLOR='WHITE',
     BACKCOLOR=RGB(102 102 102),
$
TYPE=REPORT,
     OBJECT=CURRENT-ROW,
     HOVER-BACKCOLOR=RGB(218 225 232),
     BACKCOLOR=RGB(200 200 200),
$
TYPE=REPORT,
     OBJECT=CALC-AREA,
     COLOR='WHITE',
     BACKCOLOR=RGB(102 102 102),
$
ENDSTYLE
END

WebFOCUS
