The Alert feature requires the following components:
An Alert consists of the following:
An Alert test is required to check whether or not a set of defined test conditions (rules) is met (true or false). An Alert test can be a WebFOCUS Test, which is a simple TABLE request that you create to define the condition to test for. Alternatively, an Alert test can be a Test for File Existence, which checks for the existence of a file that is accessible to the WebFOCUS Reporting Server to which the Alert test is submitted. The file does not need to be in the APP PATH. It just needs to be in a location where it can be found by the Reporting Server.
Note: The Test for File Existence file does not need to be an actual file with an extension. Testing for the existence of a folder is also valid.
If the Alert test is triggered (true) and returns records, the Alert result request is processed. You have the option of creating the result report or selecting an existing Managed Reporting report you are authorized to run.
Alerts Created in Developer Studio. If you select WebFOCUS Test in Developer Studio, you are prompted to create the Alert test using the reporting tool. You can also choose the Editor. If you select the Editor, be sure to keep the TABLE request simple. The TABLE request should only contain the fields to evaluate the condition and an ON TABLE HOLD statement. When you save the request, it is validated to ensure you have included the ON TABLE HOLD statement.
You can create the Alert result or select an existing Managed Reporting report.
Considerations: One consideration when creating an Alert is the flexibility of editing the Alert result. It is recommended that you select an existing report for the Alert result request, as it is available to edit, run interactively, or schedule independently of the Alert. If you create the Alert result using Developer Studio within the Alert Wizard, you need to use the Alert Wizard and select the open option again to edit the request, because the Alert test and the report to be run are contained within the Alert procedure.
Once an Alert is created using the browser or Developer Studio, it is stored in the WebFOCUS Repository.
In the sample code that follows, an Alert test is created with the Editor and a report to be executed is created with Report Painter. To keep the sample code simple, styling and report options, such as report headings and conditional styling, are not included in this request.
Notice that after the first TABLE request there is a –IF statement that checks if the number of lines in the report is equal to zero (–IF &LINES EQ 0). This checks to see if the Alert should be triggered (true).
If the number of lines is greater than zero, then there are records that satisfy the Alert test and the report is executed. This test condition determines if the second TABLE request, to execute the report, should be triggered (true).
The following is the Alert test sample code:
-* Created by Alert Wizard -* version 1.0 -* start of the test report TABLE FILE CENTINV SUM CENTINV.INVINFO.QTY_IN_STOCK BY CENTINV.INVINFO.PRODCAT BY CENTINV.INVINFO.PRODTYPE BY CENTINV.INVINFO.PRODNAME BY CENTINV.INVINFO.PROD_NUM WHERE CENTIV.INFO.QTY_IN_STOCK LT 5000; ON TABLE HOLD END -* end of the test report -* start of the test -RUN -IF &LINES EQ 0 GOTO ALERTEXIT; -* end of the test -* start of the output report TABLE FILE CENTINV PRINT CENTINV.INVINFO.QTY_IN_STOCK CENTINV.INVINFO.PRODCAT CENTINV.INVINFO.PRODTYPE CENTINV.INVINFO.PRODNAME CENTINV.INVINFO.PROD_NUM WHERE CENTIV.INFO.QTY_IN_STOCK LT 5000; ON TABLE SUBHEAD “Products with Inventory Below 5000” ON TABLE SET PAGE-NUM NOLEAD ON TABLE NOTOTAL ON TABLE PCHOLD FORMAT HTML
ON TABLE SET HTMLCSS ON END -* end of the output report -* start of the options -* end of the options -ALERTEXIT -* End Alert Wizard
Authorized users can run an Alert test interactively and optionally schedule it to be distributed by ReportCaster.
The following image shows basic Alert processing.

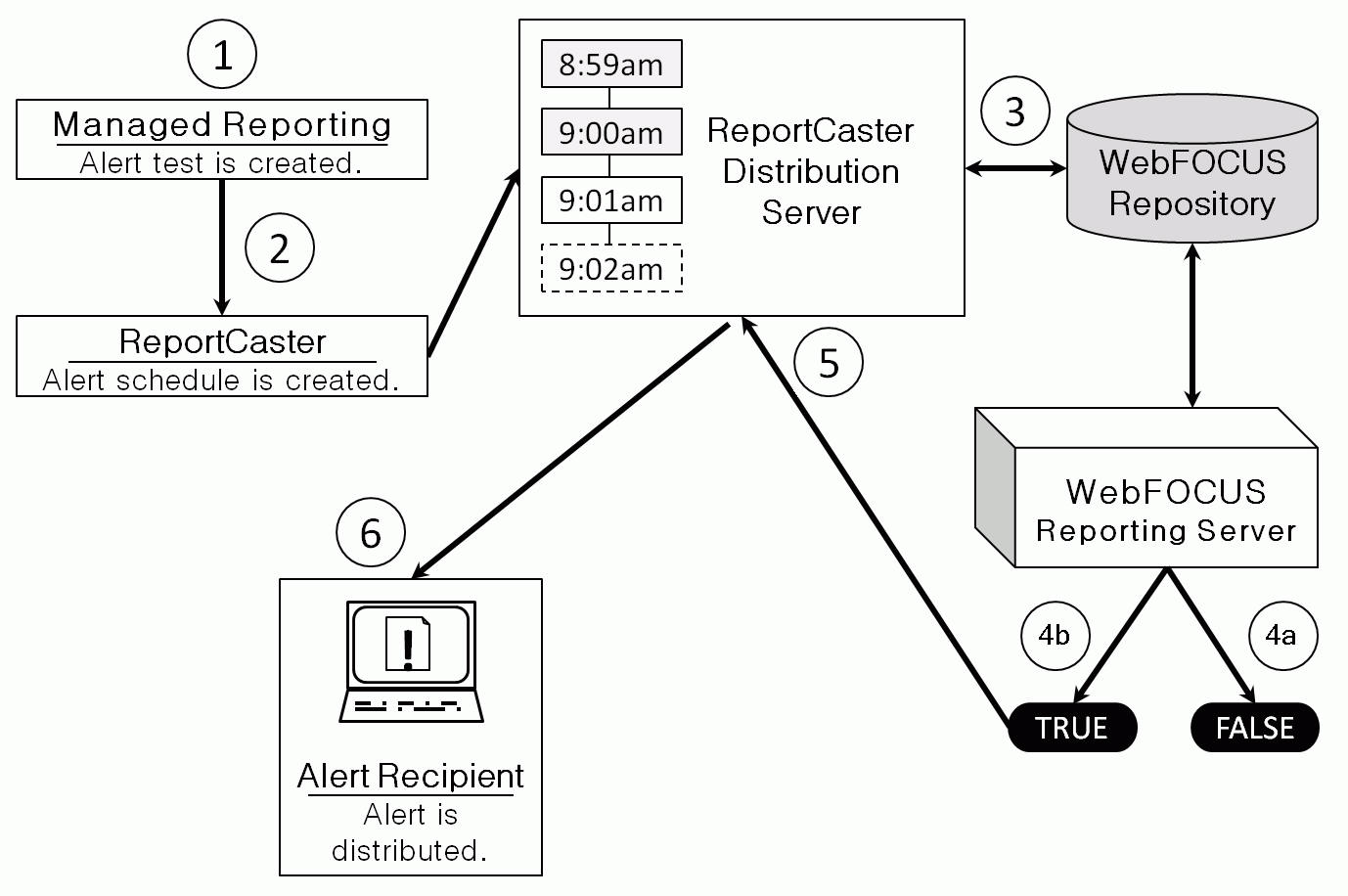

The following image shows scheduled Alert processing.
