This section shows simple WebFOCUS requests that create different chart types. Subsequent chapters describe the JSON methods and properties available for each type of chart.
Line charts are useful for emphasizing the movement or trend of numeric data over time, since they allow a viewer to trace the evolution of a particular point by working backwards or interpolating. Highs and lows, rapid or slow movement, or a tendency toward stability are all types of trends that are well suited to a line chart.
Line charts can also be plotted with two or more scales to suggest a comparison of the same value, or set of values, in different time periods. The number of scales your chart has depends on the type of chart you select.

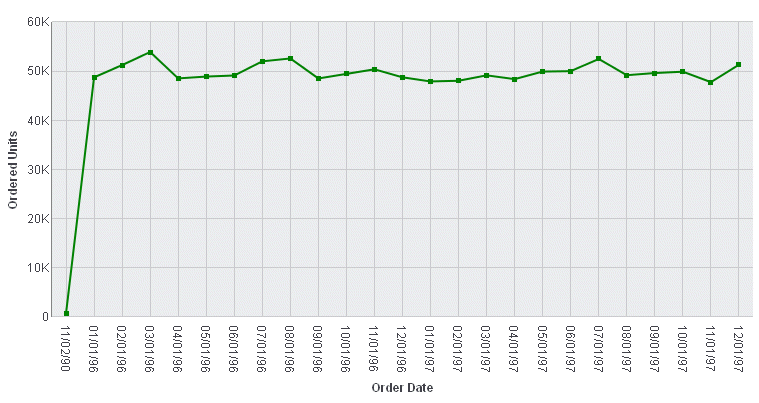

The following request against the GGORDER data source creates a line chart (ON GRAPH SET LOOKGRAPH LINE). The y-axis represents quantity sold (QUANTITY), and the x-axis represents the order date. The JSON block of the style section sets the series color to green:
GRAPH FILE GGORDER SUM QUANTITY ACROSS ORDER_DATE ON GRAPH PCHOLD FORMAT JSCHART ON GRAPH SET LOOKGRAPH LINE ON GRAPH SET STYLE * *GRAPH_JS series: [{series:0, color: 'green'}] *END INCLUDE=ENIADefault_combine.sty,$ ENDSTYLE END
Since there is only one display field in the request, it represents series 0 and it is displayed in green:
For more information about setting color properties, see Introduction to JSON Properties for HTML5 Charts.
A bar chart plots numeric data by displaying rectangular blocks against a scale. The length of a bar corresponds to a value or amount. Viewers can develop a clear mental image of comparisons among data series by distinguishing the relative heights of the bars. Use a bar chart to display numeric data when you want to present comparisons of data.
WebFOCUS supports a variety of bar chart styles. For a list of bar chart styles available, see Bar Chart Styles and Three-Dimensional Chart Styles.

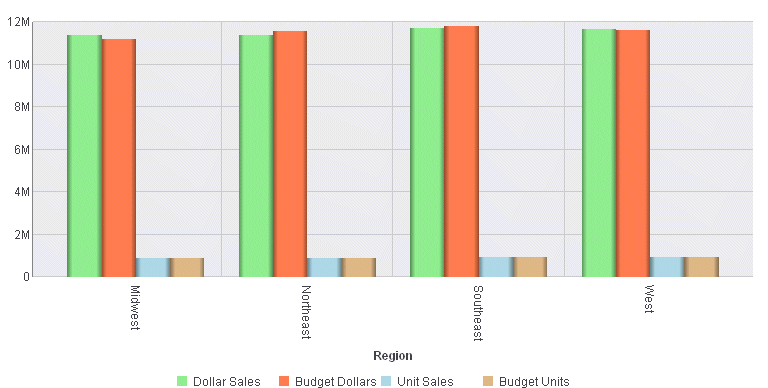

The following request against the GGSALES data source creates a vertical bar chart (ON GRAPH SET LOOKGRAPH VBAR). The JSON block in the style section of the request sets the series colors:
GRAPH FILE GGSALES SUM DOLLARS BUDDOLLARS UNITS BUDUNITS ACROSS REGION ON GRAPH PCHOLD FORMAT JSCHART ON GRAPH SET LOOKGRAPH VBAR ON GRAPH SET STYLE * *GRAPH_JS series: [ {series: 0, color: 'lightgreen'}, {series: 1, color: 'coral'}, {series: 2, color: 'lightblue'}, {series: 3, color: 'burlywood'}, ] *END INCLUDE=ENIADefault_combine.sty,$ ENDSTYLE END
The output is:

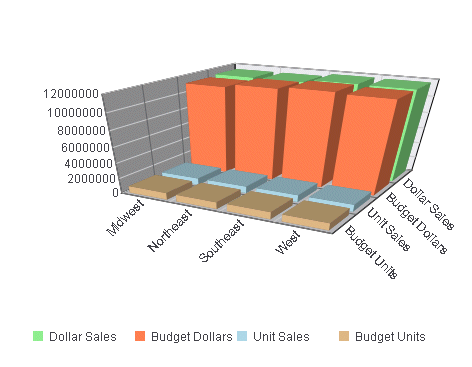

The following request against the GGSALES data source creates a 3D bar chart (ON GRAPH SET LOOKGRAPH 3D_BAR). The JSON block in the style section of the request sets the series colors:
GRAPH FILE GGSALES SUM DOLLARS BUDDOLLARS UNITS BUDUNITS ACROSS REGION ON GRAPH PCHOLD FORMAT JSCHART ON GRAPH SET LOOKGRAPH 3D_BAR ON GRAPH SET STYLE * *GRAPH_JS legend: {visible: true}, series: [ {series: 0, color: 'lightgreen'}, {series: 1, color: 'coral'}, {series: 2, color: 'lightblue'}, {series: 3, color: 'burlywood'}, ] *END INCLUDE=ENIADefault_combine.sty,$ ENDSTYLE END
The output is:
A pie chart emphasizes where your data fits in relation to a larger whole. Each slice represents a percentage of the whole. Keep in mind that pie charts work best when your data falls into a limited number of groups. Too many groups divide the pie into small segments that are difficult to see. Use color or texture on individual segments to create visual contrast.
The following request against the GGSALES data source creates a pie chart (ON GRAPH SET LOOKGRAPH PIE). Each slice of the pie shows the percentage of dollar sales contributed by each product. The JSON block in the style section of the request sets the slice colors:
GRAPH FILE GGSALES SUM DOLLARS ACROSS PRODUCT ON GRAPH PCHOLD FORMAT JSCHART ON GRAPH SET LOOKGRAPH PIE ON GRAPH SET STYLE * *GRAPH_JS mouseOverIndicator: {enabled: true,color: ' '}, series: [ {series: 0, color: 'cyan'}, {series: 1, color: 'bisque'}, {series: 2, color: 'slateblue'}, {series: 3, color: 'beige'}, {series: 4, color: 'lightgreen'}, {series: 5, color: 'yellow'}, {series: 6, color: 'blue'}, {series: 7, color: 'lavender'}, {series: 8, color: 'limegreen'}, {series: 9, color: 'red'} ] *END INCLUDE=ENIADefault_combine.sty,$ ENDSTYLE END

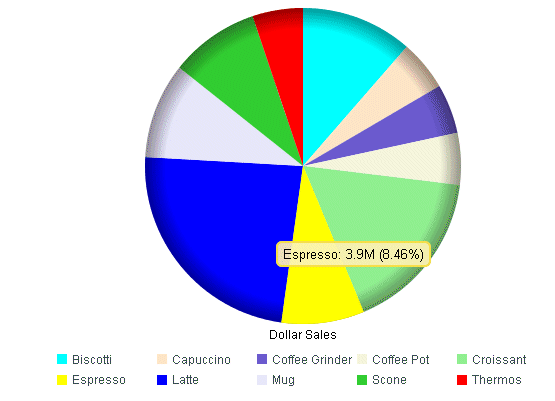

The output shows the default labels displayed when the mouse hovers over a pie slice:
Scatter charts show the relationship between two different numeric measures. Use a scatter plot to visualize the density of individual data values around particular points or to demonstrate patterns in your data.
A scatter chart has a numeric x-axis, or sort field. Scatter charts and line charts are distinguishable from one another only by virtue of their x-axis data type. Line charts can appear without connecting lines (making them look like scatter charts) and scatter charts can appear with connecting lines (making them look like line charts).
The following request against the GGORDER data source create a scatter chart (ON GRAPH SET LOOKGRAPH SCATTER). The HEADING phrase in the request creates a heading for the chart. The JSON block in the style section of the request sets the chart border color and the marker shape, border, and color:
GRAPH FILE GGORDER HEADING CENTER "Sample Scatter Chart" PRINT QUANTITY AS 'Quantity' ACROSS PRODUCT_CODE WHERE PRODUCT_CODE EQ 'B144' WHERE QUANTITY LT 51 ON GRAPH PCHOLD FORMAT JSCHART ON GRAPH SET LOOKGRAPH SCATTER ON GRAPH SET STYLE * *GRAPH_JS border: {color: 'navy’}, series: [ {series: 0, color: 'cyan', marker: {shape: 'triangle', size: 12, border: {width: 1, color:'blue'}}} ] *END INCLUDE=ENIADefault_combine.sty,$ ENDSTYLE END
The output is:

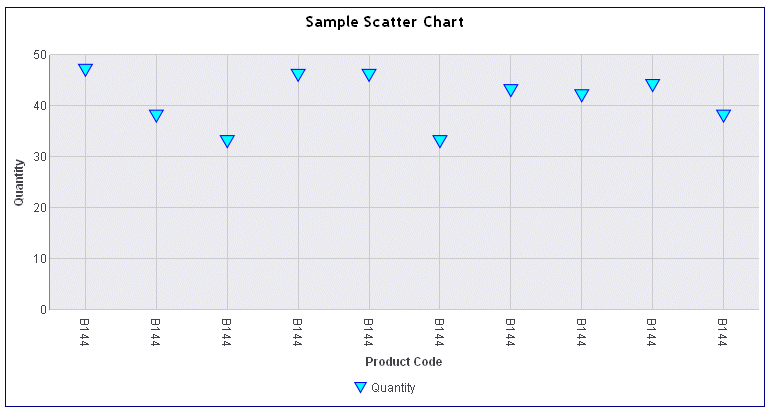

Note that the heading is positioned on the HTML page outside of the chart frame. It is also centered on the HTML page. If you want to place the heading inside of the chart and have it centered on the chart, add the ON GRAPH SET EMBEDHEADING ON command to your request:
GRAPH FILE GGORDER HEADING CENTER "Sample Scatter Chart" PRINT QUANTITY AS 'Quantity' ACROSS PRODUCT_CODE WHERE PRODUCT_CODE EQ 'B144' WHERE QUANTITY LT 51 ON GRAPH PCHOLD FORMAT JSCHART ON GRAPH SET EMBEDHEADING ON ON GRAPH SET STYLE * *GRAPH_JS border: {color: 'navy'}, series: [ {series: 0, color: 'cyan', marker: {shape: 'triangle', size: 12, border: {width: 1, color:'blue'}}}, {series: 1, color: 'bisque', marker: {shape: 'square', size: 13, border: {width: 1, color:'brown'}}}, {series: 2, color: 'slateblue', marker: {shape: 'circle', size: 14, border: {width: 1, color:'blue'}}}, {series: 3, color: 'beige', marker: {shape: 'diamond', size: 15, border: {width: 1, color:'brown'}}}, {series: 4, color: 'lightgreen', marker: {shape: 'triangle', size: 16, border: {width: 1, color:'green'}}} ] *END INCLUDE=ENIADefault_combine.sty,$ ENDSTYLE END
The output is:
Area charts are similar to line charts except that the area between the data line and the zero line (or axis) is usually colored or textured. Area charts allow you to stack data on top of each other. Stacking allows you to highlight the relationship between data series, showing how some data series approach or shadow a second series.

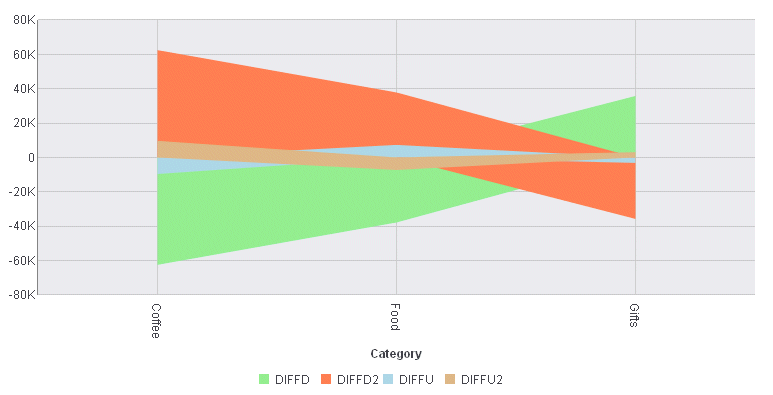

The following request against the GGSALES data source creates four virtual fields and then uses them to produce a vertical area chart (ON GRAPH SET LOOKGRAPH VAREA). The JSON block in the style section of the request sets the series colors:
DEFINE FILE GGSALES DIFFD = DOLLARS-BUDDOLLARS; DIFFU = UNITS-BUDUNITS; DIFFD2 = BUDDOLLARS-DOLLARS; DIFFU2 = BUDUNITS-UNITS; END GRAPH FILE GGSALES SUM DIFFD DIFFD2 DIFFU DIFFU2 BY CATEGORY ON GRAPH PCHOLD FORMAT JSCHART ON GRAPH SET LOOKGRAPH VAREA ON GRAPH SET STYLE * *GRAPH_JS series: [ {series: 0, color: 'lightgreen'}, {series: 1, color: 'coral'}, {series: 2, color: 'lightblue'}, {series: 3, color: 'burlywood'}, ], *END INCLUDE=ENIADefault_combine.sty,$ ENDSTYLE END
The output is:

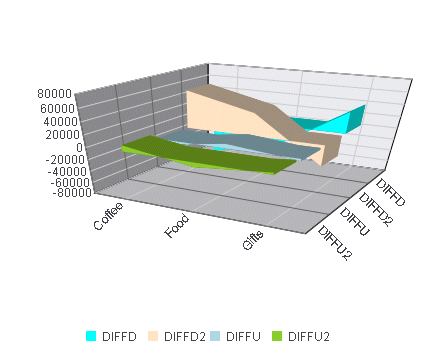

The following request against the GGSALES data source creates four virtual fields and uses them to produce a 3D area chart (ON GRAPH SET LOOKGRAPH 3DAREAS). The JSON block in the style section of the request sets the legend position and the series colors:
DEFINE FILE GGSALES DIFFD = DOLLARS-BUDDOLLARS; DIFFU = UNITS-BUDUNITS; DIFFD2 = BUDDOLLARS-DOLLARS; DIFFU2 = BUDUNITS-UNITS; END GRAPH FILE GGSALES SUM DIFFD DIFFD2 DIFFU DIFFU2 BY CATEGORY ON GRAPH PCHOLD FORMAT JSCHART ON GRAPH SET LOOKGRAPH 3DAREAS ON GRAPH SET STYLE * *GRAPH_JS legend: {visible: true, position: 'bottom'}, series: [ {series: 0, color: 'cyan'}, {series: 1, color: 'bisque'}, {series: 2, color: 'lightblue'}, ] *END INCLUDE=ENIADefault_combine.sty,$ ENDSTYLE END
The output is:
In a boxplot, each series and group requires five values. For a given series and group box, the first value is the minimum (lower hat), the second defines the box bottom, the third value is median line, the fourth value defines the box top, and the fifth value defines the location of the top hat. Values must be in ascending order. Box plot fill color and border are defined by the series color and border.

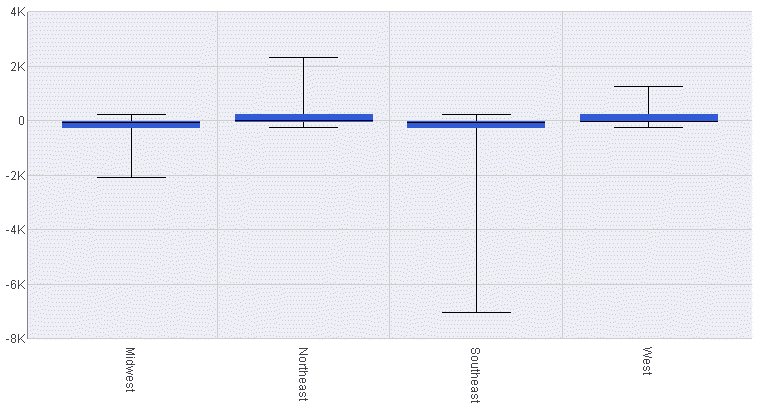

The following request against the GGSALES data source calculates the five values needed for a boxplot and then generates a boxplot (ON GRAPH SET LOOKGRAPH BOXPLOT). The JSON block in the style section of the request sets the series colors and border width.
DEFINE FILE GGSALES DIFF = UNITS-BUDUNITS; END GRAPH FILE GGSALES SUM DOLLARS NOPRINT AND COMPUTE MIN1 = MIN.DIFF; HAT1 = MIN1 +200; MED1 =MDN.DIFF; HAT2 =DIFF; MAX2 = MAX.DIFF; BY REGION ON GRAPH PCHOLD FORMAT JSCHART ON GRAPH SET LOOKGRAPH BOXPLOT ON GRAPH SET STYLE * *GRAPH_JS Series: [ {series: 0, color: 'lightblue', border: {width: 1}} ] *END INCLUDE=ENIADefault_combine.sty,$ ENDSTYLE END
The output is:
A bubble chart is an enhanced scatter plot in which the size of each marker is proportional to the value of a third measure. Therefore, a bubble chart requires three values, (x-position, y-position, and size) to draw each bubble marker.
A negative size value is treated as positive (that is, it uses the absolute value of the data). A null, undefined, or zero size will eliminate the marker. Sizes are proportional according to the range of size values in the data set. Disparate marker size values will draw a large marker that exceeds the draw area.

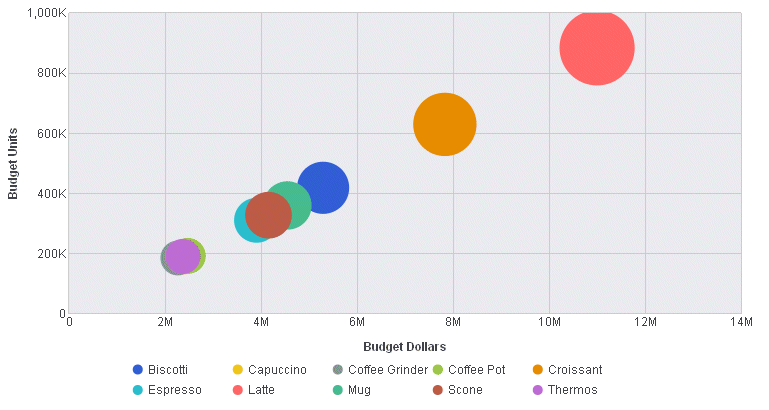

The following request against the GGSALES data source generates a bubble chart (ON GRAPH SET LOOKGRAPH BUBBLE). The chart uses the included StyleSheet and default settings, so the style section of the request does not include a JSON block.
GRAPH FILE GGSALES SUM BUDDOLLARS BUDUNITS DOLLARS BY PRODUCT ON GRAPH PCHOLD FORMAT JSCHART ON GRAPH SET LOOKGRAPH BUBBLE ON GRAPH SET STYLE * INCLUDE=ENIADefault_combine.sty,$ ENDSTYLE END
On the output, the bubble size depends on dollar sales, while the axes show the budgeted dollars and budgeted units:
A funnel chart is basically a pie chart that shows only one group of data at a time. The series in the group are stacked in the funnel with the first series at the top and the last series at the bottom. In the funnel chart, the display field functions as the group, and the sort fields function as the series.
Series-specific properties control the color of funnel segments.

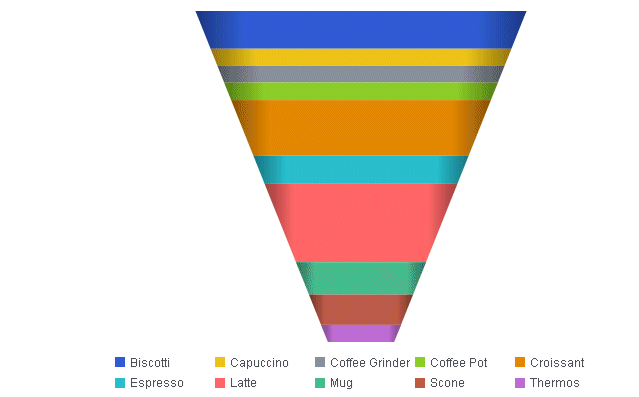

The following request against the GGSALES data source generates a funnel chart (ON GRAPH SET LOOKGRAPH FUNNEL). The output uses the included StyleSheet file and accepts all other defaults, so there is no JSON block in the style section:
GRAPH FILE GGSALES SUM DOLLARS BY PRODUCT ON GRAPH PCHOLD FORMAT JSCHART ON GRAPH SET LOOKGRAPH FUNNEL ON GRAPH SET STYLE * INCLUDE=ENIADefault_combine.sty,$ ENDSTYLE END
The output is:
Gauges identify a single value along an axis that is usually displayed in a circle. They are often used in dashboards to display progress or quantity.
The numeric y-axis properties control scaling, tick marks, and colors assigned to segments of the gauge axis.

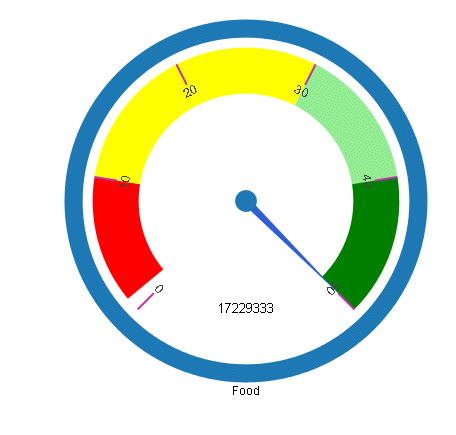

The following request against the GGSALES data source generates a gauge chart (ON GRAPH SET LOOKGRAPH GAUGE1). The JSON block in the style section of the request sets the color bands and line styles using y-axis properties:
GRAPH FILE GGSALES SUM DOLLARS BY CATEGORY WHERE CATEGORY EQ 'Food' ON GRAPH PCHOLD FORMAT JSCHART ON GRAPH SET LOOKGRAPH GAUGE1 ON GRAPH SET STYLE * *GRAPH_JS yaxis: { min: 0, max: 50, colorBands: [ {start: 1,stop: 10,color: 'red'}, {start: 10,stop: 30,color: 'yellow'}, {start: 30,stop: 40,color: 'lightgreen'}, {start: 40,stop: 50,color: 'green'}, ], majorGrid: { lineStyle: {width: 2,color: 'rgb(196,48,178)'}, } } *END INCLUDE=ENIADefault_combine.sty,$ ENDSTYLE END
The output is:

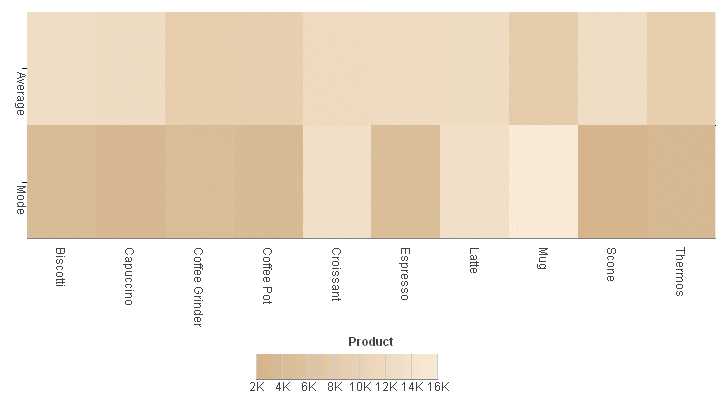

Heatmaps (or spectral charts) contain a row or column matrix of rectangles that are displayed in different colors depending on the data values. They use the same kind of data as bar, line, and area charts (an array of arrays). Each internal array forms a row in the heatmap table.
Series labels are plotted on the left edge according to settings in z-axis properties. Group labels are plotted on the bottom edge according to x-axis properties. The yaxis.colorScale.color property controls the color of the cells in the heatmap table.
The following request against the GGSALES data source generates a heatmap (ON GRAPH SET LOOKGRAPH SPECTRAL). The JSON block in the style section of the request sets the color scale using the y-axis property.
GRAPH FILE GGSALES SUM AVE.DOLLARS AS 'Average' MDE.DOLLARS AS 'Mode' BY PRODUCT ON GRAPH PCHOLD FORMAT JSCHART ON GRAPH SET LOOKGRAPH SPECTRAL ON GRAPH SET STYLE * *GRAPH_JS yaxis: {colorScale: {colors: ['tan', 'antiquewhite'] }} *END INCLUDE=ENIADefault_combine.sty,$ ENDSTYLE END
The output is:
A histogram is a graphical representation that visually depicts the distribution of data. The sort field for a histogram is numeric, while for bar chart, it is usually categorical.
In a vertical histogram, the y-axis is on the left side of the chart and the x-axis is drawn on the bottom of the chart. In a horizontal histogram, the x-axis is on the left side of the chart and the y-axis axis is drawn on the bottom of the chart.
The following request against the GGSALES data source generates a vertical histogram (ON GRAPH SET LOOKGRAPH VHISTOGR). The JSON block in the style section of the request sets the number of x-axis groups to use and makes the legend not visible.
GRAPH FILE GGSALES SUM UNITS BY DOLLARS ON GRAPH PCHOLD FORMAT JSCHART ON GRAPH SET LOOKGRAPH VHISTOGR ON GRAPH SET STYLE * *GRAPH_JS histogramProperties: { binCount: 5, }, legend: {visible: false}, *END INCLUDE=ENIADefault_combine.sty,$ ENDSTYLE END
The output is:

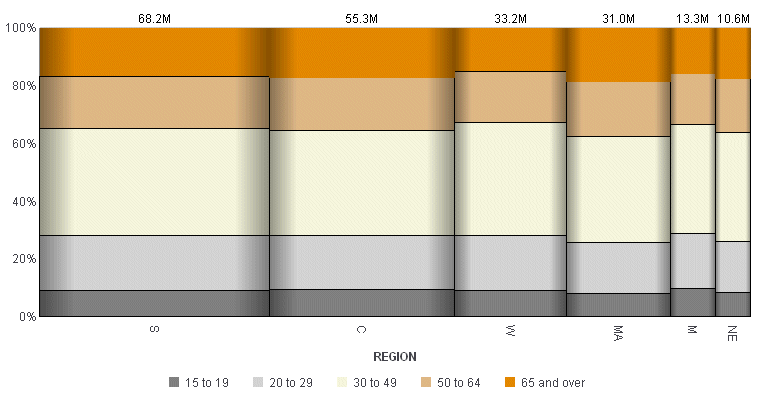

A mekko (also called marimekko) chart is a percent bar chart, except that the width of each bar riser is based on the overall value of the stack. You can use any data set that works for a regular or stacked bar chart.
The following request against the GGDEMOG data source creates a mekko chart (ON GRAPH SET LOOKGRAPH MEKKO). The virtual field REGION groups the data into a reasonable number of categories. The JSON block in the style section of the request sets the series colors and borders:
DEFINE FILE GGDEMOG REGION/A2 = IF ST EQ 'CT' OR 'MA' OR 'ME' OR 'NH' OR 'RI' OR 'VT' THEN 'NE' ELSE IF ST EQ 'NJ' OR 'NY' OR 'PA' THEN 'MA' ELSE IF ST EQ 'IA' OR 'ID' OR 'IN' OR 'IL' OR 'OK' OR 'KS' OR 'OH' OR 'MI' OR 'MN' OR 'OK' OR 'MO' OR 'MS' OR 'ND' OR 'NE' OR 'SD' OR 'WI' THEN 'C' ELSE IF ST EQ 'AR' OR 'AZ' OR 'CO' OR 'MN' OR 'MT' OR 'ID' OR 'NM' OR 'WY' OR 'NV' OR 'UT' OR 'WY' THEN 'M' ELSE IF ST EQ 'AL' OR 'DC' OR 'DE' OR 'FL' OR 'GA' OR 'KY' OR 'LA' OR 'MD' OR 'NC' OR 'SC' OR 'TN' OR 'TX' OR 'VA' OR 'WV' THEN 'S' ELSE IF ST EQ 'CA' OR 'OR' OR 'WA' THEN 'W'; END
GRAPH FILE GGDEMOG SUM P15TO1998 P20TO2998 P30TO4998 P50TO6498 P65OVR98 BY REGION ON GRAPH PCHOLD FORMAT JSCHART ON GRAPH SET LOOKGRAPH MEKKO ON GRAPH SET STYLE * *GRAPH_JS series: [{series: 0, color: 'grey',border: {width: 1, color: 'black'}}, {series: 1, color: 'lightgrey',border: {width: 1, color: 'black'}}, {series: 2, color: 'beige',border: {width: 1, color: 'black'}}, {series: 3, color: 'burlywood',border: {width: 1, color: 'black'}}, ] *END INCLUDE=ENIADefault_combine.sty,$ ENDSTYLE END
The output is:
Parallel coordinates is a popular method of visualizing high-dimensional data using dynamic queries. The parabox chart type is similar to a regular line chart, except that each group in the line chart has a unique and interactive numeric axis.
Each colored line represents one series of data. Each vertical bar represents a numeric axis. You can click first, then you can drag along each of the axes to select (filter) the lines that pass through that part of the axis.
FORMAT JSCHART also supports categorical (alphanumeric) vertical axes. These are drawn with a bubble marker on the vertical axis. The size of the bubble corresponds to the number of lines passing through it. Whether an axis is numeric or categorical is defined by the first series of data. If a value in the first array is a number, that axis is numeric. If a value in the first array is a string, that axis is categorical. Categorical axes are sorted automatically such that the biggest bubble is on top and bubble size descends from there.

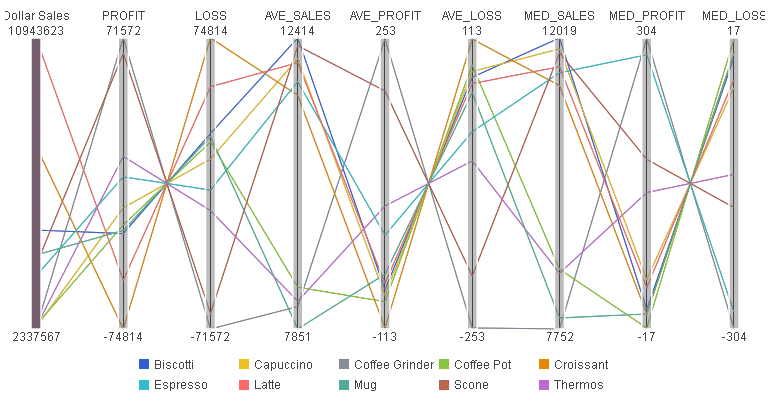

The following request against the GGSALES data source creates a parabox chart (ON GRAPH PCHOLD FORMAT PARABOX). The JSON block of the style section makes the legend visible:
DEFINE FILE GGSALES PROFIT = DOLLARS-BUDDOLLARS; LOSS = BUDDOLLARS-DOLLARS; END GRAPH FILE GGSALES SUM DOLLARS PROFIT LOSS AND COMPUTE AVE_SALES = AVE.DOLLARS; AVE_PROFIT = AVE.PROFIT; AVE_LOSS = AVE.LOSS; MED_SALES = MDN.DOLLARS; MED_PROFIT = MDN.PROFIT; MED_LOSS = MDN.LOSS; BY PRODUCT ON GRAPH PCHOLD FORMAT JSCHART ON GRAPH SET LOOKGRAPH PARABOX ON GRAPH SET STYLE * *GRAPH_JS legend: {visible: true} *END INCLUDE=ENIADefault_combine.sty,$ ENDSTYLE END
The output is:

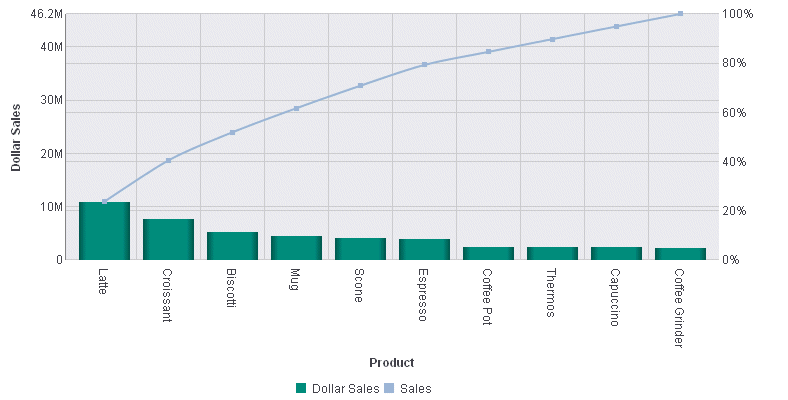

A pareto chart is similar to a combo chart. The first series (series zero) draws as an absolute bar chart on the y-axis. The second series (series one, derived using the same field as series 0) draws as a cumulative percent line on the y2-axis. This enables you to see not only the amount contributed by each group, but also which groups contribute the highest percentage to the total.
The following request against the GGSALES data source creates a pareto chart (ON GRAPH SET LOOKGRAPH PARETO). Both the bars and the line are generated from the single display field, DOLLARS. The JSON block in the style section sets the series colors and marker shapes and labels:
GRAPH FILE GGSALES SUM DOLLARS ACROSS PRODUCT ON GRAPH PCHOLD FORMAT JSCHART ON GRAPH SET LOOKGRAPH PARETO ON GRAPH SET STYLE * *GRAPH_JS mouseOverIndicator: {enabled: true,color: ' '}, legend: {visible: true}, blaProperties: {orientation: 'vertical',lineConnection: 'curved'}, series: [ {series: 0, color:'rgb(0,142,126)', marker: {visible: true}}, {series: 1, color:'rgb(152,181,211)', marker: {visible: true}, label: 'Sales'}, ] *END INCLUDE=ENIADefault_combine.sty,$ ENDSTYLE END
The output is:
A polar chart is a circular scatter chart. Like scatter charts, a polar chart requires two values to draw each marker.

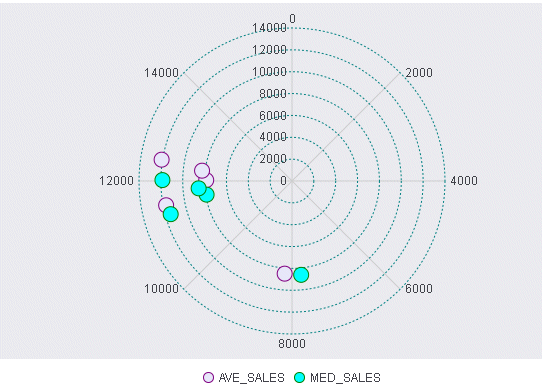

The following request creates a polar chart (ON GRAPH SET LOOKGRAPH POLAR). The JSON block in the style section sets the series colors and line styles for the major gridlines of the y-axis:
GRAPH FILE GGSALES SUM DOLLARS NOPRINT AND COMPUTE AVE_SALES = AVE.DOLLARS; MED_SALES = MDN.DOLLARS; ACROSS PRODUCT ON GRAPH PCHOLD FORMAT JSCHART ON GRAPH SET LOOKGRAPH POLAR ON GRAPH SET STYLE * *GRAPH_JS mouseOverIndicator: {enabled: true,color: ' '}, legend: {visible: true}, yaxis: { majorGrid: { lineStyle: {width: 1,color: 'teal',dash: '2 2'}, } }, series: [ {series: 0, color: 'lavender', marker:{size: 15, shape: 'circle', border: {width: 1, color: 'purple'}}}, {series: 1, color: 'cyan', marker:{size: 15, shape: 'circle', border: {width: 1, color: 'green'}}}, ] *END INCLUDE=ENIADefault_combine.sty,$ ENDSTYLE END
The output is:
A radar chart is a circular line chart. Radar charts require one value for each line segment (and marker if shown).

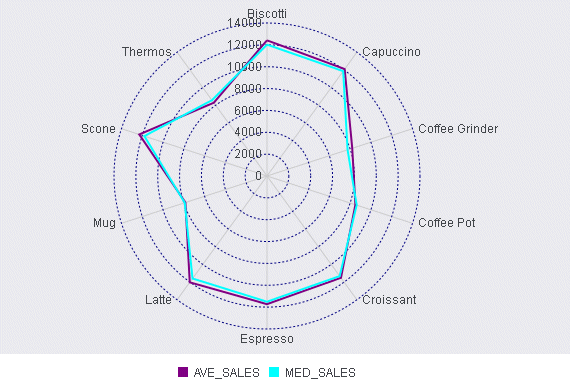

The following request creates a radar chart (ON GRAPH SET LOOKGRAPH RADARL). The JSON block in the style section sets the color and style for the y-axis major grid lines, and sets the series colors and borders:
GRAPH FILE GGSALES SUM DOLLARS NOPRINT AND COMPUTE AVE_SALES = AVE.DOLLARS; MED_SALES = MDN.DOLLARS; ACROSS PRODUCT ON GRAPH PCHOLD FORMAT JSCHART ON GRAPH SET LOOKGRAPH RADARL ON GRAPH SET STYLE * *GRAPH_JS legend: {visible: true}, yaxis: { majorGrid: { lineStyle: {width: 1,color: 'navy',dash: '2 2'}, } }, series: [ {series: 0, color: 'purple', border: {width: 2}}, {series: 1, color: 'cyan', border: {width: 2}}, ] *END INCLUDE=ENIADefault_combine.sty,$ ENDSTYLE END
The output is:
A streamgraph is a simplified version of a stacked area chart. In a streamgraph, there are no axis or gridlines. The baseline is free, which makes it easier to perceive the thickness of any given layer across the data. A streamgraph does not use data text labels. The data required to draw a streamgraph is the same format required to draw an area chart. However, streamgraphs are normally given many series (10 or more), each with many data point points (100 or more). A typical streamgraph would include 20 series with 400 data points in each series.

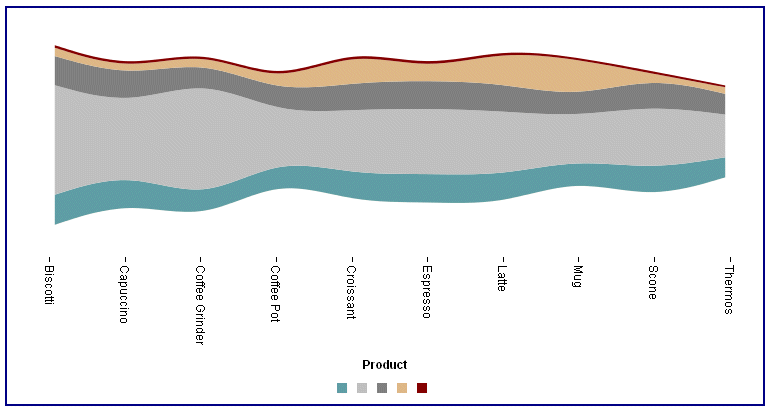

The following request against the GGSALES data source creates a streamgraph (ON GRAPH SET LOOKGRAPH STREAM). The JSON block in the style section sets the border and series colors and widths:
GRAPH FILE GGSALES SUM AVE.DOLLARS MAX.DOLLARS MDN.DOLLARS MDE.DOLLARS MIN.DOLLARS BY PRODUCT ON GRAPH PCHOLD FORMAT JSCHART ON GRAPH SET LOOKGRAPH STREAM ON GRAPH SET STYLE * *GRAPH_JS border: {width: 2, color: 'navy'}, series: [ {series: 0, color: 'cadetblue',label: ' '}, {series: 1, color: 'silver',label: ' '}, {series: 2, color: 'grey',label: ' '}, {series: 3, color: 'burlywood',label: ' '}, {series: 4, color: 'maroon',label: ' '} ] *END ENDSTYLE END
The output is:

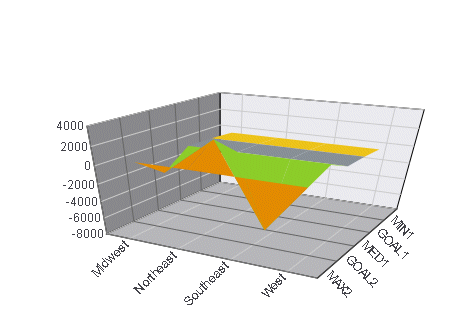

A Surface3D chart shows a three dimensional surface that connects a set of data points. The colors on the chart represent similar values, rather than different series.
The following request against the GGSALES data source creates a Surface3D chart (ON GRAPH SET LOOKGRAPH 3DSURFCE). The JSON block in the style section hides the legend. For all other properties, the defaults are used:
DEFINE FILE GGSALES DIFF = UNITS-BUDUNITS; END GRAPH FILE GGSALES SUM DIFF NOPRINT AND COMPUTE MIN1 = MIN.DIFF; GOAL1 = MIN1 +200; MED1 =MDN.DIFF; GOAL2 =DIFF; MAX2 = MAX.DIFF; BY REGION ON GRAPH PCHOLD FORMAT JSCHART ON GRAPH SET LOOKGRAPH 3DSURFCE ON GRAPH SET STYLE * *GRAPH_JS legend: {visible:false} *END INCLUDE=ENIADefault_combine.sty,$ ENDSTYLE END
The output is:
A tagcloud chart is a visual representation of group labels. The size of each label is proportional to its data value. Tagclouds are used by social media to measure the frequency of words in order to quantify sentiments.
The tagcloud chart also supports an optional second series of data, which is used to drive the color of each label. Colors are chosen from the yaxis.colorScale property.

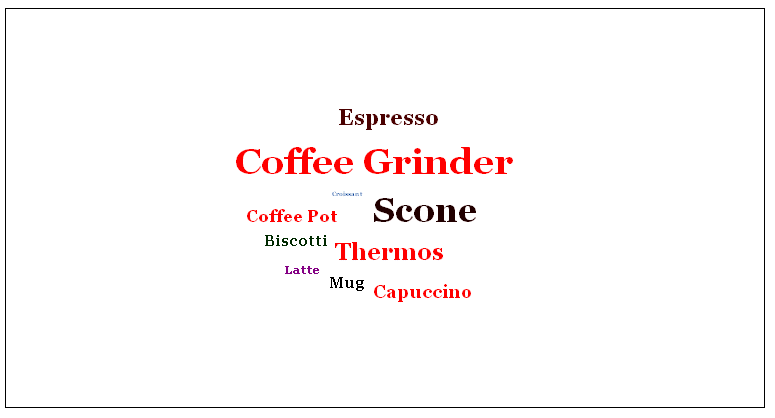

The following request against the GGSALES data source creates a tagcloud chart (ON GRAPH SET LOOKGRAPH TAGCLOUD). Each product label is sized depending on how much its dollar sales exceeded its budgeted sales, and is colored depending on the value of its unit sales. The JSON block in the style section sets the y-axis color scale:
DEFINE FILE GGSALES PROFIT/D12.2= DOLLARS-BUDDOLLARS ; END GRAPH FILE GGSALES SUM PROFIT UNITS BY PRODUCT ON GRAPH PCHOLD FORMAT JSCHART ON GRAPH SET LOOKGRAPH TAGCLOUD ON GRAPH SET STYLE * *GRAPH_JS yaxis: {colorScale: { colors: ['red', 'black', 'green', 'blue', 'purple'] } } *END ENDSTYLE END
The output is:

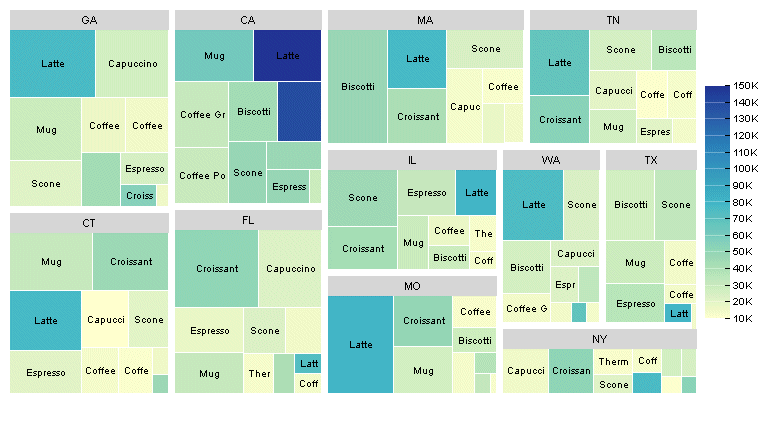

A treemap chart displays hierarchical data as a set of nested rectangles.
An object can be nested arbitrarily deep. Any properties in the data object with numeric values are drawn as a single rectangle in the treemap.
The following request references a join between the GGSALES and GGSTORES data sources to generate a treemap chart (ON GRAPH SET LOOKGRAPH TREEMAP). The JSON block in the style section sets the color mode and colors for the treemap:
JOIN STCD IN GGSALES TO STORE_CODE IN GGSTORES AS J1 DEFINE FILE GGSALES PROFIT/D12.2= DOLLARS-BUDDOLLARS ; END GRAPH FILE GGSALES SUM PROFIT UNITS BY ST BY PRODUCT ON GRAPH PCHOLD FORMAT JSCHART ON GRAPH SET LOOKGRAPH TREEMAP ON GRAPH SET STYLE * *GRAPH_JS colorMode:'byInterpolation', colorModecolors: ['teal','cyan', 'beige', 'burlywood', 'yellow', 'cream'] *END ENDSTYLE END
The output is:
Waterfall charts illustrate the cumulative effect of sequentially introducing positive or negative values to an initial value. The initial and final (or total) values are represented by whole columns drawn from the ordinal (x) axis baseline. Intermediate positive and negative values are drawn as floating columns.
A waterfall chart does not require a sort phrase.

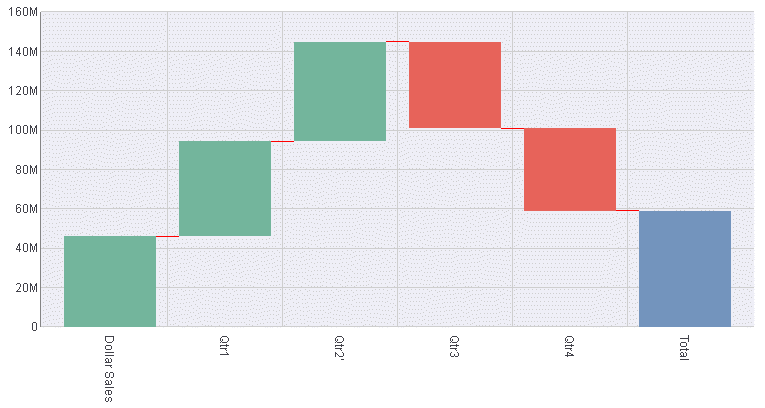

The following request against the GGSALES data source creates a waterfall chart (ON GRAPH SET LOOKGRAPH VWATERFL). The JSON block in the style section sets the riser colors, generates a riser for the total, and sets the connector line properties:
DEFINE FILE GGSALES INCR1 = DOLLARS + 500; INCR2 = DOLLARS+1000; DECR1 = -(DOLLARS- 500); DECR2 = -(DOLLARS-1000); END GRAPH FILE GGSALES SUM DOLLARS INCR1 AS 'Qtr1' INCR2 AS Qtr2' DECR1 AS 'Qtr3' DECR2 AS 'Qtr4' ON GRAPH PCHOLD FORMAT JSCHART ON GRAPH SET LOOKGRAPH VWATERFL ON GRAPH SET STYLE * *GRAPH_JS legend: {visible:false}, waterfallProperties: { appendTotalRiser: true, positiveRiserColor: '#77b39a', negativeRiserColor: '#e2675b', zeroRiserColor: '#7593bd', connectorLine: { width: 1, color: 'red', dash: '' } } *END INCLUDE=ENIADefault_combine.sty,$ ENDSTYLE END
The output is:

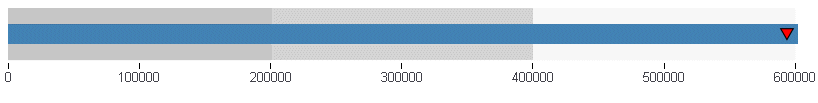

A bullet chart is a microchart that is a variation of the bar chart and is sometimes used as a replacement for a gauge chart. It is designed to show a quantitative measure against qualitative ranges. For example, a quantitative measure such as profit or revenue could be visualized against quality (good, better, best) to show progress toward a target.
The following request against the GGORDER data source creates a bullet chart. It charts the quantity ordered for the years 1996 and 1997. There is no LOOKGRAPH value for a bullet chart, so the LOOKGRAPH value is set to CUSTOM, and the JSON block in the style section of the request contains the chartType: ‘bullet’ property. It also sets the color bands for the y-axis and the colors for each year (group):
DEFINE FILE GGORDER YEAR1/YY = ORDER_DATE; END GRAPH FILE GGORDER SUM QUANTITY BY YEAR1 WHERE YEAR1 GT 1990 ON GRAPH SET VAXIS 80 ON GRAPH PCHOLD FORMAT JSCHART ON GRAPH SET LOOKGRAPH CUSTOM ON GRAPH SET STYLE * *GRAPH_JS chartType: 'bullet', yaxis: { colorBands: [ {start: 0,stop: 200000,color: 'silver'}, {start: 2100000,stop: 400000,color: 'lightgrey'}, {start: 400000,stop: 600000,color: 'whitesmoke'}, ], }, series: [ {series: 0, group: 0, color: 'steelblue'}, {series: 0, group: 1, color: 'red'}, ] *END INCLUDE=ENIADefault_combine.sty,$ ENDSTYLE END
On the output, the blue bar represents the quantity for 1996, and the red triangle represents the quantity for 1997:
Sparkline is a microchart that has no titles, labels, or legends. It is a single line chart that is intended to be drawn in a very small area to show the shape of the variation without axes or coordinates. A sparkline can be embedded in text or tables.
The following request against the GGSALES data source creates a sparkline chart. Since there is no LOOKGRAPH value for a sparkline chart, the LOOKGRAPH parameter is set to CUSTOM, and the JSON block in the style section of the request contains the chartType: ‘sparkline’ property. It also sets the border color and width. The GRAPH parameters HAXIS and VAXIS set the height and width of the chart:
GRAPH FILE GGSALES SUM DOLLARS ACROSS PRODUCT ON GRAPH SET HAXIS 50 ON GRAPH SET VAXIS 20 ON GRAPH PCHOLD FORMAT JSCHART ON GRAPH SET LOOKGRAPH CUSTOM ON GRAPH SET STYLE * *GRAPH_JS chartType: 'sparkline', border: { width: 2, color: 'green', }, *END INCLUDE=ENIADefault_combine.sty,$ ENDSTYLE END
The output is:
