WebFOCUS Visual Discovery Server Analyst Edition
This section provides requirements and installation
instructions for WebFOCUS Visual Discovery Server Analyst Edition
(AE).
x
WebFOCUS Visual Discovery Server AE supports the following
operating systems:
- Windows Server 2003 or 2008 (64-bit).
- Microsoft IIS Version 6.0 or higher, installed and running prior
to the installation of the Microsoft .NET Framework.
- For
Microsoft IIS Version 6.0, ASP.NET Version 4.0 is automatically installed.
- For Microsoft IIS Version 7.0, the following Role Services must
be pre-installed:
- Common HTTP Features/Static Content
- Common HTTP Features/Directory Browsing
- Common HTTP Features/HTTP Errors
- Application Development/ASP.NET
- Management Tools/IIS 6 Management Compatibility/IIS 6 Scripting
Tools
- Security/Windows Authentication (required for secure configuration)
x
Ensure that the system where WebFOCUS Visual Discovery
Server AE is being installed meets the following hardware requirements:
- Any current server-class system, with multiple x64 processor
cores.
- At least 8 GB of RAM is recommended.
x
WebFOCUS Visual Discovery Workbench AE projects that
have been published to the WebFOCUS Visual Discovery Server AE can
be accessed using the following clients:
- Any workstation web browser that supports Microsoft® Silverlight®,
including:
- Internet Explorer® Version 7, 8, and 9
- Google Chrome™
- Firefox®
- Safari®
xEstimating RAM Usage for WebFOCUS Visual Discovery Server AE
WebFOCUS Visual Discovery Server AE generally requires
the same amount of RAM to open the first session of a project as
WebFOCUS Visual Discovery Workbench AE. Additional concurrent sessions
share the data pool and typically increase the RAM required by 15-30%
(depending on the type and number of charts in the published project).
Therefore the example project cited above might require 2 GB to
support 10 concurrent sessions (550 MB + 9 * 150 MB).
Note: A WebFOCUS Visual Discovery Server AE session is
normally recycled after 20 minutes of inactivity, so typical concurrent
load is much less than a coordinated training session.
xInstalling WebFOCUS Visual Discovery Server Analyst Edition
WebFOCUS Visual Discovery Server Analyst Edition (AE)
provides a standalone installation. This installation is independent
to WebFOCUS Developer Studio, WebFOCUS Client, and the WebFOCUS
Reporting Server installations.
x
Procedure: How to Install WebFOCUS Visual Discovery Server AE
-
Download or unzip the WebFOCUS Visual Discovery
Server AE folder to a local drive on your system.
-
Double-click the setup.exe file.

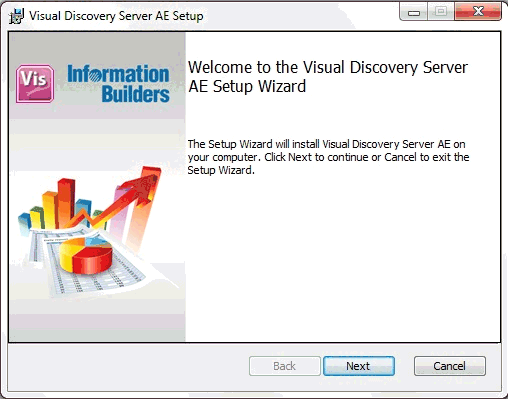

The Welcome to the Visual Discovery Server AE Setup Wizard
dialog box opens, as shown in the following image.
-
Click Next.

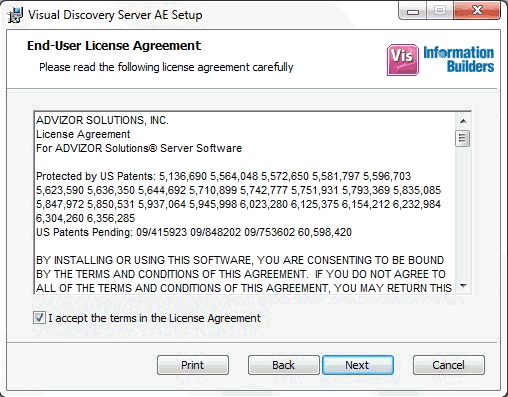

The End-User License Agreement dialog box opens, as shown
in the following image.
-
Review the terms of the License Agreement and select I accept
the terms in the License Agreement to continue with
the installation.
-
Click Next.

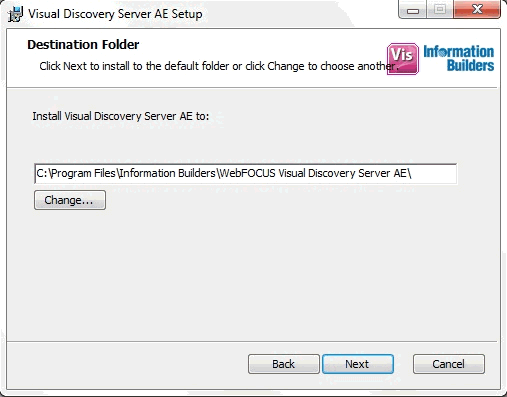

The Destination Folder dialog box opens, as shown in the
following image.
-
Accept the default installation path for WebFOCUS Visual
Discovery Server AE on your system, or click Change to
specify a custom location.
-
Click Next.

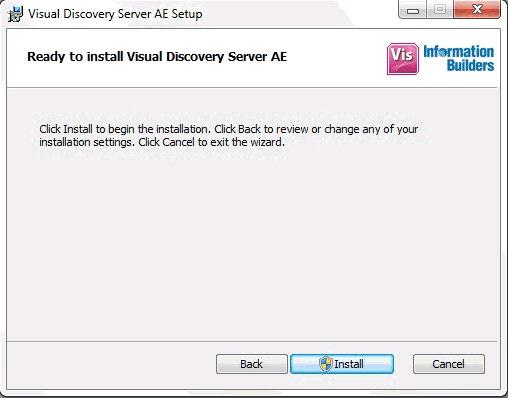

The Ready to install Visual Discovery Server AE dialog
box opens, as shown in the following image.
-
Click Install.

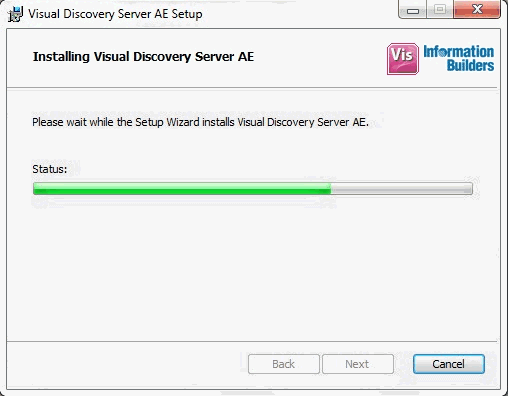

An installation progress indicator is displayed, as shown
in the following image.

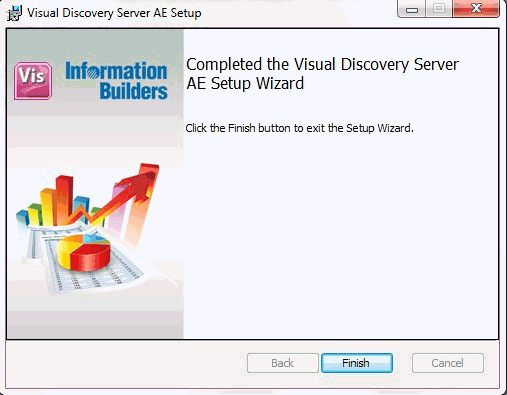

When the installation
is finished, the Completed the Visual Discovery Server AE Setup
Wizard is displayed, as shown in the following image.
-
Click Finish to complete the WebFOCUS
Visual Discovery Server AE installation.
xInstallation Considerations
If the WebFOCUS Visual Discovery Server AE installation
fails prematurely, ensure that your environment satisfies the prerequisites.
However, if all of the prerequisites are satisfied, then the WebFOCUS
Visual Discovery Server AE installation failure could be caused
by one of the following issues:
-
Correct version of Microsoft .NET not installed. Ensure
that Microsoft .NET Version 4 or higher is installed.
-
Microsoft Internet Information Services (IIS) is not running. Perform
the following steps to ensure that IIS is running with the required
Role Services:
- Click the Windows Start menu
and then click Control Panel.
- In the Control Panel, click Programs and Features, then
click Turn Windows features on or off in
the left pane.

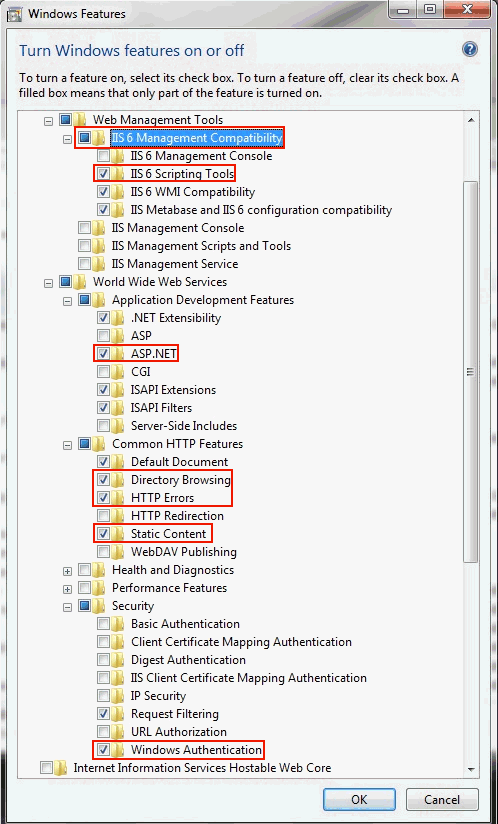

The Windows Features dialog box opens, as shown
in the following image.
- Select the following options:
- Web Management Tools: IIS
6 Management Compatibility
- IIS 6 Management Compatibility: IIS 6 Scripting Tools
- World Wide Web Services (Application Development): ASP.NET
- World Wide Web Services (Common HTTP Features): Static Content
- World Wide Web Services (Common HTTP Features): Directory Browsing
- World Wide Web Services (Common HTTP Features): HTTP Errors
- Security: Windows Authentication
- Click OK when you are finished.
