Defining Symbols

How to:

Symbols are used to display features or entities on a map. For point features, use Marker symbols. For line features, use Line symbols. For polygon features, use Fill symbols. Other symbols that can be created are Callout and Text symbols to display contextual text.

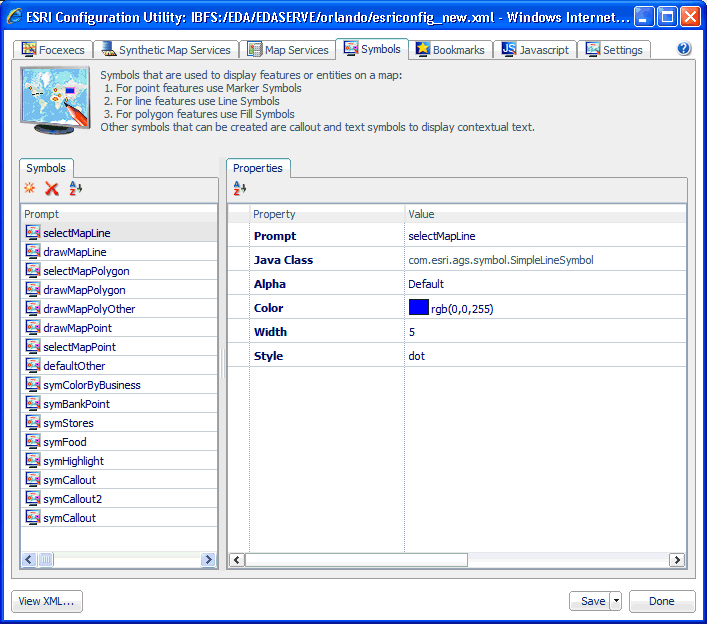

The following image shows the XML definition file (esriconfig_new.xml) being edited in the ESRI Configuration Utility. The esriconfig_new.xml file is used by the Retail Predictives sample application. In this image, the Symbols tab is selected.

The Retail Predictives sample application uses the following symbols. The Java Class being used by each symbol is also listed.
Top of page
x
Procedure: How to Configure a New Symbol Definition

To configure a new symbol definition:

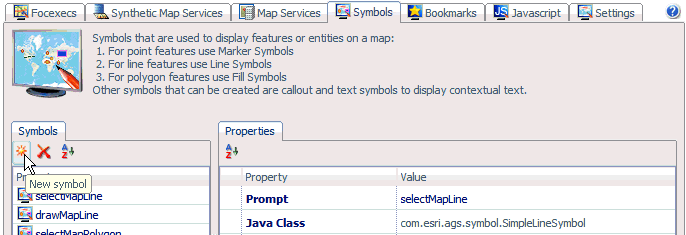

  1. Click the Symbols tab located at the top of the ESRI Configuration Utility, as shown in the following image.

  2. Click New Symbol in the left pane.

    The Create a new symbol entry dialog opens, as shown in the following image.

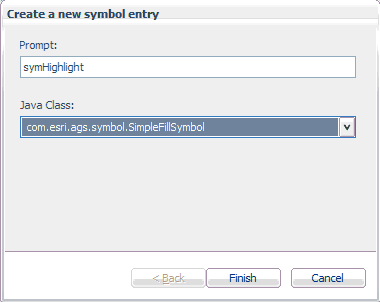

  3. Enter a unique name for the new symbol in the Prompt field (for example, symHighlight).

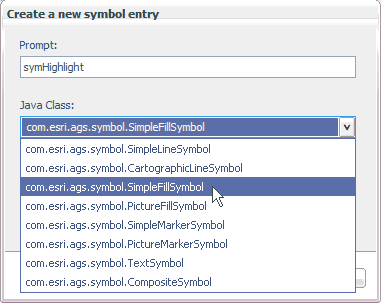

  4. Choose the Java class you wish to use for your new symbol definition from the drop-down list (for example, com.esri.ags.symbol.SimpleFillSymbol).

  5. Click Finish.

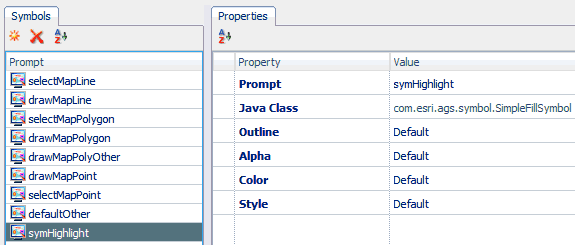

    The new symbol definition (for example, symHighlight) is added to the Symbols pane in the ESRI Configuration Utility, as shown in the following image.

    The Properties tab lists the available configuration properties for the symbol definition, which are specific to the Java class. For example, the following table lists and describes the configuration properties that are specific to the Simple Fill Symbol (com.esri.ags.symbol.SimpleFillSymbol) Java class. Enter the configuration properties for the new symbol definition (symHighlight), as listed in the following table.

    Property

    Description

    Prompt

    The unique name for the symbol definition that was entered in the Prompt field of the Create a new symbol entry dialog.

    symHighlight

    Java Class

    The specific Java class that is associated with the new symbol definition.

    com.esri.ags.symbol.SimpleFillSymbol

    Outline

    The type of outline to be used. Select an available line symbol definition from the drop-down list.

    Default

    Alpha

    Fill symbol transparency level.

    0.5

    Color

    Allows you to select a color to be used for the symbol from a color palette dialog. You can also set the color value as transparent.

    rgb(255,0,128)

    Style

    The type of style to be applied for the symbol definition. You can select a value from the drop-down list. The available set of style values are directly related to the symbol definition. For example, for Simple Fill Symbol, the following styles are available:

    • backward diagonal lines
    • cross
    • diagonal cross
    • forward diagonal lines
    • horizontal lines
    • no fill
    • solid
    • vertical lines
    solid

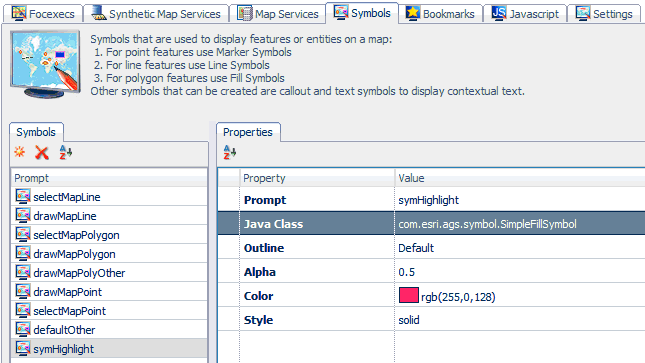

    For example:

    Note: For more information on the configuration properties that are available for the supported symbol Java classes, see the WebFOCUS Adapter for Geographic Information Systems: ESRI ArcGIS Server and ArcGIS Flex API documentation.
