Controlling Column Title Underlining

How to:

The SET TITLELINE command allows you to control whether column titles are underlined for report output.


Top of page

x
Syntax: How to Control Column Title Underlining
SET TITLELINE =  (ON|OFF|SKIP)
ON TABLE SET TITLELINE  (ON|OFF|SKIP)

where:

ON
Underlines column titles. ON is the default value.
OFF
Replaces the underline with a blank line.
SKIP
Omits both the underline and the line on which the underline would have displayed.

Note: ACROSSLINE is a synonym for TITLELINE.



Example: Controlling Column Title Underlining

The following request has a BY and an ACROSS field.

SET TITLELINE=ON
TABLE FILE GGSALES
SUM UNITS BY PRODUCT
ACROSS REGION
ON TABLE SET PAGE-NUM OFF
ON TABLE SET STYLE *
TYPE=REPORT, GRID=OFF, FONT=ARIAL,$
END

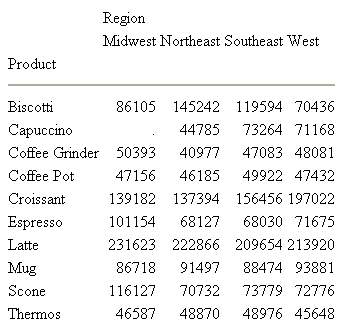

With the default value (ON) for SET TITLELINE, the column titles are underlined.

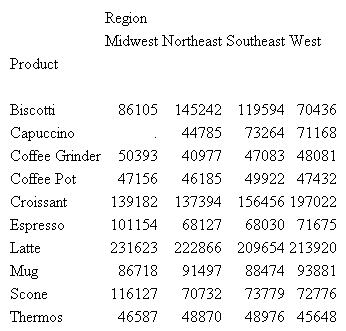

With SET TITLELINE=OFF, the column titles are not underlined, but the blank line where the underlines would have been is still there.

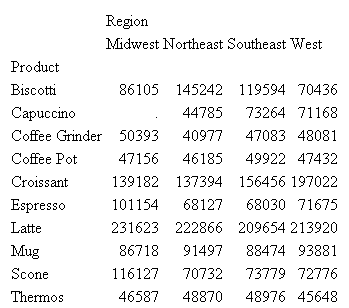

With SET TITLELINE=SKIP, both the underlines and the blank line are removed.
