Defining Colors for Series Risers

How to:

The color properties define a color for all risers, for all risers in an individual series, or for an individual riser identified by a series and group number. If a group number is not specified, the color is also applied to the series icon in the legend area.


Top of page

x
Syntax: How to Define Colors for Series Risers
series: [
   {
      series: snumber,
      group: gnumber, // Optional
      color: 'cstring'
   }
]

where:

snumber

Is a zero-based series number. If the series does not exist in the chart, the property is ignored.

gnumber

Is an optional zero-based group number. If the group does not exist in the chart, the property is ignored. If a group number is not specified, the color is applied to all risers in the series.

'cstring'

Is a color defined by a color name or numeric specification string, or a gradient defined by a string.

For information about defining colors and gradients, see Colors and Gradients.



Example: Defining Colors for Series Risers

The following request against the GGSALES data source generates a vertical bar chart and defines colors for each series:

GRAPH FILE GGSALES
SUM DOLLARS BUDDOLLARS UNITS BUDUNITS
BY REGION
ON GRAPH PCHOLD FORMAT JSCHART
ON GRAPH SET LOOKGRAPH VBAR
ON GRAPH SET STYLE *
*GRAPH_JS
series: [
    {series: 0, color: 'lightgreen'},
    {series: 1, color: 'coral'},
    {series: 2, color: 'lightblue'},
    {series: 3, color: 'burlywood'},
]
*END
ENDSTYLE
END

The output is:

The following version of the request applies linear gradients to each series:

GRAPH FILE GGSALES
SUM DOLLARS BUDDOLLARS UNITS BUDUNITS
BY REGION
ON GRAPH PCHOLD FORMAT JSCHART
ON GRAPH SET LOOKGRAPH VBAR
ON GRAPH SET STYLE *
*GRAPH_JS
series:[
   {series: 0, color: 'linear-gradient(0%,0%,100%,0%, 20% darkred, 95% red)'},
   {series: 1, color: 'linear-gradient(0%,0%,100%,0%, 20% green, 95% lightgreen)'},
   {series: 2, color: 'linear-gradient(0%,0%,100%,0%, 20% saddlebrown, 95% orange)'},
   {series: 3, color: 'linear-gradient(0%,0%,100%,0%, 20% teal, 95% cyan)'}
   ]
*END
ENDSTYLE
END

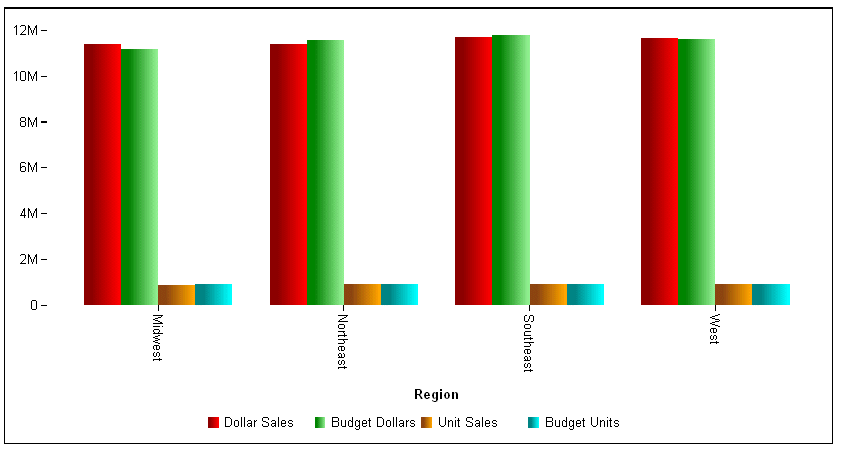

The output is:
