Formatting Numbers

In this section:

Reference:

The numberFormat property specifies the format of numeric labels using one of the following:


Top of page

x
Automatic Number Formatting

Use numberFormat: 'auto' to let the charting engine choose the number format based on the chart data. Prefix and suffix characters can be added to the chosen format by enclosing 'auto' in two sets of braces. For example, the following indicates automatic number formatting with a tilde (~) and a dollar sign ($) to the left of the number, and a plus sign (+) to the right:

numberFormat: '~${{auto}}+'


Example: Using Automatic Number Formatting

The following request against the GGSALES data source uses automatic number formatting for the y-axis and the data text. The y-axis numbers are displayed prefixed with a dollar sign ($), and the data text labels are displayed prefixed with a tilde and dollar sign (~$) and followed by a plus sign (+):

GRAPH FILE GGSALES
SUM DOLLARS UNITS BUDDOLLARS
ACROSS REGION
ON GRAPH PCHOLD FORMAT JSCHART
ON GRAPH SET LOOKGRAPH VBAR
ON GRAPH SET STYLE *
*GRAPH_JS
yaxis: {labels: {font: 'bold 10pt Sans-Serif', color: 'red'},
   numberFormat: '${{auto}}'
   },
dataLabels: {font: 'bold 10pt Sans-Serif', color: 'teal',
   numberFormat: '~${{auto}}+'},
series: [
    {series: 0, color: 'burlywood'},
    {series: 1, color: 'lightblue'},
    {series: 2, color: 'lightgreen'}
]
*END
*GRAPH_SCRIPT
setDataTextDisplay(true);
END
ENDSTYLE
END

Note that the setDataTextDisplay(true) API call makes the data text visible. The output is:


Top of page

x
JSON Object Number Formatting

The JSON object includes the following properties. You can omit properties for which you want to accept the default value:

numberFormat: {
   mode: 'type',
   thousandSep: 'tsep',
   decimalSep: 'dsep',
   decimalPlaces: n,
   grouping: 'group',
   prefix: 'pref',
   suffix: 'suff',
}

where:

'type'

Identifies the type of number. Valid values are:

  • 'numeric'. This is the default value.
  • 'percent', to display the number multiplied by 100 and followed by a percent symbol (%).
  • 'currency', to display the number with a currency symbol. The currency symbol displayed depends on your number format settings.
  • 'scientific', to display the number in scientific notation.
'tsep'

Specifies a character to separate values above and in multiples of one thousand, for example, a comma (,), as in 1,000,000. The default depends on your number format settings.

'dsep'

Specifies a character to separate decimals (for example, a decimal point (.), as in 1.00). The default depends on your number format settings.

n

Specifies the number of decimal places (number of digits to show to the right of the decimalSep character). The default is 2 for currency and scientific, and zero for numeric and percent.

'group'

Specifies how to group large numbers if you do not want to display all of the digits. Valid values are:

  • 'K' to group by thousands. For example, 1,000 = 1K.
  • 'M' to group by millions. For example, 1,000,000 = 1M.
  • 'B' to group by billions. For example, 1,000,000,000 = 1B.
  • 'T' to group by trillions. For example, 1,000,000,000,000 = 1T.
'pref'

Specifies one or more characters to add to the front of the label.

'suff'

Specifies one or more characters to add to the end of the label.

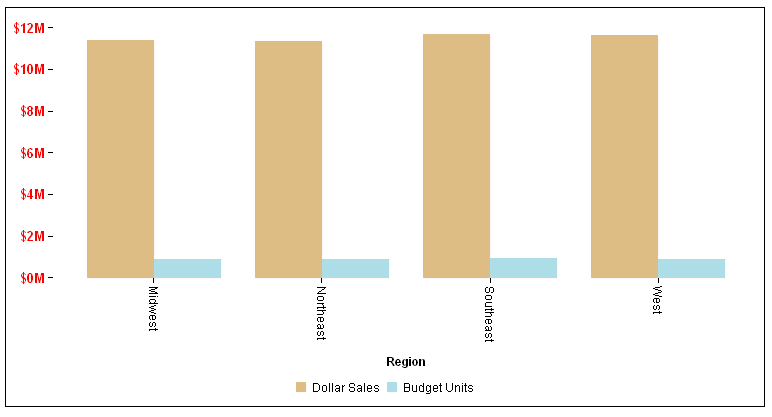

Example: Using a JSON Object to Format Numbers

The following request against the GGSALES data source formats the y-axis labels as currency, grouped by millions, with no decimal places, so they display with an automatic dollar sign ($) and the letter M:

GRAPH FILE GGSALES
SUM DOLLARS BUDUNITS
ACROSS REGION
ON GRAPH PCHOLD FORMAT JSCHART
ON GRAPH SET LOOKGRAPH VBAR
ON GRAPH SET STYLE *
*GRAPH_JS
yaxis: {labels: {font: 'bold 10pt Sans-Serif', color: 'red'},
   numberFormat: {mode: 'currency',decimalPlaces: 0, grouping: 'M'}
   },
series: [
    {series: 0, color: 'burlywood'},
    {series: 1, color: 'lightblue'},
    {series: 2, color: 'lightgreen'}
]
*END
ENDSTYLE
END

The output is:


Top of page

x
Formatting Numbers Using a Format String

How to:

Reference:

You can specify the format of numeric labels using a format string:

numberFormat: 'string'

The string must be in the format defined by the Custom Numeric Format Strings defined at:

http://msdn.microsoft.com/en-us/library/0c899ak8(vs.71).aspx.



x
Reference: Summary of Format String Characters

A number formatting string can consist of from one to three sections. If it has one section, the formatting string is used to format all numbers. If it has two sections, the first is used to format positive numbers and zeros, and the second is used to format negative numbers. If it has three sections, the first is used to format positive numbers, the second is used to format negative numbers, and the third used to format zeros.

The sections are separated by semicolons (;). If the second section is empty (there are two consecutive semicolons between the first and third sections, the first section is used to format all non-negative numbers.

If a negative value is rounded and becomes zero, it is formatted as a zero value.

The following are valid within a format string:

Zero placholder

Zero (0) or double zero (00)

If the value being formatted has a digit in the position where the 0 appears in the format string, then that digit is copied to the result string. Otherwise, a zero is placed in that position. The position of the leftmost 0 before the decimal point and the rightmost 0 after the decimal point determine the range of digits that are always present in the result string.

The 00 placeholder causes the value to be rounded to the nearest digit preceding the decimal. Rounding is always in the direction away from zero. For example, formatting 34.5 with '00' would result in the value 35.

Digit placeholder

Pound sign (#) or double pound sign (##).

If the value being formatted has a digit in the position where the # appears in the format string, that digit is copied to the result string. Otherwise, nothing is stored in that position in the result string. Note that this specifier never displays the 0 character if it is not a significant digit, even if 0 is the only digit in the string.

The ## format string causes the value to be rounded to the nearest digit preceding the decimal, where rounding is always away from zero. For example, formatting 34.5 with '##' would result in the value 35.

Decimal separator

Depends on the number formatting settings. for American English, it is a decimal point (.).

The first decimal separator character in the format string determines the location of the decimal separator in the formatted value. Any additional decimal separator characters are ignored.

Thousands separator and scaling

Depends on the number formatting settings. for American English, it is a comma (,).

The thousands separator character serves two purposes. First, if the format string contains a thousands separator character between two digit placeholders (0 or #) and to the left of the decimal separator, if one is present, then the output will have thousand separators inserted between each group of three digits to the left of the decimal separator.

Second, if the format string contains one or more thousand separator characters immediately to the left of the decimal point, then the number will be divided by the number of those characters, multiplied by 1000 before it is formatted. For example, the following format string format the number 100,000,000 as simply 100.

0,,

Use of the thousand separator character to indicate scaling does not include thousand separators in the formatted number. Thus, to scale a number by 1 million and insert thousand separators you would use the following format string :

#,##0,,
Scientific Notation

E0, E+0, E-0, e, e+0, or e-0

If any of these strings are present in the format string and are followed immediately by at least one 0 character, then the number is formatted using scientific notation with an 'E' or 'e' inserted between the number and the exponent. The number of 0 characters following the scientific notation indicator determines the minimum number of digits to output for the exponent. The E+ and e+ formats indicate that a sign character (plus or minus) should always precede the exponent. The E, E-, e, or e- formats indicate that a sign character should only precede negative exponents.

Percentage placeholder

Depends on the number formatting settings. for American English, it is a percent symbol (%).

The presence of a percentage placeholder character in a format string causes a number to be multiplied by 100 before it is formatted. The appropriate symbol is inserted in the number itself at the location where the percentage placeholder character appears in the format string.

Literal String or other characters

Characters enclosed in single or double quotation marks. For example, 'ABC'.

Characters enclosed in single or double quotation marks are copied to the result string literally.

In addition to the format specifiers defined in this section, you can also use the following characters:

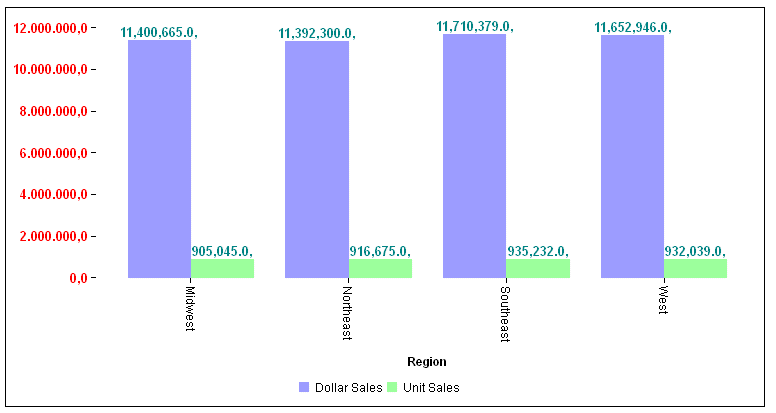

Example: Formatting Labels Using a Number Format String

The following request against the GGSALES data source uses a number format string for the y-axis labels and for the data labels. The series object enables data labels. The y-axis object specifies a format string that changes the thousands separator to a point (.) and the decimal separator to a comma (,) using the {t} and {d} syntax. The dataLabels object makes the labels visible and uses the number format '#,#.#':

GRAPH FILE GGSALES
SUM DOLLARS UNITS
BY REGION
ON GRAPH SET GRAPHDEFAULT OFF
ON GRAPH PCHOLD FORMAT JSCHART
ON GRAPH SET LOOKGRAPH VBAR
ON GRAPH SET STYLE *
*GRAPH_JS
series: [ {series: 'all', showDataValues: true} ],
yaxis: {labels: {font: 'bold 10pt Sans-Serif', color:
'red'},numberFormat: '{t.}{d,}#,#.#'},
dataLabels: {visible: true,font: 'bold 10pt Sans-Serif', color: 'teal',
   numberFormat: '#,#.#'}
*END
ENDSTYLE
END

The output is:



x
Syntax: How to Specify Conditional Number Formats

You can make number formats conditional by defining number formats for ranges of values, using the following relational operators:

Each range definition must be enclosed within a left bracket ([) and a right bracket (]).

If you use the string format to specify the range of data to which the number format is applied, make sure the format string includes the entire range of data. Separate each range and format from the next with a semicolon (;). For example, the following defines the format:

numberFormat:'[<=9]#,#;[<0]-#.#;[=0]#;[<0]-#.#;[>9]#.#'

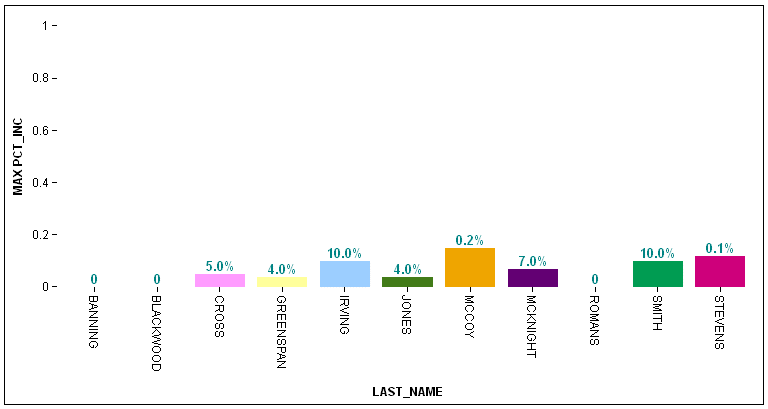

Example: Specifying Conditional Number Formats

The following request against the EMPLOYEE data source charts each maximum percent increase in salary by employee last name. The series object enables making the data labels visible. The dataLabels object makes the data labels visible and uses red (the default) for negative values. It also sets number formats as follows. If the number is:

GRAPH FILE EMPLOYEE
SUM  MAX.PCT_INC
BY LAST_NAME
ON GRAPH SET GRAPHDEFAULT OFF
ON GRAPH PCHOLD FORMAT JSCHART
ON GRAPH SET LOOKGRAPH VBAR
ON GRAPH SET STYLE *
*GRAPH_JS
series: [{series: 'all', showDataValues: true} ],
dataLabels: {visible: true, useNegativeColor: true, font: 'bold 10pt Sans-Serif', color: 'teal',
    numberFormat: '[>.1]‘#.#%;[<0]-#.#%;[<=.1]#.#%;[=0]0'}
*END
ENDSTYLE
END

The output is:


Top of page

x
Formatting Numbers Using a Function

The function takes one argument (the number to format) and returns a string. For example:

// Return number with a '$' in front
numberFormat = function(n){ return '$' + n; };

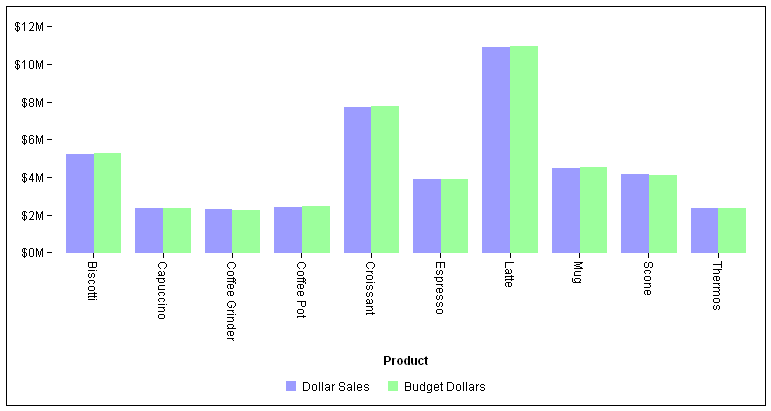

Example: Returning a Formatted Number Using a Function

The following request against the GGSALES data source uses a function to divide the yaxis label by one million and return it prefixed with a dollar sign ($) and followed by the letter M:

GRAPH FILE GGSALES
SUM DOLLARS BUDDOLLARS
BY PRODUCT
ON GRAPH PCHOLD FORMAT JSCHART
ON GRAPH SET LOOKGRAPH VBAR
ON GRAPH SET STYLE *
*GRAPH_JS
yaxis: {
    numberFormat: function(n){ return '$' + n/1000000 + 'M';}
}
*END
ENDSTYLE
END

The output is:


Top of page

x
Reference: Usage Notes for Number Formats
