Creating Multiple Graphs

How to:

You can create multiple graphs by including secondary sort dimensions (fields).

By default, the number of graphs created depends on the number of values in the fields you designate in the sort (BY, ACROSS) phrases. You can change this default using the GRMERGE parameter:

Multiple graphs can be displayed in either merged format or in columns. For details, see How to Merge Multiple Graphs and How to Display Multiple Graphs in Columns.


Top of page

x
Syntax: How to Merge Multiple Graphs
SET GRMERGE={ON|OFF|ADVANCED}

where:

ON

Turns on the merge graph option.

OFF

Turns off the merge graph option. This is the default.

ADVANCED

Turns on the advanced merge option. This option uses three parameters to determine how to merge the graphs:

  • GRMULTIGRAPH, which specifies how many sort fields to use to create multiple graphs.
  • GRLEGEND, which specifies how many sort fields to place on the graph legend.
  • GRXAXIS, which specifies how many sort fields to display on the x-axis. GRXAXIS must be at least 1 in order to plot the graph. A value greater than one creates nested X-axes.

Note: The sum of the sort fields used by GRMULTIGRAPH, GRLEGEND, and GRXAXIS must equal the number of sort fields in the graph request.

The syntax for the GRMULTIGRAPH, GRLEGEND, and GRXAXIS parameters is:

ON GRAPH SET GRMULTIGRAPH n

Specifies how many sort fields (0 through 2) to use to break the output into multiple graphs. The outermost sort fields are used to separate the graphs. When n is greater than zero, this is similar to GRMERGE=OFF, but allows an additional sort field.

ON GRAPH SET GRLEGEND n

Specifies how many of the remaining outermost sort fields (0 through 2), after the ones used for GRMULTIGRAPH, to add to the graph legend. When n is greater than zero, this is similar to GRMERGE=ON, but allows an additional sort field.

ON GRAPH SET GRXAXIS n

Specifies how many of the remaining sort fields (1 through 3) to display on the x-axis. When n is greater than 1, this creates nested x-axes.



Example: Merging Multiple Graphs With GRMERGE ON

The following illustrates a graph with two horizontal, or x-axes, categories (PRODUCT_ID and PACKAGE_TYPE) that have been merged.

SET GRMERGE=ON
GRAPH FILE GGORDER
SUM UNIT_PRICE ORDER_NUMBER
ACROSS PRODUCT_ID
BY PACKAGE_TYPE
ON GRAPH SET LOOKGRAPH 3D_BAR
ON GRAPH PCHOLD FORMAT JSCHART
ON GRAPH SET STYLE *
INCLUDE=ENIADefault_combine.sty,$
ENDSTYLE
END

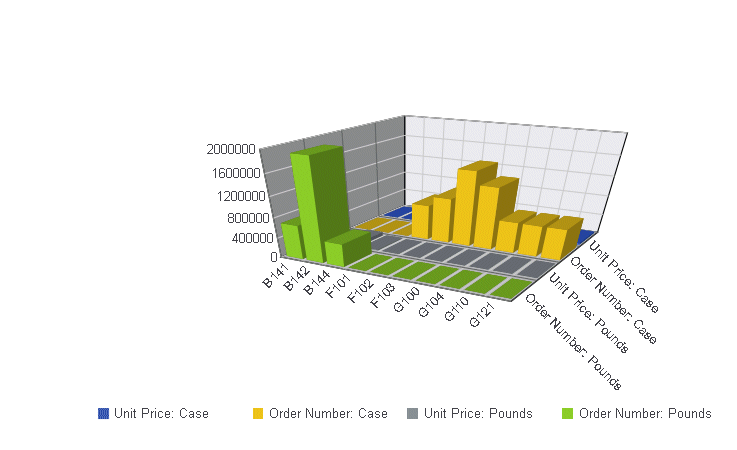

The output is:



Example: Merging Multiple Graphs With GRMERGE ADVANCED

The following example generates a vertical bar graph that separates the outermost sort field (REGION) onto separate graphs, distinguishes the next two sort fields (ST and CATEGORY) by combining them on the graph legend, and places the CATEGORY sort field on the x-axis:

GRAPH FILE GGSALES
SUM DOLLARS
BY REGION BY ST BY CATEGORY BY PRODUCT
WHERE CATEGORY EQ 'Food' OR 'Gifts'
WHERE PRODUCT EQ 'Coffee Pot' OR 'Biscotti' OR 'Mug'
ON GRAPH SET GRMERGE ADVANCED
ON GRAPH SET GRMULTIGRAPH 1
ON GRAPH SET GRLEGEND 2
ON GRAPH SET GRXAXIS 1
ON GRAPH SET LOOKGRAPH VBAR
ON GRAPH PCHOLD FORMAT JSCHART
END

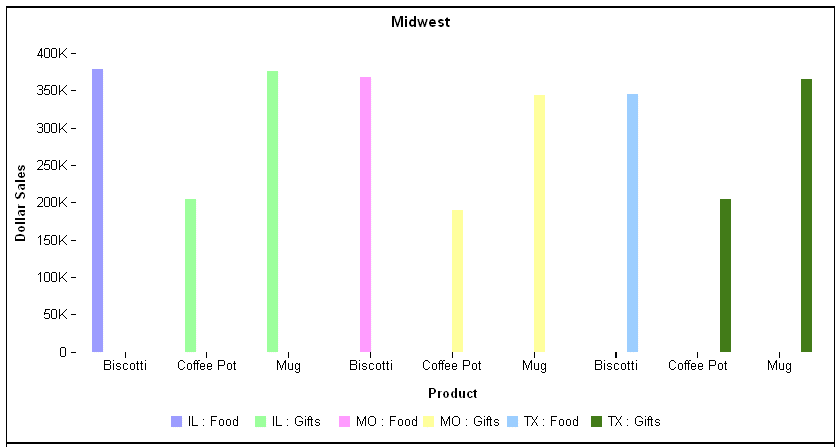

The first chart is for region Midwest. The legend distinguishes State-Category combinations by color, and the PRODUCT sort field is repeated on the x-axis for each State-Category combination:


Top of page

x
Syntax: How to Display Multiple Graphs in Columns
SET GRWIDTH=nn

where:

nn

Is the number of columns in which to display multiple graphs. This may be any value from 0-512. The default is 0.

All values from 1-512 will display graphs in an HTML table with the corresponding number of columns. The default value of 0 will display the graphs one under the other in a Java applet.
