In this section: |
|
The topics in this section describe how to install your server in a Hierarchical File System (HFS) environment on UNIX System Services.
In this section: |
Before beginning the server installation, review all requirements.
The server runs on any supported release of z/OS. For current information about supported releases:
The Information Builders Technical Support home page opens.
The Supported Systems and Adapters page opens.
The Supported Systems and Adapters page for that release opens.
The support chart for that platform opens.
In general, the operating system should have the latest cumulative patch levels applied.
Confirm that your server installation software is labeled for your operating system level.
If JVM-based adapters, server-side graphics, XBRL, or user-written CALLJAVA applications are to be used, a Java Runtime Environment (JRE) JVM must be installed on the machine, and the server must be configured to use it
As of 7.7.05 and 8.0.01 production releases, the minimum JVM release level is 1.6 or higher, due to required internal components of the server. The Java Listener will not start unless 1.6 (or higher) is in use. Prior 7.x releases would allow the listener to start with any release, and sub-components would fail if they required a higher Java Level. The primary reason for this change is that Java 1.5 (and prior releases) are past their End of Service Life (EOSL) dates, and, as such, are unsupportable, in addition to lacking newer functionality. The following URL has Java EOL and EOSL information:
http://java.sun.com/products/archive/eol.policy.html
Installing maintenance updates to the EDAHOME of an existing server running releases prior to production 7.7.05 will also have the requirement of moving up all dependent configurations to use Java 1.6 (as instructed in this section).
You may install a Java JRE or a Java SDK. When you install a Java SDK, the JRE component (where the JVM lives) is included, so either is allowed. If using servlet, the Java SDK is required for the jar command, so it is generally preferred over the Java JRE. The SDK or JRE build type must also match the 32-bit or 64-bit bit type of the server. If an appropriate JVM from a JRE or SDK is not found on the library path or using variables as described below, or is not the appropriate bit type, a Failed to find JVM message will be displayed. Further Java Services debugging information about loading the JVM will be written to the server start log indicating JSCOM3 start failed as well as additional information that may be useful in resolving the problem. JSCOM3 is the actual process name for the Java Services Listener and the terms are often used interchangeably.
The JDK JRE bin and server (or client) subdirectories must be specified in the load library path environment variable. A server restart is required, plus the appropriate JVM must be on the path if switching JRE levels. The load library path will be prompted at install time if JVM-based adapters or features are required. Otherwise, it can be manually set by editing the EDAENV file using any of the following methods.
IBI_JNIPATH=/usr/lpp/java/J6.0.1/jre/bin: /usr/lpp/java/J6.0.1/jre/bin/j9vm: /usr/lpp/java/J6.0.1/jre/bin/classic
LIBPATH=/usr/lpp/java/J6.0.1/jre/bin: /usr/lpp/java/J6.0.1/jre/bin/j9vm: /usr/lpp/java/J6.0.1/jre/bin/classic: /usr/lpp/java/J6.0.1/
To change or add operating system environment variables, set and export the variable in a .profile or script that always gets called during a server start. It is very common to place variables in the server edastart script, but it is recommended that they be placed in a script that in turn calls edastart (so that the edastart script remains vanilla).
To change or add a variable in a server environment start up file (EDACONF bin\edaenv.cfg), either edit the file in a text editor before starting the server or:
The format of edaenv.cfg variables is one per line in name=value pairs. Spaces before and after the equal sign are optional. Values with embedded spaces do not require quoting. Variables are always upper case.
If JVM-based adapters or features are not required, the message Failed to find JVM is normal and can be ignored.
To add classes to the JVM class path for customer-written CALLJAVA applications, set and export the CLASSPATH variable to the operating system level before server start-up or use the Web Console to set the Java Listener IBI_CLASSPATH property.
The install process prompts for two IP port numbers: the TCP Listener and HTTP Listener. It also uses the next two consecutive ports after the supplied HTTP Listener port for FDS use. This results in a total of four IP ports.
The supplied IP port numbers must be above the IANA registered well-known reserve range (numbers under 1024) and not over the maximum legal number (65535). Additionally, do not use IP port numbers already being used by other applications or products. Netstat, or netstat like commands, should reveal what actual ports are in use.
The Web Console server requires one of the following web browsers:
The Opera™ browser does not support RIA (Rich Internet Application), the default appearance mode of the 7.7.x Web Console. Opera 5.0 or higher seems to operate properly in HTML mode, and the Web Console detects this and switches to this mode automatically. Since HTML mode is less extensively tested, Opera is considered unofficially supported at this time. Please report any issues you find to customer service.
The server disk space requirement for:
You can divide your space requirements in different ways. For example, you may choose to employ one mount point for the working directory for users and trace files (edatemp), and one mount point for the application directory (apps). Another option is to employ one mount point for edatemp, and one for each individual application.
For more information about using mount points, see the IBM USS documentation.
Memory usage of a configured environment consists of the following elements:
Actual memory usage depends on application features, and varies depending on the application. The SHRLIBRGNSIZE parameter (defined on SYS1.PARMLIB, member BPXPRMxx) can affect the amount of memory that the server address space will allocate. For SHRLIBRGNSIZE, we recommend the default MVS installation value of 64Mb:
SHRLIBRGNSIZE(67108864)
Server memory usage:
The minimum amount of memory for a newly installed server with no workload is 250Mb. However, depending on usage, workload, and configuration options, 500Mb is recommended to start, to be adjusted as needed.
You need four TCP/IP ports for each server instance that you configure. Three of these ports must be consecutive. You specify these port numbers during installation. You may require additional ports depending on which options you configure later.
The server supports only IBM TCP/IP. It does not support Interlink or any other third-party TCP/IP.
In this section: |
To install a new Server for z/OS deployed using the Hierarchical File System (HFS) and UNIX System Services (USS), perform the following steps.
The server installation requires a set of HFS directories where the product executable files, configuration files and sample applications are loaded. The server also uses HFS directories for temporary files during the server operation by default. Application files can be kept in the HFS directories or in PDS.
To better control the space allocated to server software, we recommend defining a separate HFS data set, OMVS.IADMIN, and mounting it as /u/iadmin for the exclusive use of the server. Note that both names can be changed and existing HFS data sets used as an alternative.
The sample JCL in step 1a is for 1 gigabyte of space. The total space that can be allocated to an HFS data set is dependent on the operating system release and the physical device type. Refer to IBM documentation for more information about HFS allocation. For an SMS-managed data set, add the appropriate parameters.
To establish the HFS directory for the server:
//********* JOB CARD GOES HERE ************// // //*************DEFINE HFS ******************// //DEFWEB EXEC PGM=IEFBR14 //DD1 DD DISP=(NEW,CATLG),DSN=OMVS.IADMIN,DSNTYPE=HFS, // VOL=SER=VPWRKC,DCB=(DSORG=PO), // SPACE=(CYL,(1200,5),,CONTIG,ROUND)
MOUNT FILESYSTEM('OMVS.IADMIN') MOUNTPOINT ('/u/iadmin') TYPE (HFS) MODE (RDWR)
where:
Is the name associated with the file system defined in Step 1.
Is the mount entry point for the file system. Specify a directory appropriate for your site.
The specified directory must exist before you issue the MOUNT command. Once the directory is created, the minimum permissions for all directory levels leading to iadmin must be 755.
To install and run the server, the following types of user IDs are required:
The number of IDs and their names depend on the needs and configuration of your site.
An ID is required to unload the server installation from tape and to create PDSs and HFS directories. Many sites already have a suitable ID that they use for installing vendor software.
The sample ID name iinstal is used throughout the installation procedure to refer to this ID, but you can choose any name. (We have omitted the second "l" from "install" due to a 7-character length restriction in some RACF and eTrust™ CA-Top Secret® environments.) To define iinstal, see Step 2A. Define the Server Installation ID.
An ID is required to administer the server. It will own and have full access to server files installed in the HFS directory that you specify during installation. This ID should be available only to users who require administrative server privileges, such as starting and stopping the server, adding adapters, and changing run-time parameters.
The sample ID name iadmin and group isrvgrp are used throughout the installation procedure to refer to this ID, but you can choose any names. To define iadmin, if you are using:
If you plan to run the server with security set to OPSYS, you must create a user ID for internal use by the server. The server will use this server system ID when it needs superuser privileges. For example, to impersonate a connected user when the server agent is created.
This ID does not need TSO logon privileges. All IDs require an OMVS segment. Be sure never to delete this ID: doing so would cause server administration problems.
The sample ID name iserver is used throughout the installation procedure to refer to this ID, but you can choose any name.
You can define this server system ID as either:
To define iserver using a superuser ID, if you are using:
RACF, see Step 2C/RACF. Define the Server System User ID With RACF.
CA-ACF2, see Step 2C/ACF2. Define the Server System User ID With CA-ACF2.
CA-Top Secret, see Step 2C/Top Secret. Define the Server System User ID With CA-Top Secret.
By granting limited superuser privileges with a high degree of granularity to an ID that does not have superuser authority, you minimize the number of assignments of superuser authority at your installation and reduce your security risk.
This is supported for sites using RACF, eTrust™ CA-ACF2®, and eTrust CA-Top Secret. Note that global access checking is not used for authorization checking to UNIXPRIV resources.
To define iserver using UNIXPRIV profiles, see Step 2D. Define the Server System User ID With UNIXPRIV Profiles.
Any user requiring access to the server must have a non-superuser ID (that is, it must have a unique UID other than 0) and have an OMVS segment. For information about this, see Step 2E. Add the OMVS Segment to General User IDs.
There are two user ID installation scenarios:
The user ID must have a unique non-zero UID. It cannot be a superuser. For this scenario, logon to TSO with this ID and do not change the default administrator ID that is presented on the first full panel of the ISETUP installation process.
The installation ID can be a superuser or non-superuser, and must have authority over the administrator ID so that it can change ownership of the server directory structure from the installation ID to the administrator ID. The command issued during the installation process to change ownership is shown.
The administrator ID must have a unique non-0 UID. It cannot be a superuser.
When defining the server installation ID:
The server administrator ID requires an OMVS segment.
To define the server administrator ID with RACF:
ADDUSER iadmin PASSW(xxxx) DFLTGRP(ISRVGRP) OMVS(UID(8) HOME('/u/iadmin') PROGRAM('/bin/sh)') TSO(ACCTNUM(12345) PROC(PROC01))
[TSO] LISTUSER iadmin OMVS NORACF
You should receive the following response:
USER=iadmin OMVS INFORMATION ------------------------------ UID=0000000008 HOME=/u/iadmin PROGRAM=/bin/sh
RDEFINE FACILITY BPX.FILEATTR.APF UACC(NONE) PERMIT BPX.FILEATTR.APF CL(FACILITY) ID(iadmin) ACCESS(READ)
SETROPTS RACLIST(FACILITY) REFRESH
The server administrator ID requires an OMVS segment.
To define the server administrator ID with eTrust CA-ACF2:
SET LID INSERT iadmin GROUP(admin) PASSWORD(pass) STC SET PROFILE(USER) DIV(OMVS) INSERT iadmin UID(n) HOME(/) OMVSPGM(/bin/sh)
where:
Is the ID you are creating to administer the server.
Is the group in which iadmin will reside.
Is the password for iadmin.
Is the UID.
The server administrator ID requires an OMVS segment.
To define the server administrator ID with eTrust CA-Top Secret:
TSS CRE(dept) TYPE(DEPT) NAME('formal department name')
where:
Is the name of the department you are creating.
Is the label you want to associate with the new department.
TSS CRE(deptgrp) NAME('dept group') DEPT(dept) TYPE(GROUP) GID(n)
where:
Is the name of the group you are creating.
Is the label you want to associate with the new group.
Is the name of the department you created.
Is the number you want to assign to the new group.
TSS CRE(iadmin) NAME('iadmin id') TYPE(USER) DEPT(dept) PASSWORD(pass) GROUP(deptgrp) DFLTGRP(deptgrp)
where:
Is the ID you are creating to administer the server.
Is the label you want to associate with the new ID.
Is the name of the department that you created.
Is the password for the ID you are creating.
Is the group you created.
The OMVS segment of the ACID defines the ACID's UID, the user's home directory, and the initial program that the user will run. The initial program is generally the shell program that the user invokes.
TSS ADD(iadmin) UID(n) [HOME(/u/dir)] OMVSPGM(/bin/sh) FAC(BATCH,TSO)
where:
Is the ID you created to administer the server.
Is the UID. It cannot be 0 (zero).
Defines the initial directory path name. If it is omitted, USS sets the user's initial directory to the root directory.
Is the ID home directory.
TSS PER(iadmin) IBMFAC(BPX.FILEATTR.APF) ACC(READ)
where:
Is the ID you created to administer the server.
To verify the server administrator ID:
OSHELL pwd
You should receive the following response:
/u/iadmin
This directory should be the home directory specified in the UID definition for iadmin.
OSHELL echo $HOME
You should receive the following response:
/u/iadmin
OSHELL id
You should receive the following response:
uid=8(IADMIN) gid=50(ISRVGRP)
This UID and GID should match what is defined in the OMVS segment.
The RACF commands in this procedure must be issued by the Security Administrator. The server system user ID does not require logon authority.
To define the server system user ID with RACF:
ADDUSER iserver DFLTGRP(OMVSGRP) OMVS(UID(0)) NOPASSWORD
where:
Is the account you use for the system server ID.
[TSO] LISTUSER iserver OMVS NORACF
You should receive the following output:
USER=iserver OMVS INFORMATION ------------------------------ UID=0000000000 HOME=/u/iserver PROGRAM=/bin/sh
To define the server system user ID with eTrust CA-ACF2, issue the following commands:
SET LID INSERT iserver NAME(iserverID) GROUP(pgm) SET PROFILE(USER) DIV(omvs) INSERT iserver UID(0) HOME(/) PROGRAM(/bin/sh) SET PROFILE(GROUP) DIV(omvs) INSERT pgm GID(n)
where:
Is the ID you are defining for the server system ID.
Is the description you want to associate with the system server ID.
Is the ID group.
Is the name of your OMVS division.
Is the group ID.
To define the server system user ID with eTrust CA-Top Secret:
TSS CRE(iserver) TYPE(USER) NAME('server system ID') DEPT(dept) PASS(pass,0) SOURCE(INTRDR)
where:
Is the name you wish to assign to the server system ID you are defining.
Is the name of the department you created in step 2b.
Is the label you want to associate with the new ID.
Is the ID password.
This password never expires.
Note that the SOURCE(INTRDR) setting prevents this ACID from logging on.
TSS ADD(iserver) UID(0) HOME(/) OMVSPGM(/bin/sh) GROUP(deptgrp) DFLTGRP(deptgrp)
where:
Is the server system ID.
Is the name of the group you created in step 2b.
TSS ADD(iserver) AUDIT
where:
Is the server system ID.
Resource names in the UNIXPRIV class are associated with z/OS UNIX privileges. In order to use authorization to grant z/OS UNIX privileges, you must define profiles in the UNIXPRIV class protecting these resources. The UNIXPRIV class must be active. If you are using RACF, SETROPTS RACLIST must be in effect for the UNIXPRIV class.
To use profiles in the UNIXPRIV class to grant authorization for superuser privileges to a server system ID that does not have superuser authority (UID=0), you must assign:
READ access for SUPERUSER.FILESYS.CHOWN
CONTROL access for SUPERUSER.FILESYS
Note:
It is strongly recommended that you do you not assign TSO privileges to the UNIXPRIV user ID. This can be done by adding the keyword NOPASSWORD to the RACF command ADDUSER.
The installation routine ISETUP will ask for the server system ID (default ISERVER). It will check if the supplied userid has a UID of 0. If it does not, UNIXPRIV authorization is assumed. This will result in an entry in the ibi/srv77/server_type/bin/edaserve.cfg file as follows:
server_system_id = ISERVR3/PRIV
rather than
server_system_id = ISERVER
If you installed the server with the server system ID pointing to a superuser ID (UID=0), and then decide to use UNIXPRIV userid, the value in the edaserve.cfg file must reflect the /PRIV syntax. Edit the file manually or using the Web Console, click Workspace, Configuration/Monitor. Open the Configuration Files folder, double-click Workspace, and change the server_system_id value before starting the server.
For more information about UNIXPRIV authorization, for:
The server system ID requires different authorities in order to be used with UNIXPRIV. The following RACF example lists the authorities for a system server ID with UNIXPRIV authorization, named ISERVR3. Authorizations for your site may differ.
Occurrences of ISERVR3 In standard access list of general resource profile UNIXMAP U100122 In standard access list of general resource profile TSOAUTH RECOVER In standard access list of general resource profile TSOAUTH JCL In standard access list of general resource profile ACCTNUM EDA In standard access list of general resource profile UNIXPRIV SUPERUSER.FILESYS.CHOWN In standard access list of general resource profile UNIXPRIV SUPERUSER.FILESYS Owner of profile ISERVR3.* (G) First qualifier of profile ISERVR3.* (G) In access list of group EDA User entry exists
To add the OMVS segment to general user IDs:
For example, to modify an existing RACF TSO user ID profile, from ISPF Option6, issue the following command
ALTUSER user_ID OMVS(UID(nnn) HOME('/u/user_ID') PROGRAM('/bin/sh'))
where:
Is the user ID you are modifying.
For current information about which adapters are supported:
The Information Builders Technical Support home page opens.
The Supported Systems and Adapters page opens.
The Supported Systems and Adapters page for that release opens.
The support chart for that platform opens.
You must provide information to configure the adapters that you are licensed to install. The installation procedure automatically prompts you for this information. When you are prompted for an optional steplib, ddname, or environment variable, the installation procedure will indicate this with an OPT> prompt.
If you are using non-APF-authorized DBMS libraries, you must allocate the libraries to the ddname TASKLIB in IRUNJCL. The installation routine collects the information and allocates the required libraries in STEPLIB.
After you have installed and configured the server, you will be able to further configure your adapters using a web-based server configuration tool called the Web Console.
The following table describes what information you need to provide for each adapter that you have. (If an adapter is not listed, no information needs to be provided for it.) Note that the table refers to:
high_level_qualifier.server_type.DATA
high_level_qualifier.server_type.DATA
where:
Is the high-level qualifier for HOME.DATA and for all other data sets that the installation procedure allocates. We recommend that the high-level qualifier reflect the release of the server (for example, IADMIN.SRV77). However, you can use any site-specific value.
Is one of the following:
FFS | for a Full-Function Server |
DM | for a DataMigrator Server |
WFS | for a WebFOCUS Reporting Server |
WFM | for a Shared Application Server for WebFOCUS Maintain |
Adapter |
Information you must provide |
---|---|
Adabas |
Provide the data set name for the following STEPLIB allocation:
This is required only for the synonym creation process. For example, in a production environment in which all synonyms already exist, you can omit this. When you configure the adapter, you will need to provide the name of the Adabas source library and the associated data set name. |
CA-DATACOM |
Provide the data set names for the following STEPLIB allocations:
|
CA-IDMS (both DB and SQL) |
Provide the data set names for the following STEPLIB allocations:
Provide the data set names to which the following ddnames are allocated:
|
Call Java |
You must have the JDK installed. Provide a value for the following environment variables:
|
CICS Transaction |
Provide the data set name for the following STEPLIB allocation:
|
DB2 CAF |
Provide the data set names for the following STEPLIB allocations:
Provide the following information for DB2 BIND:
The installation will generate a fully customized DB2 BIND job and configure the adapter. DB2 CAF will be ready to use once the BIND job is executed. The configuration can be modified later using the Web Console, if necessary. |
DB2 CLI |
Provide the data set names for the following STEPLIB allocations:
Provide a value for the following environment variable:
|
EJB |
You must have the JDK installed. Provide a value for the following environment variables:
|
IMS |
Provide the data set names for the following STEPLIB allocations:
|
IMSBMP |
Provide the data set names for the following STEPLIB allocation:
Provide the data set names for the following FOCPSB allocation:
|
JDBC |
You must have the JDK installed. Provide a value for the following environment variables:
|
Microsoft SQL Server |
Select the Call Java adapter, in addition to the Microsoft SQL Server adapter. Provide a value for the following environment variables:
|
Millennium |
Provide the data set name for the following STEPLIB allocation:
|
Model 204 |
Provide the data set name for the following STEPLIB allocation:
|
MQSeries |
Provide the data set names for the following STEPLIB allocations:
|
NATURAL Batch |
Provide the data set name for the following STEPLIB allocation:
|
SAP (SQL) |
Provide values for the following environment variables:
|
SAP BW |
Provide values for the following environment variables:
|
Supra |
Provide the dataset name for the following STEPLIB allocations:
Provide the dataset name to which the following ddname is allocated:
|
VSAM CICS |
Provide the data set name for the following STEPLIB allocation:
|
You can choose to access the server installation software using either:
You must unload the installation data set from the tape before you can run the installation. This is how most installations are performed.
Downloading the installation software involves:
The software is provided on a cartridge in 3490 or 3590 format with MVS PDSs. Perform the following to unload the installation data set from the tape:
It is recommended that you use HOME.DATA as the low-level qualifier for the target data set. Although you can specify any low-level qualifier, HOME.DATA enables the installation procedure to generate default data set names, simplifying your installation.
Note: If you do not use HOME.DATA, then change the following line to reflect the value you used.
// SET EDAUSSD='HOME.DATA'
Do this before you run ISETUP.
The following sample JCL is for the initial unload to a new data set:
//IEBCOPY EXEC PGM=IEBCOPY,REGION=0M //SYSPRINT DD SYSOUT=* //SYSUT1 DD UNIT=workunit,SPACE=(CYL,(5,1)) //OUT1 DD DISP=(NEW,CATLG,DELETE), // DSN=qualifier.HOME.DATA, // DCB=(RECFM=FB,LRECL=80,BLKSIZE=3200), // SPACE=(CYL,(5,5,25)), // UNIT=SYSDA //IN1 DD DISP=(OLD,PASS), // DSN=HOME.DATA, // UNIT=cart, // VOL=(,RETAIN,,SER=volser), // LABEL=(1,SL) //SYSPRINT DD SYSOUT=* //SYSIN DD * COPY INDD=IN1,OUTDD=OUT1
where:
Is the unit for the work data set.
Is the high-level qualifier for HOME.DATA and for all other data sets that the installation procedure allocates. We recommend that the high-level qualifier reflect the release of the server. However, you can use any site-specific value.
For PDS, we recommend retaining the low-level qualifier HOME.DATA, but you can change this to any site-specific value. If you use a low-level qualifier other than HOME.DATA, you must then edit member PDSSNAME to change the string “HOME.DATA” to the low-level qualifier you specify here.
Is the unit type of the tape drive. Common names include 3490, TAPE, and 3590. Change as needed.
Is the value shown on the media label.
After this job has run, qualifier.HOME.DATA is allocated, cataloged, and populated with the members needed to continue the product installation.
To download the installation software:
The Information Builders Technical Support home page opens.
The Downloads, Upgrades, Service Packs, and PTFs page opens.
The Downloads by Release page for your product opens.
The Software Downloads page for your release opens.
The Software Download Agreement page opens.
The Download Instructions page opens. Select AUTOMATIC or MANUAL and follow the relevant instructions.
A copy of the instructions is automatically emailed to you for later reference.
// SET EDAUSSD='HOME.DATA'
Specify (F)tp for Input Source on the second panel.
Note that after the server is properly installed, you can optionally delete any downloaded temporary files.
Continue with Step 5. Run ISETUP.
We recommend retaining the default low-level qualifiers that are supplied for the installation libraries. However, if you need to change any of them (for example, to conform to site-specific naming conventions), you can do so by editing them in member PDSSNAME of high_level_qualifier.HOME.DATA. You can see a list of the qualifiers in Default Low-Level Qualifiers.
Caution: If you change any low-level qualifiers and do not reflect those changes exactly in USSSNAME, you will experience problems with the server installation and operation.
Once you have finished changing any names, continue with Step 5. Run ISETUP.
The following low-level qualifiers are set in high_level_qualifier.HOME.DATA(PDSSNAME):
// SET EDAUSSD='HOME.DATA' Server installation library // SET EDAUSSL='HOME.LOAD' Server base load library // SET FFSUSSD='FFS.DATA' Full Function server // SET WFSUSSD='WFS.DATA' WebFocus Reporting server // SET ETLUSSD='DM.DATA' DataMigrator // SET WFMUSSD='WFM.DATA' WebFocus Maintain Server // SET CGWUSSD='CGW.DATA' Communications Gateway // SET CLNUSSD='CLN.DATA' Client // SET EDACICS='HOME.CICS.LOAD' CICS load library
Server installation consists of a series of ISPF panels, which gather the required information. After the panel dialog is complete, JCL is created and submitted to install the server on z/OS. This JCL job retrieves the remainder of the MVS libraries and HFS files from the media and configures a basic working server.
The first Installation and Configuration panel opens.

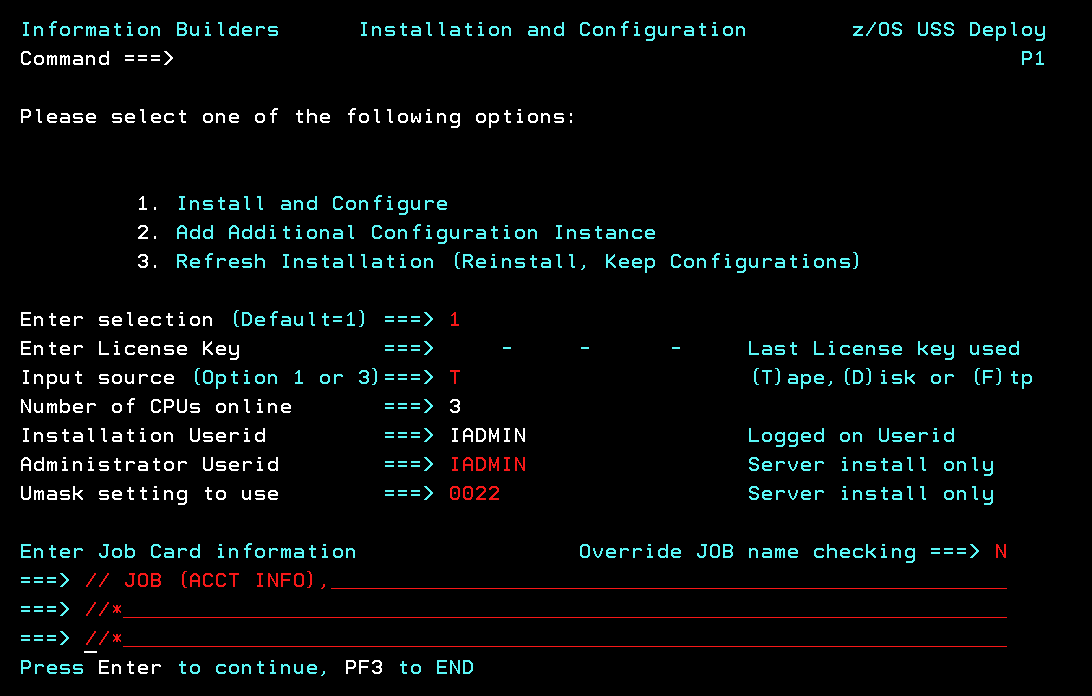

The following panel opens.
Field |
Instructions |
---|---|
Enter selection |
Accept the default value 1, Install and Configure, for a new installation. For option 2, Add Additional Configuration Instance, see Adding a Configuration Instance for HFS. For option 3, Refresh Installation, see Upgrading Your Server Release for HFS. |
Enter License Key |
Enter the license key that was provided with the software. Be sure to store this key in a safe place for future reference. |
Input source |
Enter the input source:
|
Installation Userid |
Shows the current logon ID. It cannot be changed. |
Number of CPUs online |
Shows the current number of general use processors currently online. It cannot be changed. This value is going to be matched with the licensed number of CPUs provided in the License Key, when the installation job is submitted. At this point this verification is not being enforced and if the licensed number does not match the actual number of CPUs currently online, a warning will be issued and the installation job will continue. |
Administrator Userid |
Initially, this field shows the same ID as the installation user ID. If the installation user ID is a superuser (UID=0), you must specify a non-superuser ID to administer the server. Specify this ID here. |
Umask setting to use |
Shows the current umask setting for the iadmin ID. The JCL passes this setting to the server for use at run time. Every time the server creates a file in the .../ibi/profiles or .../ibi/apps directory structures (usually in response to Web Console activity), the server assigns to the file the default permissions 666 filtered by the umask value. You specify whichever umask value is necessary to mask out the permissions you do not want to grant. For example, if you specify a umask value of 0022, the server create files with the permissions 644: umask 0022 is subtracted from the default 666, disallowing the group and world write permissions. |
Enter Job Card information |
To provide JOB card information for submitting jobs to the JES queue, provide a valid job name (a maximum of seven characters following the // on the first JCL line), which defaults to the user ID that you are currently using. This job name is used for multiple submissions (for example, jobnameA, jobnameB, jobnameC, and so on) in the JCL generated by the installation procedure. |
Override JOB name checking |
To provide your own JOB card information, including JOB name, enter Y and provide valid JOB card information in the Enter Job Card information field. The JOB card information that you enter will be used for each job that is submitted. |
If you used the same user ID for both installation and administration, skip to Step 6. Otherwise, continue with Step 4.

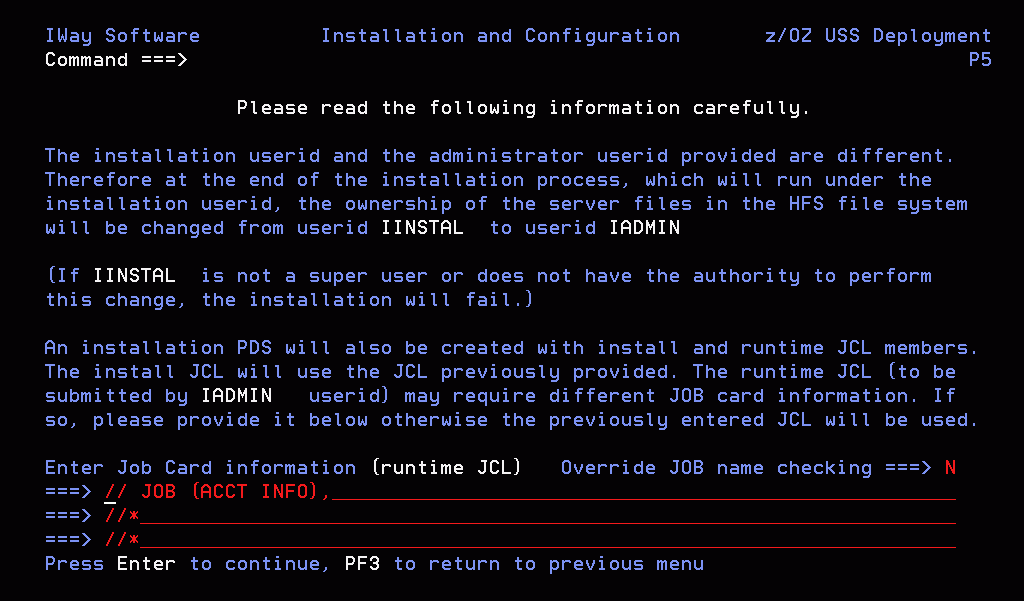

The following panel opens.
This panel appears only if you provided two different user IDs in the previous panel.
The installation process will change ownership of HFS server files from the installation ID (iinstal) to the administrator ID (iadmin). The installation ID must have authority to issue the chown command to make this change of ownership. This action is taken at the end of the installation process.
Field |
Instructions |
---|---|
Enter Job Card information |
To provide JOB card information for submitting the run-time jobs to the JES queue, provide a valid job name (a maximum of seven characters following the // on the first JCL line), which defaults to the user ID that you are currently using. This job name is used for multiple submissions (for example, jobnameA, jobnameB, jobnameC, and so on) in the JCL generated by the installation procedure. |
Override JOB name checking |
To provide your own JOB card information, including JOB name, enter Y and provide valid JOB card information in the Enter Job Card information field. The JOB card information that you enter will be used for each run-time job that is created. |

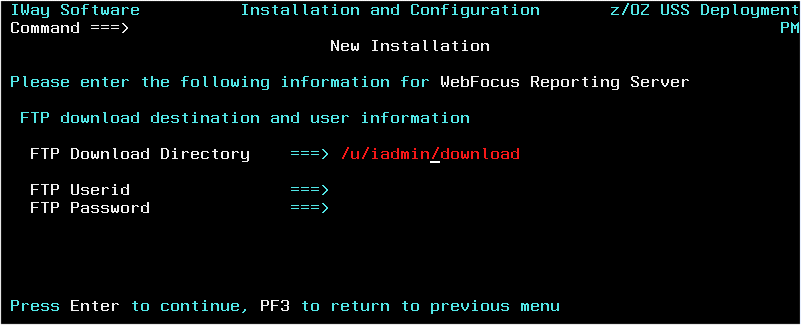

This following panel only appears if FTP was previously selected. Otherwise, skip to Step 8.
Field |
Instructions |
---|---|
FTP Download Directory |
This defaults to the current userid home directory plus /download. Change the value to an existing directory name or leave unchanged (/download will be created). |
FTP Userid |
Cut and paste from the download instructions |
FTP Password |
Cut and paste from the download instructions |
Note that in the current panel (and some later panels), if you are running ISETUP from:
In this and some later panels, you can see a field default value (if one exists) by blanking out the field and pressing Enter.

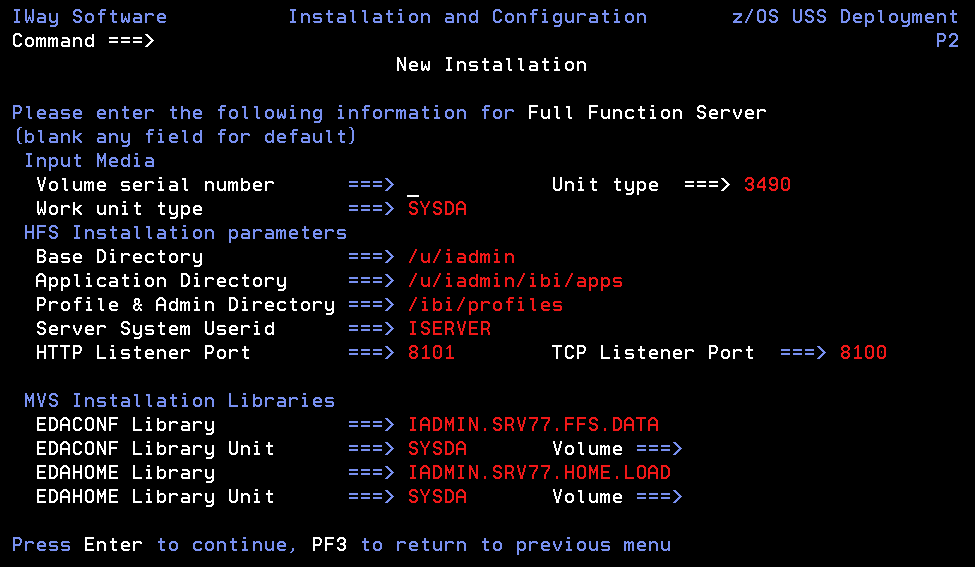

Complete the panel as follows.
Field |
Instructions |
---|---|
Input Media (installing from tape only) | |
Volume serial number |
Provide the volume serial number of the server media. The number is located on the tape supplied in you server package. |
Work unit type |
Review the default value and change if necessary. You can specify a UNIT= type value (for example, SYSDA), or you can direct work files to a specific volume serial number by specifying, in single quotation marks ('), 'SYSDA,VOL=SER=volume'. |
Input Media (installing from disk/FTP only) | |
Directory name of input |
Provide the name of the directory in which the installation files reside. |
General Installation Parameters | |
Base Directory |
This indicates where to install the server. The default value is the home directory of the user ID you are using to install the product. Change this value, if necessary, to a valid directory that has space for the installation. The installation procedure checks whether this directory exists and has enough space. If either test fails, you will receive a message indicating the failure and available options. |
Application Directory |
This indicates where application components will reside. The default value is based on the value specified for Base Directory. To specify another location for application components, change the value for this field. |
Profile & Admin Directory |
This indicates where user profiles and administration files will reside. The default value is based on the value specified for Base Directory. To specify a different location for application components, change the value for this field. |
Server System Userid |
This shows the default value, ISERVER. To change this value, see the requirements in Step 2. Set Up User IDs. |
HTTP Listener Port |
This indicates the port number that the server will use for HTTP. It is the first of three connection ports that must be available to the server. For example, if you choose port 8101, then ports 8101, 8102, and 8103 are used by the server. Ensure that you choose ports that are not currently being used. |
TCP Listener Port |
This is the port number of the TCP Listener. The default is one less than the port specified for the HTTP Listener, but it can be any port number other than the three reserved for HTTP. |
MVS Installation Libraries | |
EDACONF Library |
This is the full data set name the installation procedure will use to allocate the EDACONF configuration library on MVS. If you are running from high_level_qualifier.HOME.DATA, this field will have the default value high_level_qualifier.server_type.DATA (where server_type is based on license key). If you used another name to unload the first data set, this field will be blank. On subsequent running of ISETUP, the previous value used will be displayed. Change the value as necessary. |
EDACONF Library Unit/Volume |
These show the values that the installation process will use to allocate the EDACONF load library on MVS. If necessary, you can change these to site specific values. |
EDAHOME Library |
This is the full data set name the installation procedure will use to allocate the EDAHOME load library on MVS. If you are running from high_level_qualifier.HOME.DATA, this field will have the default value high_level_qualifier.HOME.LOAD. If you used another name to unload the first data set, this field will be blank. On subsequent running of ISETUP, the previous value used will be displayed. Change the value as necessary. |
EDAHOME Library Unit/Volume |
These show the values that the installation process will use to allocate the EDAHOME load library on MVS. If necessary, you can change these to site specific values. |
Depending on your license key, the Data Adapter panel may open before the Demonstration Files panel. If the Data Adapter panel opens, continue with Step 10. Otherwise, skip to Step 11.
To select specific adapters:
After you have finished installing and configuring the server, you can use the Web Console to finish configuring these adapters, and to configure adapters that do not have MVS JCL requirements.
The JSCOM3 Listener configuration panel opens.
The New Century Corporation Demonstration Files panel opens.

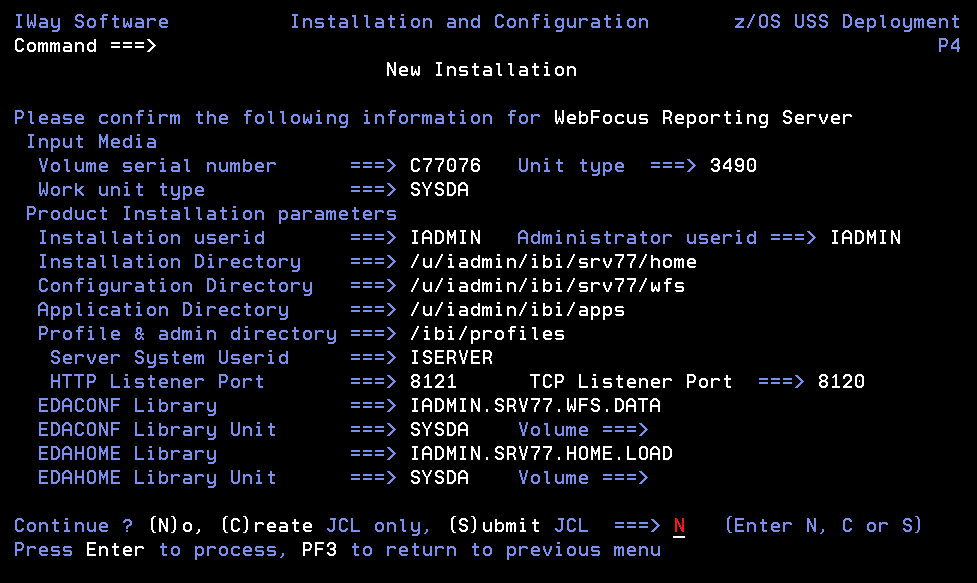

The confirmation panel opens.
Note: If FTP was selected, JCL will be created to download the server software and run the install and configuration process.
The following is a table of the jobs created. All members are created in the configuration library (EDACONF).
Job |
Description |
---|---|
ISETUPJ1 |
Main JCL Job stream that is used to install the server. For FTP processing, this JCL can be restarted at any step due to a previous failure. To do this, add RESTART = procname.stepname to the JOB card and resubmit the ISETUPJ1 JCL. |
ISOPTS1 |
Options used to install the server. |
The following members all call procedure IRUNJCL, which is the main server JCL. If you need to change the server JCL, change member IRUNJCL.
Member |
Description |
---|---|
ISTART |
Starts the server. |
ISTOP |
Stops the server. |
ICLEAR |
Clears server resources after abnormal end. |
ICLRDIR |
Clears superuser-owned directories from a previously run secure server. |
ISAVEDIA |
Creates a directory called sdnnnnnn and populates it with full diagnostic information. |
ISHOW |
Shows current workspace status. |
ITRCON |
Turns on dynamic tracing (server will be started if not already running). |
ITRCOFF |
Turns off dynamic tracing (server will be started if not already running). |
The following members contain batch JCL for auxiliary functions, and are also created in the configuration library.
Member |
Description |
---|---|
CMRUN |
JCL to run DataMigrator batch jobs. |
DB2V8PRM |
DB2 version 8 DBRM referenced in GENDB2 JCL. |
DB2V9PRM |
DB2 version 9 DBRM referenced in GENDB2 JCL. |
DB2V10PR |
DB2 version 10 DBRM referenced in GENDB2 JCL. |
GENDB2 |
JCL to bind the DB2/CAF plan. |
IIMSBMP |
Example JCL to run the IMS/XMI server job in BMP mode. |
IIMSDLI |
Example JCL to run the IMS/XMI server job in DLI mode. |
The following members contain sample started task JCL, and are also created in the configuration library.
Member |
Description |
---|---|
IWAYS |
A started task that starts the server. |
IWAYP |
A started task that stops the server. |
EDAPRMP |
A parameter file used by IWAYP. |
EDAENV |
A parameter file used by IWAYS, IWAYP, ISTART, and ISTOP. |
The following table shows the HFS directory structures created during the installation process.
Directory Structure |
Description |
---|---|
/u/iadmin/ibi/srv77/tape |
Contains HFS files from the input media. |
/u/iadmin/ibi/srv77/install |
Working directory for the installation process. Log and error files reside here. |
/u/iadmin/ibi/apps |
The installation creates baseapp and one or more sample application directories under this directory. |
/u/iadmin/ibi/profiles |
This is where user profiles are created, as well as admin.cfg. |
/u/iadmin/ibi/srv77/home |
Server system directories are created under this directory. |
/u/iadmin/ibi/srv77/server_type |
Configuration directories are created under this directory. The license key specified in the ISETUP procedure determines server_type. server_type is one or more of the following: FFS for a Full-Function Server DM for a DataMigrator Server WFS for a WebFOCUS Reporting Server WFM for a Shared Application Server for WebFOCUS Maintain |
To test the server installation:
(EDA13023) ALL INITIAL SERVERS STARTED
http://host:port
where:
Is the name of the machine on which the server is installed.
Is one port higher than the port specified when installing the server. For example, if you specified port 8100 during installation, then use port 8101 to access the Web Console.
The Web Console opens.
A sample report is executed and the result is displayed.
When you are finished using the server, you can use the Web Console to stop the server by going to the Web Console menu bar, selecting Workspace, and then Stop.
If you experience problems at start up, examine the job output for more information.
You can run the server in any of the following security modes:
If you will be configuring your server with security mode OPSYS, you must perform the instructions in the following topics. (For security modes PTH, DBMS, and LDAP, skip these topics.)
You can see a full description of all server security modes in the Web Console help, and also in the Server Administration for UNIX, Windows, OpenVMS, IBM i, and z/OS manual. To see it in the Web Console:
The Web Console Help window opens.
To configure server security with RACF, eTrust CA-ACF2, or eTrust CA-Top Secret:
OSHELL extattr +a /u/iadmin/ibi/srv77/home/bin/tscom300.out OSHELL extattr +a /u/iadmin/ibi/srv77/home/bin/tsqprx.out
OSHELL ls -E /u/iadmin/ibi/srv77/home/bin/tscom300.out OSHELL ls -E /u/iadmin/ibi/srv77/home/bin/tsqprx.out
The extended attributes portion of the output should be a-s-.
If you are installing the server to run with eTrust CA-ACF2 security package, you may have to apply fix number QO71149 for eTrust CA-ACF2 6.4 or QO51462 for eTrust CA-ACF2 6.5. If you are installing the server under z/OS 1.12 or higher to run with eTrust CA-ACF2 14.0, PTF RO24848 may have to be applied if server USS user IDs are to be defined using the USS default segment. For more information about these fixes, contact Computer Associates.
The MVS address space must have access to those system resources that are required by each user. eTrust CA-ACF2 will check for job-level access as well as user-level access. Therefore, the job-level user ID must have access to all data sets. For example, this can be done by setting the MAINT attribute on the eTrust CA-ACF2 record for the job-level user ID. Refer to eTrust CA-ACF2 technical reference guides for further information.
The job-level user ID of the server should have the Multiple User, Single Address Space (MUSSAS) attribute set to on. If the server is run as a started task, you must enable the started task attribute for the job-level user ID. You must also use the Web Console to define this user ID with OPER authority. For more information, see the Server Administration for UNIX, Windows, OpenVMS, IBM i, and z/OS manual.
Each user ID must be defined to eTrust CA-ACF2.
To create the necessary logon IDs and profile records, issue the following commands:
ACF SET LID INSERT OMVS GROUP(OMVSGRP) STC UID(0) INSERT INETD GROUP(OMVSGRP) STC UID(0) HOME(/) OMVSPGM(/bin/sh) INSERT TCPIP GROUP(OMVSGRP) STC UID(0)
For more information, see the following sections in Computer Associates eTrust CA-ACF2 Security for z/OS and OS/390 Cookbook:
If you use Computer Associates eTrust CA-Top Secret, follow these guidelines and refer to the security vendor manual for implementing user-level security.
The TSS PERMIT command for BPX.FILEATTR.APF facility class access is:
TSS PER(user_acid) IBMFAC(BPX.FILEATTR.APF) ACC(READ)
This allows users to turn on the APF-authorized attribute for an HFS file. Please refer to z/OS UNIX System Services Support in the eTrust CA-Top Secret Security Cookbook for more information.
To use eTrust CA-Top Secret, perform the following steps:
This is an example of a facility entry defining the server to eTrust CA-Top Secret:
FACILITY DISPLAY PGM=*PATHNAM ID=9 TYPE=26 ATTRIBUTES=IN-USE,ACTIVE,SHRPRF,ASUBM,TENV,NOABEND,MULTIUSER,NOXDEF ATTRIBUTES=LUMSG,STMSG,SIGN(M),NOPSEUDO,INSTDATA,NORNDPW,AUTHINIT ATTRIBUTES=NOPROMPT,MENU,NOAUDIT,RES,NOMRO,WARNPW,NOTSOC ATTRIBUTES=NOTRACE,NOLAB,NODORMPW,NONPWR,NOIMSXTND MODE=IMPL LOGGING=ACCESS,INIT,SMF,MSG,SEC9 UIDACID=8 LOCKTIME=000 DEFACID=*NONE* KEY=8
For more information, see How to Define z/OS UNIX System Services Users in Computer Associates' eTrust CA-Top Secret Security for OS/390 and z/OS Cookbook.
The ISERVER and IADMIN ACIDs must have authority to the facility you have defined for the server and to the resources within the facility:
TSS ADD(region_acid) MASTFAC(facility) <- defines the facility to CA-Top Secret
TSS ADD(user_acid) FAC(facility) <- adds it to users requiring server access
Each user requires an OMVS segment and HFS directories.
XA HFSSEC = /U.IADMIN ACCESS = ALL
SUPERUSER.FILESYS.FILE (CONTROL access) SUPERUSER.FILESYS.CHOWN SUPERUSER.FILESYS.MOUNT SUPERUSER.FILESYS.PFSCTL SUPERUSER.FILESYS.VREGISTER SUPERUSER.IPC.RMID SUPERUSER.PROCESS.GETPSENT SUPERUSER.PROCESS.KILL SUPERUSER.PROCESS.PTRACE SUPERUSER.SETPRIORITY
Ensure that the server system ID, ISERVER, which has UID=0, is granted full access to all these resources. Grant access to the superuser-listed resources by means of the UNIXPRIV resource class. For example:
TSS ADD(owning_acid) UNIXPRIV(SUPERUSE) TSS PER(acid) UNIXPRIV(SUPERUSER.FILESYS.FILE) ACC(CONTROL)
For details see the Superuser Granularity topic in Computer Associates'eTrust CA-Top Secret Security for OS/390 and z/OS Cookbook.
TSS MOD(OMVSTABS)
The following commands can also be used to list all UIDs, GIDs and their owners:
TSS WHOOWNS UID(*) TSS WHOOWNS GID(*)
This information can be used for diagnostic purposes.
For more information, see Computer Associates eTrust CA-Top Secret Security for OS/390 and z/OS Cookbook.
The following is an example of a facility entry that defines the server to eTrust CA-Top Secret:
FACILITY DISPLAY PGM=*PATHNAM ID=9 TYPE=26 ATTRIBUTES=IN-USE,ACTIVE,SHRPRF,ASUBM,TENV,NOABEND,MULTIUSER,NOXDEF ATTRIBUTES=LUMSG,STMSG,SIGN(M),NOPSEUDO,INSTDATA,NORNDPW,AUTHINIT ATTRIBUTES=NOPROMPT,MENU,NOAUDIT,RES,NOMRO,WARNPW,NOTSOC ATTRIBUTES=NOTRACE,NOLAB,NODORMPW,NONPWR,NOIMSXTND MODE=IMPL LOGGING=ACCESS,INIT,SMF,MSG,SEC9 UIDACID=8 LOCKTIME=000 DEFACID=*NONE* KEY=8
Following is an example of an ISERVER ACID definition for eTrust CA-Top Secret. Note that:
TSS LIST(ISERVER) DATA(ALL,PROFILE) ACCESSORID = ISERVER NAME = IWAY ID TYPE = USER SIZE = 512 BYTES SOURCE = INTRDR DEPT ACID = IWAY DEPARTMENT = IWAY DEPT DIV ACID = IWAYDIV DIVISION = IWAYDIV GROUPS = IWAYGRP DFLTGRP = IWAYGRP ----------- SEGMENT OMVS HOME = / OMVSPGM = /bin/sh UID = 0000000000
Following is an example of an IADMIN ACID definition for eTrust CA-Top Secret. Note that UID is not zero.
TSS LIST(IADMIN) DATA(ALL,PROFILE) ACCESSORID = IADMIN NAME = IWAY ADMIN ID TYPE = USER SIZE = 512 BYTES FACILITY = TSO FACILITY = BATCH DEPT ACID = IWAY DEPARTMENT = IWAY DEPT DIV ACID = IWAYDIV DIVISION = IWAY DIVISION GROUPS = IWAYGRP DFLTGRP = IWAYGRP ----------- SEGMENT OMVS HOME = /u/iadmin OMVSPGM = /bin/sh UID = 0000000008
To change the security mode from OPSYS to OFF:
high_level_qualifier.server_type.DATA(ICLRDIR)
where:
Is the high-level qualifier for HOME.DATA and for all other data sets that the installation procedure allocates. We recommend that the high-level qualifier reflect the release of the server (for example, IADMIN.SRV77). However, you can use any site-specific value.
Is one of the following:
FFS | for a Full-Function Server |
DM | for a DataMigrator Server |
WFS | for a WebFOCUS Reporting Server |
WFM | for a Shared Application Server for WebFOCUS Maintain |
This will clean any remaining files from when the server was running with security set to OPSYS.
EDAEXTSEC=OFF
To switch the security mode from OPSYS to PTH, DBMS, or LDAP:
The Security Mode pane opens.
For more information about configuring PTH, DBMS, and LDAP security modes, either:
A message is displayed about restarting the server.
For HFS: high_level_qualifier.server_type.DATA(EDAENV)
For PDS: high_level_qualifier.PDS.server_type.DATA(EDAENV)
For example:
EDAEXTSEC=PTH
In this section: |
This section provides information on operation and use of the server. Additional information on the server and how to configure adapters is available in the Web Console help. The Web Console help is also available as the Server Administration for UNIX, Windows, OpenVMS, IBM i, and z/OS manual.
To start the server, submit the ISTART member of the MVS configuration library (high_level_qualifier.server_type.DATA) for your server.
To stop a server, submit the ISTOP member of the MVS configuration library or use the Web Console. For information about using the Web Console, see the Server Administration for UNIX, Windows, OpenVMS, IBM i, and z/OS manual.
ISETUP creates started task JCL to start and stop the server. These started task members of the MVS configuration library are:
In order to execute the started tasks, you must:
To submit the started tasks from the MVS console, issue the following command:
S IWAYS S IWAYP
You can add the started tasks to any automation product that you run.
This is an example of iWAYS, the started task that starts the server:
//IWAYS PROC //TSCOM300 EXEC PGM=TSCOM300, // PARM='ENVAR("_EDC_UMASK_DFLT=0022")/' //STEPLIB DD DSN=IADMIN.SRV77.HOME.LOAD,DISP=SHR //EDAPRINT DD SYSOUT=A //SYSPRINT DD SYSOUT=A //SYSOUT DD SYSOUT=A //EDAPARM DD DUMMY //EDAENV DD DSN=IADMIN.SRV77.FFS.DATA(EDAENV),DISP=SHR
This is an example of iWAYP, the started task that stops the server:
//IWAYP PROC //TSCOM300 EXEC PGM=TSCOM300 //STEPLIB DD DSN=IADMIN.SRV77.HOME.LOAD,DISP=SHR //EDAPRINT DD SYSOUT=A //SYSPRINT DD SYSOUT=A //SYSOUT DD SYSOUT=A //EDAPARM DD DSN=IADMIN.SRV77.FFS.DATA(EDAPRMP),DISP=SHR //EDAENV DD DSN=IADMIN.SRV77.FFS.DATA(EDAENV),DISP=SHR
On MVS, you can issue operator MODIFY commands against the server job from either from the MVS Console or SDSF. You can use MODIFY commands to pass options to an already running job:
Use MVS Operator MODIFY commands in the following format:
F jobname, parameters
For instance:
F IWAY77,-SHOW
Note: If the server job is cancelled or it abends, submit the ICLEAR job in the configuration data set before restarting the server.
Customize the DB2 security exit to allow the Adapter for DB2 to run with user-level security enabled. If you do so, users will connect to DB2 with the authorization of the user ID with which they logged on to the server. The server must also be running with security turned on.
If you do not customize the DB2 security exit, all users will be assigned the connection ID to DB2 that is associated with the region, job submitter, or started task.
For DB2 CLI adapter, the connection to DB2 must be configured as trusted for the exit to be invoked.
The changes that must be made to the IBM DB2 signon exit, DSN3SATH, differ for RACF and eTrust CA-Top Secret sites and eTrust CA-ACF2 sites.
The highlighted text and comments shown in the examples indicate the lines containing the recommended modification of DSN3SATH, which calls the module FOCDSN3 the supplied exit.
After you finish the edits, assemble the exit into an object file. This object file is input to the link JCL found in Modifying the Link JCL for DSN3SATH.
Note:
1. Search for the SATH001 label - add two lines (FOCDSN3):
SATH001 DS 0H USING WORKAREA,R11 ESTABLISH DATA AREA ADDRESSABILITY ST R2,FREMFLAG SAVE FREEMAIN INDICATOR XC SAVEAREA(72),SAVEAREA CLEAR REGISTER SAVE AREA . . . *********SECTION 1: DETERMINE THE PRIMARY AUTHORIZATION ID ********** * * * IF THE INPUT AUTHID IS NULL OR BLANKS, CHANGE IT TO THE AUTHID * * IN EITHER THE JCT OR THE FIELD POINTED TO BY ASCBJBNS. * * THE CODE IN THIS SECTION IS AN ASSEMBLER LANGUAGE VERSION OF * * THE DEFAULT IDENTIFY AUTHORIZATION EXIT. IT IS EXECUTED ONLY * * IF THE FIELD ASXBUSER IS NULL UPON RETURN FROM THE RACROUTE * * SERVICE. FOR EXAMPLE, IT DETERMINES THE PRIMARY AUTH ID FOR * * ENVIRONMENTS WITH NO SECURITY SYSTEM INSTALLED AND ACTIVE. * * * *********************************************************************** SPACE LA R1,AIDLPRIM LOAD PARM REG1 <--ADD CALL FOCDSN3 GO GET THE IBI EXIT <--ADD CLI AIDLPRIM,BLANK IS THE INPUT PRIMARY AUTHID NULL BH SATH020 SKIP IF A PRIMARY AUTH ID EXISTS
2. Search for the SATH020 label - add a comment box, add one line, and comment out four lines:
SATH020 DS 0H BRANCH TO HERE IF PRIMARY EXISTS ****OPTIONAL CHANGE @CHAR7: FALLBACK TO SEVEN CHAR PRIMARY AUTHID*** * * * IF YOUR INSTALLATION REQUIRES ONLY SEVEN CHARACTER PRIMARY * * AUTHORIZATION IDS (POSSIBLY TRUNCATED) DUE TO DB2 PRIVILEGES * * GRANTED TO TRUNCATED AUTHORIZATION IDS, THEN YOU MUST BLANK OUT * * COLUMN 1 OF THE ASSEMBLER STATEMENT IMMEDIATELY FOLLOWING THIS * * BLOCK COMMENT. THEN ASSEMBLE THIS PROGRAM AND LINK-EDIT IT INTO * * THE APPROPRIATE DB2 LOAD LIBRARY AS EXPLAINED IN AN APPENDIX * * OF "THE DB2 ADMINISTRATION GUIDE". * * * * OTHERWISE, YOU NEED DO NOTHING. * * @KYD0271* ********************************************************************* * MVI AIDLPRIM+7,BLANK BLANK OUT EIGHTH CHARACTER SPACE . . . * RACF IS ACTIVE ON THIS MVS ****************************************************************** <--ADD * * <--ADD * The logic was modified because in DB2 V8 AIDLACEE is always not* <--ADD * NULL. We used to honor AIDLACEE first, FOCDSN4 second and then * <--ADD * AS ACEE. Now we honor FOCDSN4 first, AIDLACEE second and then * <--ADD * AS ACEE. * <--ADD * * <--ADD * 03/11/05 ASK0 * <--ADD ****************************************************************** <--ADD USING ACEE,R6 ESTABLISH BASE FOR ACEE @KYL0108 L R6,AIDLACEE Get => caller ACEE if any <--ADD * ICM R6,B'1111',AIDLACEE CALLER PASSED ACEE ADDRESS? @KYL0108<-COMMENT * BZ SATH024 NO, USE ADDRESS SPACE ACEE @KYL0108<-COMMENT * CLC ACEEACEE,EYEACEE IS IT REALLY AN ACEE? @KYL0108<-COMMENT * BE SATH027 YES, PROCEED NORMALLY @KYL0108<-COMMENT SPACE 1 SATH024 DS 0H USE ADDRESS SPACE ACEE @KYL0108 . . .
3. Search for the SATH025 label - replace sath025 and add sath026 (FOCDSN4):
SATH025 DS 0H CALL FOCDSN4 GO GET THE IBI EXIT (4=GROUP AUTH)<--ADD LTR R6,R6 DOES AN ACEE EXIST? IF NOT, <--ADD BZ SATH026 CHECK ACEE IN ADDRESS SPACE <--ADD CLC ACEEACEE,EYEACEE DOES IT LOOK LIKE AN ACEE? <--ADD BE SATH027 YES, GO DO GROUPS <--ADD SATH026 DS 0H <--ADD L R6,ASCBASXB GET ADDRESS SPACE EXTENSION BLOCK <--ADD L R6,ASXBSENV-ASXB(,R6) GET ACEE ADDRESS <--ADD CLC ACEEACEE,EYEACEE DOES IT LOOK LIKE AN ACEE? <--ADD BNE SATH049 NO, THEN CAN'T DO GROUPS <--ADD DROP R8 DROP ASCB BASE REG <--ADD SPACE 1 <--ADD
SATH027 DS 0H CHECK LIST OF GROUPS OPTION TM RCVTOPTX,RCVTLGRP IS LIST OF GROUPS CHECKING ACTIVE BZ SATH040 SKIP TO SINGLE GROUP COPY IF NOT DROP R7 DROP RCVT BASE REG SPACE 1 * RACF LIST OF GROUPS OPTION IS ACTIVE EJECT . . .
*DSN3SATH source is provided by ACF2.
1. Search for PRIMARY AUTHORIZATION ID - add two lines (FOCDSN3):
***************************************************************** * * * PRIMARY AUTHORIZATION ID * * * ***************************************************************** * * * IF THE PRIMARY AUTHORIZATION ID IS NULL OR BLANKS * * IF CA-ACF2 IS AVAILABLE * * SET PRIMARY ID FROM ACFASVT (ASVLID) * * ELSE * * IF TSO FOREGROUND USER * * SET PRIMARY ID FROM TSO LOGON ID (ASCBJBNS) * * ELSE * * SET PRIMARY ID FROM JOB USER (JCTUSER) * * * ***************************************************************** SPACE 2 04260000 LA R1,AIDLPRIM LOAD PARM REG1 <--ADD CALL FOCDSN3 GO GET THE IBI EXIT <--ADD CLI AIDLPRIM,C' ' PRIMARY AUTHID THERE ? 04270000 BH PRIMWTO ..YES, EVERYTHINGS OK HERE 04280000 L R3,PSAAOLD-PSA(0) CURRENT ASCB ADDRESS 04290000 USING ASCB,R3 ASCB ADDRESSABILITY 04300000 SPACE 2 04310000
This is sample link JCL for the IBM exit DSN3SATH. Modify the JCL to link the modules into the DB2 security exit as follows.
//LKED EXEC PGM=IEWL,PARM='LIST,XREF,LET,RENT,AMODE=31' //OBJECT DD DSN=db2pref.SDSNSAMP.OBJ,DISP=SHR <--OUTPUT OF ASSEMBLE STEP //EDAMOD DD DSN=high_level_qualifier.HOME.LOAD,DISP=SHR //SYSLMOD DD DSN=db2pref.DSNEXIT,DISP=SHR //SYSPRINT DD SYSOUT=* //SYSUT1 DD UNIT=SYSDA,SPACE=(100,(50,50)) //SYSLIN DD * INCLUDE EDAMOD(FOCDSN3) *********************************************************************** *** Omit the following line for eTrust CA-ACF2 *********************************************************************** INCLUDE EDAMOD(FOCDSN4) ENTRY DSN3@ATH NAME DSN3@ATH(R) /*
where:
Is the prefix for the DB2 data sets.
Is the high-level qualifier for the data sets.
Once this job finishes successfully, you must recycle the DB2 subsystem in order for the changes to take effect.
On z/OS, you can incorporate an additional routine called MSODDX into a user-written subroutine that needs to access ddnames allocated to a WebFOCUS Reporting Server, a Data Migrator Server, or a Full-function Server. MSODDX provides ddname translation services that enable external programs to access files under the ddname used by the Server.
For details, see Chapter 6, Platform-Specific Commands and Features, in the Stored Procedures Reference manual.
By default, the server will use the system set value for Time Zone. This can be overridden by setting the TZ in the EDAENV member of the servers configuration library.
TZ = valid tz string
For more information about time zone values, see the IBM UNIX System Services Command Reference and search for TZ.
In this section: |
Adding a configuration instance allows you to run different server configuration instances using the same server binaries. For example, if you installed using a Full-Function Server license code, you can use a WebFOCUS license to add a second configuration for a WebFOCUS Reporting Server. You can also add up to nine additional servers of the same type.
To add a configuration instance, perform the following steps.
Note: If this PDS is not available, run an IEBCOPY job to allocate and unload it from the installation tape.
The first Installation and Configuration panel opens.
The first Installation and Configuration panel for HFS opens.
Field |
Instructions |
---|---|
Enter selection |
Choose option 2, Add Additional Configuration Instance. |
Enter License Key |
Enter the license key that was provided with the software for the type of server instance that you want to configure (for example, the license key for a WebFOCUS Reporting Server or for a Full-Function Server). |
Input source |
This is ignored for option 2. |
Number of CPUs online |
Shows the current number of general use processors currently online. It cannot be changed. This value is going to be matched with the licensed number of CPUs provided in the License Key, when the installation job is submitted. At this point this verification is not being enforced and if the licensed number does not match the actual number of CPUs currently online, a warning will be issued and the installation job will continue. |
Installation Userid |
Shows the current logon ID. It cannot be changed. |
Administration Userid |
Initially, this field shows the same ID as the installation user ID. If the installation user ID is a superuser (UID=0), you must specify a non-superuser ID to administer the server. Specify this ID here. |
Enter Job Card information |
To provide JOB card information for submitting jobs to the JES queue, provide a valid job name (a maximum of seven characters following the // on the first JCL line), which defaults to the user ID that you are currently using. This job name is used for multiple submissions (for example, jobnameA, jobnameB, jobnameC, and so on) in the JCL generated by the installation procedure. |
Override JOB name checking |
To provide your own JOB card information, including JOB name, enter Y and provide valid JOB card information in the Enter Job Card information field. The JOB card information that you enter will be used for each job that is submitted. |
This panel appears only if you provided two different user IDs in the previous panel.
The installation process will change ownership of HFS server files from the installation ID (iinstal) to the administrator ID (iadmin). The installation ID must have authority to issue the chown command to make this change of ownership. This action is taken at the end of the installation process.
Field |
Instructions |
---|---|
Enter Job Card information |
To provide JOB card information for submitting the run-time jobs to the JES queue, provide a valid job name (a maximum of seven characters following the // on the first JCL line), which defaults to the user ID that you are currently using. This job name is used for multiple submissions (for example, jobnameA, jobnameB, jobnameC, and so on) in the JCL generated by the installation procedure. |
Override JOB name checking |
To provide your own JOB card information, including JOB name, enter Y and provide valid JOB card information in the Enter Job Card information field. The JOB card information that you enter will be used for each run-time job that is created. |

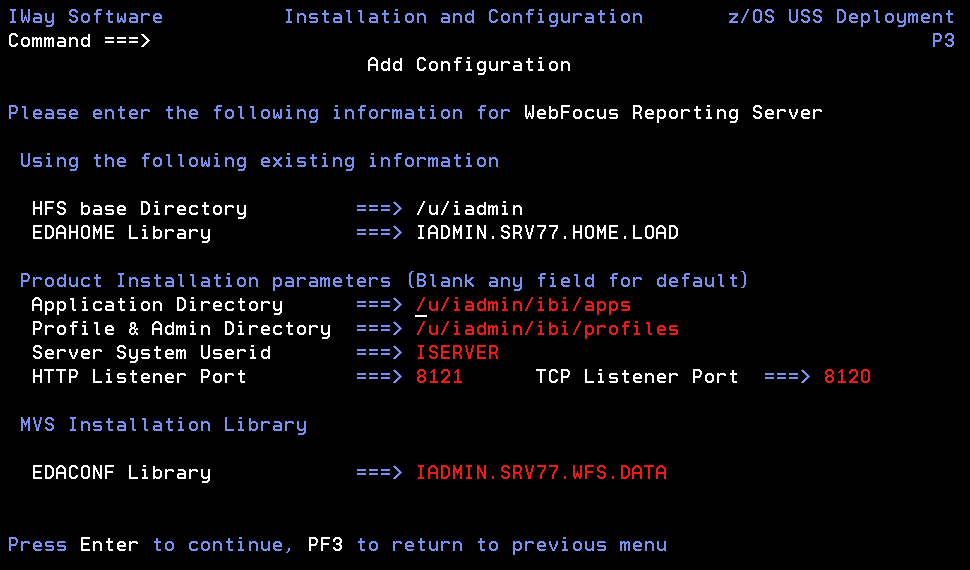

The Add Configuration panel opens.
This indicates where to install the configuration (EDACONF) and where the binaries (EDAHOME) are installed. The installation procedure checks whether this directory exists and if a server is already installed. If either test fails, you receive a message indicating the failure and available options.
If you are configuring the first instance of a given server type, the following panel opens.
Otherwise, if you are configuring an additional instance of a given server type, the following panel opens.
Configuration Parameters | |
---|---|
Application Directory |
This indicates where application components will reside for the configuration. The default value is based on the value specified for Base Directory on the previous panel. To specify another location for application components, change the value for this field. |
Profile & Admin Directory |
This indicates where user profiles and administration files will reside. The default value is based on the value specified for Base Directory. To specify another location for application components, change the value for this field. |
EDACONF suffix |
You are prompted for this information only if you are configuring an additional instance of a server type (for example, if you are configuring a second instance of a WebFOCUS Reporting Server). Each server instance must have its own set of configuration libraries. To guarantee this, and to prevent a new set of configuration libraries from overwriting an existing set, the suffix that you specify here will be appended to the name of the server type qualifier. For example, if you are configuring the second instance of a WebFOCUS Reporting Server, you could specify that the suffix "1" be added, so that the EDACONF high-level qualifier would be: IADMIN.SRV77.WFS1 You can add a new configuration as a numeric or string suffix to the base server type. If you supply a string, the installation procedure ignores any numeric suffix. For a:
You can also use the string suffix to extend the numeric numbering past 9. Just supply a number greater than 9. If you change the suffix value, when you press Enter, the panel refreshes with a new value for EDACONF Library. |
Server System Userid |
This shows the default value, ISERVER. To change this value, see the requirements in Step 2. Set Up User IDs. |
HTTP Listener Port |
This indicates the port number that the server will use for HTTP. It is the first of three connection ports that must be available to the server. For example, if you choose port 8101, then ports 8101, 8102, and 8103 are used by the server. Ensure that you choose ports that are not currently being used. |
TCP Base Port |
This is the port number of the TCP Listener. The default is one less than the port specified for the HTTP Listener, but it can be any port number other than the three reserved for HTTP. |
EDACONF Library |
This is the full data set name the installation procedure will use to allocate the EDACONF configuration library on MVS. If you are running from high_level_qualifier.HOME.DATA, this field will have the default value high_level_qualifier.server_type.DATA (where server_type is based on license key). If you are adding a configuration for a server type that has already been configured, the default value will reflect the EDACONF suffix value. If you used another name to unload the first data set, this field will be blank. On subsequent running of ISETUP, the previous value used will be displayed. Change the value as necessary. |
Unit/Volume |
You are prompted for this information only if you are configuring the first instance of a server type (for example, if you are configuring the first instance of a WebFOCUS Reporting Server). These show the values that the installation process will use to allocate the output libraries. If necessary, you can change these to site-specific values. |
Depending on your license key, the Data Adapter panel may open before the Demonstration Files panel. If the Data Adapter panel opens, continue with Step 12. Otherwise, skip to Step 13.
After you have finished installing and configuring the server, you can use the Web Console to finish configuring these adapters, and to configure adapters that do not have MVS JCL requirements.
The JSCOM3 Listener configuration panel opens.
The New Century Corporation Demonstration Files panel opens.
In SDSF, check JESLOG for errors and return codes.
Following is a table of the jobs created. All members are created in the configuration library (EDACONF).
Job |
Description |
---|---|
ISETUPJ2 |
Main JCL Job stream that is used to install the server. |
ISOPTS2 |
Options used to install the server. |
The following members all call procedure IRUNJCL, which is the main server JCL. If you need to change the server JCL, change member IRUNJCL.
Member |
Description |
---|---|
ISTART |
Starts the server. |
ISTOP |
Stops the server. |
ICLEAR |
Clears server resources after abnormal end. |
ICLRDIR |
Clears superuser-owned directories from a previously run secure server. |
ISAVEDIA |
Creates a directory called sdnnnnnn and populates it with full diagnostic information. |
ISHOW |
Shows current workspace status. |
ITRCON |
Turns on dynamic tracing (server will be started if not already running). |
ITRCOFF |
Turns off dynamic tracing (server will be started if not already running). |
The following members contain batch JCL for auxiliary functions, and are also created in the configuration library.
Member |
Description |
---|---|
CMRUN |
JCL to run DataMigrator batch jobs. |
DB2V8PRM |
DB2 version 8 DBRM referenced in GENDB2 JCL. |
DB2V9PRM |
DB2 version 9 DBRM referenced in GENDB2 JCL. |
DB2V10PR |
DB2 version 10 DBRM referenced in GENDB2 JCL. |
GENDB2 |
JCL to bind the DB2/CAF plan. |
IIMSBMP |
Example JCL to run the IMS/XMI server job in BMP mode. |
IIMSDLI |
Example JCL to run the IMS/XMI server job in DLI mode. |
The following members contain sample started task JCL, and are also created in the configuration library.
Member |
Description |
---|---|
IWAYS |
A started task that starts the server. |
IWAYP |
A started task that stops the server. |
EDAPRMP |
A parameter file used by IWAYP. |
EDAENV |
A parameter file used by IWAYS, IWAYP, ISTART, and ISTOP. |
The following table shows the HFS directory structures created during the installation process.
Directory Structure |
Description |
---|---|
/u/iadmin/ibi/srv77/tape |
Contains HFS files from the input media. |
/u/iadmin/ibi/srv77/install |
Working directory for the installation process. Log and error files reside here. |
/u/iadmin/ibi/apps |
The installation creates baseapp and one or more sample application directories under this directory. |
/u/iadmin/ibi/profiles |
This is where user profiles are created, as well as admin.cfg. |
/u/iadmin/ibi/srv77/home |
Server system directories are created under this directory. |
/u/iadmin/ibi/srv77/server_type |
Configuration directories are created under this directory. The license key specified in the ISETUP procedure determines server_type. server_type is one or more of the following: FFS for a Full-Function Server DM for a DataMigrator Server WFS for a WebFOCUS Reporting Server WFM for a Shared Application Server for WebFOCUS Maintain |
In this section: |
Use this option to upgrade a server to a new maintenance level within the same major release. A major release is indicated by the first two digits of the release number.
You can choose to access the server installation software using either
You must unload the installation data set from the tape before you can run the installation. This is how most installations are performed.
Downloading the installation software involves:
The software is provided on a cartridge in 3490 or 3590 format with MVS PDSs. Perform the following to unload the installation data set from the tape:
It is recommended that you use HOME.DATA as the low-level qualifier for the target data set. Although you can specify any low-level qualifier, HOME.DATA enables the installation procedure to generate default data set names, simplifying your installation.
Note: If you do not use HOME.DATA, then change the following line to reflect the value you used.
// SET EDAUSSD='HOME.DATA'
Do this before you run ISETUP.
The following sample JCL is for the initial unload to a new data set:
//IEBCOPY EXEC PGM=IEBCOPY,REGION=0M //SYSPRINT DD SYSOUT=* //SYSUT1 DD UNIT=workunit,SPACE=(CYL,(5,1)) //OUT1 DD DISP=(NEW,CATLG,DELETE), // DSN=qualifier.HOME.DATA, // DCB=(RECFM=FB,LRECL=80,BLKSIZE=3200), // SPACE=(CYL,(5,5,25)), // UNIT=SYSDA //IN1 DD DISP=(OLD,PASS), // DSN=HOME.DATA, // UNIT=cart, // VOL=(,RETAIN,,SER=volser), // LABEL=(1,SL) //SYSPRINT DD SYSOUT=* //SYSIN DD * COPY INDD=IN1,OUTDD=OUT1
where:
Is the unit for the work data set.
Is the high-level qualifier for HOME.DATA and for all other data sets that the installation procedure allocates. We recommend that the high-level qualifier reflect the release of the server. However, you can use any site-specific value.
For PDS, we recommend retaining the low-level qualifier HOME.DATA, but you can change this to any site-specific value. If you use a low-level qualifier other than HOME.DATA, you must then edit member PDSSNAME to change the string “HOME.DATA” to the low-level qualifier you specify here.
Is the unit type of the tape drive. Common names include 3490, TAPE, and 3590. Change as needed.
Is the value shown on the media label.
After this job has run, qualifier.HOME.DATA is allocated, cataloged, and populated with the members needed to continue the product installation.
Proceed to Step 2. Run ISETUP.
To download the installation software:
The Information Builders Technical Support home page opens.
The Downloads, Upgrades, Service Packs, and PTFs page opens.
The Downloads by Release page for your product opens.
The Software Downloads page for your release opens.
The Software Download Agreement page opens.
The Download Instructions page opens. Select AUTOMATIC or MANUAL and follow the relevant instructions.
A copy of the instructions is automatically emailed to you for later reference.
// SET EDAUSSD='HOME.DATA'
Specify (F)tp for Input Source on the second panel.
Note that after the server is properly installed, you can optionally delete any downloaded temporary files.
Continue with Step 2. Run ISETUP.
We recommend retaining the default low-level qualifiers that are supplied for the installation libraries. However, if you need to change any of them (for example, to conform to site-specific naming conventions), you can do so by editing them in member USSSNAME of high_level_qualifier.HOME.DATA. You can see a list of the qualifiers in Default Low-Level Qualifiers.
Caution: If you change any low-level qualifiers and do not reflect those changes exactly in USSSNAME, you will experience problems with the server installation and operation.
Once you have finished changing any names, continue with Step 2. Run ISETUP.
The following low-level qualifiers are set in high_level_qualifier.HOME.DATA(PDSSNAME):
// SET EDAUSSD='HOME.DATA' Server installation library // SET EDAUSSL='HOME.LOAD' Server base load library // SET FFSUSSD='FFS.DATA' Full Function server // SET WFSUSSD='WFS.DATA' WebFocus Reporting server // SET ETLUSSD='DM.DATA' DataMigrator // SET WFMUSSD='WFM.DATA' WebFocus Maintain Server // SET CGWUSSD='CGW.DATA' Communications Gateway // SET CLNUSSD='CLN.DATA' Client // SET EDACICS='HOME.CICS.LOAD' CICS load library
Caution: Ensure that all server processes are stopped before upgrading.
Server upgrade consists of a series of ISPF panels, which gather information for the upgrade. After the panel dialog is complete, JCL is created and submitted (if required) to upgrade the server on z/OS. This JCL job retrieves the remainder of the MVS libraries and HFS files from the media.
The Installation and Configuration panel opens.
Field |
Instructions |
---|---|
Enter selection |
Choose option 3, Refresh Installation. |
Enter License Key |
Enter the 10-digit license key that was provided with the software. |
Input source |
Choose the Input source, T for tape, D for disk (see note), or F for automatic FTP download direct to MVS. Note: If you downloaded the server software using FTP to another platform and then manually transferred the files to MVS, choose D and, on the next panel, provide the directory name where the transferred files reside. |
Number of CPUs online |
Shows the current number of general use processors currently online. It cannot be changed. This value is going to be matched with the licensed number of CPUs provided in the License Key, when the installation job is submitted. At this point this verification is not being enforced and if the licensed number does not match the actual number of CPUs currently online, a warning will be issued and the installation job will continue. |
Installation Userid |
Shows the current logon ID. It cannot be changed. |
Administration Userid |
Initially, this field shows the same ID as the installation user ID. If the installation user ID is a superuser (UID=0), you must specify a non-superuser ID to administer the server. Specify this ID here. |
Umask setting to use |
Shows the current umask setting for the iadmin ID. The JCL passes this setting to the server for use at run time. Every time the server creates a file in the .../ibi/profiles or .../ibi/apps directory structures (usually in response to Web Console activity), the server assigns to the file the default permissions 666 filtered by the umask value. You specify whichever umask value is necessary to mask out the permissions you do not want to grant. For example, if you specify a umask value of 0022, the server create files with the permissions 644: umask 0022 is subtracted from the default 666, disallowing the group and world write permissions. |
Enter Job Card information |
To provide JOB card information for submitting jobs to the JES queue, provide a valid job name (a maximum of seven characters following the // on the first JCL line), which defaults to the user ID that you are currently using. This job name is used for multiple submissions (for example, jobnameA, jobnameB, jobnameC, and so on) in the JCL generated by the installation procedure. |
Override JOB name checking |
To provide your own JOB card information, including JOB name, enter Y and provide valid JOB card information in the Enter Job Card information field. The JOB card information that you enter will be used for each job that is submitted. |
If you used the same user ID for both installation and administration, skip to Step 7. Otherwise, continue with the following step.
This panel appears only if you provided two different user IDs in the previous panel.
The installation process will change ownership of HFS server files from the installation ID (iinstal) to the administrator ID (iadmin). The installation ID must have authority to issue the chown command to make this change of ownership. This action is taken at the end of the installation process.
Field |
Instructions |
---|---|
Enter Job Card information |
To provide JOB card information for submitting the run-time jobs to the JES queue, provide a valid job name (a maximum of seven characters following the // on the first JCL line), which defaults to the user ID that you are currently using. This job name is used for multiple submissions (for example, jobnameA, jobnameB, jobnameC, and so on) in the JCL generated by the installation procedure. |
Override JOB name checking |
To provide your own JOB card information, including JOB name, enter Y and provide valid JOB card information in the Enter Job Card information field. The JOB card information that you enter will be used for each run-time job that is created. |
If you selected F for automatic FTP only, complete the panel as follows.
Field |
Instructions |
---|---|
FTP Download Directory |
Directory to be used as the target for the FTP files. This directory must already exist. |
FTP Userid |
User ID provided on the download instructions. |
FTP Password |
Password provided on the download instructions. |
Field |
Instructions |
---|---|
HFS Base Directory |
Base directory of the current server that is to be refreshed. The value will be checked to see if it contains a valid server directory structure. (It should contain .../ibi/srvxx/home/bin where xx is the major release level.) From this value, the current installation library name is obtained and this will be the location used to create the refresh JCL. |
Field |
Instructions |
---|---|
Input Media (installing from tape) | |
Volume serial number |
Provide the volume serial number of the server media. The number is located on the tape supplied in you server package. |
Volume unit type |
Review the default value and change it, if necessary. |
Work unit type |
Review the default value and change, if necessary. You can specify a UNIT= type value (for example, SYSDA), or you can direct work files to a specific volume serial number by specifying, in single quotation marks ('), 'SYSDA,VOL=SER=volume'. |
Input Media (installing from disk) | |
Directory name of input |
Provide the name of the directory in which the installation files reside. |
MVS Installation Libraries | |
EDAHOME Library |
This is the full data set name the installation procedure will use to allocate the EDAHOME load library on MVS and where the refresh load modules will be stored. If you are running from high_level_qualifier.HOME.DATA, this field will have the default value high_level_qualifier.HOME.LOAD. If you used another name to unload the first data set, this field will be blank. On subsequent running of ISETUP, the previous value used will be displayed. Change the value as necessary. |
EDAHOME Library Unit/Volume |
These show the values that the installation process will use to allocate the EDAHOME load library on MVS. If necessary, you can change these to site specific values. |
Refresh IBISAMP? |
Select Y/N to refresh the contents of the IBISAMP application . |
Application Directory |
If Y was selected above, enter the path to IBISAMP to be refreshed. |
Note: The EDACONF Library name is where the refresh JCL will be created. This library is the current server installation library. The value cannot be changed.
The following jobs are added to the current server's configuration library:
Job |
Description |
---|---|
ISETUPJ3 ISOPTS3 |
Main JCL Job stream that is used to install the server. |
The following directories are added to the HFS directory structure of the existing server:
Directory |
Description |
---|---|
/u/iadmin/ibi/srv77/tape |
Contains HFS files from the input media. |
/u/iadmin/ibi/srv77/install |
Working directory for the installation process. Log and error files reside here. |
To test the server installation:
(EDA13023) ALL INITIAL SERVERS STARTED
http://host:port
where:
Is the name of the machine on which the server is installed.
Is one port higher than the port specified when installing the server. For example, if you specified port 8100 during installation, then use port 8101 to access the Web Console.
The Web Console opens.
When you are finished using the server, you can use the Web Console to stop the server by going to the Web Console menu bar, selecting Workspace, and then Stop.
If you experience problems at start up, examine the job output for more information.
For information about configuring server security, see Step 7. Configure Server Security.
To reconfigure server security to OPSYS mode only:
OSHELL extattr +a /u/iadmin/ibi/srv77/home/bin/tscom300.out OSHELL extattr +a /u/iadmin/ibi/srv77/home/bin/tsqprx.out
OSHELL ls -E /u/iadmin/ibi/srv77/home/bin/tscom300.out OSHELL ls -E /u/iadmin/ibi/srv77/home/bin/tsqprx.out
The extended attributes portion of the output should be a-s-
This step will need to be repeated after any sever upgrade since these files are replaced during upgrade.
If the explicit environment variable EDAEXTSEC is set to OPSYS (or ON) and the server cannot impersonate users because it lacks platform-specific authorization steps, the server start aborts and error messages are written to the edaprint log.
This feature prevents an unsecured server start after a software upgrade if any of the required post-upgrade, reauthorization steps are missed on a UNIX, IBM i, or z/OS HFS deployment. This is not applicable to other platforms. The setting may be placed in any normal server start-up shell or profile that a site is using or in the server edaenv.cfg configuration file. The messages vary slightly by platform.
The edaprint messages are:
Configured security is 'ON' as set by EDAEXTSEC variable.
Server is not APF-authorized.
Workspace initialization aborted.
(EDA13171) UNABLE TO START SERVER
While most adapters do not require additional steps after updating binary files, the following table notes the adapters that do require some consideration.
Adapter |
Steps After Updating Binaries |
---|---|
Adabas |
|
DB2 CAF |
|
In this section: |
|
Applications running on a traditional MVS server will not require any changes when migrated. The server supports read and write access to all PDSs, such as Master, Access, FOCEXEC, and data and it can read and write sequential files and FOCUS files, both locally and using the FOCUS Database Server (FDS). The DYNAM command is fully supported in server Release 5.2.8 and higher, except for:
To migrate application components (Master Files, Access Files, and FOCEXECs):
For new applications, your files (Master, Access, and FOCEXEC) are placed in a pre-specified directory on HFS. All temporary files (such as FOCSORT) are written to the EDATEMP directory on HFS by default.
//************************************************************ //** Sample Server JCL ** //************************************************************ //* //* Supply a proper job card. //* //EDASERVE EXEC PGM=SSCTL //STEPLIB DD DISP=SHR,DSN=qualifier.EDALIB.LOAD //* //* //* //* //EDASERVE DD DISP=SHR,DSN=qualifier.INSTALL.DATA(FFSSERV) //ERRORS DD DISP=SHR,DSN=qualifier.EDAMSG.DATA //IBIFEX DD DISP=SHR,DSN=qualifier.EDARPC.DATA //IBIMFD DD DISP=SHR,DSN=qualifier.EDAMFD.DATA //FOCEXEC DD DISP=SHR,DSN=USERID.FOCEXEC.DATA //SYSMDUMP DD DISP=SHR,DSN=qualifier.DUMP.DATA //MASTER DD DISP=SHR,DSN=USERID.MASTER.DATA //* //ACCESS DD DISP=SHR,DSN=USERID.ACCESS.DATA // DD DISP=SHR,DSN=qualifier.EDAAFD.DATA //EDAPRINT DD SYSOUT=* //IBISNAP DD SYSOUT=Q //EDACSG DD DISP=SHR,DSN=qualifier.INSTALL.DATA(FFSCSG) //************************************************************* //** Optional Console Configuration File. ** //************************************************************* //* //*EDACONS DD DISP=SHR,DSN=qualifier.INSTALL.DATA(FFSCONS) //* //************************************************************* //** Optional ECC Restart File. ** //************************************************************* //* //*EDASTART DD DISP=SHR,DSN=qualifier.INSTALL.DATA(FFSJCL) //*
//* ...... //IRUNJCL PROC //TSCOM300 EXEC PGM=TSCOM300, // PARM='ENVAR("_EDC_UMASK_DFLT=0022")/' //STEPLIB DD DISP=SHR,DSN=qualifier.HOME.LOAD //* //* //FOCEXEC DD DISP=SHR,DSN=USERID.FOCEXEC.DATA //MASTER DD DISP=SHR,DSN=USERID.MASTER.DATA //ACCESS DD DISP=SHR,DSN=USERID.ACCESS.DATA //EDAPRINT DD SYSOUT=* //SYSPRINT DD SYSOUT=* //SYSOUT DD SYSOUT=* //EDAPARM DD DUMMY //EDAENV DD DSN=qualifier.FFS.DATA(EDAENV), // DISP=SHR //* ...... //IRUNJCL PEND
Allocations for all file types supported using DYNAM or JCL.
Existing Master Files and Access Files can be read from existing JCL or DYNAM allocations.
New applications can reside on UNIX System Services, or on native MVS allocations.
R/W Access to files using DYNAM works are unchanged.
All DYNAM options are supported with the exception of HIPER/NOHIPER.
These keywords will be ignored.
The server for z/OS UNIX System Services comes with its own FOCUS Database Server (sometimes called a Sink Machine). You can use either this current version of the FOCUS Database Server, or continue to manage your FOCUS databases using the legacy version. The legacy version of the FOCUS Database Server runs as a separate batch job from the server for z/OS UNIX System Services.
You cannot manage the same file using both the legacy and current versions of the FOCUS Database Server, as it will cause enqueue conflicts.
Comparing the servers from which, and to which, you are migrating:
A DDNAME was allocated in the server JCL to point to the communications data set to be used to identify the FOCUS Database Server job on which the FOCUS files reside.
A USE statement was then issued to connect the FOCUS Master File to the DDNAME allocated to the communications file.
For example:
//FOCSU01 DD DSN=X.Y.Z,DISP=SHR
The USE statement in a FOCEXEC:
USE CAR ON FOCSU01 END
The USE command is employed the same way for both the current and legacy versions of the FOCUS Database Server, except that, in the current version, the name of the FOCUS Database Server in the USE command is the name of a node in the server for z/OS UNIX System Services communication configuration file (odin.cfg).
The node name FOCSU01, which is automatically defined in odin.cfg during server installation, is reserved for the current version of the FOCUS Database Server.
If you want a FOCUS database to be managed by the current version of the FOCUS Database Server, you can allocate its data file in several ways:
//CAR DD DISP=SHR,DSN=dsname
DYNAM ALLOC FI CAR DA dsname SHR REU
Add a DYNAM ALLOC statement to the user profile of each user that wants to access the database in question. Alternatively, you can add the same statement to a procedure (that is, a focexec) which you execute before anyone accesses the database.
Use the PERM keyword; this makes the statement equivalent to an allocation performed from IRUNJCL, and it makes a global server allocation available to the FOCUS Database Server. For example:
DYNAM ALLOC FI CAR DA dsname SHR REU
You can issue the following USE command in association with any of these allocation methods:
USE CAR ON FOCSU01 END
The following USE command declares that the CAR database will be managed by the legacy version of the FOCUS Database Server, here named FOCSBS, which runs as a batch job separate from the current version of the FOCUS Database Server:
USE
CAR ON FOCSBS
END
The FOCUS Database Server name that you specify in the USE command must be identical to the name defined in the FOCUS Database Server node block in the server for z/OS UNIX System Services communication configuration file (odin.cfg):
NODE=FOCSBS <---node name of legacy FOCUS Database Server
BEGIN
PROTOCOL=SBS
SUBSYS = xyzw <---optional parameter to specify the IBI subsystem name
CLASS=SUCLIENT (not needed if you are using the name IBIS)
PORT=X.Y.Z <---communications data set
END
In configuration file, EDASERVE.CFG.
high_level_qualifier.install.data(EDASERVE)
EXTSEC = OFF|OPSYS SMFNUM = 254 FASTLOAD = **AUTO** LONGSYNM = ON (default in 5.3+. Replaced by DYNAM SET LONGSYNM on z/OS) LICENSE = 999-999-9999-99 STORAGEABOVE = 4096 STORAGEBELOW = 512 SZERO=YES APFAUTH=INTERNAL
/ibi/srv77/ffs/bin/edaserve.cfg
edahome = /u/iadmin license = 999-999-9999-99 approot = /ibi/edauss/TEST/apps server_name = "IWAY 77 Full Function Server" cfg_date = 07/24/2002 19:14:46 smf_recno=255
Currently not applicable:
STORAGEABOVE = 4096 STORAGEBELOW = 512 FASTLOAD=**AUTO**
The server supports synonym names up to 64 characters. However, PDS member names cannot exceed eight characters. The server accounts for this operating environment limitation with the command DYNAM SET LONGSYNM.
A synonym comprises a Master File and, usually, an Access File. When you create a synonym with a name exceeding eight characters, the LONGSYNM setting currently in effect determines how the long name of the Master File and of the Access File will be handled.
You can issue DYNAM SET LONGSYNM anywhere SET commands are valid, including the global server profile (edasprof.prf) and a stored procedure (FOCEXEC).
DYNAM SET LONGSYNM, on servers running on z/OS, corresponds functionally to the server configuration file keyword LONGSYNM on servers running on MVS.
The syntax is
DYNAM SET LONGSYNM {HFS|MVS|MATCH}
where:
Specifies that each synonym whose name is longer than eight characters will be created in an HFS directory. This is the default.
Specifies that when you save a synonym with a name exceeding eight characters, the server truncates the name, preserving up to the first six characters, followed by a left curly brace ({) and a suffix number that ensures the uniqueness of the name. (The server preserves the original long name within the synonym files.)
For example, if you create a Master File named VERYLONGNAMETEST, it will be saved as VERYLO{0. If you then create a Master File named VERYLONGNAMEPROD, it will be saved as VERYLO{1.
The server chooses a suffix number by taking the next unused number in the sequence for that truncation of a Master File or Access File name. If the next number available for the Master File is different than that available for the Access File, the files will be created with different numbers. For example, if the highest Master File name truncated to VERYLO is VERYLO{8, and the highest Access File name truncated to VERYLO is VERYLO{5, and you create a synonym specifying the name VERYLONGNAMEAGAIN, the new Master File will be saved as VERYLO{9, and the new Access File will be saved as VERYLO{6.
Works the same as the MVS setting, except that it ensures that the truncated names of a Master File and Access File of a synonym will always match. That is, they will be named using the same suffix number.
In the example provided for the MVS setting, if SET LONGSYNM had instead been set to MATCH, both the new Master File and the new Access File would have been named VERYLO{9.
Matching names may be a convenience for some people if they manually manage synonym files. However, it is less efficient than the MVS setting.
high_level_qualifier.install.data(EDASERVE)
SERVICE = EDAUSER PROGRAM = TSCOM3 NUMBER_READY = 0 DEPLOYMENT = PRIVATERE FRESH_LIMIT = 100 MAXIMUM = 3| IDLELIM = -1 CPU_LIMIT = 15 MEMORY_LIMIT_ABOVE = nnn MEMORY_LIMIT_BELOW = nnn WLM_ENCLAVE_TRNAME = wlm_enclave_trnam LE_STACK = BELOW PRTYGROUP = 10 SERVINIT = *,++ DYNAM ALLOC FILE EDASPROF - DA EDADMA.P513.EDAPROF.DATA(FEDADMA) SHR REU DYNAM ALLOC FILE EDAPROF - DA EDADMA.P513.EDAPROF.DATA SHR REU| DYNAM ALLOC FILE IBITRACE - DA EDADMA.P513.INSTALL.DATA(IBITRACE) SHR REU
*Multiple Service Blocks are supported.
/ibi/srv77/ffs/bin/edaserve.cfg
SERVICE = DEFAULT BEGIN maximum = 10 number_ready = 2 deployment = private queueing = off idle_session_limit = -1 idle_agent_limit = 120 profile = profile.fex cpu_limit = -1 memory_limit = -1 wlm_enclave_trname = wlm_transaction_name max_connection_per_user = -1 agent_refresh = 100 owner_control_request = no END
*Multiple Services are supported.
Note that wlm_enclave_trname performs the same function as PRTYGRP.
LE_STACK is not supported under z/OS. If you are running subroutines linked with AMODE(24), they must be relinked with AMODE(31).
To map existing application PDSs to a server running on z/OS, you can run a procedure from a profile or a FOCEXEC.
The following procedure maps a single application to a server running on z/OS.
Note that the APP MAP command must be coded as a single line.
-SET &MVSROOT=SSCTLAPP.ROOT; |
(SSCTL APPROOT= value on EDASERVE DD) |
-SET &APP=XYZ; |
(application name on SSCTL) |
APP MAP &APP mas=//dd:&APP.MAS;fex=//dd:&APP.FEX;acx=//dd:&APP.ACX; htm=//dd:&APP.HTM;sty=//dd:&APP.STY;gif=//dd:&APP.GIF;etg=//dd:&APP.ETG; mnt=//dd:&APP.MNT;fcm=//dd:&APP.FCM;wfm=//dd:&APP.WFM
DYNAM ALLOC FI &APP.MAS DA &MVSROOT...&APP...MASTER.DATA SHR REU DYNAM ALLOC FI &APP.ACX DA &MVSROOT...&APP...ACCESS.DATA SHR REU DYNAM ALLOC FI &APP.FEX DA &MVSROOT...&APP...FOCEXEC.DATA SHR REU DYNAM ALLOC FI &APP.HTM DA &MVSROOT...&APP...HTML.DATA SHR REU DYNAM ALLOC FI &APP.STY DA &MVSROOT...&APP...FOCSTYLE.DATA SHR REU DYNAM ALLOC FI &APP.GIF DA &MVSROOT...&APP...GIF.DATA SHR REU DYNAM ALLOC FI &APP.ETG DA &MVSROOT...&APP...ETG.DATA SHR REU DYNAM ALLOC FI &APP.FCM DA &MVSROOT...&APP...FOCCOMP.DATA SHR REU DYNAM ALLOC FI &APP.MNT DA &MVSROOT...&APP...MAINTAIN.DATA SHR REU DYNAM ALLOC FI &APP.WFM DA &MVSROOT...&APP...WINFORMS.DATA SHR REU
APP APPENDPATH &APP | (alternatively, APP PREPENDPATH &APP) |
The following procedure maps multiple applications to a server running on z/OS.
Note that the APP MAP command must be coded as a single line.
-SET &MVSROOT=SSCTLAPP.ROOT; |
(SSCTL APPROOT= value on EDASERVE DD) |
-REPEAT MAPPING FOR &CNT FROM 1 TO n |
(where n is the number of applications) |
-SET &APP = DECODE &CNT (1 'appname1' 2 'appname2' 3 'appname3'); | |
(where appname is the name of an application on the MVS server) |
APP MAP &APP mas=//dd:&APP.MAS;fex=//dd:&APP.FEX;acx=//dd:&APP.ACX; htm=//dd:&APP.HTM;sty=//dd:&APP.STY;gif=//dd:&APP.GIF;etg=//dd:&APP.ETG; mnt=//dd:&APP.MNT;fcm=//dd:&APP.FCM;wfm=//dd:&APP.WFM DYNAM ALLOC FI &APP.MAS DA &MVSROOT...&APP...MASTER.DATA SHR REU DYNAM ALLOC FI &APP.ACX DA &MVSROOT...&APP...ACCESS.DATA SHR REU DYNAM ALLOC FI &APP.FEX DA &MVSROOT...&APP...FOCEXEC.DATA SHR REU DYNAM ALLOC FI &APP.HTM DA &MVSROOT...&APP...HTML.DATA SHR REU DYNAM ALLOC FI &APP.STY DA &MVSROOT...&APP...FOCSTYLE.DATA SHR REU DYNAM ALLOC FI &APP.GIF DA &MVSROOT...&APP...GIF.DATA SHR REU DYNAM ALLOC FI &APP.ETG DA &MVSROOT...&APP...ETG.DATA SHR REU DYNAM ALLOC FI &APP.FCM DA &MVSROOT...&APP...FOCCOMP.DATA SHR REU DYNAM ALLOC FI &APP.MNT DA &MVSROOT...&APP...MAINTAIN.DATA SHR REU DYNAM ALLOC FI &APP.WFM DA &MVSROOT...&APP...WINFORMS.DATA SHR REU
APP APPENDPATH &APP -MAPPING | (alternatively, APP PREPENDPATH &APP) |
Allocate IBITRACE in the EDASERVE member. Read the TRACE output from SDSF or send to a file.
DYNAM ALLOC FILE IBITRACE - DA EDADMA.P513.INSTALL.DATA(IBITRACE) SHR REU
IBITRACE allocation is not needed. There are two ways to enable tracing:
For additional diagnostics, see Troubleshooting for HFS.
high_level_qualifier.EDAPROF.DATA(Fuserid)
Metadata Allocations:
DYNAM ALLOC FILE EDASYNA SHR REU - DATASET EDADMA.V7R1M07.EDADMA.EDASYNA.DATA DYNAM ALLOC FILE EDASYNM SHR REU - DATASET EDADMA.V7R1M07.EDADMA.EDASYNM.DATA DYNAM ALLOC FILE EDASYNR SHR REU - DATASET EDADMA.V7R1M07.EDADMA.EDASYNR.DATA
SQL EDA SET USER server/userid,password SQL EDA SET SERVER server SQL [EDA] SET AUTOCLOSE ON FIN|COMMIT SQL EDA SET JOINTYPE ={NestedLoop|SortMerge}
HIPER Settings:
SET HIPERINSTALL={ON|OFF} SET HIPEREDA={ON|OFF} SET HIPEREXTENTS=nnn SET HIPERFILE=nnn SET HIPERLOCKED={ON|OFF} SET HIPERSPACE=nnn
SET BLIM=buffersize SET SLIM=n SET CACHE={0|n} SET EXTSORT={OPSYS|OFF} SET CDN={ON|OFF} SET LANGUAGE=language SET SMARTMODE={ON|OFF} SET SQLENGINE=sqlengine
/ibi/srv77/ffs/etc/.prf
APP ENABLE APP PATH IBISAMP
Note: The settings below are generated in the server profile, edasprof, as defaults to access MVS existing applications and metadata.
APP MAP MVSAPP mas=//dd:master;fex=//dd:focexec;acx=//dd:access;htm=//dd:html APP APPENDPATH MVSAPP
SQL EDA SET USER server/userid,password
SQL EDA SET SERVER server
SQL [EDA] SET AUTOCLOSE ON FIN|COMMIT
SQL EDA SET JOINTYPE ={NestedLoop|SortMerge}
DYNAM and HIPER Settings:
DYNAM SET TEMP MVS | (temporary files will be allocated on MVS) |
DYNAM SET TEMP HFS | (default-temporary files will be allocated on HFS) |
DYNAM SET TEMP HIPER | (temporary files will go to HIPERSPACE memory) |
DYNAM SET TEMP MEMORY | (temporary files will use main storage for I/O) |
DYNAM SET LONSYNM HFS | (default; long synonyms go to HFS) |
DYNAM SET LONSYNM MVS | (long synonyms go to MVS) |
DYNAM SET LONSYNM MATCH | (as for MVS, but short aliases must match between Master File and Access File) |
SET BLIM=buffersize SET SLIM=n SET CACHE={0|n} SET EXTSORT={OPSYS|OFF} SET CDN={ON|OFF} SET LANGUAGE=language SET SMARTMODE={ON|OFF} SET SQLENGINE=sqlengine
To alter the default allocation parameters for temporary files for MVS data sets, issue the following command
DYNAM SET TEMP[ALLOC] FOR type dynam_parms
where:
Is the optional remainder of the TEMPALLOC keyword. You can include it for readability; it has no effect on the command.
Is one of the following types: FOCUS, FOCSORT, HOLD, HOLDACC, HOLDMAST, OFFLINE, REBUILD, or SAVE.
Is one or more of the regular DYNAM ALLOC parameters to be used as default for that type. Note that DCB parameters, if provided here, will be ignored, since they must be compatible with the file type being written.
This is similar to the functionality of IBITABLA in the server on MVS. The defaults should be overwritten for all cases when in older versions a private copy of IBITABLA existed containing different values.
In z/OS, you configure all adapters using the Web Console.
Adapter |
MVS |
Information you must provide |
---|---|---|
Adabas |
Edit and run high_level_qualifier.EDALIB.DATA (GENEADL) to re-link ADALNK into FADALINK, which will be called by the server. The JCL must be edited with the appropriate values. Add Jobcard and submit. |
Provide the data set name for the following STEPLIB allocation:
This is required only for the synonym creation process. For example, in a production environment in which all synonyms already exist, you can omit this. When you configure the adapter, you will need to provide the name of the Adabas source library and the associated data set name. |
CA-DATACOM |
Allocate the CA-DATACOM load library to your STEPLIB. Create a DATACOM URT. Create a server-side URT. Create synonyms using the Auto tool. |
Provide the data set names for the following STEPLIB allocations:
|
CA-IDMS (both DB and SQL) |
Allocate the CA-IDMS:
For CA-IDMS/SQL only: Edit and run high_level_qualifier.EDALIB.DATA (GENEIDQ) to link module IDQFOC. |
Provide the data set names for the following STEPLIB allocations:
Provide the data set names to which the following ddnames are allocated:
|
CICS Transaction |
This adapter is not available on the server under MVS. |
Provide the data set name for the following STEPLIB allocation:
|
DB2 CAF |
Edit and run high_level_qualifier.EDALIB.DATA (RELJINS) to link and bind the DB2 interface, which will be called by the server. The JCL must be edited with the appropriate values. Add Jobcard and submit. |
Provide the data set names for the following STEPLIB allocations:
Provide the following information for DB2 BIND:
The installation will generate a fully customized DB2 BIND job and configure the adapter. DB2 CAF will be ready to use once the BIND job is executed. The configuration can be modified later using the Web Console, if necessary. |
DB2 CLI |
This adapter is not available on the server under MVS. |
Provide the data set names for the following STEPLIB allocations:
Provide a value for the following environment variable:
|
EJB |
This adapter is not available on the server under MVS. |
You must have the JDK installed. Provide a value for the following environment variables:
|
Call Java |
This adapter is not available on the server under MVS. |
You must have the JDK installed. Provide a value for the following environment variables:
|
IMS |
Allocation of IMS loadlibs in STEPLIB. |
Provide the data set names for the following STEPLIB allocations:
|
JDBC |
This adapter is not available on the server under MVS. |
You must have the JDK installed. Provide a value for the following environment variables:
|
Microsoft SQL Server |
This adapter is not available on the server under MVS. |
Select the Call Java adapter, in addition to the Microsoft SQL Server adapter, in Step 10 of Optional Low-Level Qualifier Changes. Provide a value for the following environment variables:
|
Millennium |
Provide the data set name for the following STEPLIB allocation:
|
Provide the data set name for the following STEPLIB allocation:
|
Model 204 |
Edit and run high_level_qualifier.EDALIB.DATA (GENE204) |
Provide the data set name for the following STEPLIB allocation:
|
MQSeries |
Provide the data set names for the following STEPLIB allocations:
|
Provide the data set names for the following STEPLIB allocations:
|
Teradata |
Edit and run high_level_qualifier.EDALIB.DATA (GENEDBC) to link and bind the Teradata interface, which will be called by the server. The JCL must be edited with the appropriate values. Add Jobcard and submit. |
You do not need to provide any information. |
VSAM CICS |
This adapter is not available on the server under MVS. |
Provide the data set name for the following STEPLIB allocation:
|
Adabas, VSAM, IMS and IDMS use AUTOTOOLS to create Master File Descriptions (metadata). DB2, Teradata metadata is created with CREATE SYNONYM.
Metadata for the following DBMS is created through the Web Console using Create Synonym: Adabas, DB2 CAF and DB2 CLI, Fixed, CA-IDMS/DB and CA-IDMS/SQL, IMS, Teradata, VSAM.
Type the following command at the prompt
LOGON APPLID(consoleapplid)
where:
Is the LU2 applid used to communicate with the console. Its value can be found in the adapter JCL file (EDACONS).
Open the Web Console by starting a browser pointed at the HTTP Listener port of the server. The URL format is http://host:port. For example, http://host:8101 for the Full-Function Server (if the default ports were used during installation). The actual HTTP Listener port number is one higher than the TCP Listener port specified during the installation.
The server software is provided on a cartridge in 3490 or 3590 format with MVS PDSs.
The server software is provided on a cartridge in 3490 or 3590 format with both MVS PDSs and HFS tar files.
In EDASERVE member, set EXTSEC=OPSYS.
The high_level_qualifier.EDALIB.LOAD library used by the JCL must be APF-authorized.
Logon to TSO with a user ID that has read access to the BPX.FILEATTR.APF facility class. This is for the security internal, which is the default. For more information, see the documentation for the MVS security setting.
Substituting in the actual EDAHOME directory, change the file attributes by entering the following commands in TSO or in ISFP Command Shell (option 6):
OSHELL extattr +a /u/iadmin/ibi/srv77/ home/bin/tscom300.out OSHELL extattr +a /u/iadmin/ibi/srv77/home/bin/tsqprx.out
Verify your changes by issuing the following commands:
OSHELL ls -E /u/iadmin/ibi/srv77/home/bin/tscom300.out OSHELL ls -E /u/iadmin/ibi/srv77/home/bin/tsqprx.out
The high_level_qualifier.HOME.LOAD library used by the JCL must be APF-authorized.
On z/OS, you can incorporate an additional routine called MSODDX into a user-written subroutine that needs to access ddnames allocated to a WebFOCUS Reporting Server, a Data Migrator Server, or a Full-function Server. MSODDX provides ddname translation services that enable external programs to access files under the ddname used by the Server.
For details, see Chapter 6, Platform-Specific Commands and Features, in the Stored Procedures Reference.
This parameter is placed in the service block of the EDASERVE configuration file so that an enclave name can be specified. This enclave is a feature of Workload Manager (WLM).
WLM_ENCLAVE_TRNAME = wlm_transaction_name
A parameter is available in the service block of the edaserve.cfg configuration file so that an enclave transaction name can be specified. This enclave transaction is a feature of Workload Manager (WLM).
For more information about Workload Manager, see Workload Manager.
The server has the ability in the edaserve.cfg configuration file to divide its agents into different services. This is very similar to the service blocks found in the EDASERVE member for the Server for MVS. Each agent is running for a specific service, and each service can have different values for some of the configuration parameters. During installation, the DEFAULT service block will be configured in edaserve.cfg. Additional services can be configured as required, using the Web Console.
How to: Reference: |
The server provides an optional facility to use for accounting purposes that enables you to log resource utilization on a per-user basis. This facility enables the server to generate SMF records for query-level and user-level accounting.
Server accounting requires that the server STEPLIB data sets be APF-authorized. When SMF records are generated, they contain:
You can process the SMF records using the accounting programs that exist at your site. Examples of SMF records are provided in SMF Record Format for RECTYPES 1 and 4.
In order to write SMF records, the server must be running APF authorized.
Two sample Master Files (SMFVSAM and SMFFIX) are provided for accessing accounting statistics. They reside under the catalog subdirectory in the EDAHOME location. Their difference is that SMFVSAM can be used to report directly from the system-live SYS1.MANx records, while SMFFIX can be used to report from a sequential file produced from running the SMFDUMP utility. These Master Files enable you to interpret the SMF records generated by the accounting facility using reporting requests or store procedures. Both Master Files are for logoff records only, as indicated by ALIAS=2 on the RECTYPE field entry.
A sample procedure report to query the SMF data is also provided under the same location. It is called smfman1.fex.
To enable accounting, insert the following statement into the server configuration file (edaserve.cfg):
smf_recno=smfnumber
where:
Is an integer in a range from 128 to 255, inclusive. This number represents the SMF number used by the accounting facility when it sends records to the SMF system.
By default, both RECTYPE pairs will be created when accounting is enabled. You can override the default by coding the following parameter on edaserve.cfg:
smf_subtype = {all|logon|query}
where:
Cuts all records. This is the default.
Cuts logon records only (RECTYPE pair 1 and 2).
Cuts query records only (RECTYPE pair 4 and 5).
Up to 40 characters can be supplied that appear in the SMF records field SMFOFA40. The SET BILLCODE command can be used in any support server profile to provide the account field information. The syntax is
SET BILLCODE=value
where:
Is the 1–40 characters to be used on each SMF record produced.
This information can also be set dynamically from a client application by coding an RPC with the SET command and executing it with the value as a parameter. WebFOCUS users can send the SET command to the server.
To report from SMF data, execute the sample procedure smfman1.fex, provided under home/catalog (DDNAME EDAHFEX for a PDS Deployment server).
You will be prompted for the DSN of the SMF VSAM data set from which you want to report, and the smf_recno value used to produce the SMF records.
Following is a listing of smfman1.fex
DYNAM ALLOC FI SMFVSAM DSN &SMFDSN.Please provide SMF VSAM DSN. SHR REU DEFINE FILE SMFVSAM CPU/D8.2 = SMFOFCPU / 100 ; USER/A8 = SMFOFUID ; EXCPS/I6 = SMFOFEXC ; TIME/D9.2 = SMFOFLTM / 100 ; HR/I2 = SMFOFTME / 360000 ; MIN/I2 = (SMFOFTME - (HR*360000)) / 6000 ; TOD/A5 = EDIT(HR) | ':' | EDIT(MIN) ; END TABLE FILE SMFVSAM PRINT USER CPU EXCPS TIME TOD WHERE SMFOFRTY EQ &SMFNUM.Please provide SMF number(type) for report. END
There are four RECTYPE values defined to produce SMF records:
RECTYPE |
Description |
---|---|
1 |
Indicates a start of task record. When included in a report, these statistics tell when a task initiation occurred, and are of no particular use in chargeback. By pairing start and end of task records for all tasks within a time period, statistics, such as average active time, peak task count, and average task count, can be determined. These values can be used for future capacity planning activities for the server. |
2 |
Indicates the start of a task record. When included in a report, these statistics tell when a task termination occurred. These records are cut for both publicly and privately deployed services and contain statistics for the subtask as a whole. For privately deployed services, RECTYPE (2) records contain statistics associated with a single user connection. |
4 |
Begin query. (Record layout is the same as RECTYPE (1). |
5 |
End query. (Record layout is the same as RECTYPE (2). |
The record format for RECTYPES 1 and 4 of the SMF records written by the server is defined below. The format is provided in the system 390 assembler DSECT form.
SMFON DSECT SPACE *----------------------------------------------------* * USAGE ACCOUNTING SMF RECORD LAYOUT FOR LOGON RECORDS. * * * * THIS IS THE DSECT DESCRIBING THE SMF RECORD WHICH IS PASSED TO * * YOUR EXIT ON AT USER LOGON TIME. IT IS COMPLETELY READY TO BE * * WRITTEN WHEN YOUR EXIT RECEIVES CONTROL. * *----------------------------------------------------* SPACE
*----------------------------------------------------* * THE FIRST TWENTY FOUR BYTES OF THE RECORD ARE THE SMF HEADER. * * THESE FIELDS ARE REQUIRED IN ALL SMF RECORDS (18 BYTES FOR RECORDS * * WITHOUT SUBTYPES; WE USE SUBTYPES, THE HEADER IS 24 BYTES). * SPACE
SMFONLEN DS H'116' RECORD LENGTH SMFONSEG DS XL2'0000' SEGMENT DESCRIPTOR (0 UNLESS SPANNED) SMFONFLG DS XL1 SYSTEM INDICATOR SMFONRTY DS XL1 RECORD TYPE SMFONTME DS XL4 TIME, IN HUNDREDTHS OF A SECOND SMFONDTE DS PL4 DATE, 00CYYDDDF, WHERE F IS THE SIGN SMFONSID DS CL4 SYSTEM IDENTIFICATION SMFONSBS DS CL4 SUBSYSTEM IDENTIFICATION SMFONSBT DS XL2'0001' SUBTYPE OF RECORD - X'0001' INDICATES X THIS IS A LOGON RECORD SPACE
*----------------------------------------------------* * THE NEXT FIELDS ARE THOSE PRESENT IN THE LOGON * * RECORD FOR THE START OF A USER SESSION. * *----------------------------------------------------* SPACE SMFONMSO DS CL8 JOBNAME SMFONJID DS CL8 JOBID (FROM SSIBJBID) SMFONASI DS Y ASID SMFONRV1 DS XL2 RESERVED SMFONUID DS CL8 SECURITY USERID SMFONLID DS CL8 USERID PRESENTED AT LOGON (SAME AS X SMFONSID UNLESS CHANGED VIA MSIDTR X SECURITY EXIT) SMFONRSV DS XL8 RESERVED FOR FUTURE EXPANSION SMFONCTI DS XL4 RESERVED FOR FUTURE EXPANSION SMFONSRV DS CL8 SERVICE NAME FROM SERVICE BLOCK SMFONRS0 DS XL4 RESERVED FOR FUTURE EXPANSION SMFONCNT DS XL1 CONNECTION TYPE SPACE
SMFONTSO EQU 1 CONNECTION VIA TSO SMFONCIC EQU 2 CONNECTION VIA CICS SMFONVTM EQU 4 CONNECTION VIA VTAM SMFONPSR EQU 8 SPACE SMFONRS1 DS XL3 RESERVED SMFONID1 DS F SYSPLEX ID 1 SMFONID2 DS F SYSPLEX ID 2 SMFOFPID DS XL8 POOLED USER ID SMFONRS2 DS XL12 RESERVED SMFONL EQU *-SMFON LENGTH OF THE SMF LOGON RECORD
The record format for RECTYPES 2 and 5 of the SMF records written by the server is defined below. The format is provided in the system 390 assembler DSECT form.
SMFOF DSECT SPACE *----------------------------------------------------* * USAGE ACCOUNTING SMF RECORD LAYOUT FOR LOGOFF RECORDS. * * * * THIS IS THE DSECT DESCRIBING THE SMF RECORD WHICH IS PASSED TO * * YOUR EXIT ON AT USER LOGOFF TIME. IT IS COMPLETELY READY TO BE * * WRITTEN WHEN YOUR EXIT RECEIVES CONTROL. * *----------------------------------------------------* SPACE
*----------------------------------------------------* * THE FIRST TWENTY FOUR BYTES OF THE RECORD ARE THE SMF HEADER. * * THESE FIELDS ARE REQUIRED IN ALL SMF RECORDS (18 BYTES FOR RECORDS * * WITHOUT SUBTYPES; WE USE SUBTYPES, THE HEADER IS 24 BYTES). * *----------------------------------------------------* SPACE SMFOFLEN DS H'168' RECORD LENGTH SMFOFSEG DS XL2'0000' SEGMENT DESCRIPTOR (0 UNLESS SPANNED) SMFOFFLG DS XL1 SYSTEM INDICATOR SMFOFRTY DS XL1 RECORD TYPE SMFOFTME DS XL4 TIME, IN HUNDREDTHS OF A SECOND SMFOFDTE DS PL4 DATE, 00CYDDDF, WHERE F IS THE SIGN SMFOFSID DS CL4 SYSTEM IDENTIFICATION SMFOFSBS DS CL4 SUBSYSTEM IDENTIFICATION SMFOFSBT DS XL2'0002' SUBTYPE OF RECORD - X'0002' INDICATES X THIS IS A LOGOFF RECORD SPACE
*----------------------------------------------------* * THE NEXT FIELDS ARE THOSE PRESENT IN THE LOGOFF * * RECORD FOR THE END OF A USER SESSION. * *----------------------------------------------------* SPACE SMFOFMSO DS CL8 JOBNAME SMFOFJID DS CL8 JOBID (FROM SSIBJBID) SMFOFASI DS Y ASID SMFOFRV1 DS XL2 RESERVED SMFOFUID DS CL8 SECURITY USERID SMFOFLID DS CL8 USERID PRESENTED AT LOGON (SAME AS X SMFOFSID UNLESS CHANGED VIA MSIDTR X SECURITY EXIT) SMFMEMA DS XL4 MEMORY ABOVE THE LINE (IN KILOBYTES) SMFMEMB DS XL4 MEMORY BELOW THE LINE (IN KILOBYTES) SMFZIIP DS XL4 ZIIP CPU NORMALIZED (HUNDREDTHS OF A SEC) SMFOFSRV DS CL8 SERVICE NAME FROM THE SERVICE BLOCK SMFZPOCP DS XL4 ZIIP ON CP (HUNDREDTHS OF A SEC) SMFOFCNT DS XL1 CONNECTION TYPE SPACE
SMFOFTSO EQU 1 CONNECTION VIA TSO SMFOFCIC EQU 2 CONNECTION VIA CICS SMFOFVTM EQU 4 CONNECTION VIA VTAM SMFOFPSR EQU 8 SMFOFCC DS XL3 COMPLETION CODE FOR THE TASK SMFOFACT DS CL8 USER ACCOUNTING INFORMATION; THIS X FIELD CURRENTLY PASSED AS LOW VALUE SMFOFCPU DS XL4 CPU TIME IN HUNDREDTHS OF A SECOND SMFOFEXC DS XL4 COUNT OF EXCP'S SMFOFLTM DS FL4 LOGON DURATION IN HUNDREDTHS OF A X SECOND SMFPRTY DS XL1 PRIORITY SMFCOMPL DS XL1 COMPLETION TYPE DS XL2 RESERVED SMFOFID1 DS F SYSPLEX ID 1 SMFOFID2 DS F SYSPLEX ID 2 SMFOPID DS XL8 POOLED USERID SMFOFA40 DS CL40 FULL 40-BYTE ACCOUNTING FIELD SPACE SMFOFL EQU *-SMFOF LENGTH OF THE SMF LOGOFF RECORD
When using a server to access DB2 data, certain processing takes place within the DB2 address space and is governed by DB2's chargeback system. If a user requests data from DB2, the server passes the request to the DB2 subsystem. The DB2 subsystem then processes the request, performing such tasks as retrieving rows and aggregating the data. It generates the answer set, and passes the output back to the server. The server then performs any joins and formatting which have not been performed by DB2 to satisfy the original request.
Charges incurred while the request was being processed by the DB2 subsystem are added to the charges accumulated in the server task that originated the request for processing. If the server accounting is enabled, these charges are associated with the user logon and security IDs in the SMF records described earlier.
In this section: |
There are several ways in which you can improve the server performance:
We recommend that you run the server in a non-swappable address space. In order to make the server address space permanently non-swappable, add the following entry to SYS1.PARMLIB(SCHEDxx):
PPT PGMNAME(TSCOM300) /* PROGRAM NAME */ NOSWAP /* NON-SWAPPABLE */ CANCEL /* CAN BE CANCELLED */
Do not use the KEY 0 parameter, or any other parameter (such as NOPASS), unless the system programmer completely understands the consequences of adding the parameter.
All local spawn transactions will perform in the mode of the server. For example, if the server address space is non-swappable, all local spawn execute as non-swappable.
The server executes limited non-local spawn, such as when the user executes a UNIX system command. Non-local spawn execute as swappable.
The server never executes a fork subroutine. (A fork subroutine creates a new process. The new process, called the child process, is an almost exact copy of the calling process, which is called the parent process.)
Although the server may run in a specific performance group, transactions submitted by server agents may perform differently than the server by adding the following keyword to edaserve.cfg:
wlm_enclave_trname = WLM_transaction_name
where:
Can be up to 8 characters.
This is a service-level keyword.
Using this setting, the task will join a Workload Manager (WLM) enclave when a request starts, and leave the enclave when the request finishes. This gives WLM control of the dispatching priority of the task. The transaction rules defined on WLM will determine the default service class assigned to this transaction, and that service class will determine how the request runs.
This feature helps to balance a workload so that a long request will not affect a short request. This can be achieved through WLM rules designed to lower the priority of a long request after a certain period of time. Without this feature, all requests share the region priority.
The transaction name passed in this keyword must match one defined in the WLM Classification Rules for the Job Entry Subsystem (JES). A corresponding WLM Service Class pointed to by this rule will then be associated with this service.
The classification rules for JES must be used even if the server is started as a started task. The subtasks are always run under JES.
For example, you would include the following in edaserve.cfg:
SERVICE = DEFAULT BEGIN wlm_enclave_trname = IWAYFAST . . . END
The WLM definition is:
Subsystem Type JES - Batch Jobs Classification: Default service class is PRDBATLO There is no default report class. Qualifier Qualifier Starting Service Report # type name position Class Class - ---------- -------------- --------- --------- -------- 1 TN IWAYFAST EDAQRYHI
WLM subrules (levels 2 and above) are supported. For a server request to join an enclave in a particular service class, the names of all rule qualifiers below our transaction name are checked. For example, consider the following WLM definition:
Subsystem Type JES - Batch Jobs Classification: Default service class is PRDBATLO There is no default report class. Qualifier Qualifier Starting Service Report # type name position Class Class - --------- ------------- -------- -------- -------- 1 SSC PRDMVS PRDDFLT 2 . TN . IWAYFAST EDAQRYHI
In this particular case, the qualifier 1 type is SSC (Subsystem Collection), and a server request will only join the enclave IWAYFAST if it is running on a particular LPAR in the SYSPLEX. This qualifier (PRDMVS) must match the XCF group definition: issue $DMASDEF (for JES2) and check the value of XCFGRPNM field.
You can handle WLM scheduling environments by defining them to WLM and then adding the JOB statement parameter SCHENV=xxxxx to the ISTART JCL.
Q: How do I execute server user profiles from a PDS?
A: We recommended that you copy the server user profiles from the PDS to the HFS directory /ibi/profiles, and rename them to add the extension .prf (for example, user_id.prf). Alternatively, you can use the following technique to execute user profiles from a PDS:
//MVSPROF DD DISP=SHR,DSN=high_level_qualifier.EDAPROF.DATA
APP MAP MVSPROF fex=//dd:mvsprof APP MAP MVSAPP mas=//dd:master;fex=//dd:focexec;acx=//dd:access; ... APP PATH IBISAMP MVSAPP -SET &USERID='12345678'; -SET &USERID=GETUSER(&USERID); EX MVSPROF/&USERID
Q: What permissions are specified for application component files?
A: Application component files, such as FOCEXEC procedures (.FEX), Master Files (.MAS), and Access Files (.ACX), reside in the /ibi/apps/applicationname directory, where they are created with a permission of 666 minus the UMASK setting.
For example, if the UMASK value is 022, each application component is created with a permission of 644.
Caution: When using the above UMASK values, if one user ID creates application components, all other users will be able to read them, but not to write, update, or refresh.
You can provide write access by changing the value of UMASK at installation time, or manually in IRUNJCL. For example:
//TSCOM300 EXEC PGM=TSCOM300, // PARM='ENVAR("_EDC_UMASK_DFLT=0022")/' //STEPLIB DD DISP=SHR,DSN=EDABXV.SRV77.HOME.LOAD
Q: Can I monitor server startup by checking the MVS SYSLOG?
A: Yes.
The following messages are written to the SYSLOG when
(EDA13023) ALL INITIAL SERVERS STARTED
(EDA13171) UNABLE TO START IWAY SERVER
In this section: |
As of Version 7 Release 6.8, to address display of third-party software license requirements, a license option has been added to the Help menu located on the Web Console. This section describes the third-party software and includes references to the full licenses included in Information Builders and Third-Party Licenses.
OpenFlex SDK is included by Information Builders for use with its HOLD FORMAT FLEX feature. This distribution is subject to the terms and conditions of the Mozilla Public License Version 1.1.
For more information, see Zip Archiver License or visit our website, http://www.informationbuilders.com.
To troubleshoot an installation problem, identify your problem in the following list, and follow the link to a description of the solution.
If you cannot find your problem described in the list, and cannot resolve it yourself, contact Customer Support Services as described in Information You Should Have and Customer Support. In addition, supply the following information to Customer Support Services:
If you have a troubleshooting suggestion that is not described in the list, and you think others will find it helpful, we invite you to send it to us, as described in How to Add Your Problem to the Troubleshooting Guide. We will consider including your problem in a future release of this manual.
Problems:
For details, see Problem: The Server Abends With a U4039 Code.
For details, see Problem: INSUFFICIENT AUTHORITY TO GETPSENT messages in JESLOG.
For details, see Problem: Request fails, and JVM not found messages written to edaprint.log.
Problem: The server abends with a U4039 code.
Cause: This is a generic abend.
Solution: Find out what caused the abend by checking the edaprint.log file, SYSOUT ddname, and the MVS system log.
Problem: INSUFFICIENT AUTHORITY TO GETPSENT messages appearing in JESLOG.
Cause: See IBM APAR II11813.
Solution: The APAR recommends issuing one of the following RACF commands:
SETROPTS LOGOPTIONS (NEVER(PROCACT)) SETOPTS LOGOPTIONS (DEFAULT(PROCACT))
However, when a non-superuser in the OMVS shell issues the command ps -ef, the following security message is repeated in SYSLOG:
ICH408I USER(default) GROUP(dgltgrp) NAME(bpxdefaultuser) 060 CL(PROCACT) INSUFFICIENT AUTHORITY TO GETPSENT
This does not indicate an error. It is an informational message issued because of RACF LOGOPTIONS settings. The ps -ef command is a request to show all processes that the requester is authorized to see, but a non-superuser is allowed to see only his or her own processes.
Problem: The request fails, and JVM not found messages are written to edaprint.log.
Cause: If the server cannot find the Java Virtual Machine (JVM), the JSCOM Listener will not be able to start, and messages will be written to the server log stating that the JVM cannot be found.
Solution: Specify the location of the JVM in JDK_HOME or IBI_JNIPATH. (For information, see JVM Requirements for Java Services.)
A server will implicitly attempt to start unsecured if proper authorization steps have not been completed. Starting the server normally clears edatemp. If prior edatemp files exist (and authorization has not been done), start up will fail due to an inability to clear the directory. However, if an edastart -cleardir command was issued just before the upgrade, there is nothing to clear, no error occurs, and the server starts. If the server starts and is not inspected after the initial start up, the server being in the wrong mode may go unnoticed.
The proper solution is to add proper authorizations after an upgrade, as described in Step 4. Reconfigure Server Security, and restart the server. A new safety measure has also been added. If the environment variable EDAEXTSEC is set to OPSYS explicitly, and a server lacks authorization, it will not start (see Preventing Unsecured Server Starts After Upgrades for details).
To generate a server trace:
A directory called sdnnnnnn is created under your configuration directory (for example, /ibi/srv77/ffs/sd123456). Diagnostic information is placed in this directory. Make sure you have access to this directory.
Do not change anything in the EDAENV member: changes could prevent the correct information from being copied to your directory.
To generate a system dump:
RECFM=FB,LRECL=4160,BLKSIZE=4160.
//SYSMDUMP DD DISP=SHR,DSN=MYID.EDAPTH.SYSMDUMP,FREE=CLOSE
//SYSMDUMP DD DISP=SHR,DSN=MYID.EDAPTH.SYSMDUMP
Only two IDs must have privileges to write into this data set: ISERVER and IADMIN. General server users DO NOT need read or write access to the SYSMDUMP data set.
//ABNLIGNR DD DUMMY
EDADUMPOPT=UAIMM in EDAENV DD
This enables you to get more accurate information reflecting the moment the abend actually occurs.
Instead of using JCL allocations to add SYSMDUMP, the procedure described below can be used alternatively.
A z/OS operator can issue modify commands from the z/OS system console to allocate DDNAMES to the server without restarting it. This procedure is useful if you need to reallocate a file that was freed to allow a batch overnight utility to run, or perhaps to add SYSMDUMP allocation to a running server.
F <iway_server_jobname/started task>,DYNAM ALLOC FI <ddname> DA <dsname> <optional dynam parameters>
F IWAY2,DYNAM ALLOC F VSAMFILE DA VSAM.FILEA.CLUSTER SHR
F IWAY2,DYNAM ALLOC FILE SYSMDUMP DA PROD2.SYSMDUMP.DATA SHR CLOSE
Note: The examples above assume IWAY2 is the jobname/started task ID for the server.
All valid DYNAM ALLOC syntaxes are supported. For more information on the DYNAM command, please refer to the Store Procedures Reference manual.
The following message will be issued in the server JESMSGLG indicating if the command was processed successfully or not.
Success:
+DYNAM COMMAND SUCCESFULLY PROCESSED Rc=0
Failure:
+DYNAM ERROR: IKJ56225I DATA SET IWAY.TEST ALREADY IN USE, TRY LATER
A z/OS operator can issue modify commands from the z/OS system console to free DDNAMEs or DSNAMEs allocated to the server. Both global allocations (made at the server ISTART JCL) and local ones (DYNAM ALLOC commands issued by user tasks) can be freed. This procedure is useful if you need to free an allocation to run a batch utility overnight, without restarting the server.
To free a single DDNAME:
F <iway_server_jobname/started task>,DYNAM FREE FI <ddname>
To free a single DSNAME (all occurrences in the server):
F <iway_server_jobname/started task>,DYNAM FREE DS <dsname>
To free multiple DDNAMEs, passing a pattern (free all DDNAMEs staring with AB):
F <iway_server_jobname/started task>,DYNAM FREE FI AB*
To free multiple DSNAMEs (all occurrences in the server), passing a pattern (free all allocations of data sets starting with IWAY.VSAM):
F <iway_server_jobname/started task>,DYNAM FREE DA IWAY.VSAM*
A message will be issued in the iway_server JESMSGLG indicating if the command was process successfully or not, as follows.
Success:
+DYNAM COMMAND SUCCESFULLY PROCESSED Rc=0
Failure:
+DYNAM ERROR: IKJ56225I DATA SET IWAY.TEST ALREADY IN USE, TRY LATER
Suppose ISTART JCL (jobname IWAY2) has the following allocation:
//VSAMFILE DD DISP=SHR,DSN=VSAM.FILEA.CLUSTER
The operator can free this file using the command (from MVS console):
F IWAY2,DYNAM FREE FI VSAMFILE
RDAAPP is an interactive client test application that facilitates the execution of SQL statements and stored procedures on the Unified server. During the installation process, JCL and REXX routines are created in the installation data set as members IRDAAPPJ and IRDAAPPC respectively.
The following installation data set is used for HFS deployment.
qualify.servertype.DATA
where:
Is determined by your license key.
The following installation data set is used for PDS deployment.
qualify.PDS.servertype. DATA
where:
Is determined by your license key.
Note: The RDAAPP application is not intended for use as a production tool.
//STDIN DD * Put your request here //
to
//STDIN DD * <enter blank line> <enter userid> <enter password> LOOPBACK <enter request> <enter optional parameters> Q Q //
Field |
Instructions | |
---|---|---|
<enter userid> |
Enter a valid userid or blank line if the userid of the user who submitted the job is to be used for a trusted connection. | |
<enter password> |
Enter the password for the above userid or a blank line if the userid/password of the user who submitted the job is to be used for a trusted connection. | |
LOOPBACK |
Match a node name in the EDACS3 allocation in the IRDAAPPJ JCL. Default is LOOPBACK. | |
<enter request> |
Enter one of the following values: | |
S |
To enter an SQL SELECT statement. Type the statement after you enter the value S (see the following example). | |
P |
To enter an SQL PREPARE statement. Type the statement after you enter the value P. | |
D |
To execute a prepared statement by supplying the ID. Type the ID after you enter the value E. | |
Q |
To quit. | |
? |
For this list of commands. | |
<enter optional parameters> |
Depending on the above command, you may be prompted for: Select engine (0/ENTER - EDA, 1 - DB2, 2 - TERADATA, and so on.). Reclimit (Press Enter for all records). Readlimit (Press Enter for all records). | |
Q |
Quit RDAAPP (It is needed twice). |
EX 'qualif.servertype.DATA(IRDAAPPC)'
or
EX 'qualif.PDS.servertype.DATA(IRDAAPPC)'
where:
Is determined by your license key.
The following is the screen output from a sample execution of the IRDAAPPC REXX routine:
******************************************************************** ** RDAAPP Client test tool ** ********************************************************************
<<< RDAAPP : Initializing EDA/API SQL, Version 7, Release 7 >>>
Default communications config file : //DD:EDACS3
Override? (Press enter for default) : <enter blank line>
<<< Initialization Successful >>>
Enter User Name : <enter userid or leave blank for current TSO userid> Enter Password : <enter password or leave blank for current TSO userid password> Enter server name, number, SELF, URL or ? (Hit return for 'LOOPBACK') :
<<< Successfully connected to synchronous server LOOPBACK >>>
Enter Command (? for command help): S SELECT COUNTRY FROM CAR;
Select engine (0/ENTER - EDA, 1 - DB2, 2 - TERADATA, etc) :
Reclimit (Hit enter for all records):
Readlimit (Hit enter for all records):
Please Wait...
ENGLAND FRANCE ITALY JAPAN W GERMANY
<<< 5 record(s) processed. (scb count 5) wait=4 secs, retrieval=0 secs>>>
<<< 5 record(s) processed. (scb count 5)>>>
Q
Enter Connect or Quit:
Q
<<< RDAAPP : Exiting... >>>
***
Enter Command (? for command help):
If you have troubleshooting suggestions that you think others will find helpful, we invite you to send them to us so that we can consider including them in a future release. You can:
Please include your name, phone number, email address, and postal address.
iWay Software |
